shoe laser painting cutting machine

Shoe laser painting cutting machine is with 2 spray gun, 4 auto laser head and auto feeding system, suitable for cutting roll to flyknit upper、white air mesh、super fiber leather、high-elastic materials、fur、cloth、sponge、composite materials,etc. Auto feeder is optional. Four heads cutting and four heads spraying are optional.

  • Item NO.:

    FLG-1680 1615
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10-15days

Shoe laser painting cutting machine is widely used in shoe、bags、textile industries, etc. There is no need for knife molds and stencils, which saves 7-9% of raw materials and saves two workers (no safety hazard at all).

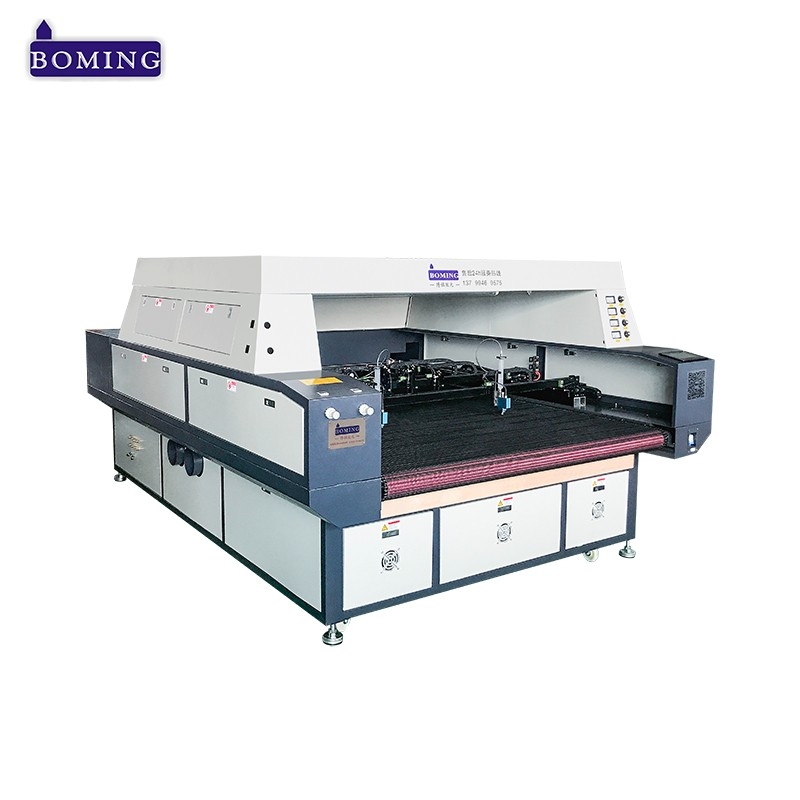

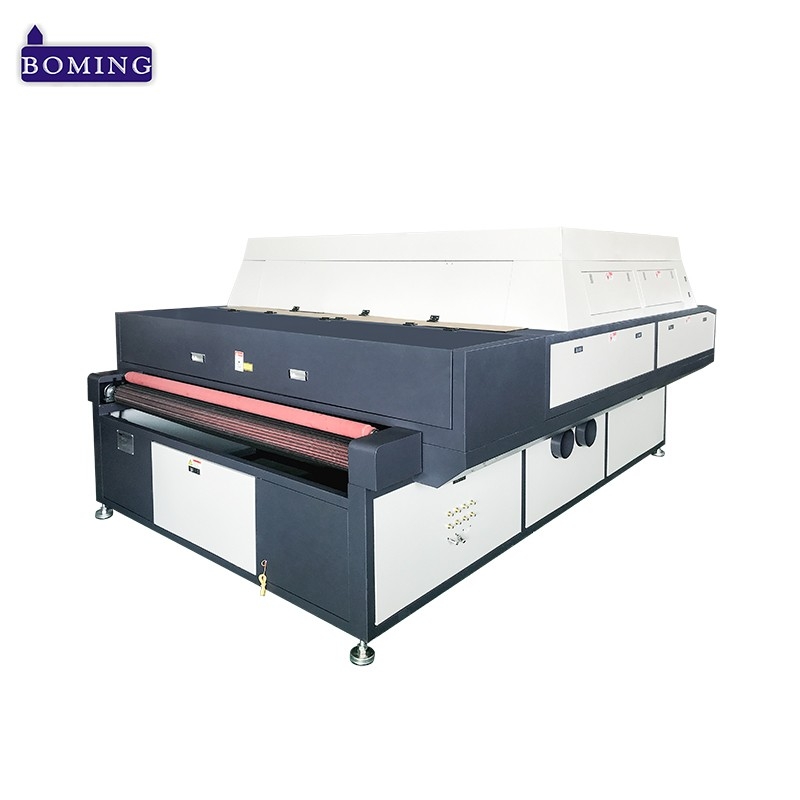

Machine pictures:


laser leather cutting machine prices


laser painting cutting machine

laser gluing cutting machine




Advantageof auto feed laser cutting machine

1、Automatic feeding, whole roll material loading, automatic typesetting, accurate material saving up to 9%;

2、Draw the line first, then cut synchronously, accurate and precise, the product qualification rate is above 99.99;

3、Reduce the process, reduce the moving cost, reduce the loss rate of the line drawing after blanking by 3%;

4、Computerized documentation and intelligent management, reducing the cost of knife molds, and reducing storage space for knife molds;

5、Exempt the film template,Exempt the film, long-term exemption, obvious cost advantage;

6、Reduce workers, simple operation, reduce the requirements for worker ability, and have obvious cost advantages;

7、Automatic feeding, can work continuously for 24 hours, with high efficiency and quality assurance;

8、Reduce machines quantity, reduce occupied space, reduce electricity consumption, and reduce safety hazards.



Features: of shoes laser cutting machine

1.Fast automatic line drawing speed

2.Double-head spray painting, two or four-head cutting

3.The pass rate of automatic line drawing is 99.99%

4.Imported guide rail and transmission belt
5.
One-time typesetting, drawing and cutting at one time

6.Simple operation, no work injury safety hazards






Applicable Materials: of laser cutting machine for roll fabric

All colors (white) mesh, (white) super fiber leather, flyknit upper, high-elastic materials, fur, cloth, sponge, composite materials, etc.





Technical Parameters:

MODEL:

FLG-PQ1680/1615

LASER TYPE

SEALED CO2 GLASS TUBE

LASER POWER:

150W 170W 180W

LASER HEAD NO.:

Two-axis asynchronous, 4 heads cutting, 2 heads spraying glue

POWER CUNSUMPTION:

5000W

GROSS WEIGHT:

700KG~1200KG

GRAPHIC FORMAT:

PLT、DXF、AI.

POWER SUPPLY:

AC220V ±5%/50HZ

CUTTING SPEED:

≤500MM/S

CUTTING PLATFORM:

Automatic feeding mesh belt platform, honeycomb platform

CUTTING DEEPNESS:

≤10MM

COOLING SYSTEM:

Air-conditioning constant temperature water cooling circulation system




Sample show: 4 Head auto feeding laser painting cutting machine





Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.

2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.

3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.

4) The machine must be kept flat to avoid tilting.

5) When the machine working, it must be with personnel, avoid fire.



Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......




Packaging & Shipping: of laser cutting machine for shoe

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.
