1810 Automatic line drawing laser cutter with pen is with 2 drawing pen on laser head and auto feeding system, suitable for cutting roll to roll shoe upper、shoe vamp、sportswear、underwear、flyknit upper、white air mesh、super fiber leather、high-elastic materials、fur、cloth、sponge、composite materials，etc. Auto feeder is optional. There are many models for choice: Four heads cutting and four heads spraying, Four heads cutting and two heads spraying, two heads cutting and two heads spraying, two heads cutting and one head spraying, one head cutting and one head spraying. Auto feeding table and honeycomb table are optional.
Item NO.:
FLG-1614 1615Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1810 Automatic line drawing laser cutter with pen is widely used in shoe、bags、textile industries, etc. There is no need for knife molds and stencils, which saves 7-9% of raw materials and saves two workers (no safety hazard at all). Different models and different working area are optional. Auto feeding table and honeycomb are optional. It is with pen, not with spraying head, can save the glue cost.

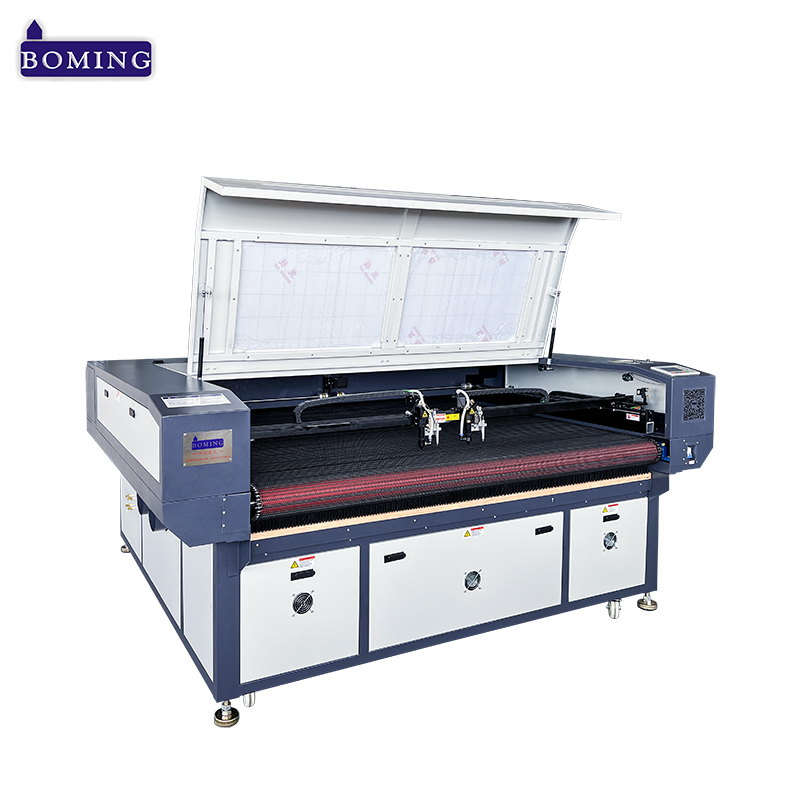

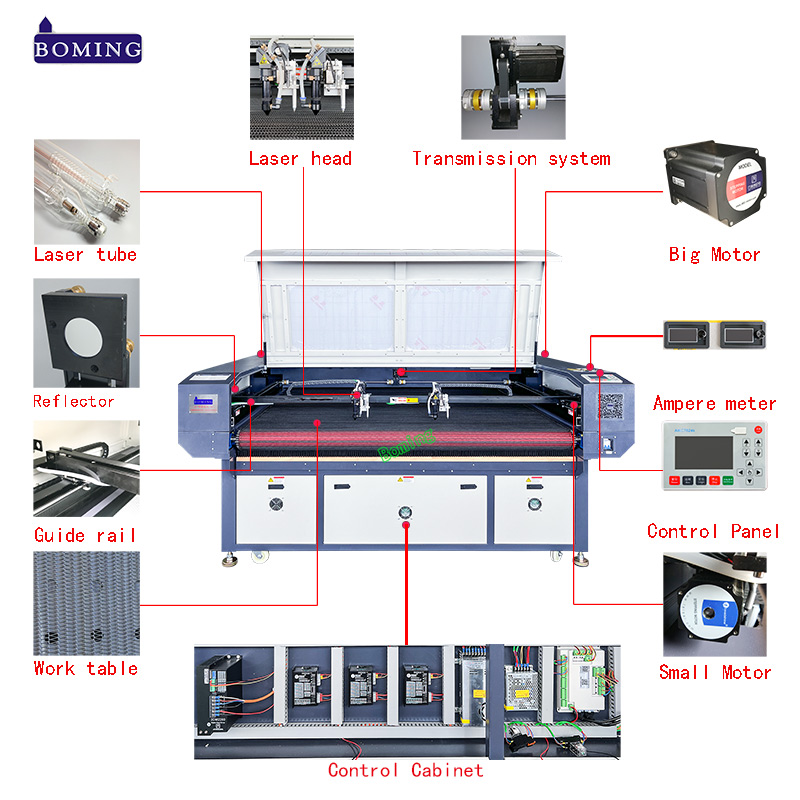

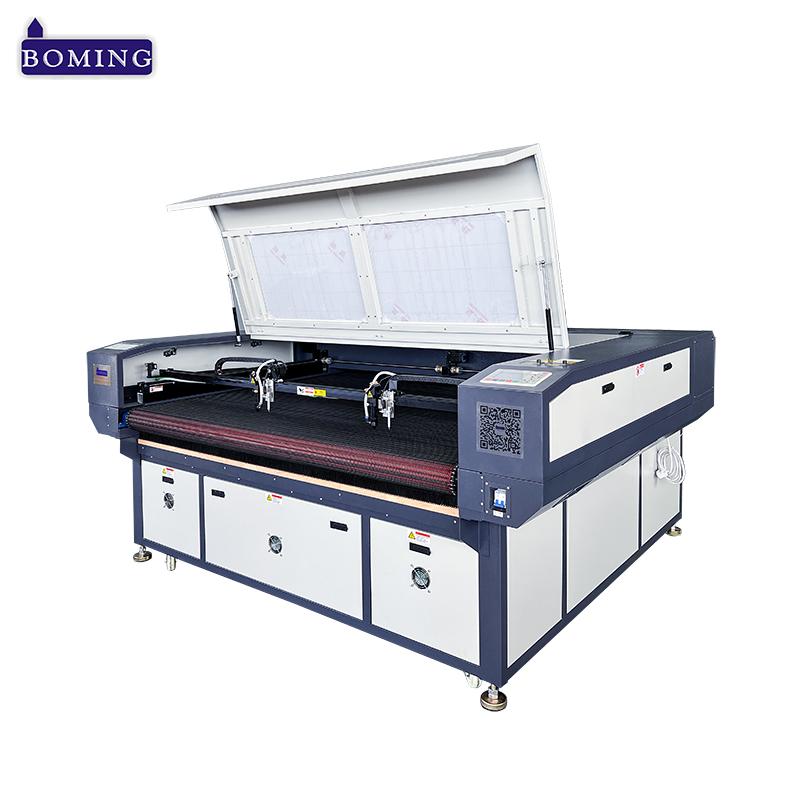

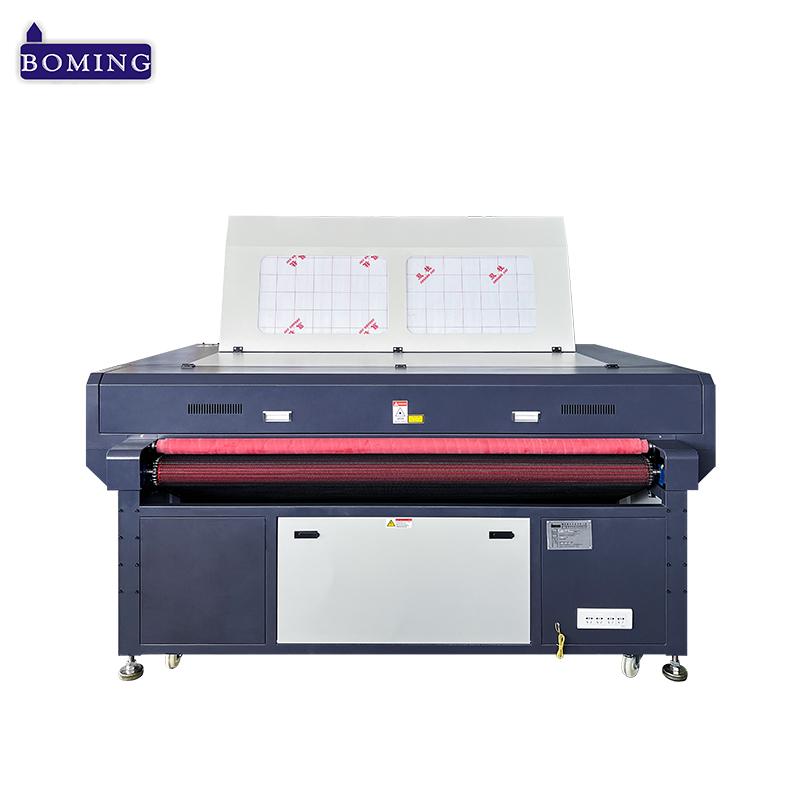

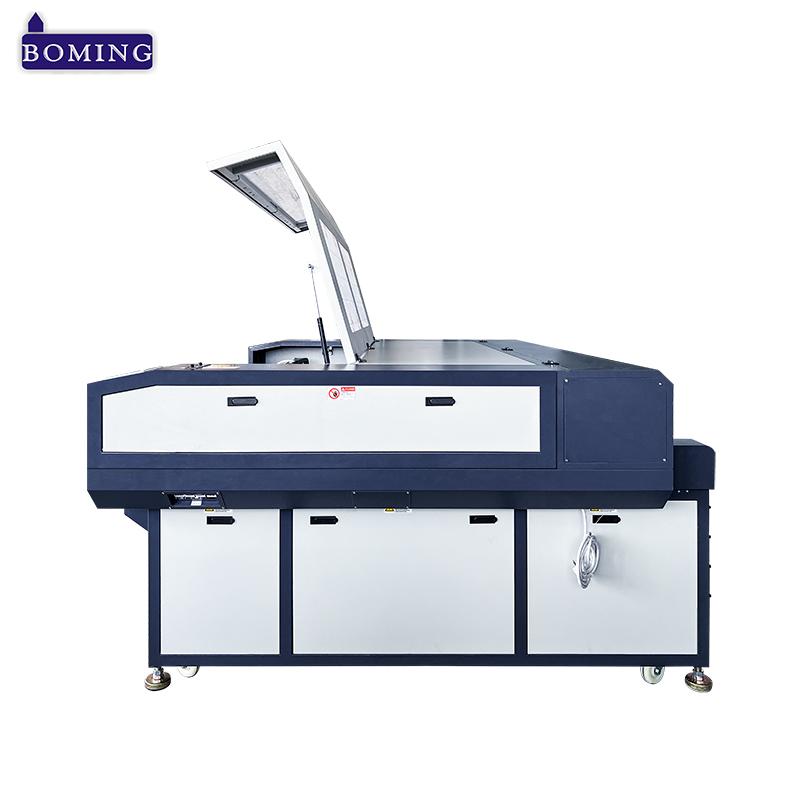

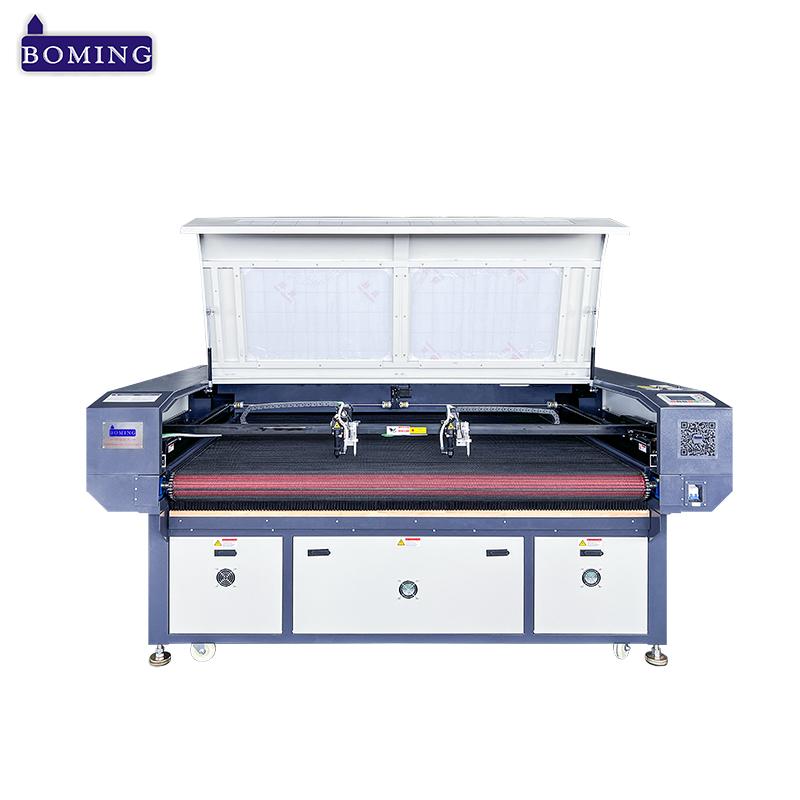

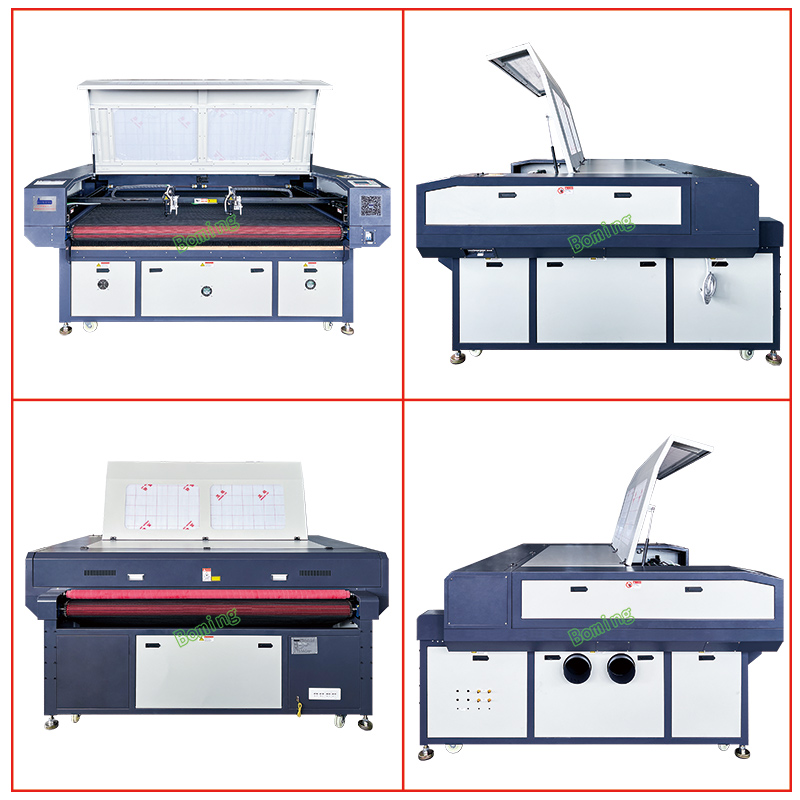

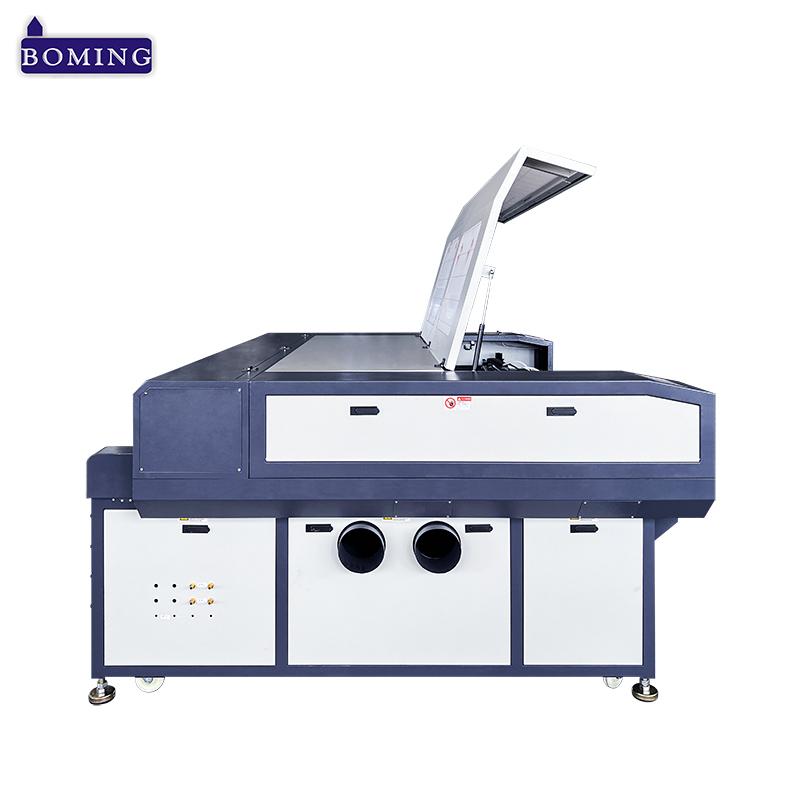

Machine pictures:of drawing line laser cutting machine
Advantage: of laser cutter with line drawing
1、Automatic feeding, whole roll material loading, automatic typesetting, accurate material saving up to 9%;
2、Draw the line first, then cut synchronously, accurate and precise, the product qualification rate is above 99.99;
3、Reduce the process, reduce the moving cost, reduce the loss rate of the line drawing after blanking by 3%；
4、Computerized documentation and intelligent management, reducing the cost of knife molds, and reducing storage space for knife molds;
5、Exempt the film template,Exempt the film, long-term exemption, obvious cost advantage;
6、Reduce workers, simple operation, reduce the requirements for worker ability, and have obvious cost advantages;
7、Automatic feeding, can work continuously for 24 hours, with high efficiency and quality assurance;
8、Reduce machines quantity, reduce occupied space, reduce electricity consumption, and reduce safety hazards.
Features: of laser drawing line machine
1.Fast automatic line drawing speed
2.Double-head spray painting, two or four-head cutting
3.The pass rate of automatic line drawing is 99.99%
4.Imported guide rail and transmission belt
5.One-time typesetting, drawing and cutting at one time
6.Simple operation, no work injury safety hazards
Applicable Materials: of automatic drawing line and cutting machine
All colors (white) mesh, (white) super fiber leather, flyknit upper, high-elastic materials, fur, cloth, sponge, composite materials, etc.
Technical Parameters: of Automatic smart vamp marking line machine
MODEL: | FLG-PQ1680/1610/1614/1615/1810 |
LASER TYPE： | SEALED CO2 GLASS TUBE |
LASER POWER： | 100W 150W 180W 300W |
LASER HEAD NO.： | Two-axis asynchronous, 4 heads cutting, 2 heads spraying glue; Two-axis asynchronous, 2 heads cutting, 2 heads spraying glue, 1 head cutting, 1 head spraying glue,etc. |
POWER CUNSUMPTION： | 5000W |
GROSS WEIGHT： | 700KG~1200KG |
GRAPHIC FORMAT： | PLT、DXF、AI. |
POWER SUPPLY： | AC220V ±5%/50HZ |
CUTTING SPEED： | ≤500MM/S |
CUTTING PLATFORM： | Automatic feeding mesh belt platform, honeycomb platform |
CUTTING DEEPNESS： | ≤10MM |
COOLING SYSTEM： | Air-conditioning constant temperature water cooling circulation system |
Sample show:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Packaging & Shipping: of laser cutting machine for shoe
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
