1820 1922 printed fabric camera laser cutter

1820 1922 printed fabric camera laser cutter is with big camera on top, suitable for cutting large format printed fabric pattern, embroidered textile, cloth, garment, fabric, textile,woven label, applique, pattern contour, etc. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically. Also can work as the small ccd camera, but you need to make a drawing and model to match the cuting pattern.

  • Item NO.:

    FLG-1820 1922
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1820 1922 printed fabric camera laser cutter is with big camera on top, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple. It also can work as small ccd camera and also work as normal laser cutter without using camera function.

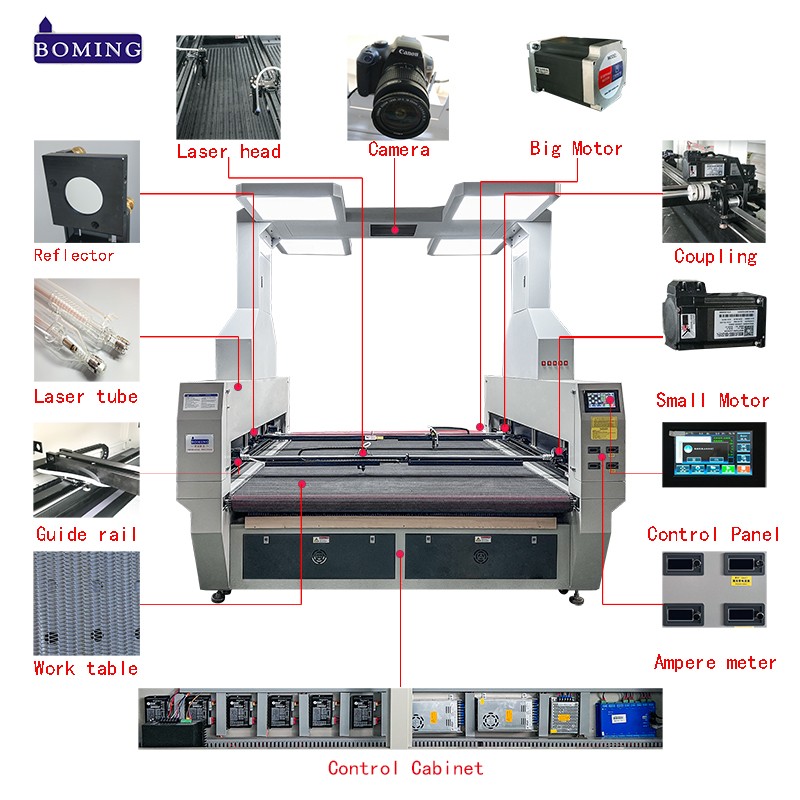

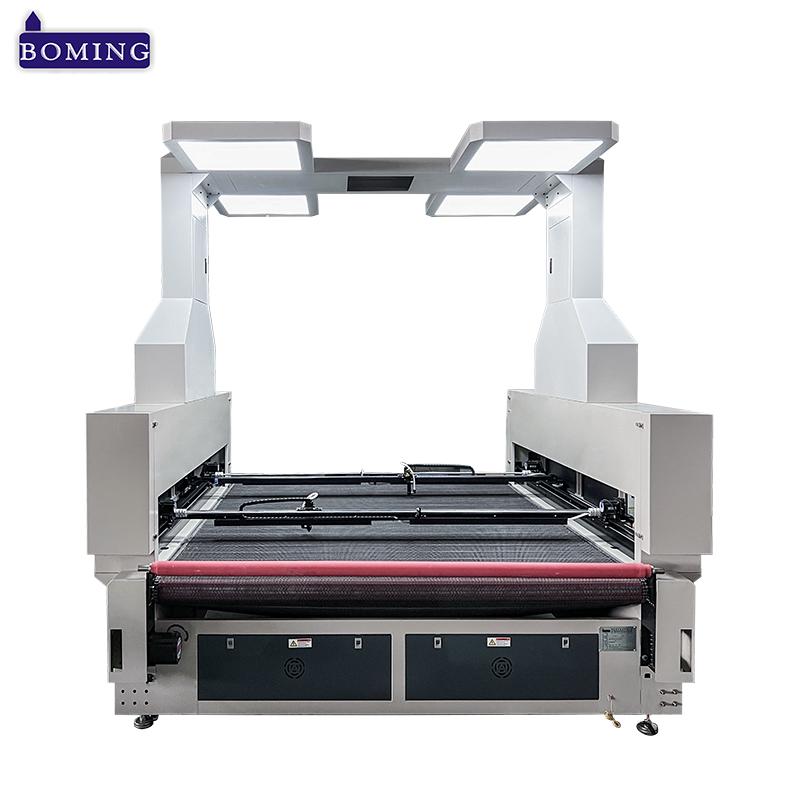

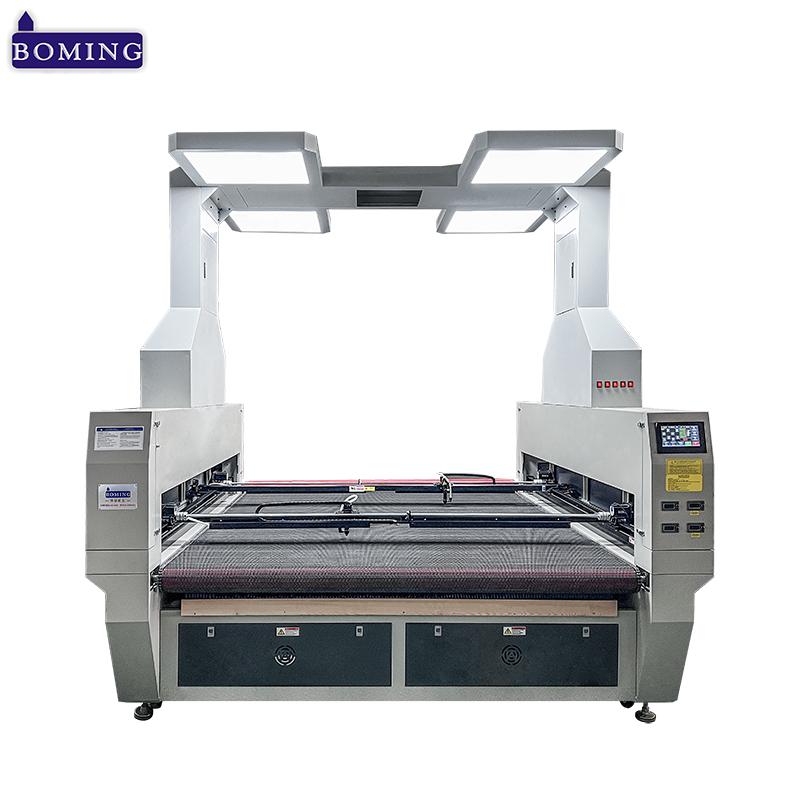

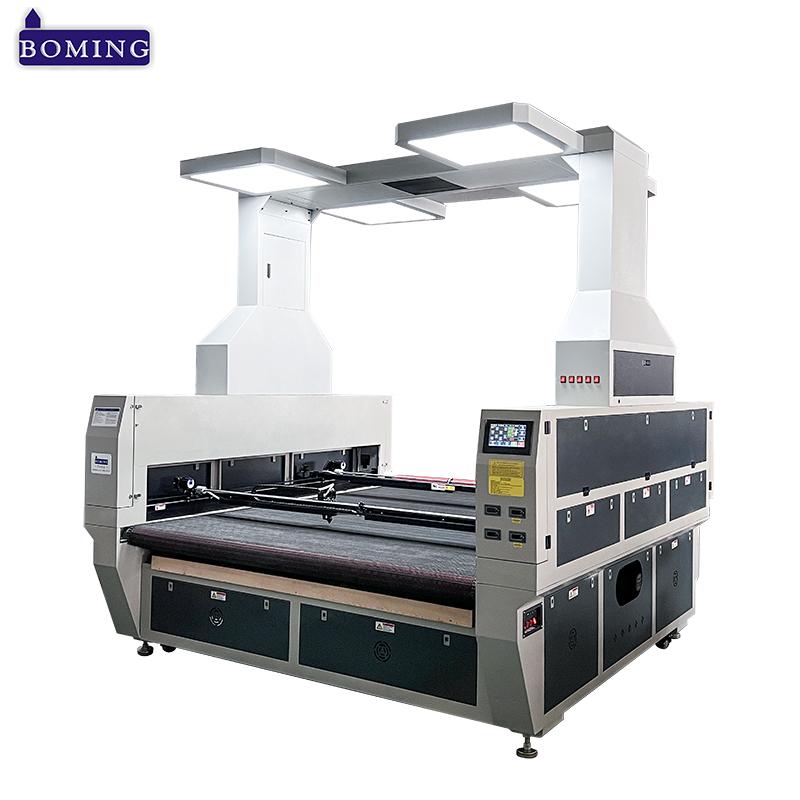

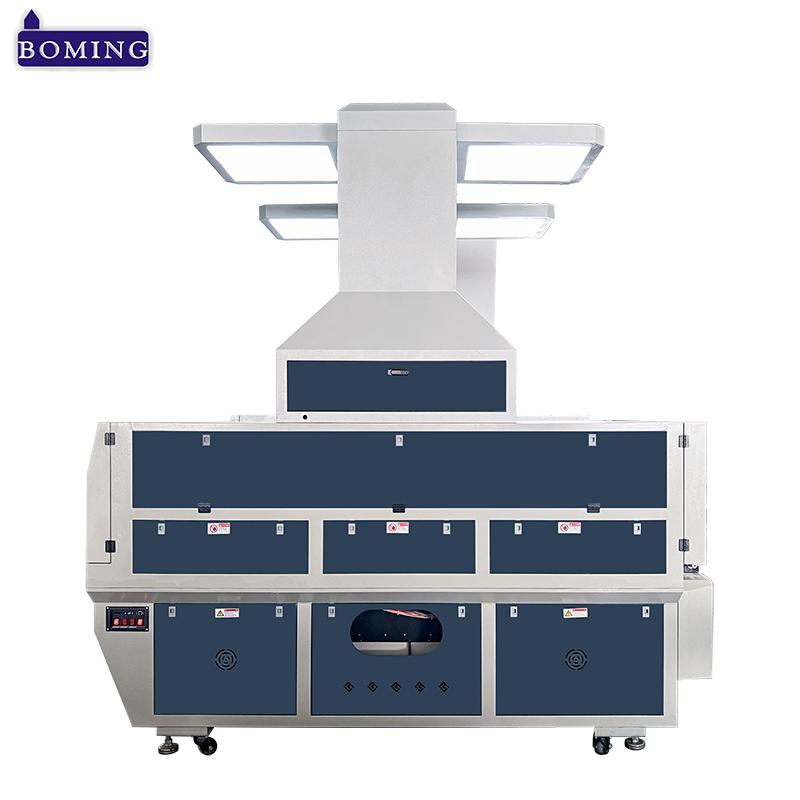

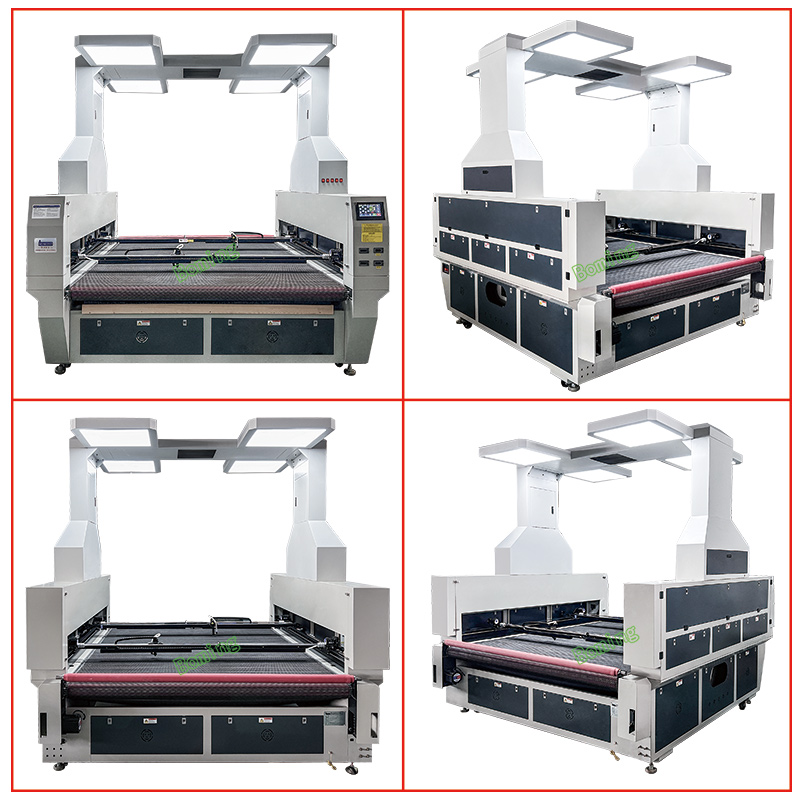

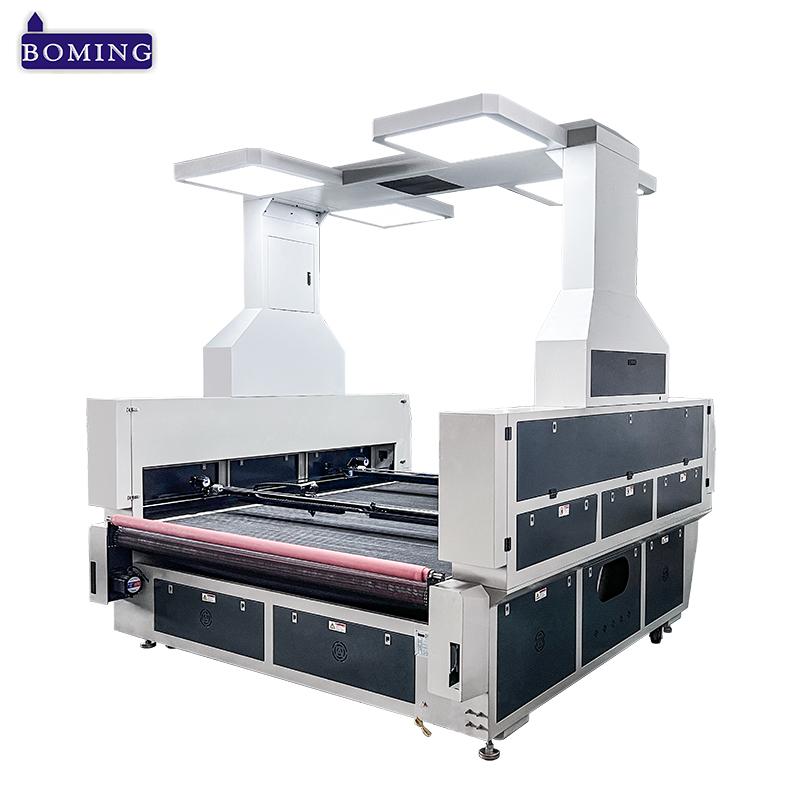

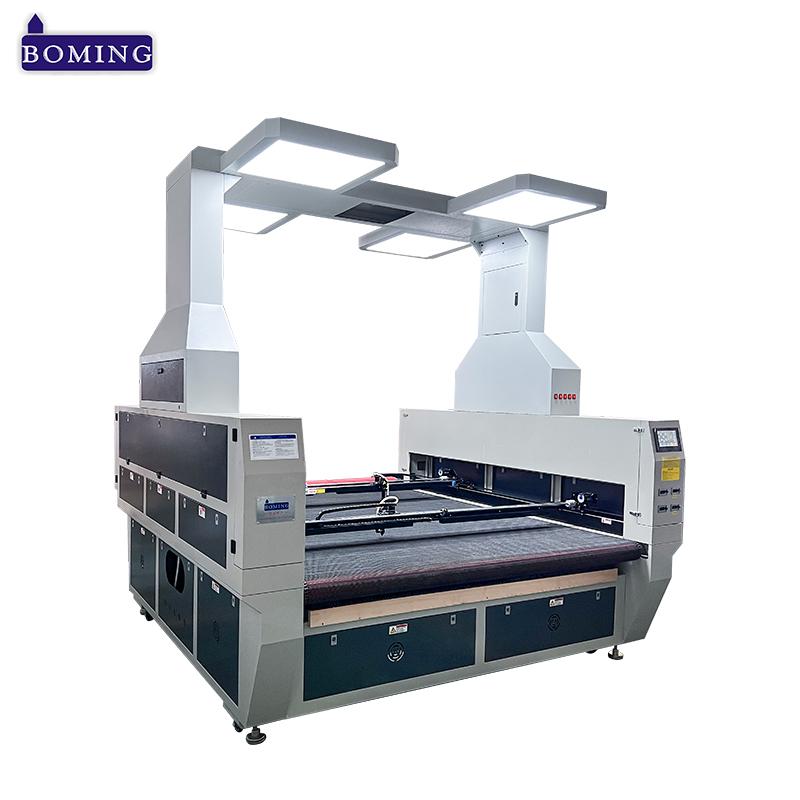

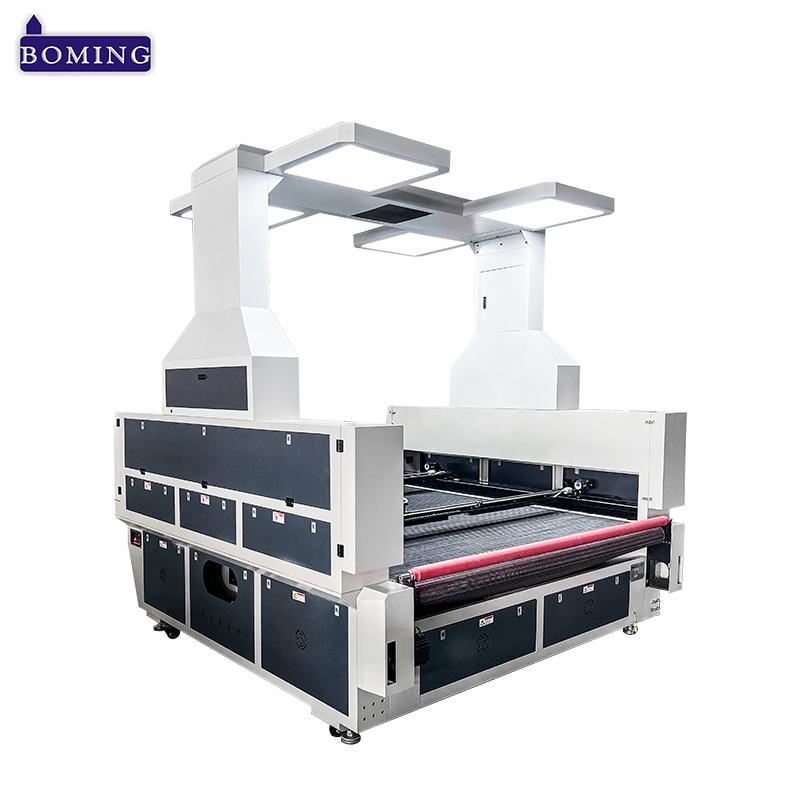

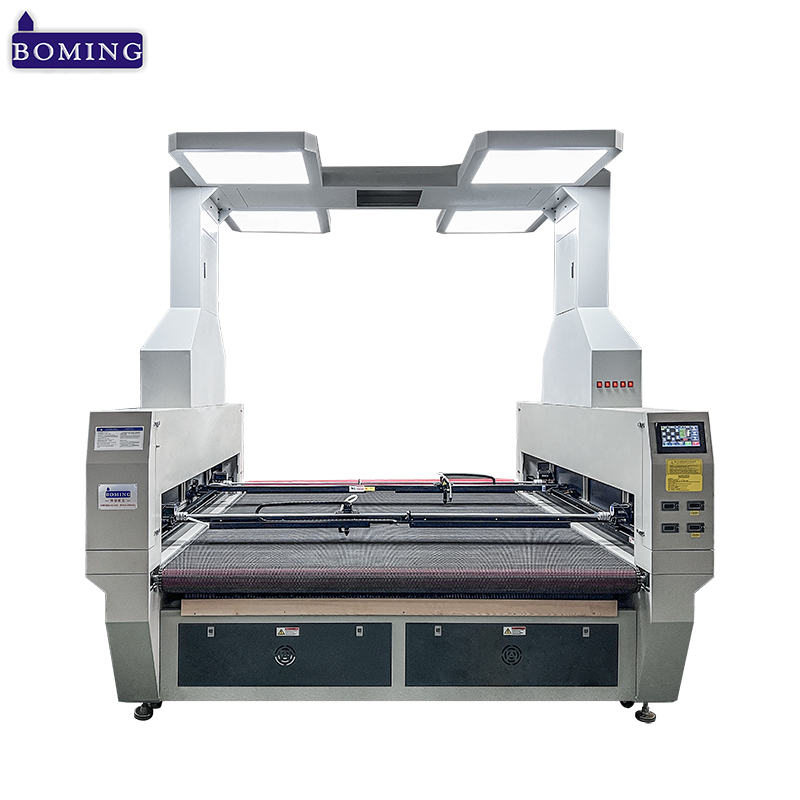

Machine pictures: of fabric pattern ccd laser cutting machine


100w co2 laser

100w reci laser cutter

130w co2 laser cutter

Laser cutting machine with camera




Features: of fabric laser cutting camera autofeedof Embroidered printed pattern camera laser cutting machine

1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).

2、The effective working area is several times compared the former laser machine but  maintaining the same accuracy.

3、The oversize image can solve the problem of error and image degradation caused by mosaic image.

4、Cutting by positioning is suitable for multiple templates.

5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.

6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.

7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.

8、The laser machine has better man-machine interaction, for the object contours found one time,  it can modify partly and integrally then process.



Machine advantages: of embroidery applique laser cutting machine

1) High precision, High stability, Fast speed

2) Low consumption

3) Strong and durable frame, Long life

4) Imported guide rail and transmission belt

5) Imported reflector and focus lens

6) Stepping motor and driving system

7) Advanced copyrighted software

8) Excellent cooling system

9)  LED realtime display

10) DSP intelligent main board





Applicable Industries: of contour laser cutter  machine

Suitable for the precision cutting of pattern and contour in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, woven labels, etc.




Applicable Materials: of Contour Cut Fabric Laser Cutter

All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark,etc.




Technical Parameters: of ccd laser textile

Laser Capacity

80W 100W 130W 150W 300W CO2 glass tube

Processing Area(mm)

1600*2000 1600*2500 1600*3000 1600*5000 1800*2000 1900*2200 mm

Positional Accuracy

±0.05mm

Camera resolution

21.4 mega pixel

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

fabric laser cutting machine with ccd



Our Payment:


1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.


2) 30% deposit, the70% balance should be paid clear before delivery.


3) The delivery day is 5-7 working days.


4) The MOQ is 1set.




How to choose our machine:


The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:


1) What materials and size will you cut?


2) What laser capacity and working area size you need?


3) What industries are you in, shoe, clothes, handicraft or advertisement?


4) Your destination port, it is for checking shipping price.


5) Other relative information, please let me know.





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

ccd camera laser cutter
