Garment patern laser cutter machine with camera

Garment patern laser cutter machine with camerais with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth, woven label, applique, trademark, etc.. Before cutting, need to make a drawing model to match the printed pattern. It is with lead screw guide rail with high cutting precision to 5c.

  • Item NO.:

    FLG-640 960 1390
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Garment patern laser cutter machine with camera is with small ccd camera on laser head, it is for positioning the pritned pattern contour. Need to make a pattern drawing first, then make a pattern model, use the drawing to match the pattern in laser software. After totally match the pattern, the laser head can cut accoring to the pattern model. Can choose normal inward and outward guide rail, linear ruide rail, also can choose high precision lead screw guide rail.

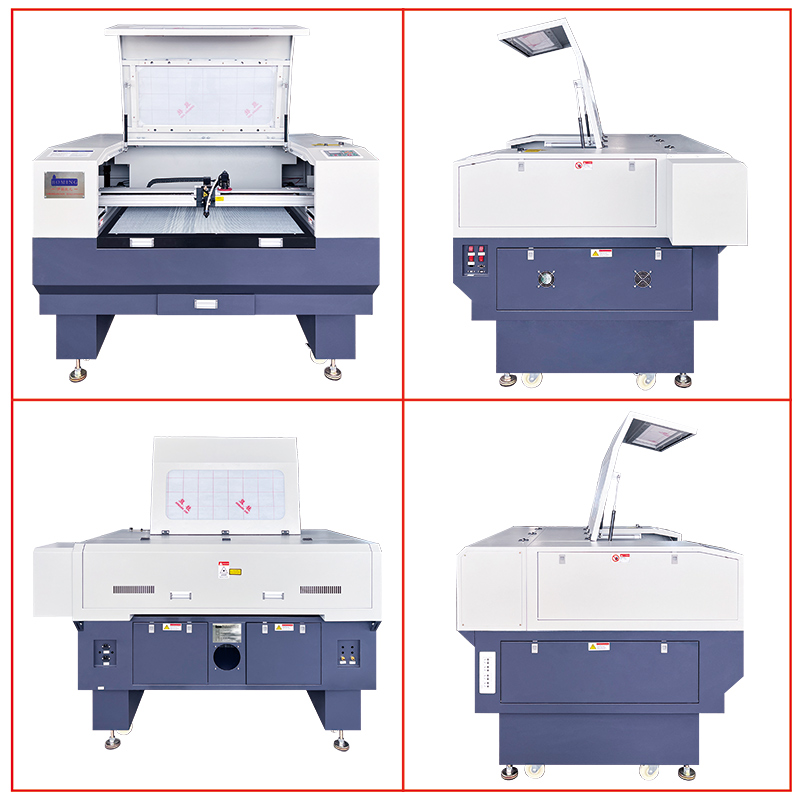

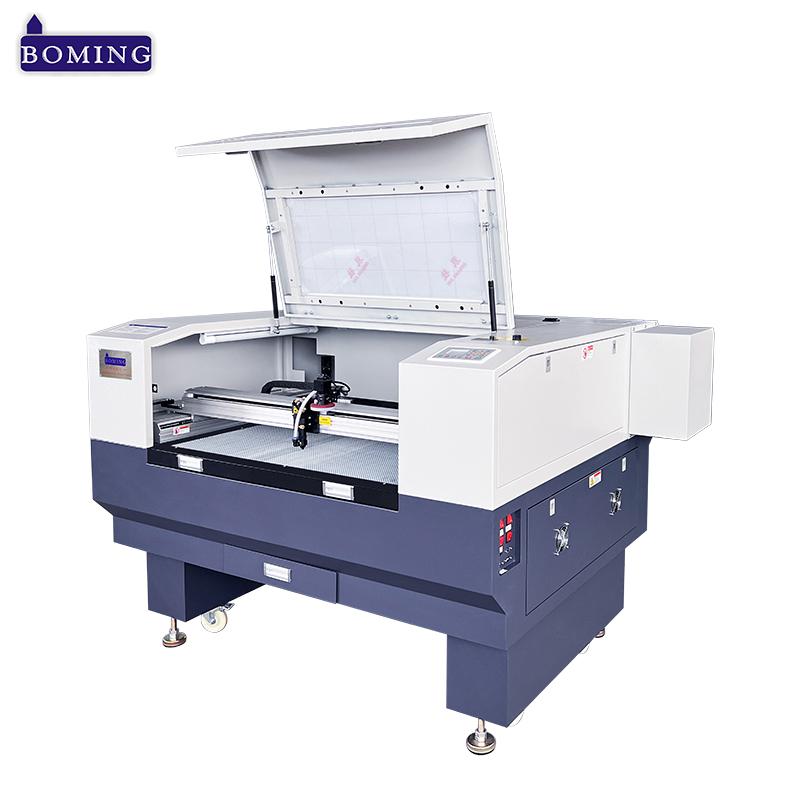

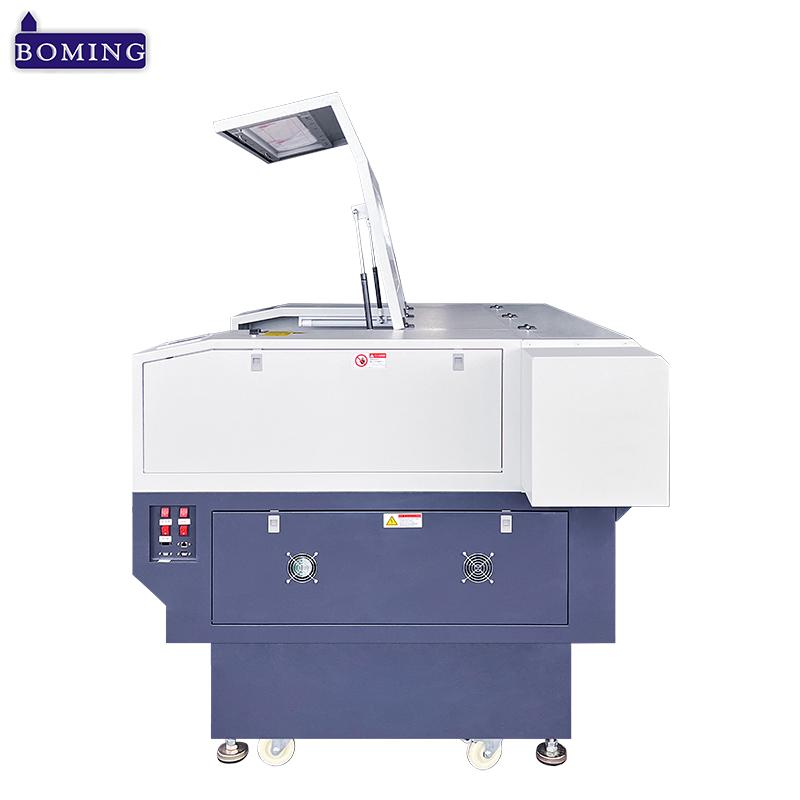

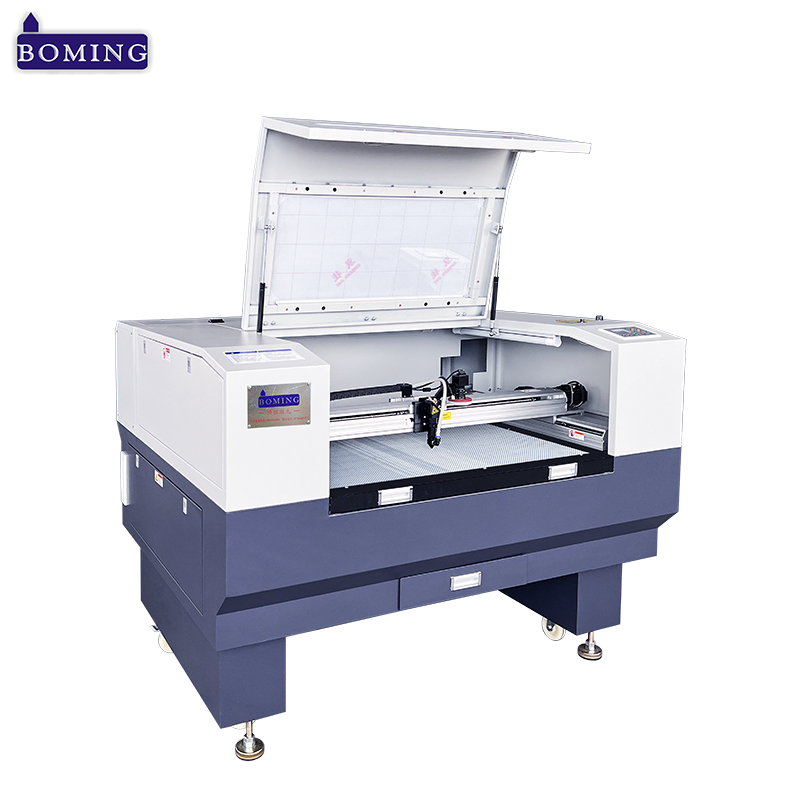

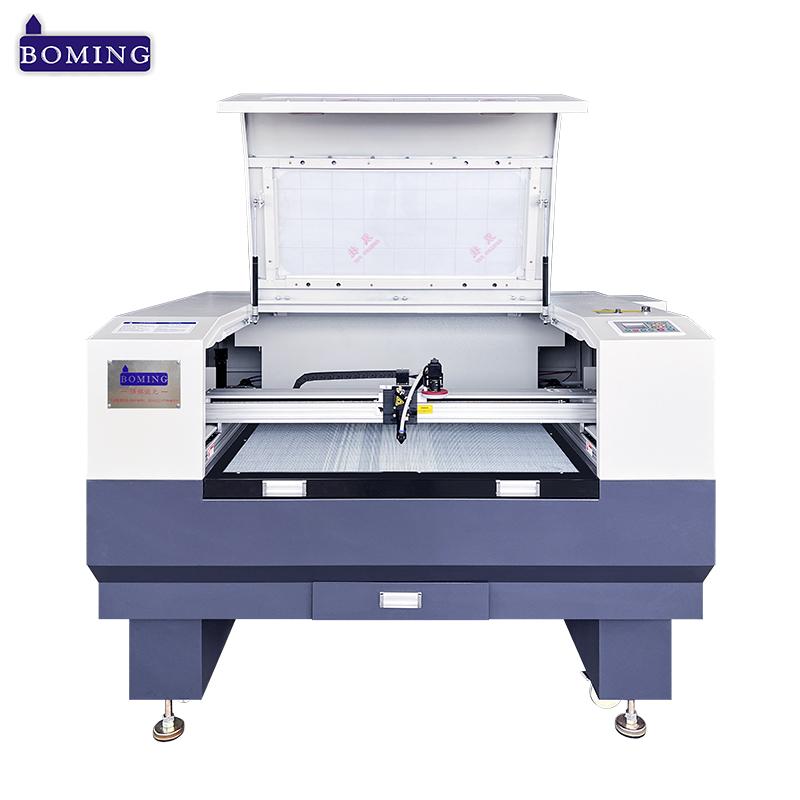

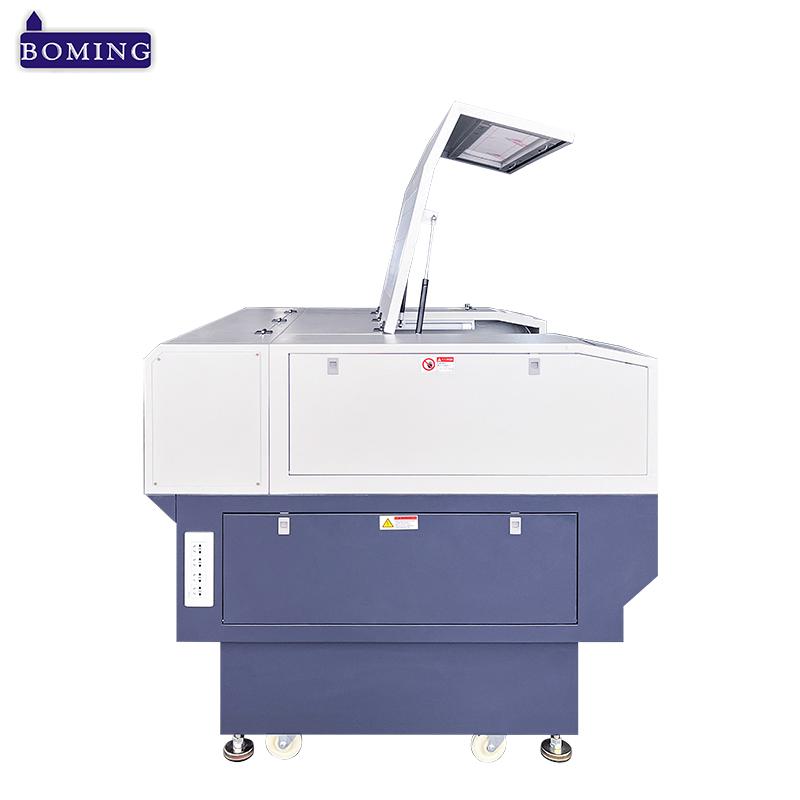

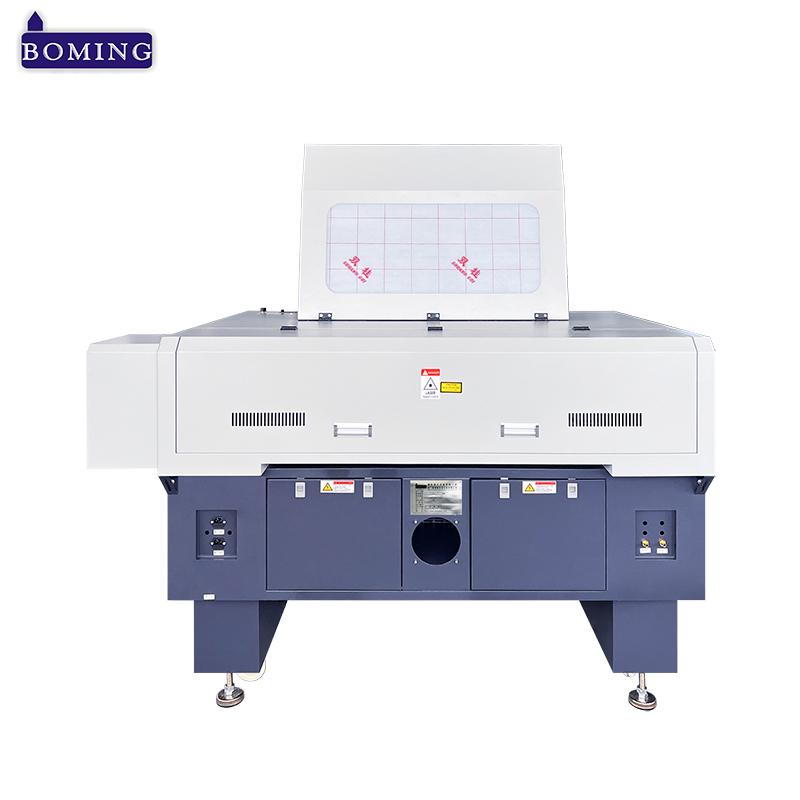

Machine Picture: of applique cutter laser

garment patern laser cutter machine

fabric pattern camera laser cutting machine

label laser cutting

label laser machine



Features: of ccd camera laser cutting machine manufacturers

1、Solve the problem of waste time and waste energy caused by traditional hand positioning and the problem of wasted products caused by human factor.

2、The machine can recognize and cut large area pattern. A worker can operate several machines at the same time, saving manpower, electricity and place, having high price/performance ratio.

3、It has the characteristics of auto recognizing edge, cutting by template, puzzle cutting, strong recognizing capacity, fast positioning and high positional accuracy.

4、It supports many positioning method: feature matching, two points positioning, multi templates positioning and contour extraction.

5、Graphic editing, composing, control, output can be finished at one time.

6、Supports many kinds of image format: PLT、AI、DXF、BMP、DS, etc.

7、It can process irregular label, precisely control output capacity, cut vertical embroidered label by slice.

8、High precision cutting, high speed cutting, without missing label and cutting disorderly, high cutting efficiency and large production.

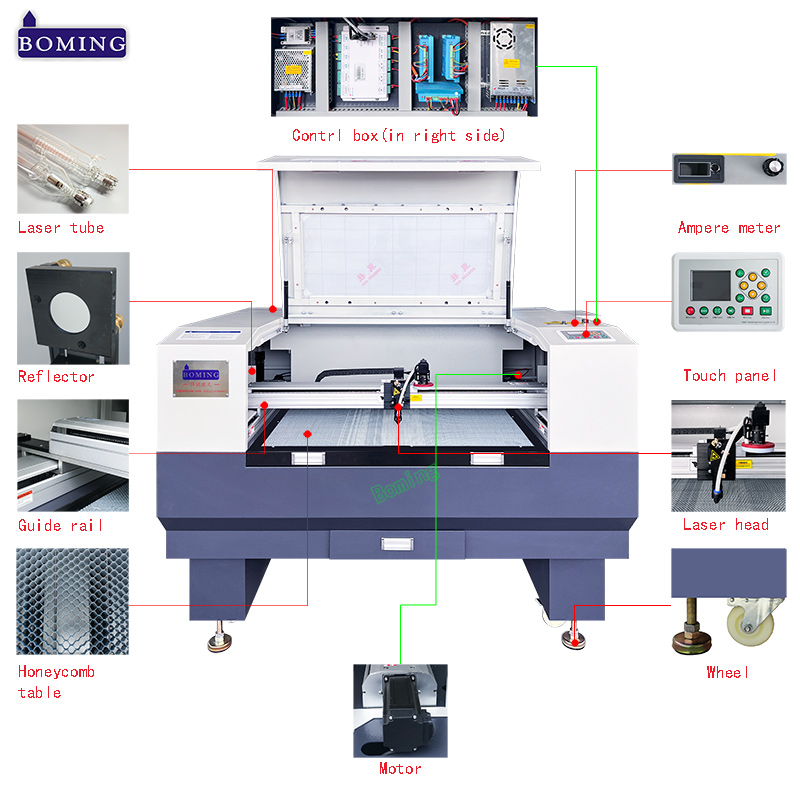

Configuration: of ccd camera laser cutting system


1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.

4)Honeycomb / Square /blade /Auto feeding table.

5)Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Automatic circulation cooling water chiller.

11)Give freely compressed air pump.

12)Give freely Laser software 1set, free upgrade





Applicable Industries: of ccd laser cutting machine price

Suitable for cutting of Rapier woven labels、trademark、embroidered leather label、vertical label、print label、high frequency pressure label、irregular trademark and accurate positioning cutting & punching for the non-metallic materials, such as all kinds of embroidery、print fabric、film printing, etc.




Applicable Materials: of ccd laser label cutter

Leather,cloth,wool fabric,plexiglass,plastic,film,rubber and other nonmetallic materials.




Technical Parameters: of contour laser cutting machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800  1600*1000 1800*1000mm

Positional Accuracy

±0.05mm

Camera pixel

2 mega pixel

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror



Sample show: of CCD camera laser cutting machine





Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.

2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.

3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.

4) The machine must be kept flat to avoid tilting.

5) When the machine working, it must be with personnel, avoid fire.



FAQ:



Fair show:


Customer visit:


Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.


Our contact:


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
CCD camera laser cutting machine
Woven label CCD camera laser cutting machine
Woven label CCD camera laser cutting machine is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth. Before cutting, need to make a drawing model to match the printed pattern.
View More
camera laser cutting machine
woven label camera Laser Cutting Machine
embroidered fabric pattern woven label logo 6040 1290 cnc laser cutter cutting machine with ccd camera
View More
CCD camera laser cutting machine
Trademark pattern laser cutting machine with CCD camera
Trademark pattern laser cutting machine with CCD camera is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth. Before cutting, need to make a drawing model to match the printed pattern.
View More
auto feed laser cutting machine
Dual head automatic feeding laser cutter with camera
Dual head automatic feeding laser cutter with camera is with ccd camera nd auto feeding system, suitable for cutting roll to printed fabric pattern、embroidered textile、cloth、felt、garment、woven label、 trade mark. Big working area. Auto feeder is optional. One head, two head, four head and six head are optional.
View More
CCD camera laser cut machine
1490 300W Applique camera laser cutter machine
1490 300W applique camera laser cutter machine is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth, woven label, embroidered applique etc,. Before cutting, need to make a drawing model to match the printed pattern. 300W is big laser capacity, it has faster cutting speed and can cut thicker materials.
View More
camera laser cut machine
1680 portrait laser cutter with ccd camera
1680 portrait laser cutter with ccd camera is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth, woven label, embroidered applique, portrait, fabric contour etc,. Before cutting, need to make a drawing model to match the printed pattern. One head, two head, three head are optional. When cutting pattern, only one head can work. For cutting normal mateials, all can work together.
View More
large laser cutting machine
panoramic camera large laser cutting machine
1325 3016 fabric textile jeans medical gown trousers camera autofeed dual axis 4 heads large laser cutting machine
View More
universal laser cutting machine
Wood MDF 450w 1610 laser cutting machine
Wood MDF 450w 1610 laser cutting machine is with blade/honeycomb table, suitable for cutting thick non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth,etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc. The wood plywood thickiness can be 15-20mm. One head、two head are optional.
View More

click here to leave a message

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
