Autofeed laser cutting machine with line drawing

Double Head autofeed laser cutting machine with line drawing is with 2 spray gun on laser head and auto feeding system, suitable for cutting roll to roll flyknit upper、white air mesh、super fiber leather、high-elastic materials、fur、cloth、sponge、composite materials,etc. Auto feeder is optional. There are many models for choice: Four heads cutting and four heads spraying, Four heads cutting and two heads spraying, two heads cutting and two heads spraying, two heads cutting and one head spraying, one head cutting and one head spraying. Auto feeding table and honeycomb table are optional.

  • Item NO.:

    FLG-1614 1615
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser



Double Head autofeed laser cutting machine with line drawing is widely used in shoe、bags、textile industries, etc. There is no need for knife molds and stencils, which saves 7-9% of raw materials and saves two workers (no safety hazard at all). Different models and different working area are optional. Auto feeding table and honeycomb are optional.

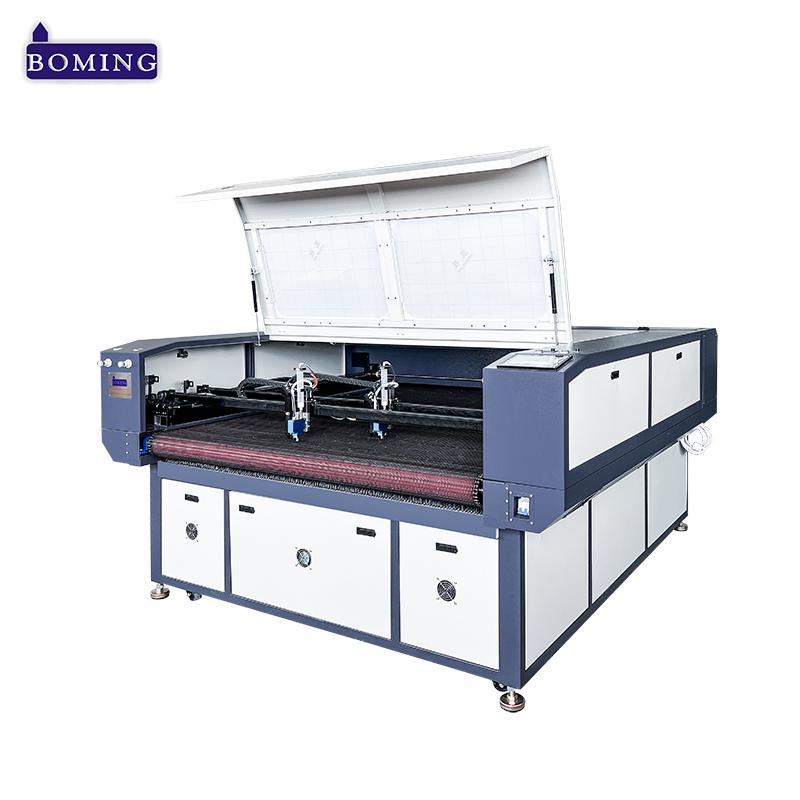

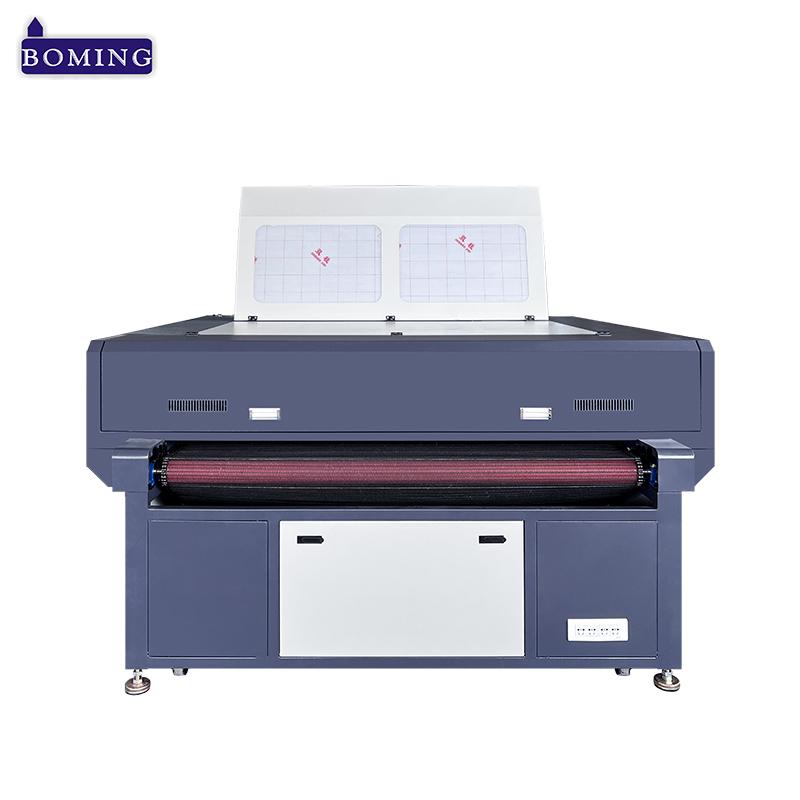

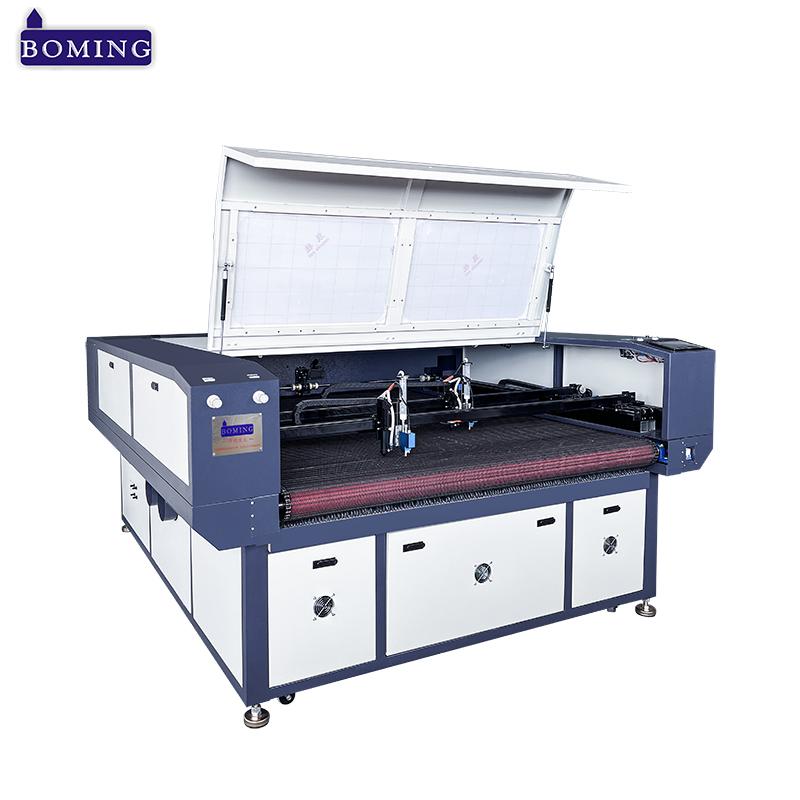

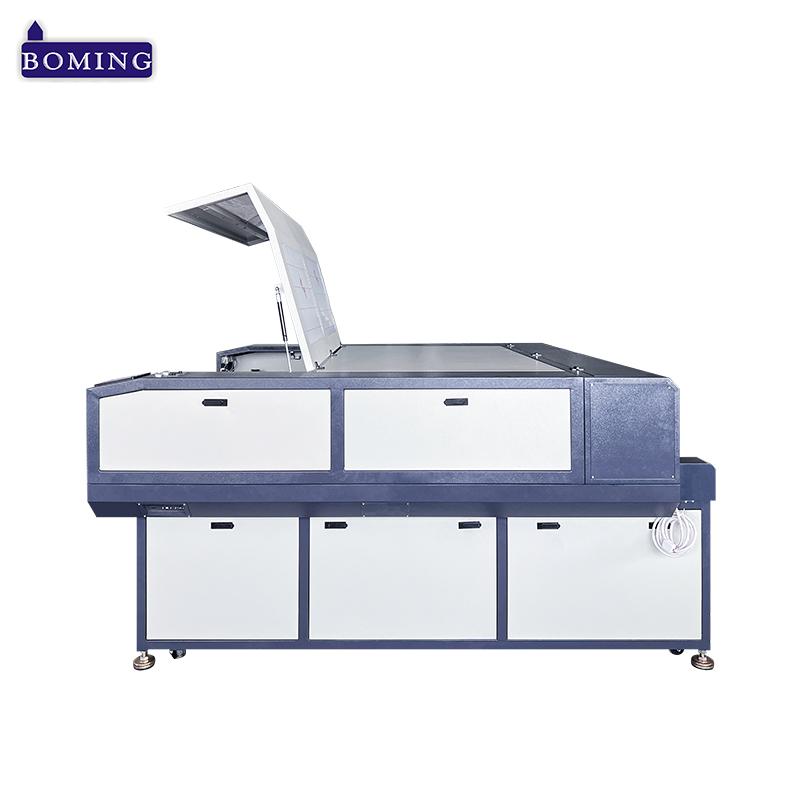

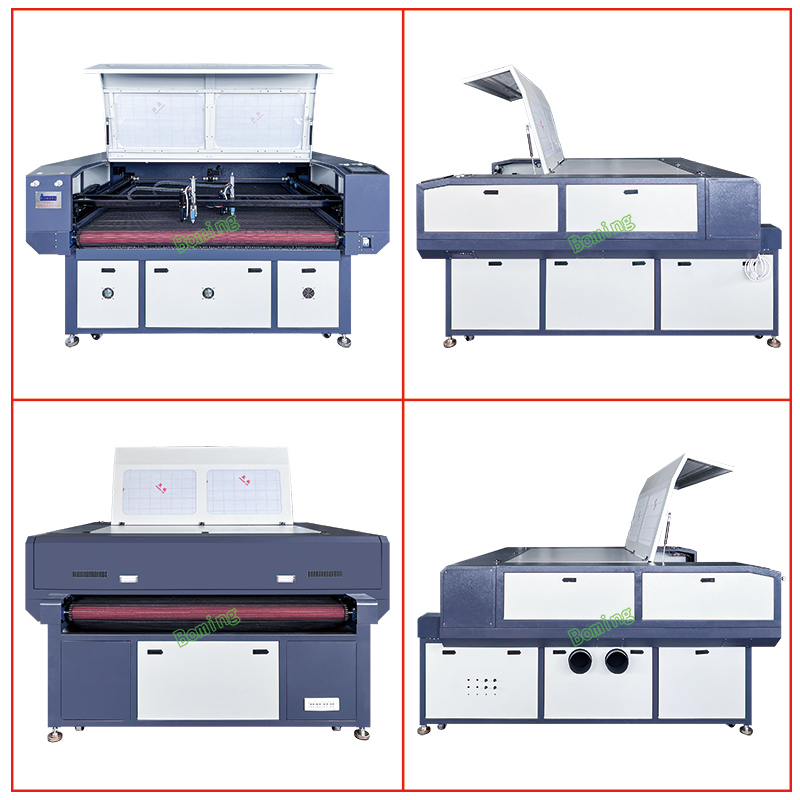

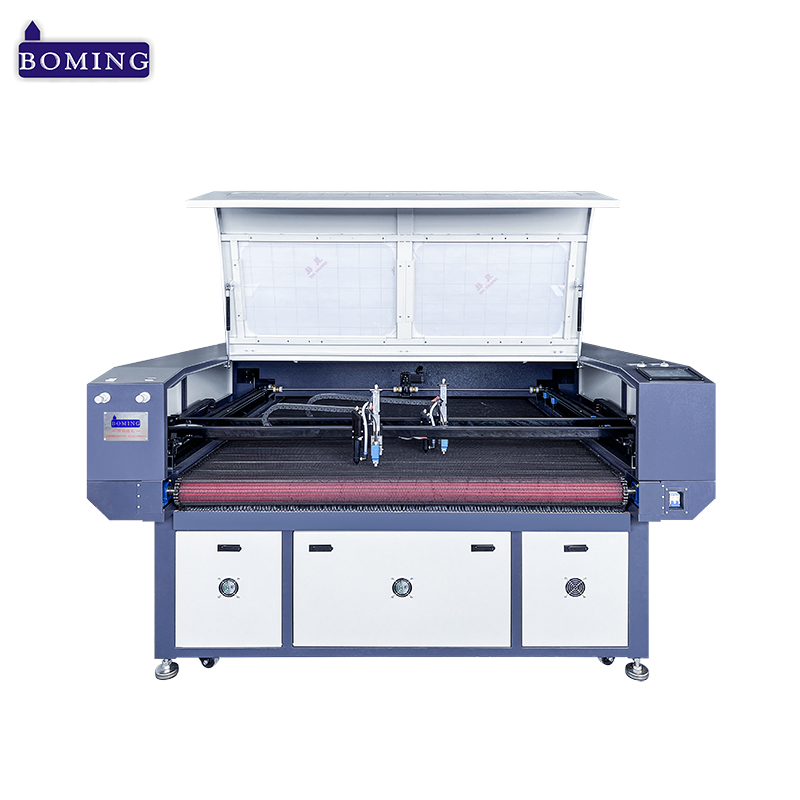

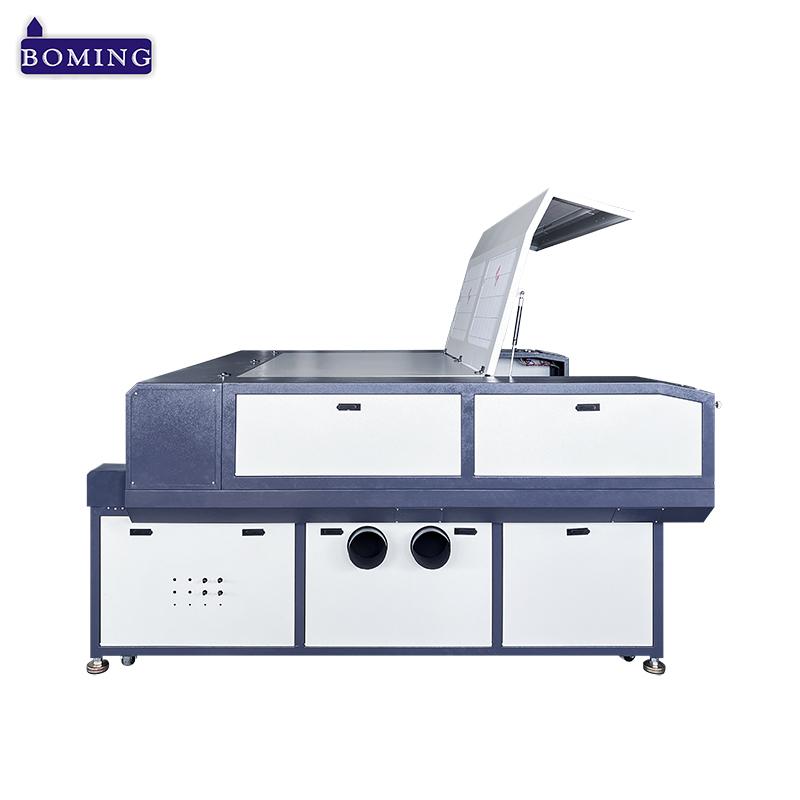

Machine pictures:of leather laser cutting machine price

line drawing laser cutting machine

Laser machine with line drawing

Laser line drawing machine for shoes

Laser spraying cutting machine



Advantage: of good price auto feeding textile laser cutting machine

1、Automatic feeding, whole roll material loading, automatic typesetting, accurate material saving up to 9%;

2、Draw the line first, then cut synchronously, accurate and precise, the product qualification rate is above 99.99;

3、Reduce the process, reduce the moving cost, reduce the loss rate of the line drawing after blanking by 3%;

4、Computerized documentation and intelligent management, reducing the cost of knife molds, and reducing storage space for knife molds;

5、Exempt the film template,Exempt the film, long-term exemption, obvious cost advantage;

6、Reduce workers, simple operation, reduce the requirements for worker ability, and have obvious cost advantages;

7、Automatic feeding, can work continuously for 24 hours, with high efficiency and quality assurance;

8、Reduce machines quantity, reduce occupied space, reduce electricity consumption, and reduce safety hazards.

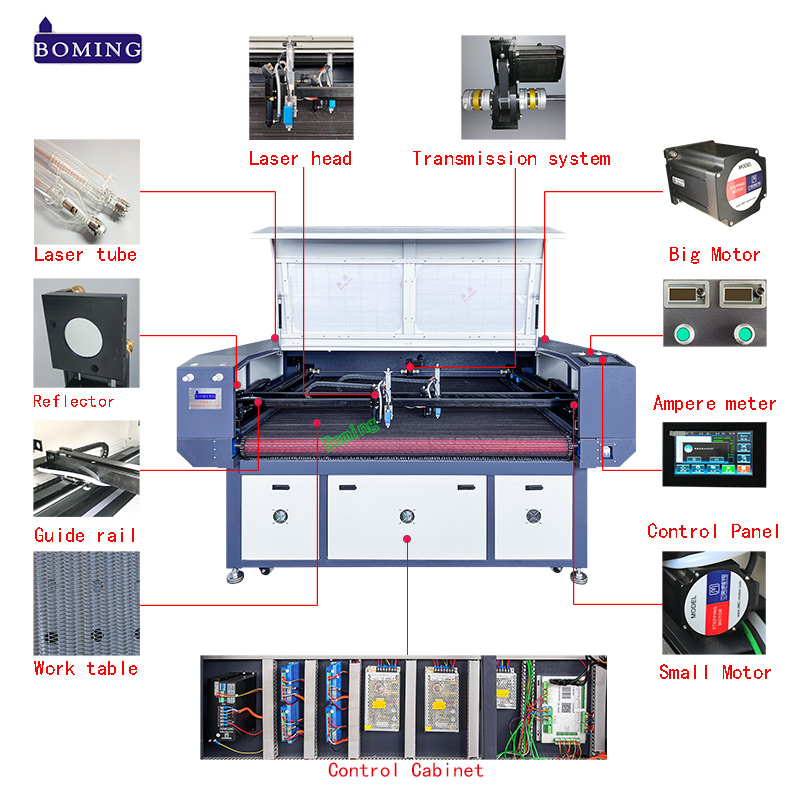

Features: of automatic feeding roller blinds laser cutter

1.Fast automatic line drawing speed

2.Double-head spray painting, two or four-head cutting

3.The pass rate of automatic line drawing is 99.99%

4.Imported guide rail and transmission belt
5.
One-time typesetting, drawing and cutting at one time

6.Simple operation, no work injury safety hazards






Applicable Materials: of auto-feeding laser cutting machine

All colors (white) mesh, (white) super fiber leather, flyknit upper, high-elastic materials, fur, cloth, sponge, composite materials, etc.





Technical Parameters: of auto feeding cutting machine suppliers

MODEL:

FLG-PQ1680/1610/1614/1615

LASER TYPE

SEALED CO2 GLASS TUBE

LASER POWER:

100W 150W 180W 300W

LASER HEAD NO.:

Two-axis asynchronous, 4 heads cutting, 2 heads spraying glue; Two-axis asynchronous, 2 heads cutting, 2 heads spraying glue, 1 head cutting, 1 head spraying glue,etc.

POWER CUNSUMPTION:

5000W

GROSS WEIGHT:

700KG~1200KG

GRAPHIC FORMAT

PLT、DXF、AI.

POWER SUPPLY:

AC220V ±5%/50HZ

CUTTING SPEED:

≤500MM/S

CUTTING PLATFORM:

Automatic feeding mesh belt platform, honeycomb platform

CUTTING DEEPNESS:

≤10MM

COOLING SYSTEM:

Air-conditioning constant temperature water cooling circulation system

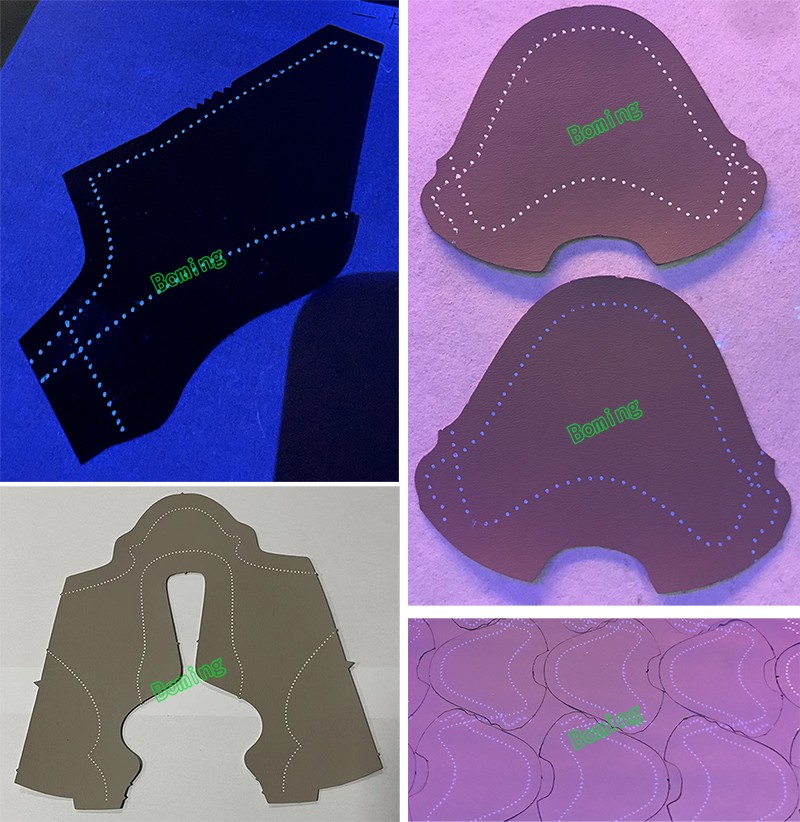

Sample show:



How to choose our machine:

The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:


1) What materials and size will you cut?


2) What laser capacity and working area size you need?


3) What industries are you in, shoe, clothes, handicraft or advertisement?


4) Your destination port, it is for checking shipping price.


5) Other relative information, please let me know.




Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.




Packaging & Shipping: of laser cutting machine for shoe

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

leather laser cutting machine price
