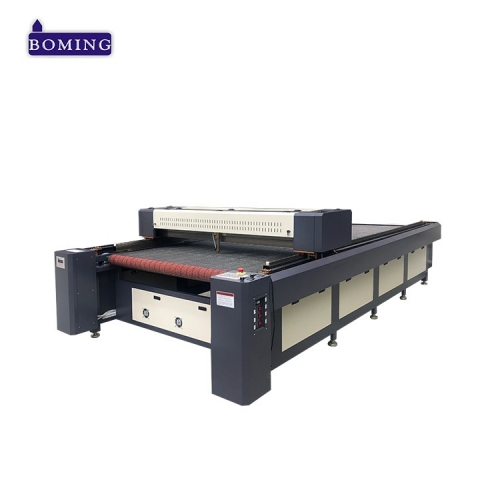

panoramic camera large laser cutting machine

1325 3016 fabric textile jeans medical gown trousers camera autofeed dual axis 4 heads large laser cutting machine


  • Item NO.:

    FLG-3016 5016 1325
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C,DP,DA
  • Product Origin:

    Quanzhou,China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10 days

1325 3016 fabric textile jeans medical gown trousers panoramic camera large laser cutting machine




jeans large laser cutting machine

medical gown large laser cutting machine

printed fabric laser cutter

camera laser cutter


Features:

Our laser cutting machine can process soft materials,such as medical gown,jeans,trousers.
1. This Laser cutting machine 's size is 4270*2330*1310 mm, the working area is 3000*1600mm, it support Rapid cutting function for curved lines,
2. Multi-file function,Soft ware CAD,CORELDRAW,PHOTOSHOP,ETC.
3. This laser cutter machine is applied incarpet leather cloth fabric.



Advantage:

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board



Applicable Industries:

large laser cutting machine is suitable for the industries, such as garment,shoe,bag and suitcase,computerized embroidery and clipping,model,toy,electronics,furniture,advertising decoration,art ware, etc.



Applicable Materials:

Non-metallic material, such as leather,cloth,organic glass,acrylic,

rubber,plastic, wood ware,bamboo ware,ceramic , etc.



Technical Parameters of garment laser cutting bed machine


Laser Type

Sealed CO2 laser

Laser Capacity

80w-100w-130w-150w

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 1800*1600 2000*1000 2000*1200 1300*2500 1600*2000 1600*2500 1600*3000 1600*5000mm

Focus lens
From USA

Power supply

AC220±10%,50HZ

Total power

<5000W

Positional Accuracy

±0.01mm

Cutting Speed

0-36m/min

Camera pixel

24.1 mega pixels

Resolution

0.064mm

Working table

Honeycomb worktable

Working Temperature

0°C-45°C

Working humidity

5-95%( No Condensation)

Graphic Format Supported

PLT,AI,DST,BMP,CDR,DMG,DXF etc.

Weight(kg)

800 -1000kg

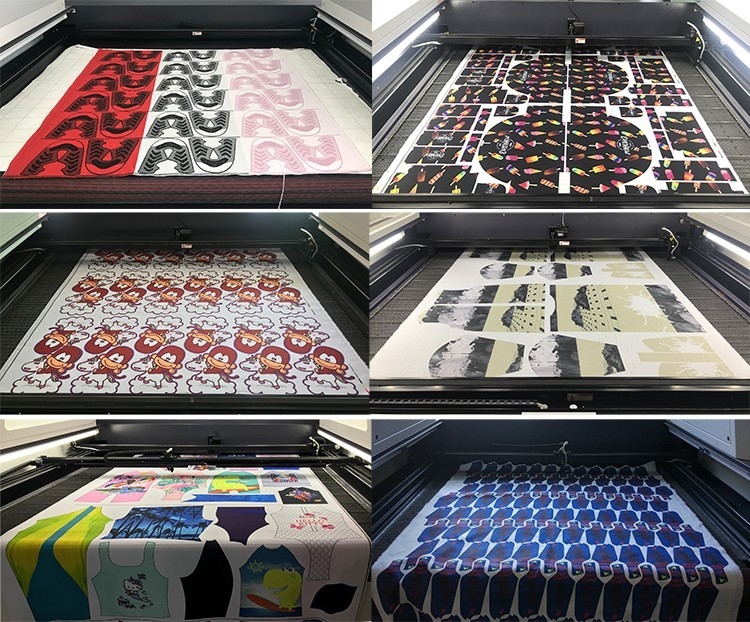

Sample show:


face mark laser cutting machine



Our Payment:

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.



Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.

2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.

3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.

4) The machine must be kept flat to avoid tilting.

5) When the machine working, it must be with personnel, avoid fire.



Packaging & Shipping of meadical gown laser cutting machine bed

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

embrodiery laser cutting bed
