600w large laser cutting machine bed

150w 300w 450w 600w 1325 acrylic plywood cnc co2 laser cuttting bed machine

  • Item NO.:

    FLG-1325 3016 5016
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C,DP,DA
  • Product Origin:

    Quanzhou,China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10 days

1325 150w 300w 450w 600w large laser cutting machine bed acrylic plywood cnc co2 laser cuttting bed machine

MDF laser cutting machine bed

plywood laser cutting bed machine

MDF laser cutting bed

acrylic laser cutter


Features:

Our laser cutting machine can process soft materials,such as medical gown,jeans,trousers.
1. This Laser cutting machine 's size is 4270*2330*1310 mm, the working area is 3000*1600mm, it support Rapid cutting function for curved lines,
2. Multi-file function,Soft ware CAD,CORELDRAW,PHOTOSHOP,ETC.
3. This laser cutter machine is applied incarpet leather cloth fabric.



Advantage:

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board



Applicable Materials:

Non-metallic material, such as leather,cloth,organic glass,acrylic,

rubber,plastic, wood ware,bamboo ware,ceramic , etc.



Technical Parameters of garment laser cutting machine bed


Processing Area(mm)

1300*2500 1600*3000 1600*5000mm

Engraving Speed

0-64000 mm/min

Cutting Speed

0-36000 mm/min

Laser Capacity

100w 130w 150w 180w 300W

450W 600W

Resolution Rate

0.0064mm

Min Shaping Character

Chinese character:2*2mm, Letter:1*1mm

Power supply

AC220±10%,50HZ

Positional Accuracy

<0.01mm

Repeated Positional Accuracy

0.01mm

Total Power

 ≤5000w

Working temperature

0℃-45℃

Working Humidity

5%-95%(No Condensation)

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y-direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

PLT,AI,DXF,DST,BMP,GIF,JPEG,PCX,TGATIFF,CDR,DMW, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror

Dimension(mm)

9060

1480*1080*1100

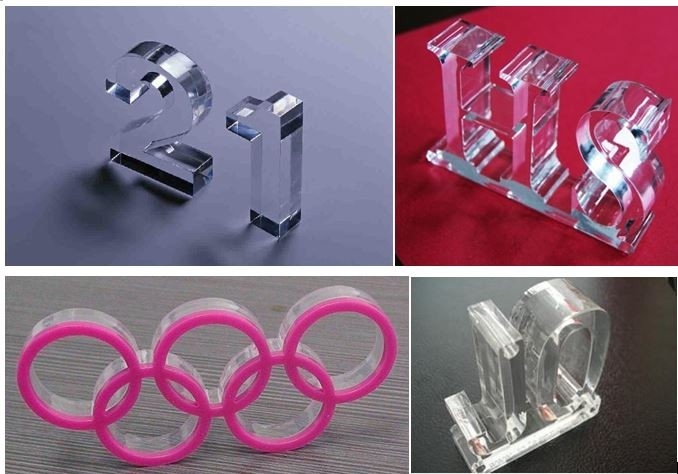

Sample show:


PVC laser cutting machine


Our Payment:

1)   Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.



Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.


Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.

2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.

3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.

4) The machine must be kept flat to avoid tilting.

5) When the machine working, it must be with personnel, avoid fire.

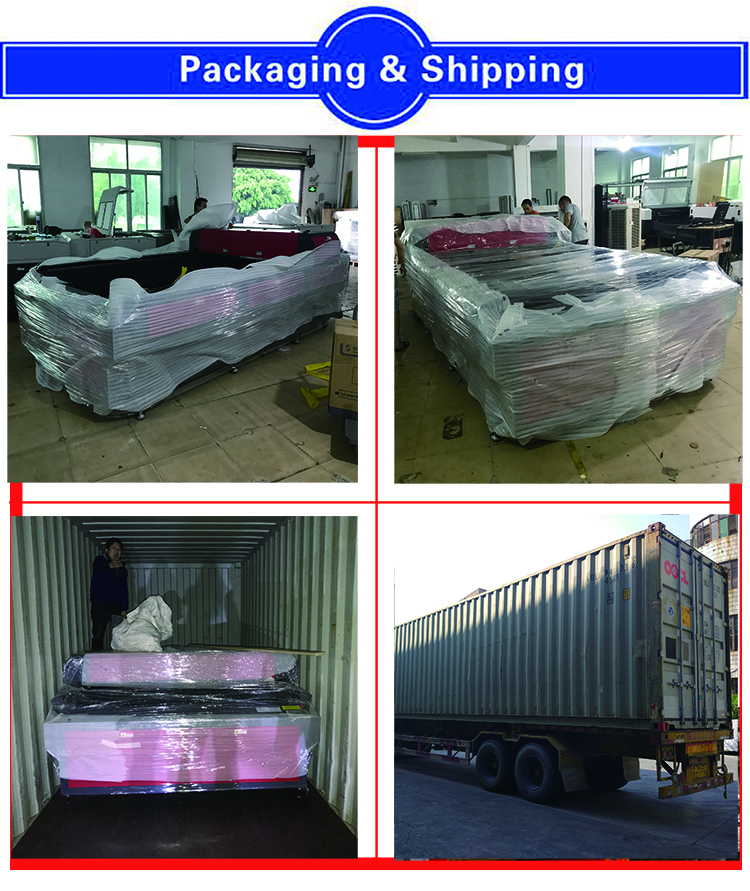

Packaging & Shipping of meadical gown laser cutting machine bed

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

plastic laser cutting bed
