1630 1650 Auto feeding laser cutting bed

1630 1650 Auto feeding laser cutting bed is with auto feeding system, suitable for cutting large format roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional. sing axis and double separate axis are optional.

  • Item NO.:

    FLG-1325 1630 1650
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1630 1650 Auto feeding laser cutting bed is with big working area, suitable for large format whole roll materials. Working together with the auto feeder, it can achieve continous cutting to get higr working efficiency. there is 1 axis, 2 axis; 1 head, 2 head, 3 head, 4 head and 6 head for your choose.

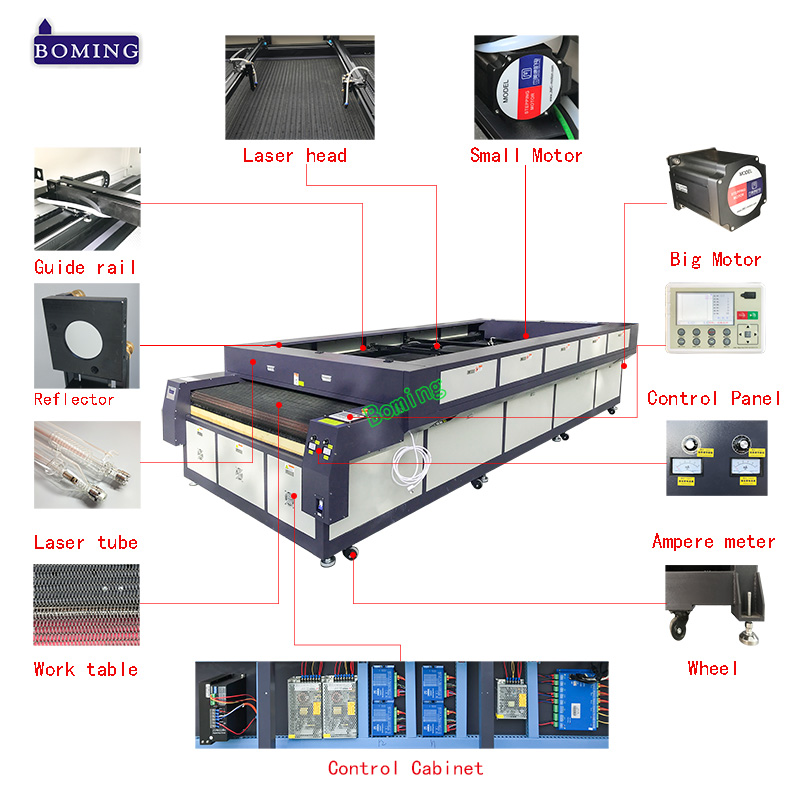

Machine pictures:

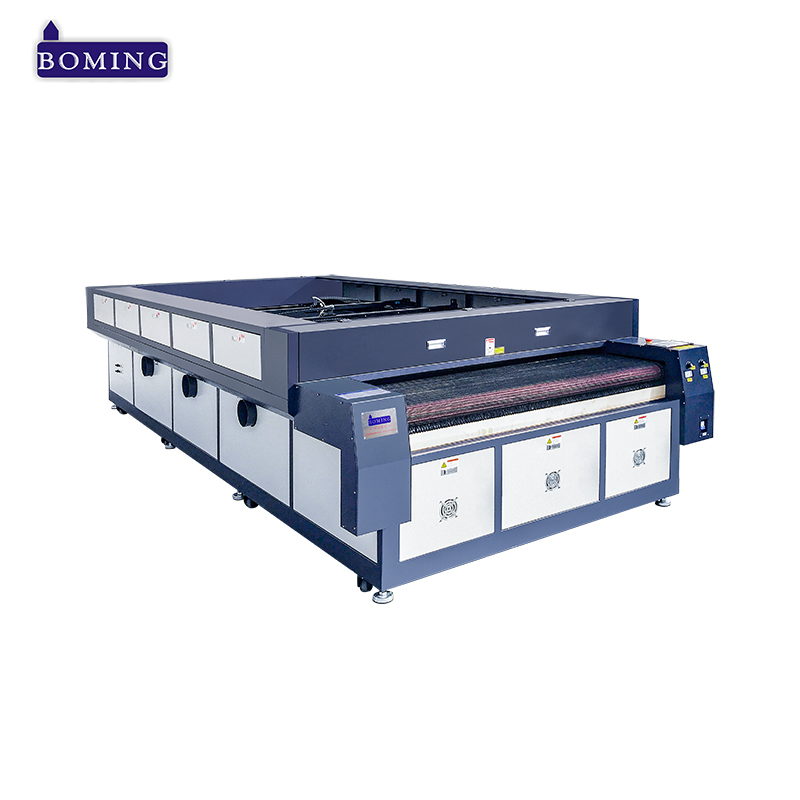

large format laser cutter

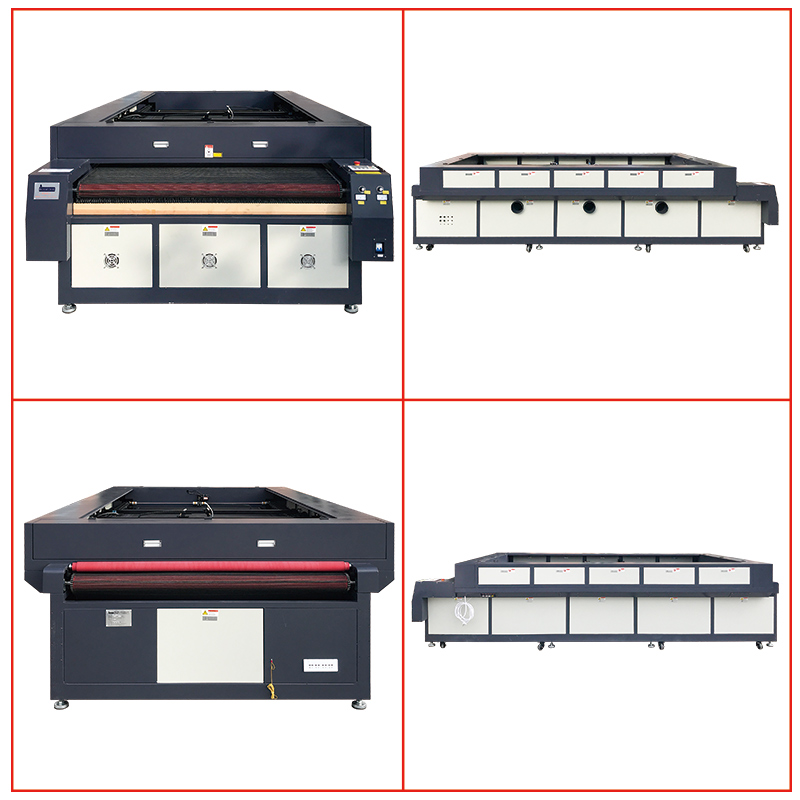

big size laser cutter

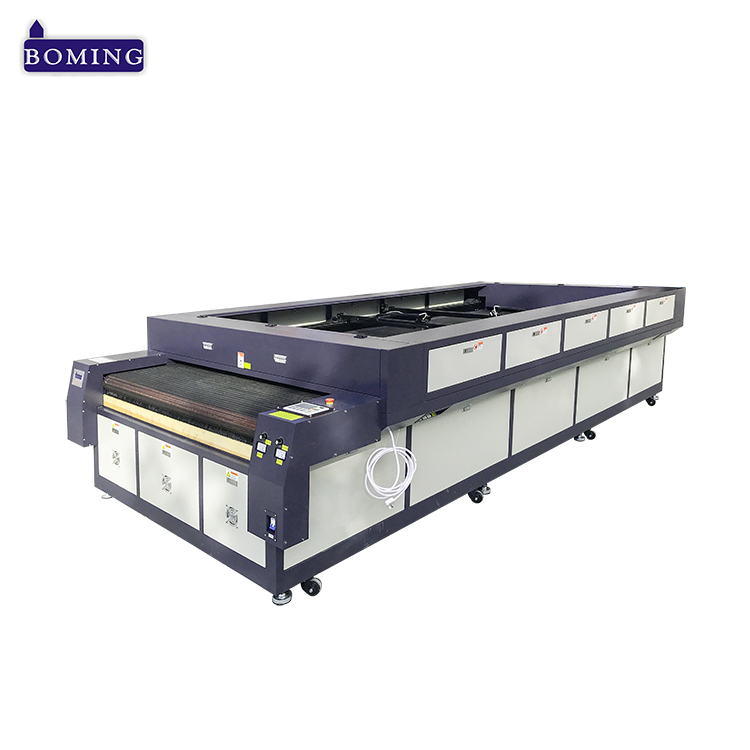

3016 auto feeding laser cutter

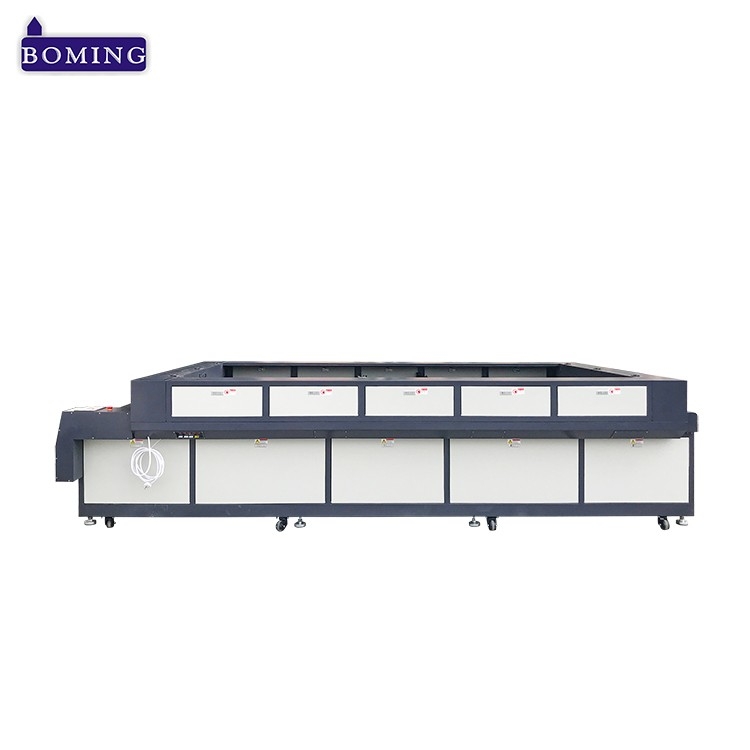

large format auto feed laser cutting machine




Features:1630 1650 Auto feeding laser cutting bed

1、The steel frame has strong stability and high accuracy meeting the requirement of high speed cutting.

2、The mixed light path ensures the high efficiency for solar energy utilization and high security.

3、The special motion control software system ensures there is no overshooting and hysteresis when the laser head moves and conducts flexible machining.

4、It can achieve instant cutting working with garment CAD software, process automatically continuously and repeatedly the pattern which is over the cutting area after type setting, realizing automatic continuous production.

5、It has unique advantage for cutting the special cloth with the characteristic of auto winding, no rough selvedge, high accuracy and fast speed.

6、It is equipped with auto feeding system achieving the multilayer continuous cutting.

7、The models can be customized.




Configuration: Automatic Laser Cutting Machine

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W laser tube.

4)Honeycomb plate/ Square bottom plate/blade strip plate

5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Optional: Automatic circulation cooling water tank.

11)Give freely compressed magnetic pump.

12)Give freely Boming copyrighted software 1set, free upgrade





Applicable Industries: 1630 fabric auto feed laser cutter

The machine is widely used in the industries such as shoe,bag, garment, textile, embroidered fabric, etc.




Applicable Materials: of co2 laser cut machine

1.Suitable for cutting of the seamless adhesive materials like skiing waterproof coat, diving suit, underwear, beach shorts etc. and the cutting of outdoor goods like tent, sleeping bags, etc.

2.Suitable for cutting of special dress, such as wedding dress, protective article, labor protection appliance, western-style clothes, women's dress, etc.

3.Suitable for cutting and punching of special materials, such as air bag, filter net, sailing ship, parachute, sofa, automotive trim, etc.

4.Suitable for cutting home textile, bag and suitcase, household articles, sample clothing.




Technical Parameters:automatic laser cutting machine for fabric

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1300*2500 1600*2000 1600*2500 1600*3000 1600*5000 mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

large scale laser cutting machine



Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




How to choose our machine:


The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:


1) What materials and size will you cut?


2) What laser capacity and working area size you need?


3) What industries are you in, shoe, clothes, handicraft or advertisement?


4) Your destination port, it is for checking shipping price.


5) Other relative information, please let me know.





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

1325 100w laser machine
