1325 3016 5016 Acrylic wood laser cutting bed

1325 3016 5016 Acrylic wood laser cutting bed is with blade/knife table, suitable for cutting laser format acrylic、wood、 MDF、plywood、bamboo、crafts、architectural model. Big working area.  single axis and double separate axis are optional. One head、two head、four head and six head are optional.

  • Item NO.:

    FLG-1325 1630 1650
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1325 3016 5016 Acrylic wood laser cutting bed is with blade or honeycomb table, used for big size wood, acrylic sheet,MDF and other materials. 1 head, 2 head, 3 head is optional.

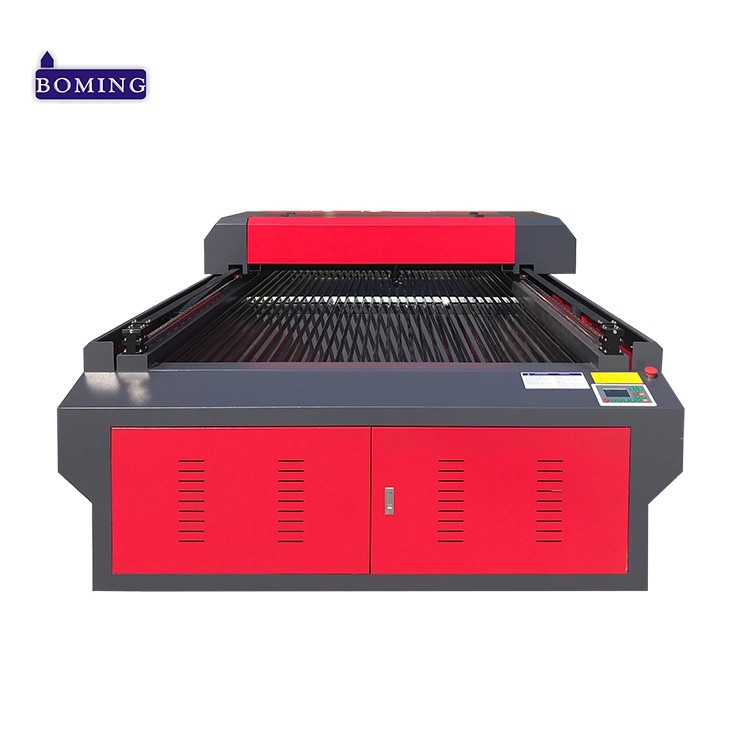

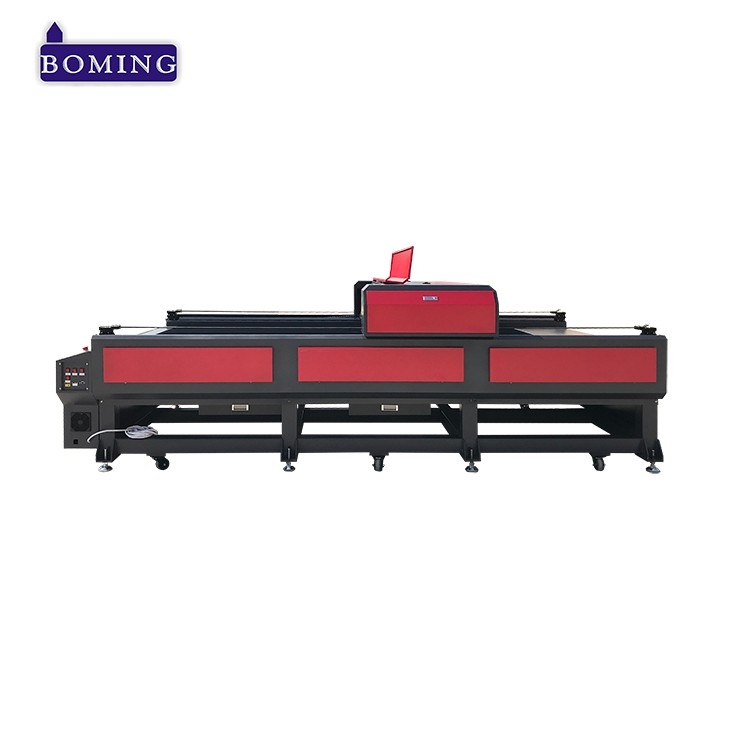

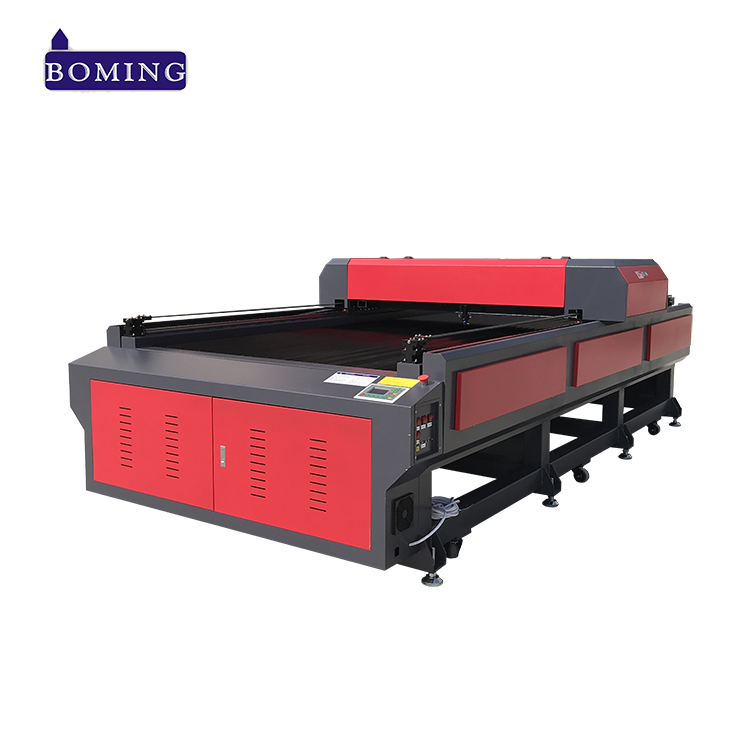

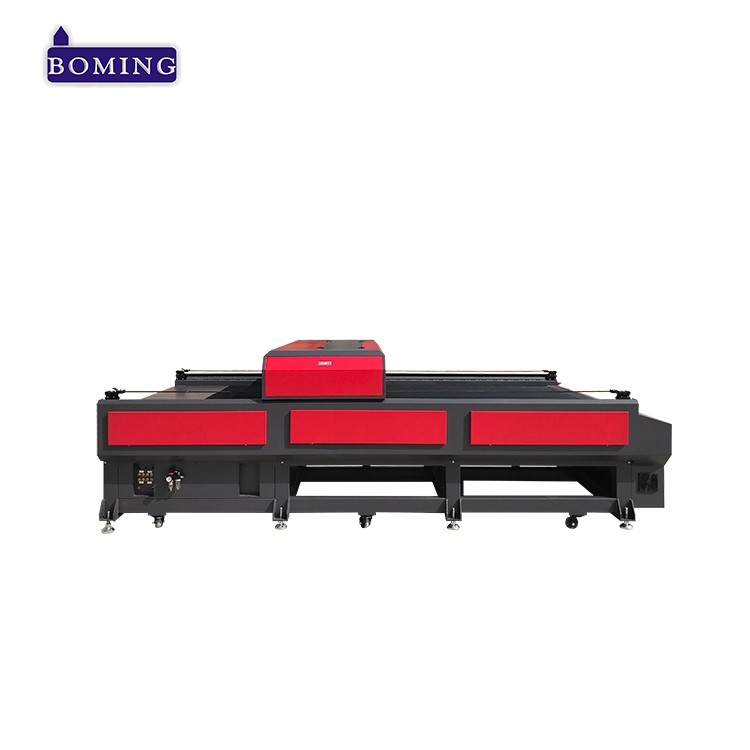

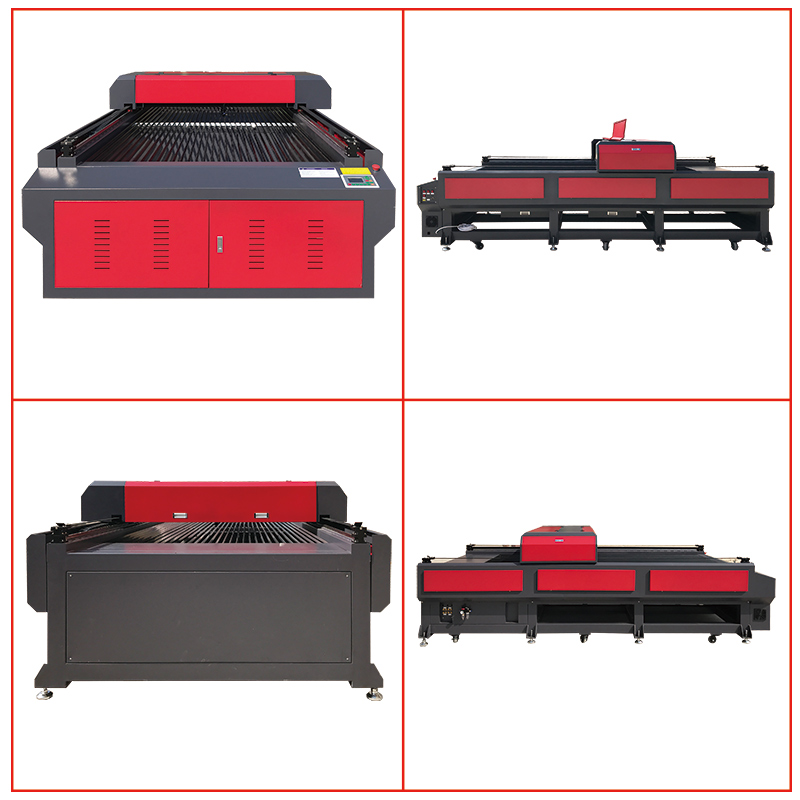

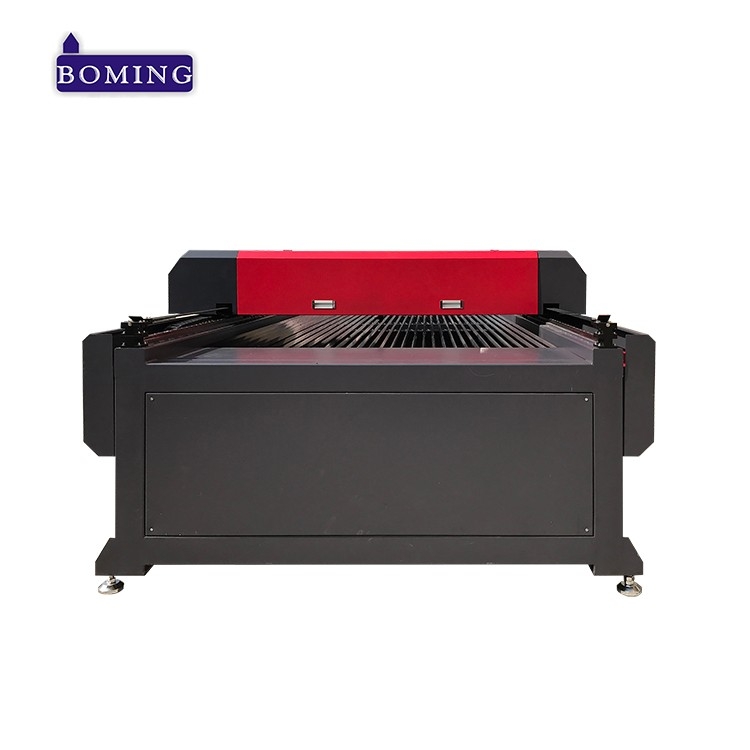

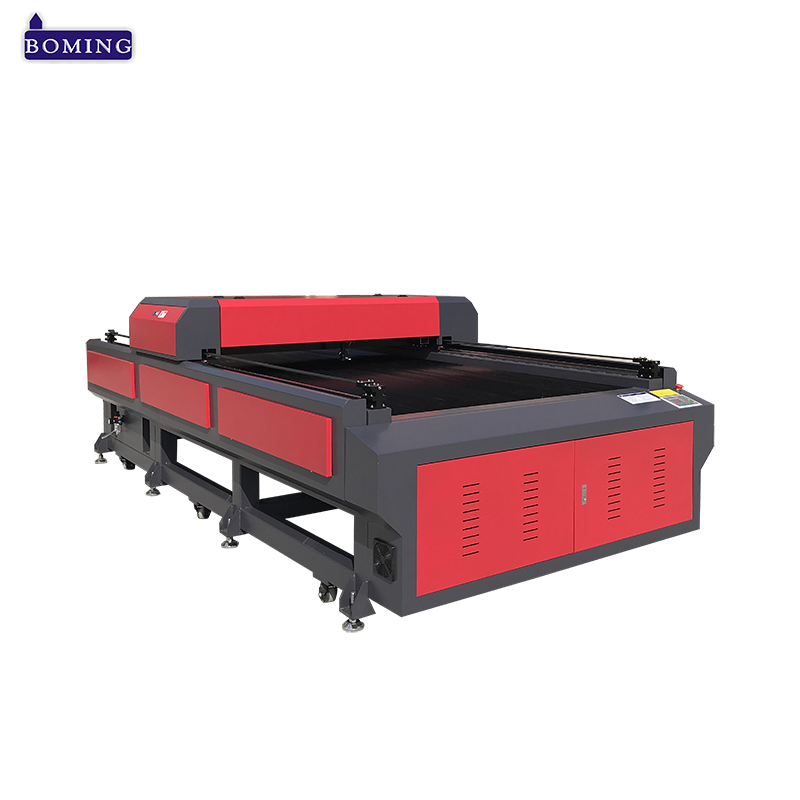

Machine pictures:

2513 Co 2 laser cutting machinne

large-format laser cutting machine

acrylic laser cutting bed

1325 laser cutting bed

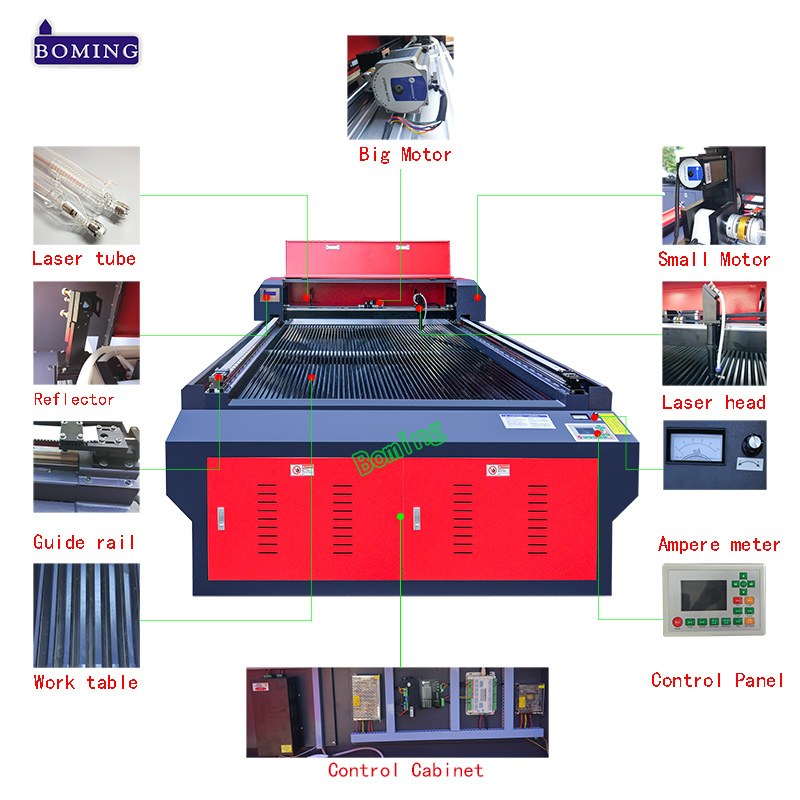

Features:1325 3016 5016 acrylic wood laser cutting bed

1、We adopt internationally advanced DSP control system with the function of continuous rapid curve cutting and minimum machiningpath optimization,improving the work efficiency greatly. Compensate light attenuation during the working process, ensuring that the

cutting effects are consistent in whole area.

2、Fully support CAD、CorelDRAW、Photoshop software, friendly man-machine interface meets the industries' need.

3、In the process of designing and producing——use the stable and strong machine rack to achieve the stability and precision when machine is running at high speed; use imported linear guide and precision gear to achieve high processing precision.

4、Adopts the changeable light weight blade type or honeycomb work table which is by special treatment, easy to be maintained.

5、Cutting or engraving large size area of material is suitable for processing many kinds of sheet material.

6、The stable light path design and industrial chiller keeps the same laser power in the different area of work table when cutting large size material which makes the cutting have fast speed, high efficiency and stable processing effect.

7、Multi document function: the machine can storage 256 files. The customers can choose the files in the machine without using computer, it is easy to achieve quantity production of 256 products.

8、The customized mahines with different size are available.



Advantage: of 1325 Laser Cutting Machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries:of 300w laser cutting machine

advertising, buliding model,art and craft,furniture etc.




Applicable Materials: of wood laser cutting machine

acrylic,MDF,organic glass,bomboo board,sponge, wood, plywood,crafts, etc.




Technical Parameters:of 450w laser cutting bed

Laser Capacity

100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

1300*2500 1600*2000 1600*2500 1600*3000 1600*5000 mm

Positional Accuracy

±0.05mm

Working table

Blade/knife/slats

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

laser cutter 1625



Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.

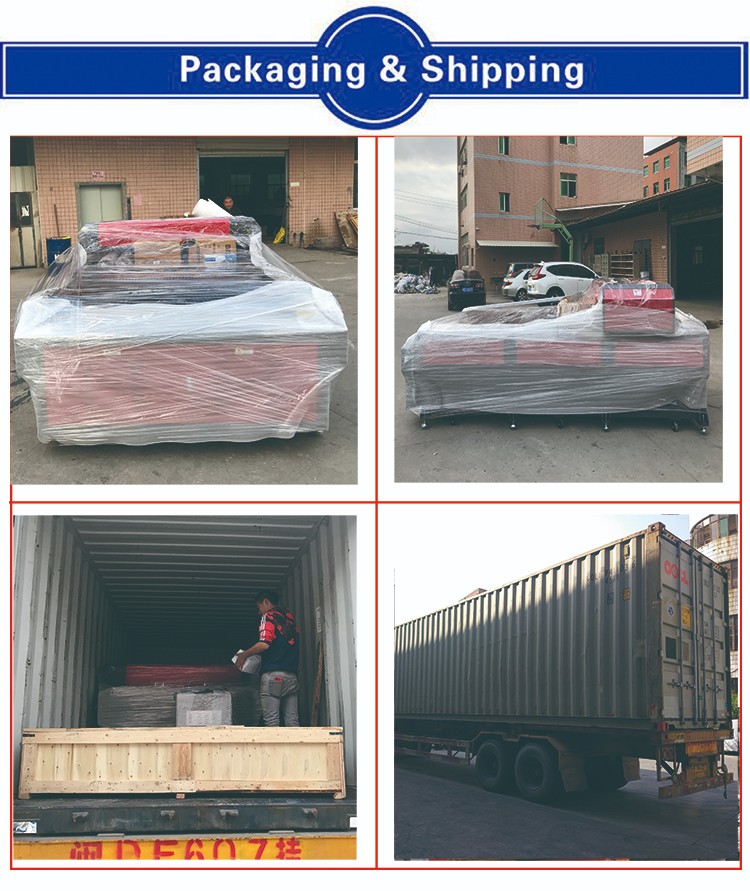

Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

3000 x 1500mm laser cutting machine
