Honeycomb Double axis top camera laser cutting machine is with big camera on top and small ccd camera on laser head, suitable for cutting big printed pattern, embroidered applique, on garment, fabric, cloth, textile, etc. Also can cut the small woven label, trademark, pattern, etc. For big camera cutting function, don't need to make drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically. For small camera function, need to make a drawing model to match the printed pattern. It is with doubel axis, can do spicling for tone pattern. The two laser head on two axis can cut different pattern at the same time.
Item NO.:
FLG-1610 1612 1810Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
Honeycomb Double axis top camera laser cutting machine is with big camera on top and small camera on laser head, it can be used in different area. For big camera functin, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple. For small camera function, after making the drawing model to match the printed pattern, the laser head can cut the pattern automartically. It is with honeycomb table and two axis, can cut different shape of pattern in one time.

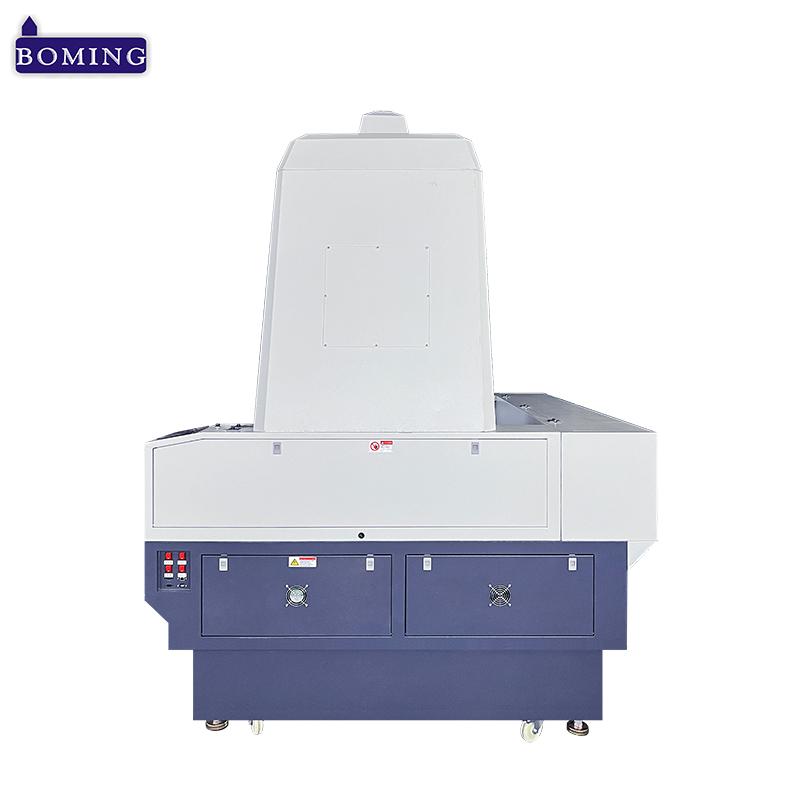

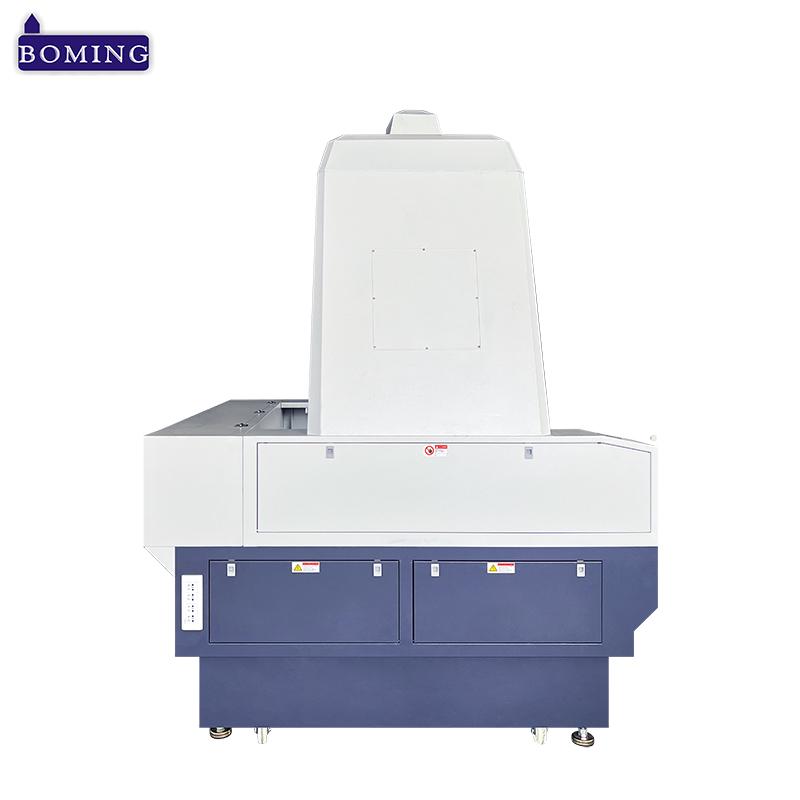

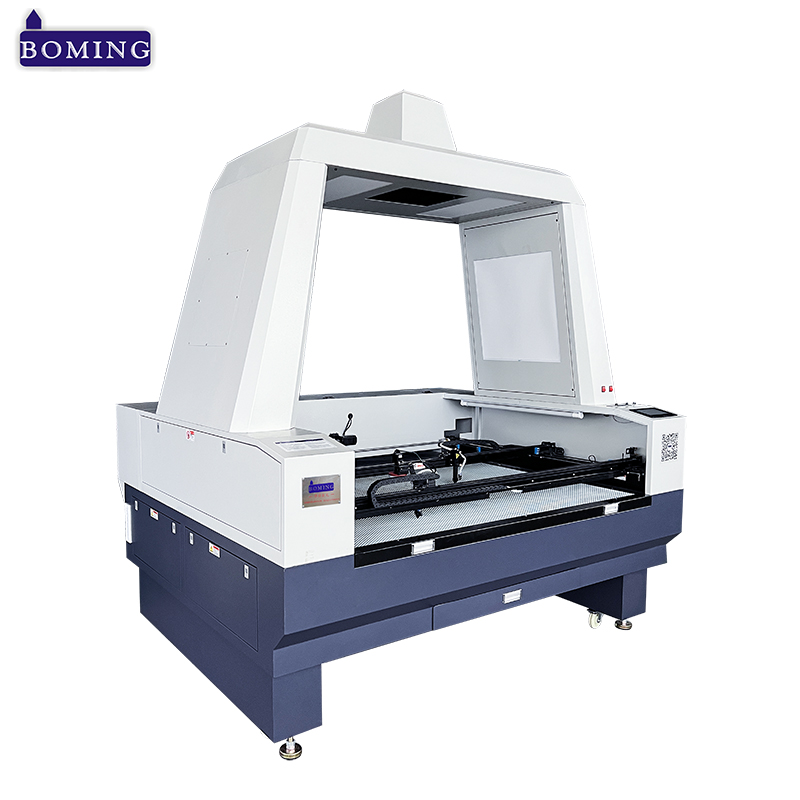

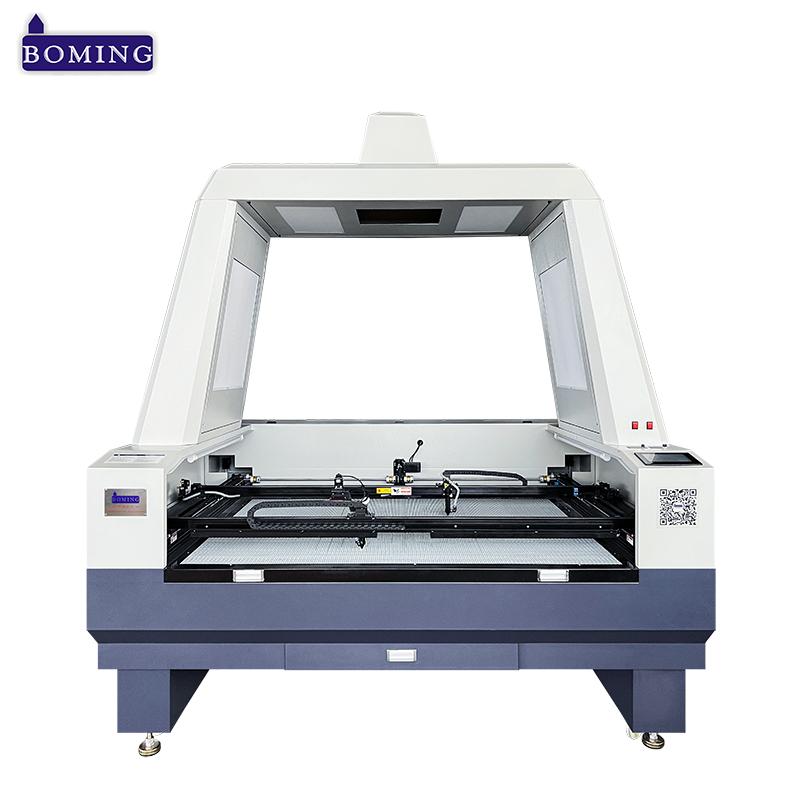

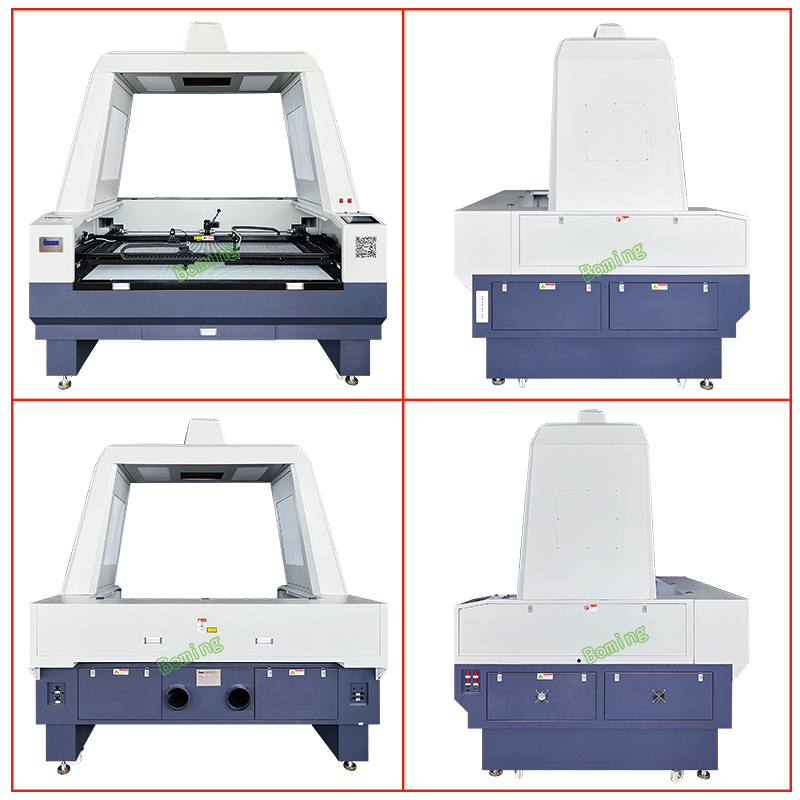

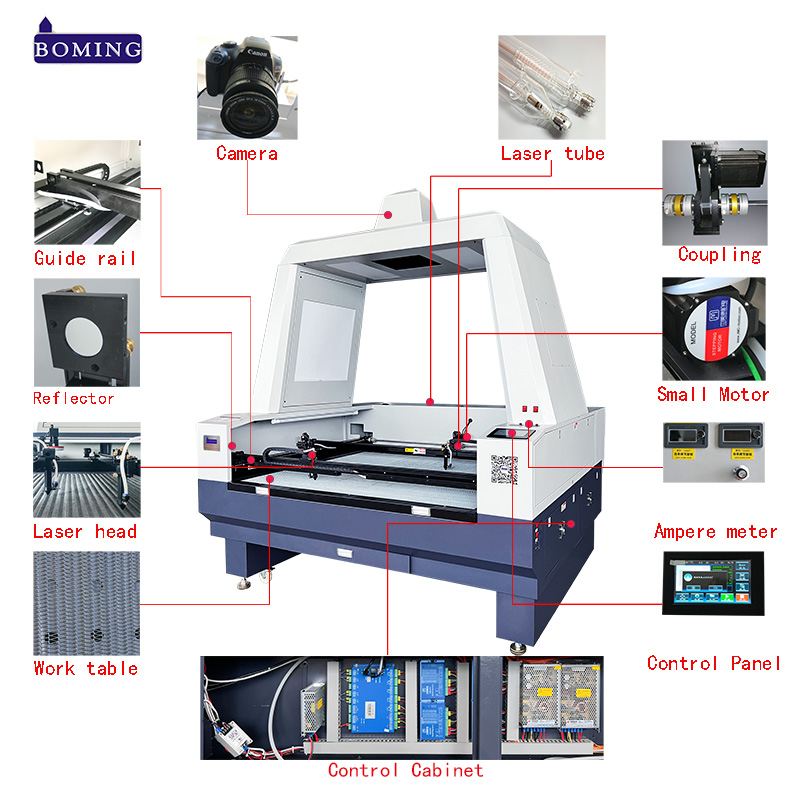

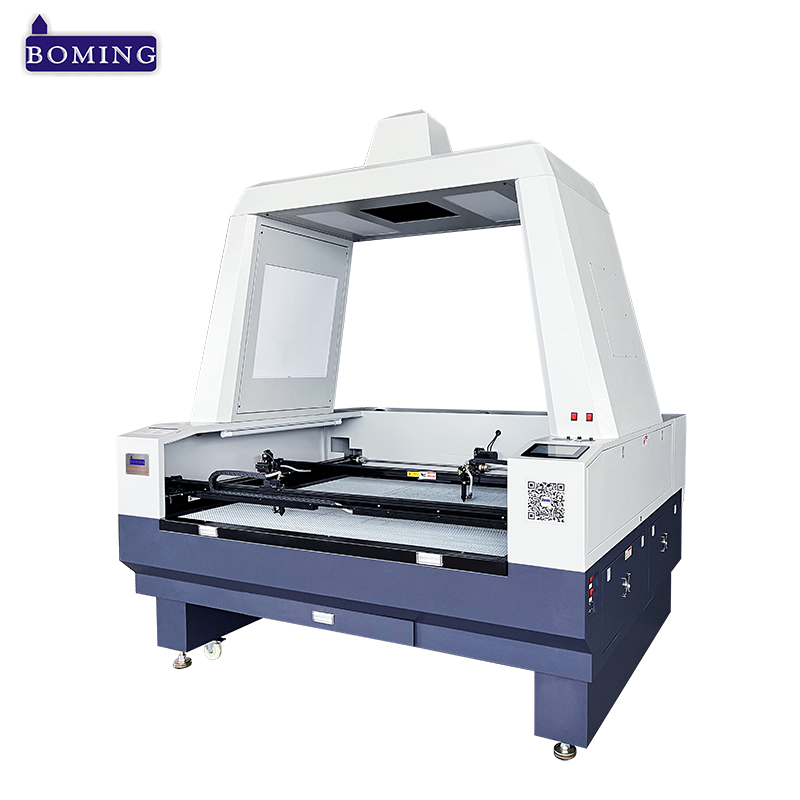

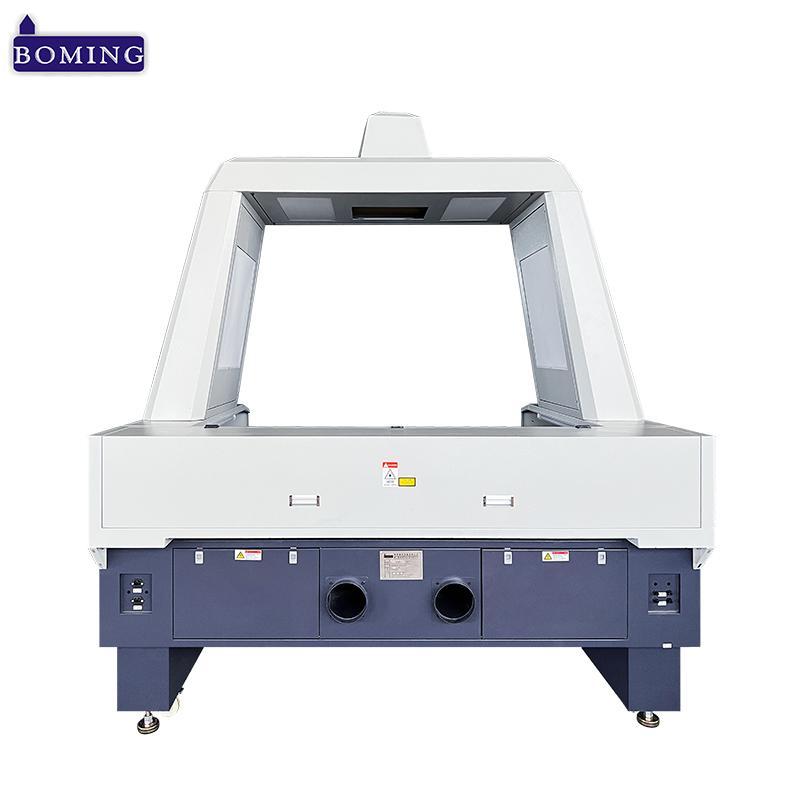

Machine Pictures: of camera scanning laser cutting machine
Software advantages: of camera laser cutter
1) Software comes with memory option. Machine can work offline without computer.
2) Designs can be sent to machine with one step function.
3) Most kind of design format can be accepted.
4) Machine can be accessed and operated directly from CorelDRAW software.
5) Software has powerful auto backup function.
6) Auto scan printed pattern and send to computer without making drawing in advance.
Machine advantages:of laser label cutting machine
1) High precision, High stability, Fast speed
2) Low consumption
3) Strong and durable frame, Long life
4) Imported guide rail and transmission belt
5) Imported reflector and focus lens
6) Stepping motor and driving system
7) Advanced copyrighted software
8) Excellent cooling system
9) LED realtime display
10) DSP intelligent main board
Applicable Industries: of laser cutting machine ccd
Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery fabric、Rapier woven、 woven labels、irregular trademark、garment、printing, etc.
Applicable Materials: of laser cutting ccd camera
All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark， embroidered applique, printed pattern, etc.
Technical Parameters: of fabric laser cutter with ccd
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 1600*800 1600*1000 1600*1200 1800*1000 1800*1200 mm |
Positional Accuracy | ±0.05mm |
Camera resolution | 21.4 mega pixel |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
How to choose our machine:
The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:
1) What materials and size will you cut?
2) What laser capacity and working area size you need?
3) What industries are you in, shoe, clothes, handicraft or advertisement?
4) Your destination port, it is for checking shipping price.
5) Other relative information, please let me know.
Why choose us:
1. 18 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
