fabric camera laser cutter

1610 1612 1810 cloth label roll fabric pattern 2 axis camera scan autofeed laser cutting cutter machine


  • Item NO.:

    FLG-1610 1612 1810
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C,DP,DA
  • Product Origin:

    Quanzhou,China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10 days

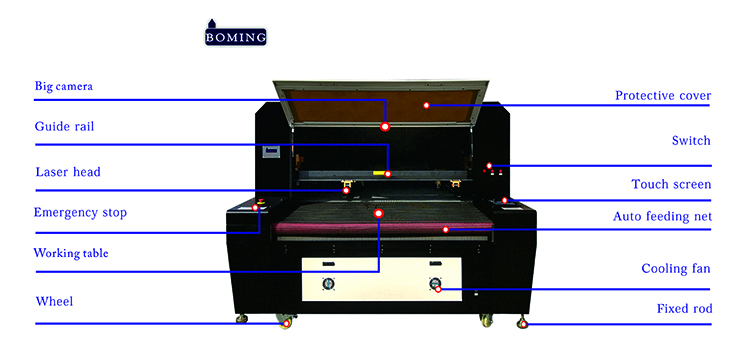

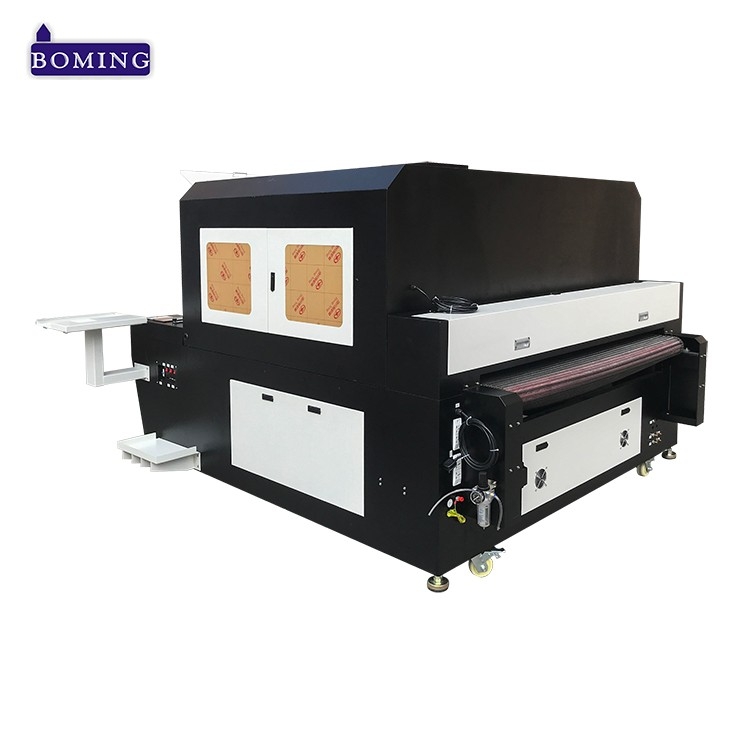

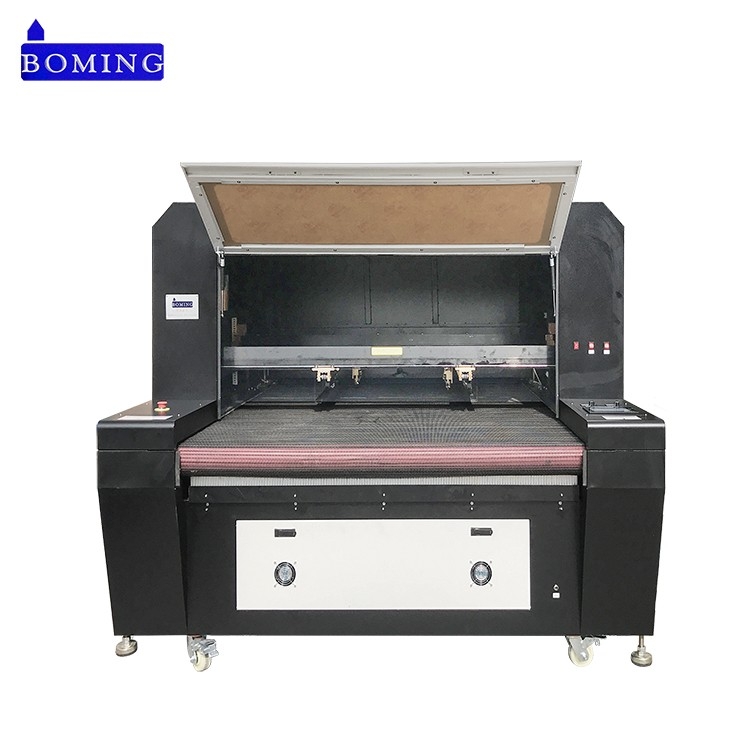

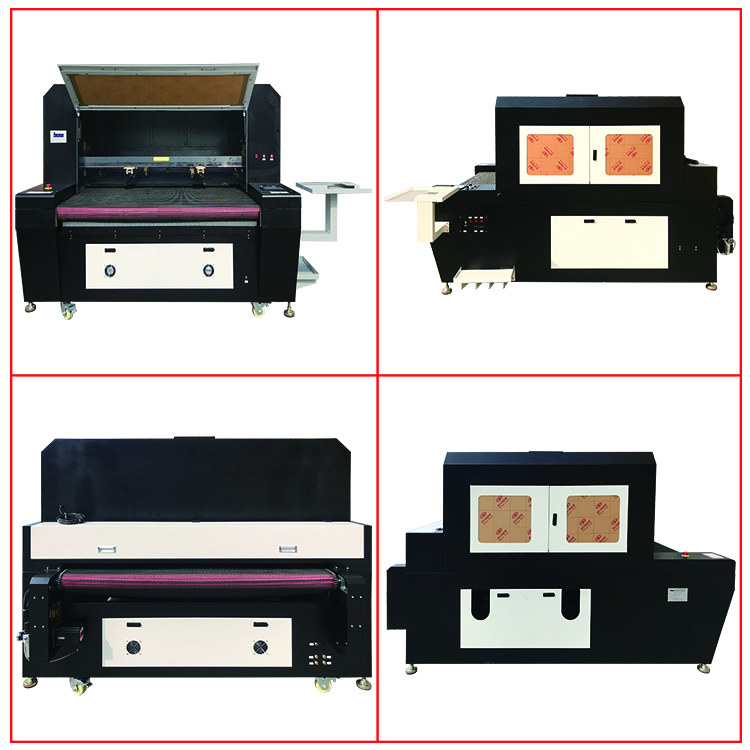

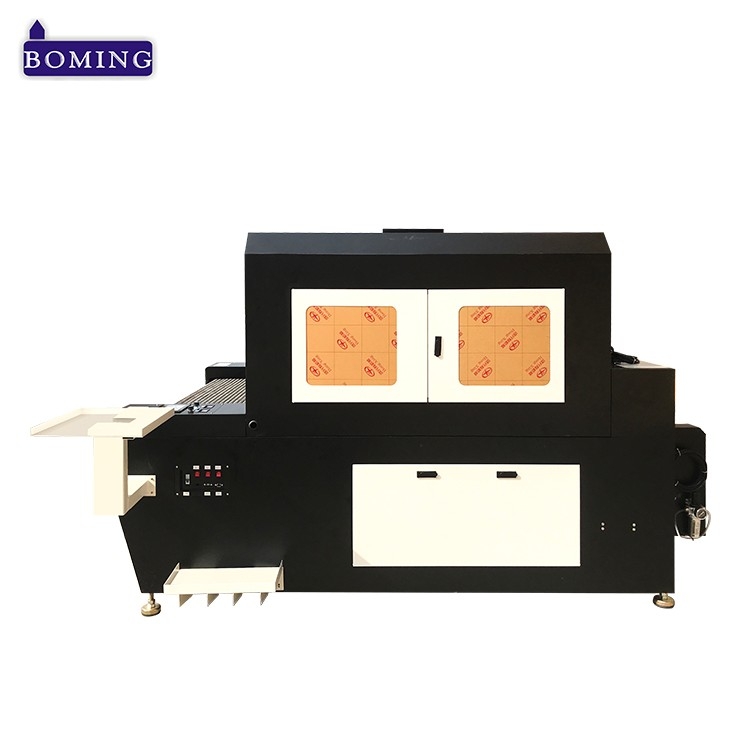

1610 1612 1810 cloth label roll fabric pattern 2 axis fabric camera laser cutter




face mask camera laser cutting machineface mask camera laser cutting machine

printed fabric laser cutting machinecamera laser cutter


Features: of fabric pattern camera laser cutting machine

1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).

2、The effective working area is several times compared the former laser machine but  maintaining the same accuracy.

3、The oversize image can solve the problem of error and image degradation caused by mosaic image.

4、Cutting by positioning is suitable for multiple templates.

5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.

6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.

7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.

8、The laser machine has better man-machine interaction, for the object contours found one time,  it can modify partly and integrally then process.



Advantage: of autofeed camera laser cutting machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: of printed pattern laser cutting machine

Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.



Applicable Materials:

All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark, etc.



Technical Parameters: of top Camera Fabric Laser Cutting Machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

900*600 1200*800 1300*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Projector resolution

1280*800mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

jersey camera laser cutting machine




Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.



FAQ:


Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

camera laser cutter
