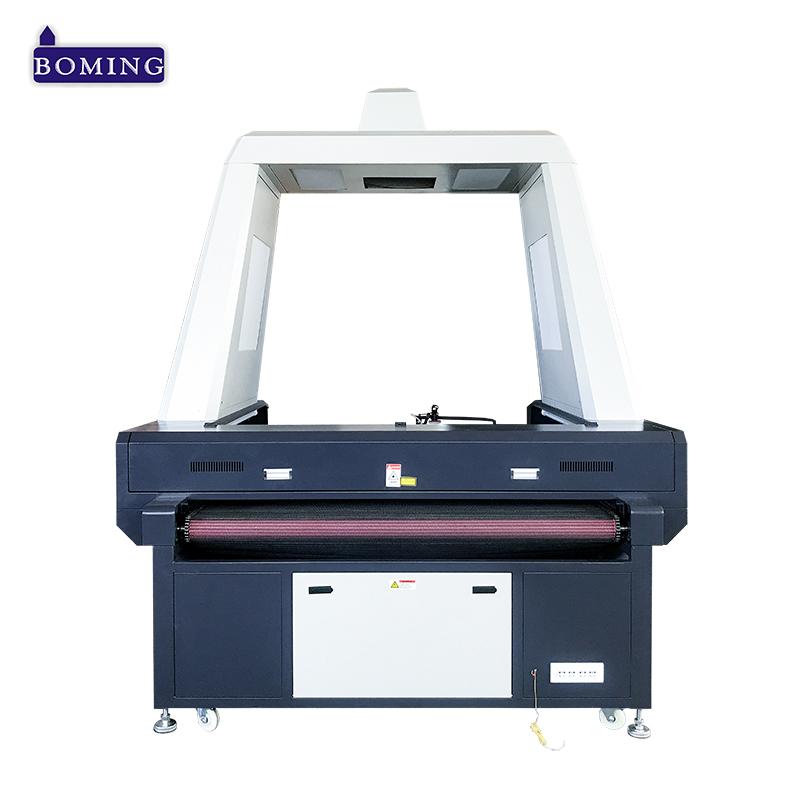

Contour scan Autofeed Double camera laser cutting machine is with big camera on top and small ccd camera on laser head, suitable for cutting big printed pattern, embroidered applique, on garment, fabric, cloth, textile, etc. Also can cut the samll woven label, trademark, pattern, etc. For big camera cutting function, don't need to make drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically. For small camera function, need to make a drawing model to match the printed pattern.
Item NO.:
FLG-1612 1812 1814Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
Contour scan Autofeed Double camera laser cutting machine is with big camera on top and small camera on laser head, it can be used in different area. For big camera functin, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple. For small camera function, after making the drawing model to match the printed pattern, the laser head can cut the pattern automartically.

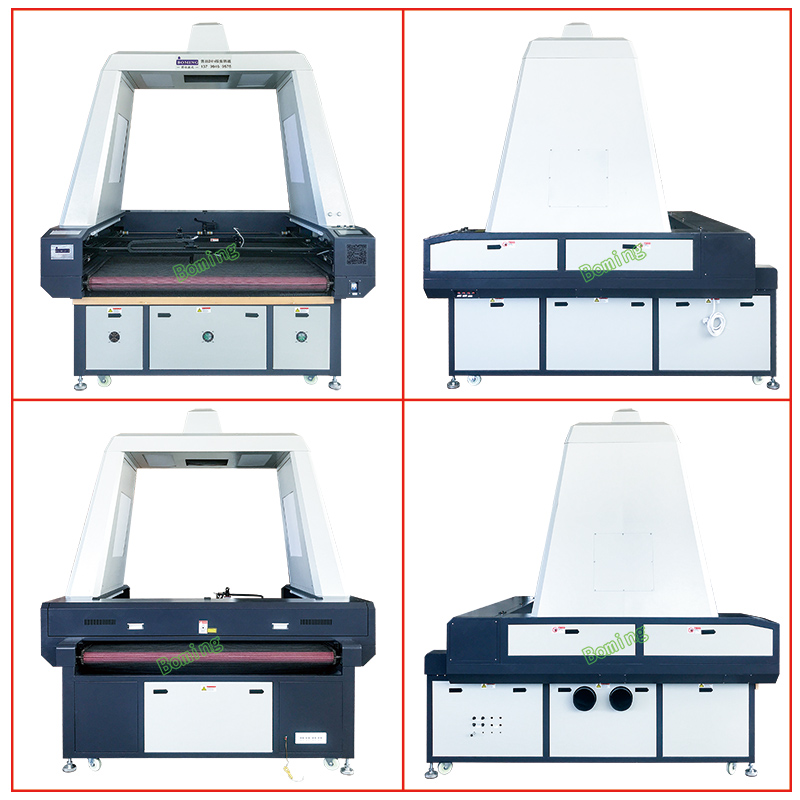

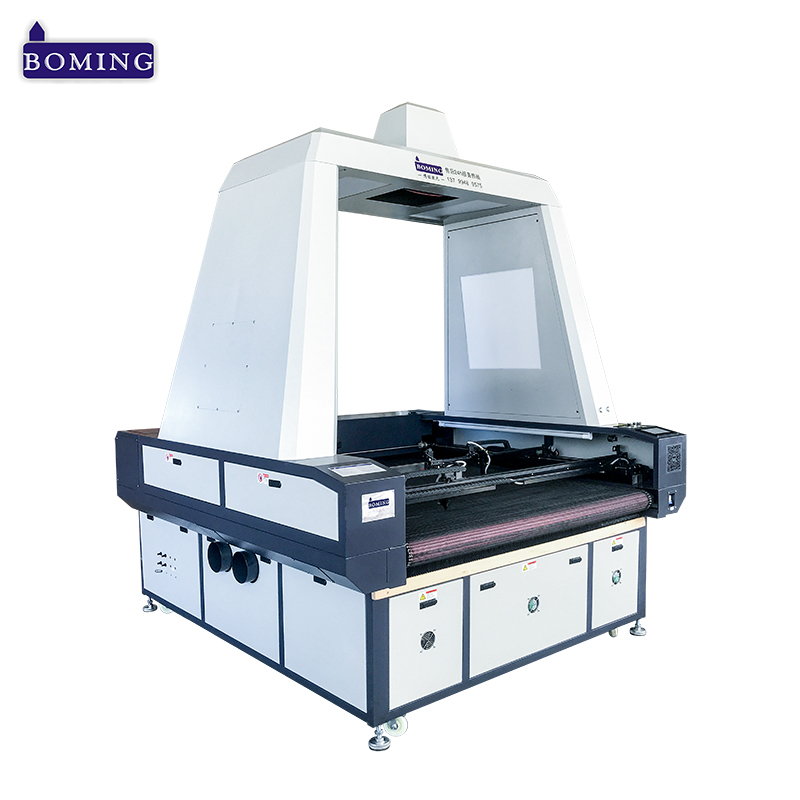

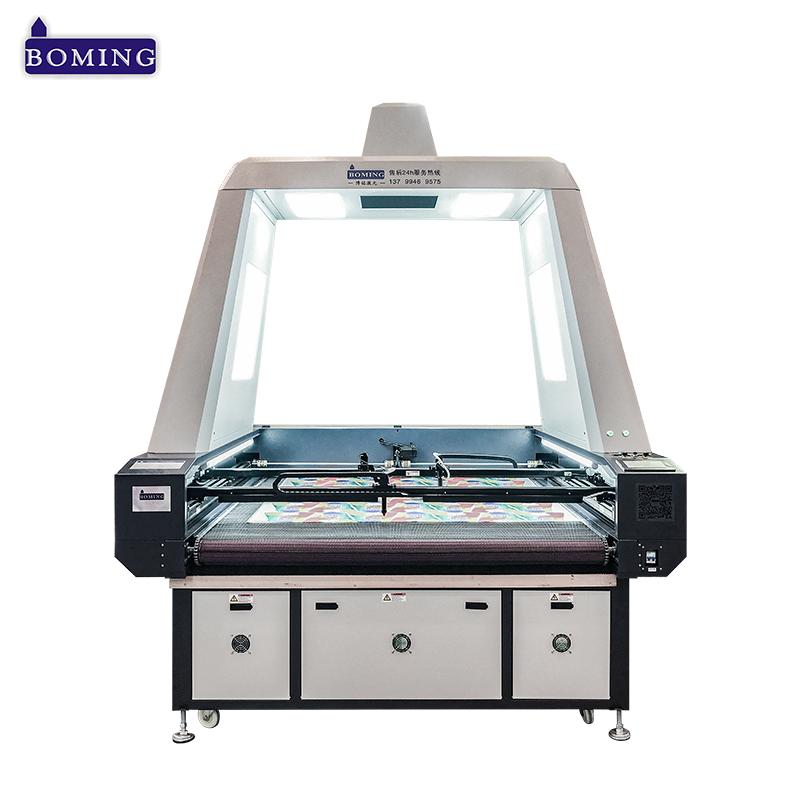

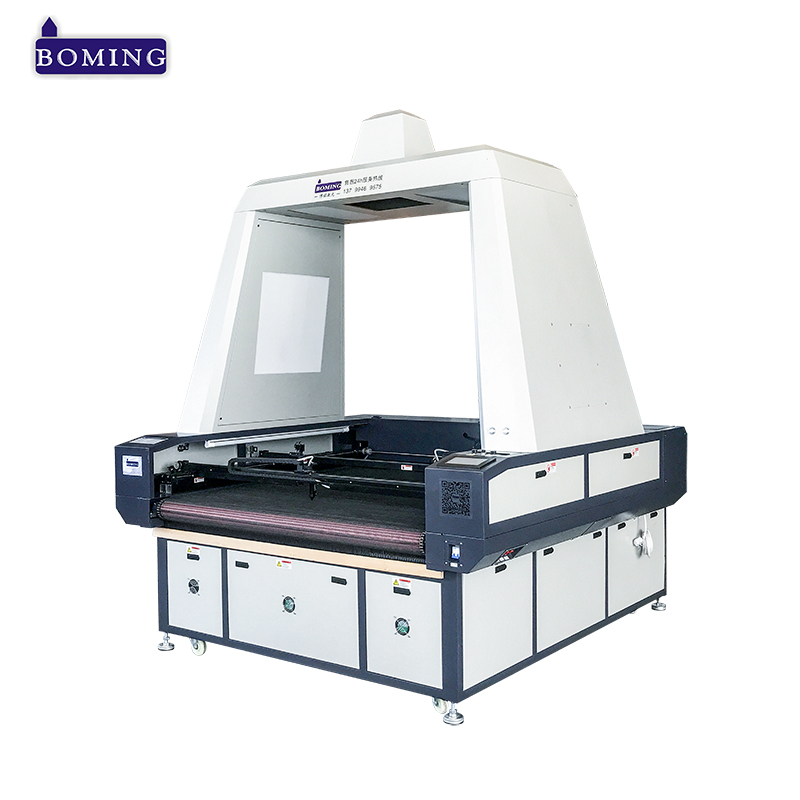

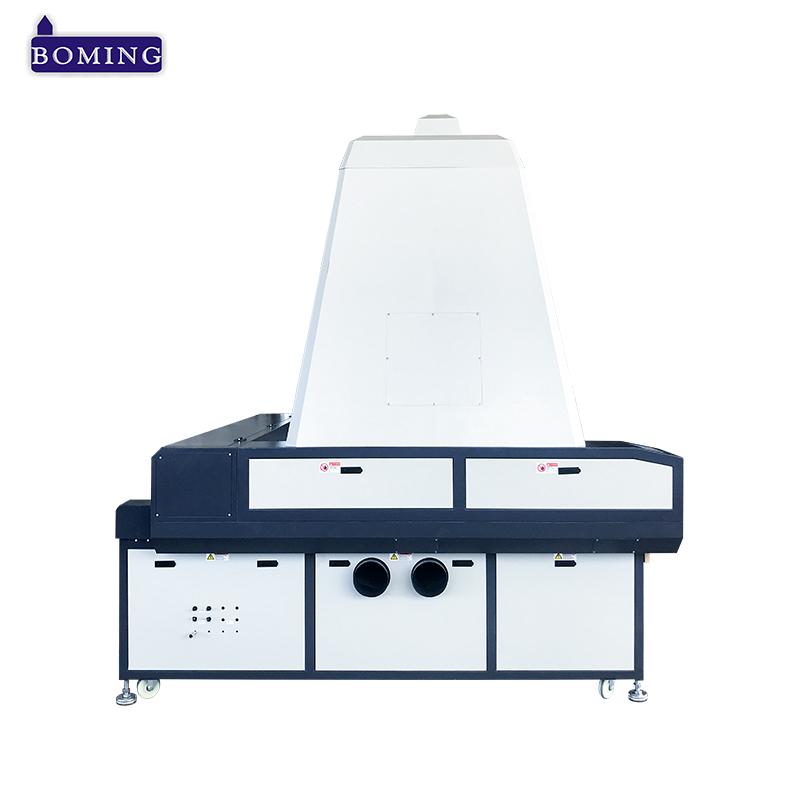

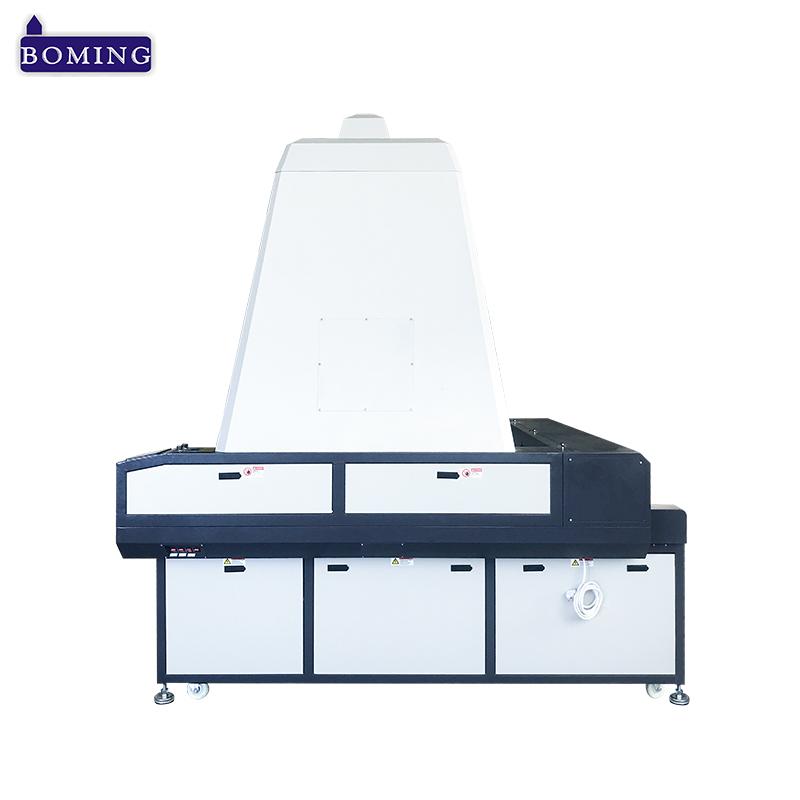

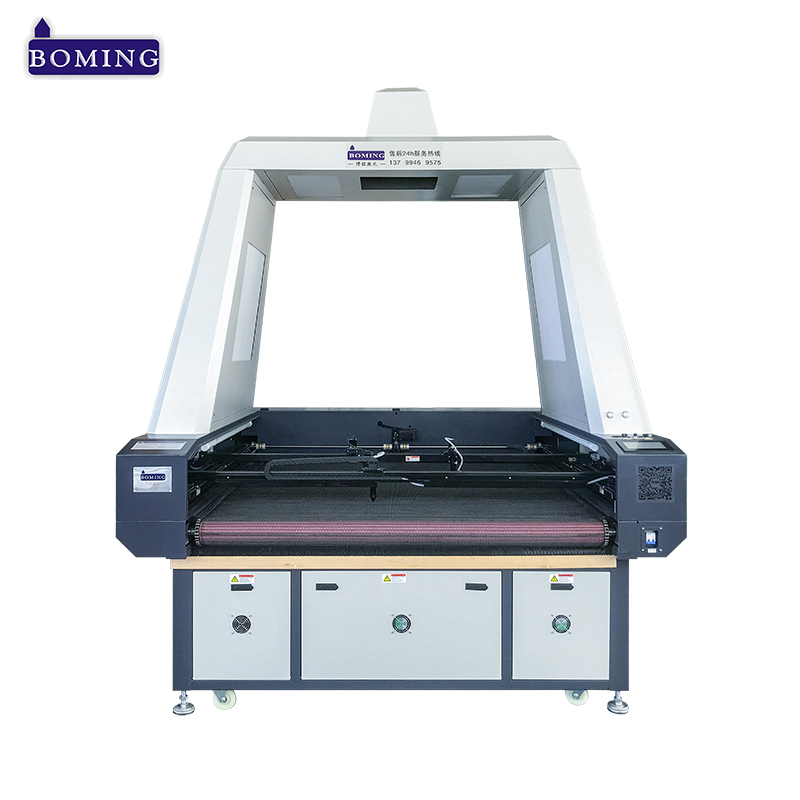

Machine Pictures: of label laser cutting machine
Features: of trademark laser cut machineryine
1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).
2、The effective working area is several times compared the former laser machine but maintaining the same accuracy.
3、The oversize image can solve the problem of error and image degradation caused by mosaic image.
4、Cutting by positioning is suitable for multiple templates.
5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.
6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.
7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.
8、The laser machine has better man-machine interaction, for the object contours found one time, it can modify partly and integrally then process.

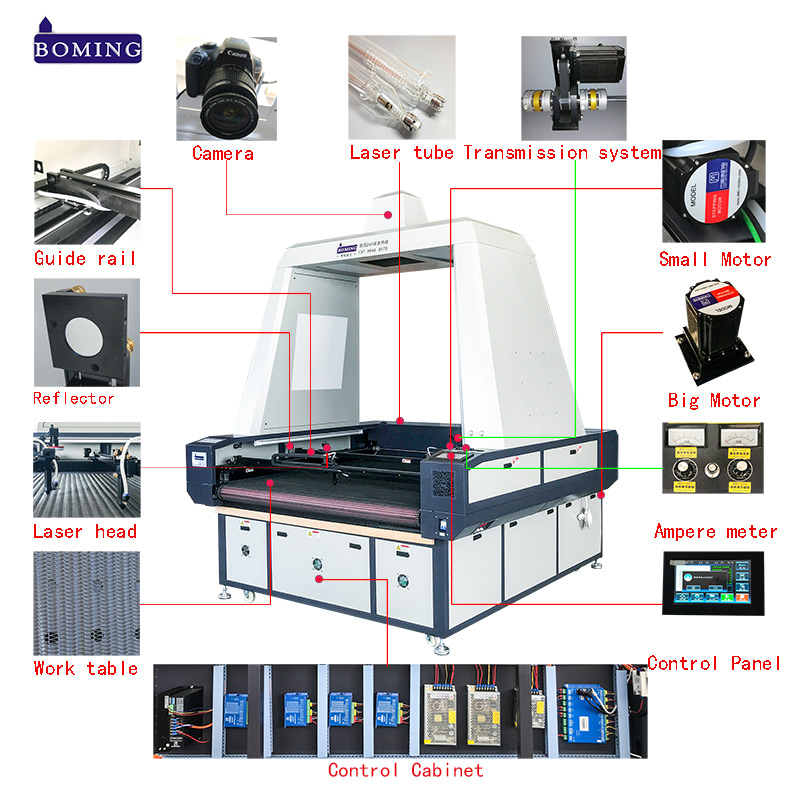

Machine advantages:of panoramic large camera laser cutting machine
1) High precision, High stability, Fast speed
2) Low consumption
3) Strong and durable frame, Long life
4) Imported guide rail and transmission belt
5) Imported reflector and focus lens
6) Stepping motor and driving system
7) Advanced copyrighted software
8) Excellent cooling system
9) LED realtime display
10) DSP intelligent main board
Applicable Industries: of laser machine camera
Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.
Applicable Materials: of laser cutting label machine
All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark， etc.
Technical Parameters: of laser cutter label roll
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 1600*1000 1600*1200 1600*1400 1800*1000 1800*1200 1800*1400 1800*1600 1900*2000 1900*2200mm |
Positional Accuracy | ±0.05mm |
Camera resolution | 21.4 mega pixel |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: Usually we accept T/T，Irrevocable L/C at sight or cash.
Q: Do you have certificate?
A: For every model of machine, it has a CE, FCC, FDA, ROHS certificate.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
