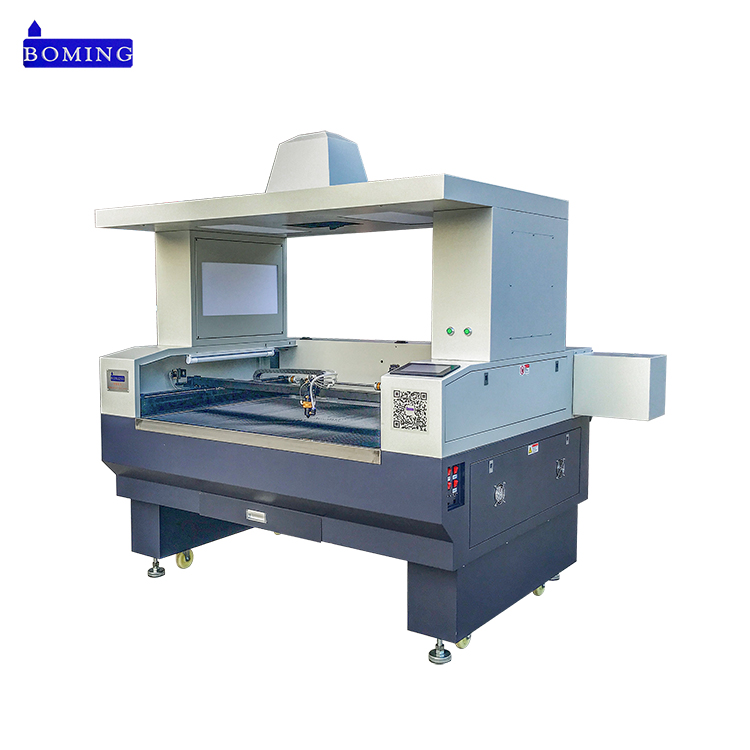

Solar cell pattern Panoramic camera laser cutting machine

Solar cell pattern Panoramic camera laser cutting machine is with big camera on top, suitable for cutting the printed fabric pattern, embroidered textile,solar cell, textile, garment, cloth,etc. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically.

  • Item NO.:

    FLG-9060 1280 1390
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Solar cell pattern Panoramic camera laser cutting machine is with big camera on top, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple.

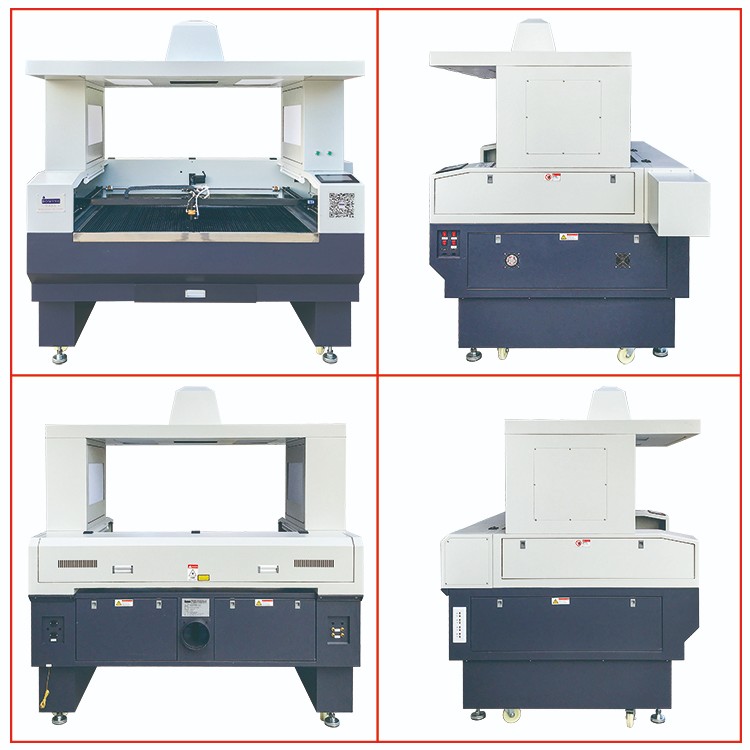

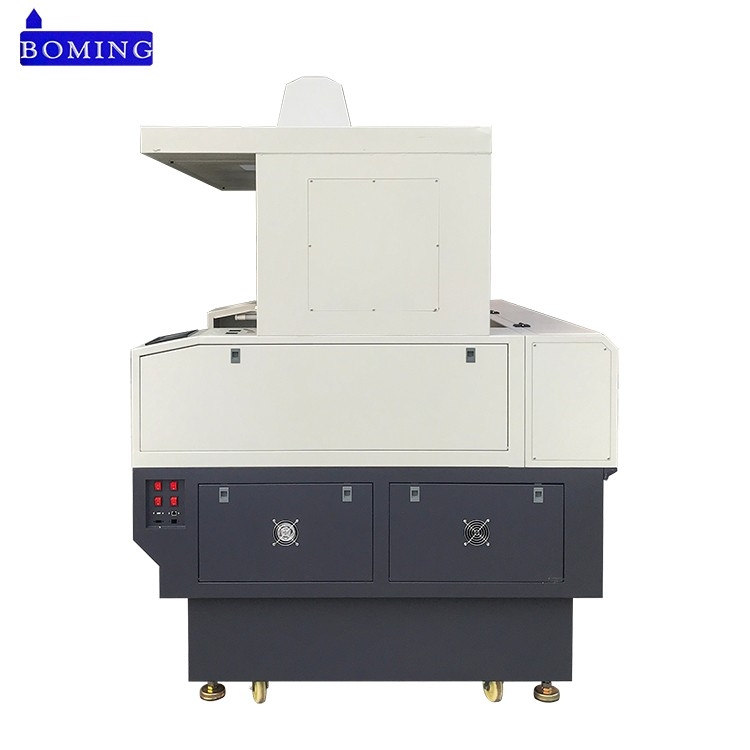

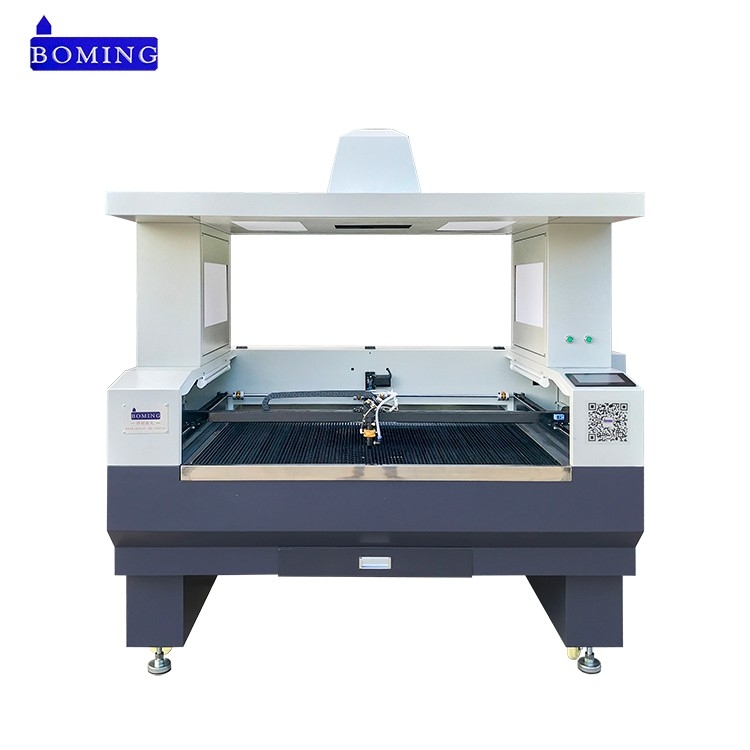

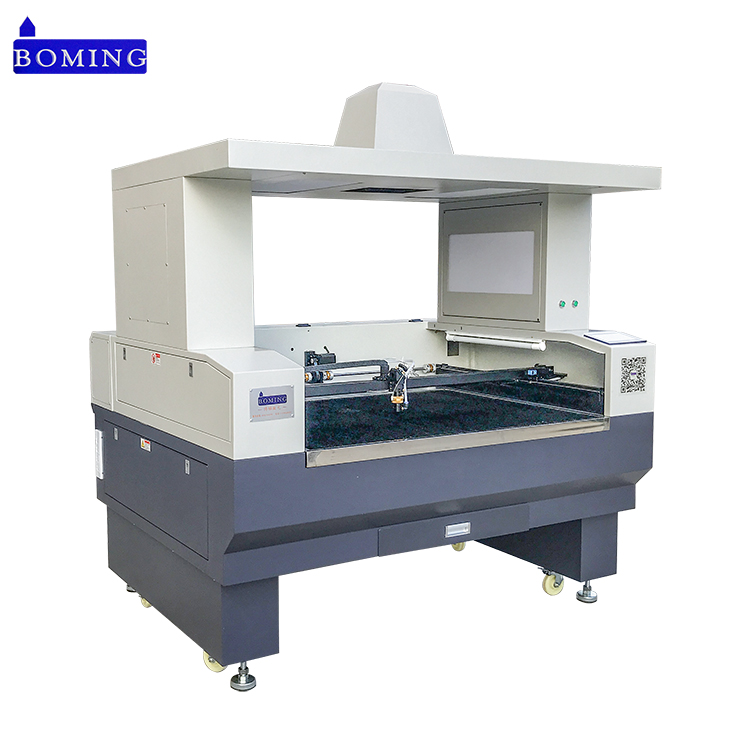

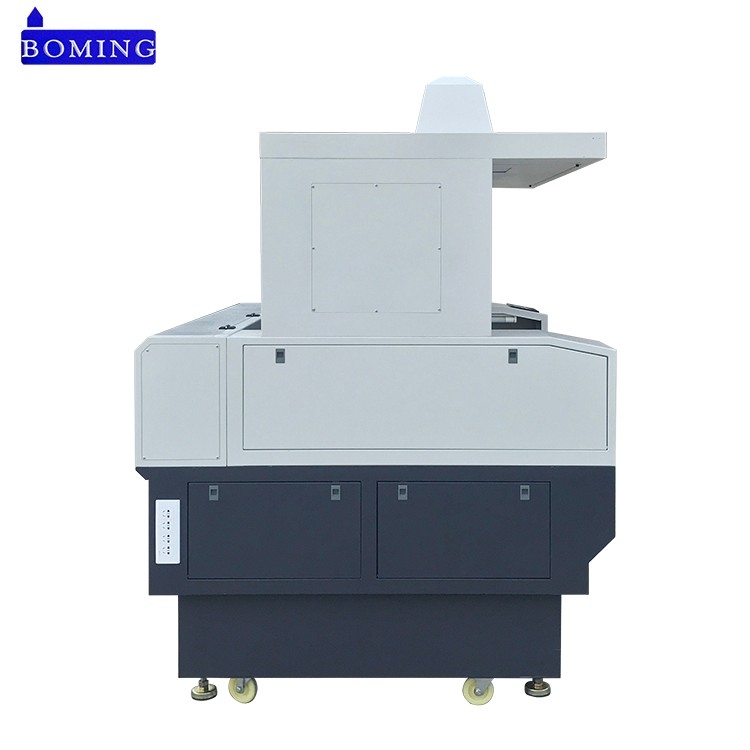

Machine pictures:


laser cutter 150 watt with camera


label cutting laser machine


solar cell laser cutting machine

camera laser cutter


Features: of Solar cell pattern Panoramic camera laser cutting machine

1、It can handle any shape, whether it is round, square, digging, trapezoid, irregular, etc.

2、 It can handle multiple shapes and sizes of the same layout at one time, and can position and cut with high precision.

3、High efficiency, one machine can replace 3-5 workers.

4、With 24 million camera pixels and self-developed fully automatic identification system, it is simple to operate, more intelligent, efficient and energy-saving.

5、To undertake various customized models.




Advantage: of Laser Cutting Machine With Camera

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: of Ccd Camera Laser Cutting Machine

Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.




Applicable Materials:

Solar cell, printed fabric, garment, embroidered textile,cloth, PET, plastic, wood board, organic craft, leather, PVC, acrylic and other non-metallic materials., etc.




Technical Parameters: of Solar Cell Laser Cutting Machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

900*600 1200*800 1300*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Camera resolution

24.1 mega-pixel

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror

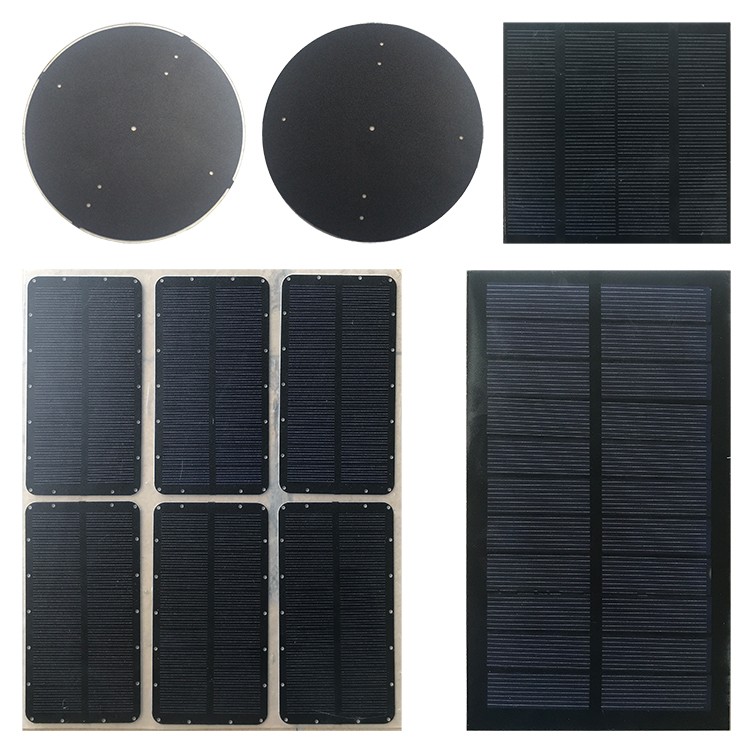

Sample show:

ccd laser machine



Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.




Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

ccd laser engraver
