Embroidered printed pattern camera laser cutting machine

Embroidered printed pattern camera laser cutting machine is with big camera on top, suitable for cutting the large format printed fabric pattern, embroidered textile, cloth. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically.

  • Item NO.:

    FLG-1625 1630 1650
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Embroidered printed pattern camera laser cutting machine is with big camera on top, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple.

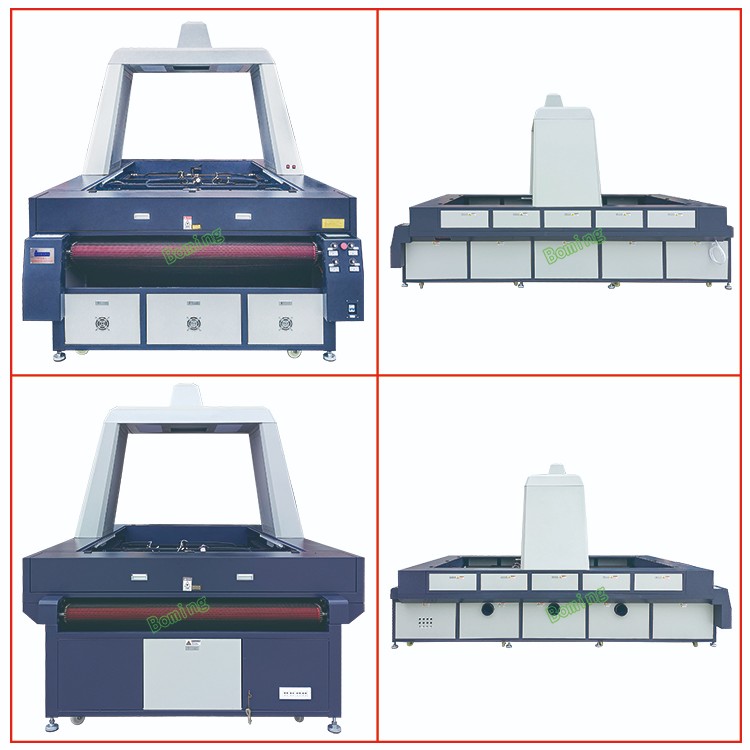

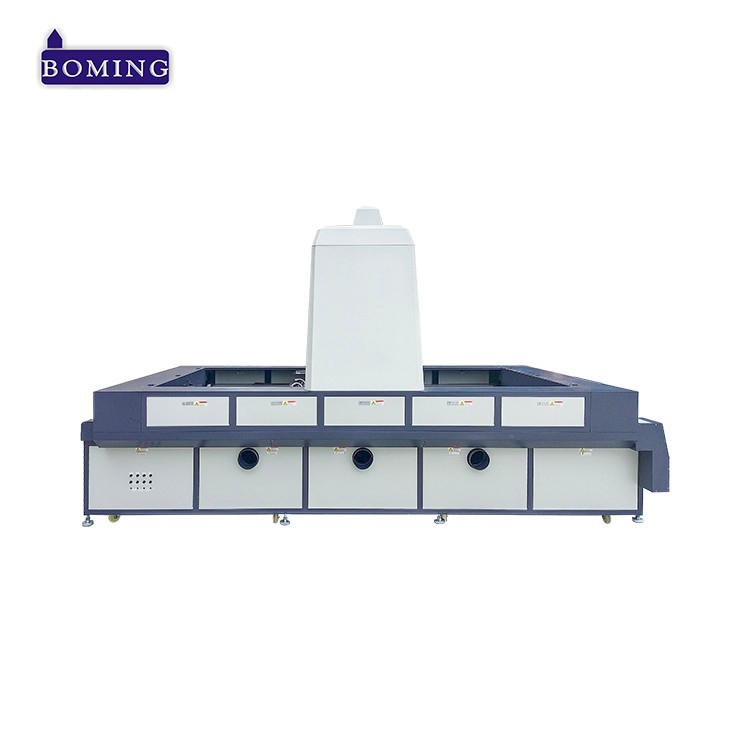

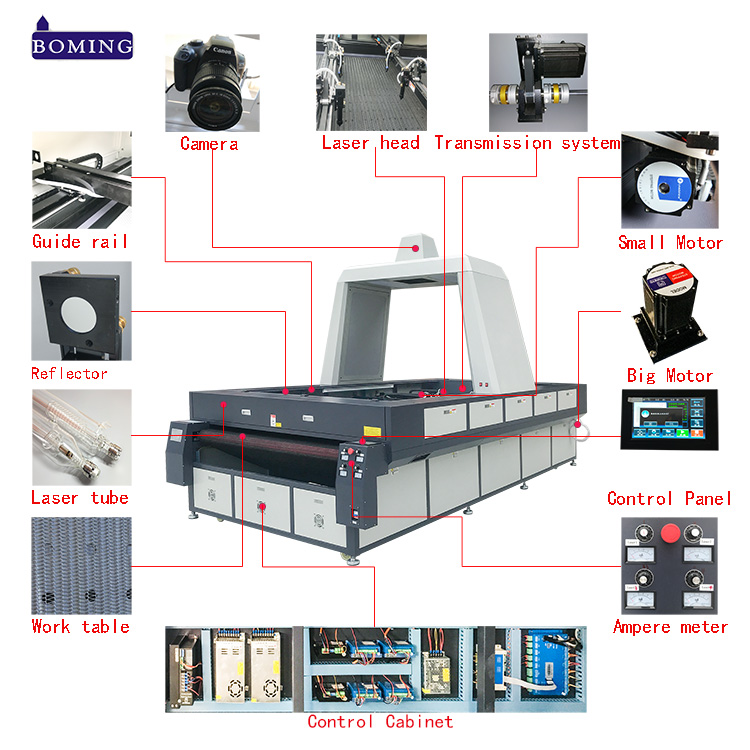

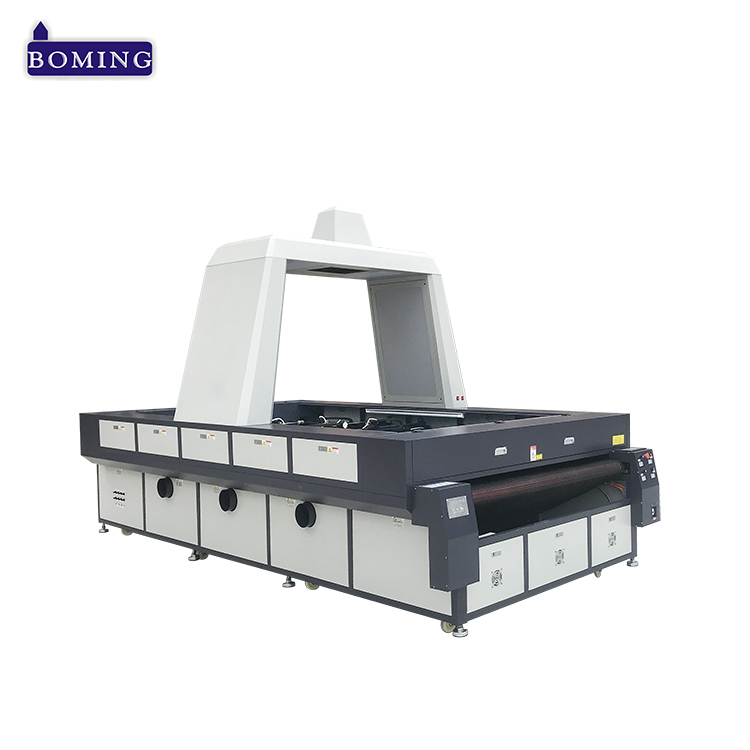

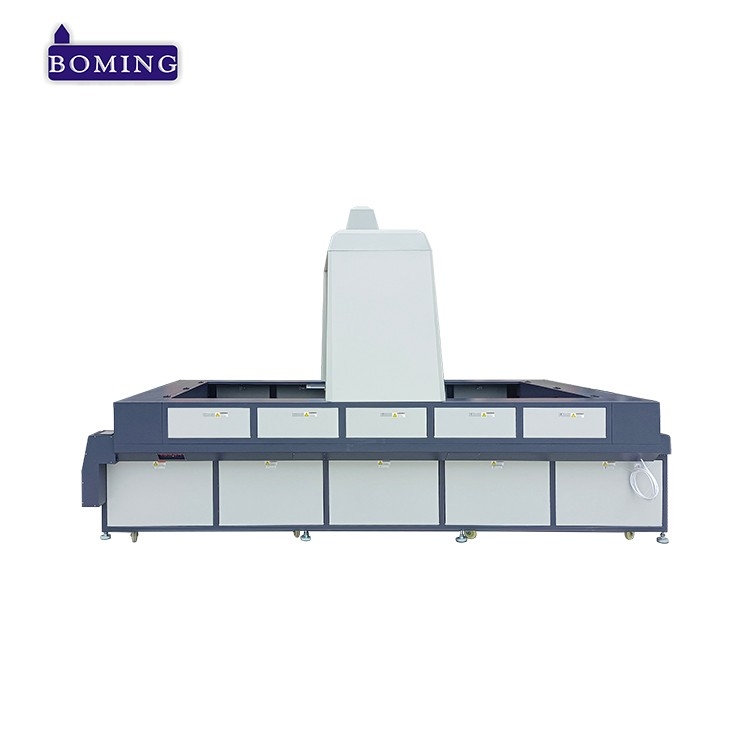

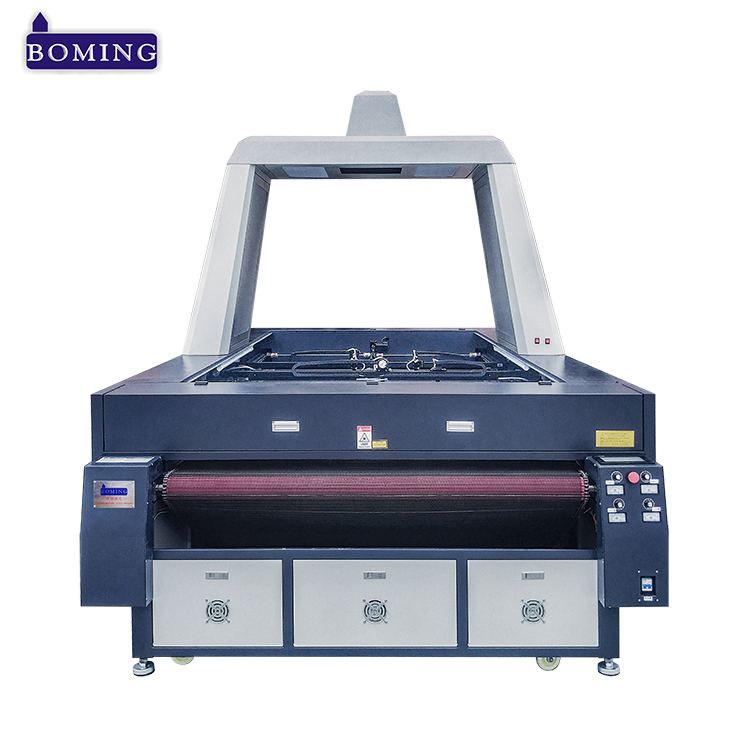

Machine pictures:

laser machine with camera


laser cutter for labels

top camera laser cutting machine

laser format laser cutting bed




Features: of Embroidered printed pattern camera laser cutting machine

1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).

2、The effective working area is several times compared the former laser machine but  maintaining the same accuracy.

3、The oversize image can solve the problem of error and image degradation caused by mosaic image.

4、Cutting by positioning is suitable for multiple templates.

5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.

6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.

7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.

8、The laser machine has better man-machine interaction, for the object contours found one time,  it can modify partly and integrally then process.



Advantage: of Panoramic camera laser cutting machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: oftextile laser cutter machine

Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.




Applicable Materials:

All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark, etc.




Technical Parameters: of printed fabric laser cutting machime

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*2000 1600*2500 1600*3000 1600*5000 mm

Positional Accuracy

±0.05mm

Camera resolution

21.4 mega pixel

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

fabric laser cutting machine with ccd



FAQ:

Q: Are you a factory or a trading company?

A: We are a factory manufacturing laser machine and we provide perfect after-sale service.


Q: How can I know your machine work well?

A: Before delivery, we do test the machine working condition for you.


Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.


Q: How can I pay my order?

A: Usually we accept T/T,Irrevocable L/C at sight or Alibaba Trade Assurance Order.


Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.




Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

ccd camera laser cutter
