1680 portrait laser cutter with ccd camera is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth, woven label, embroidered applique, portrait, fabric contour etc,. Before cutting, need to make a drawing model to match the printed pattern. One head, two head, three head are optional. When cutting pattern, only one head can work. For cutting normal mateials, all can work together.
Item NO.:
FLG-9060 1290 1680Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1680 portrait laser cutter with ccd camera is with small ccd camera on laser head, it is for positioning the pritned pattern contour, embroidered applique, woven label. Need to make a pattern drawing first, then make a pattern model, use the drawing to match the pattern in laser software. After totally match the pattern, the laser head can cut accoring to the pattern model. Many working area, multi laser head and, different laser capacity are optional. Choose big laser capactity can have faster cutting speed to achieve higher working efficiency.

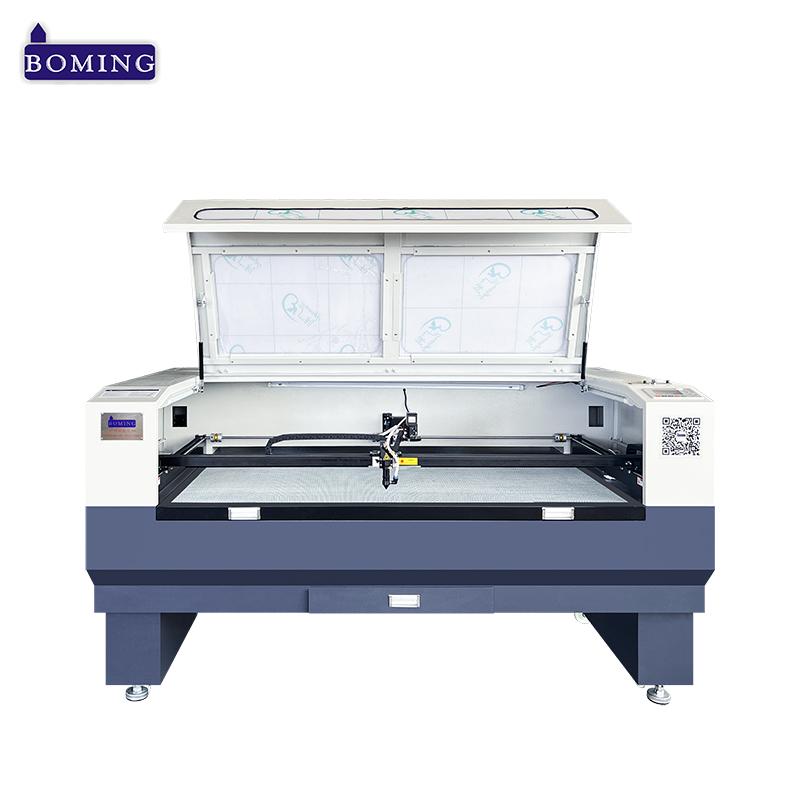

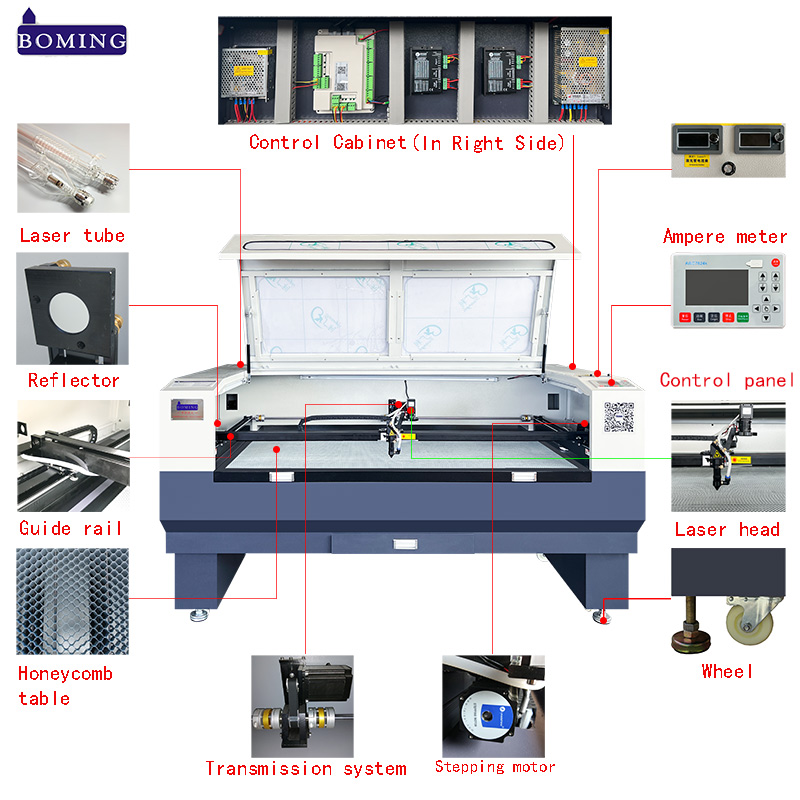

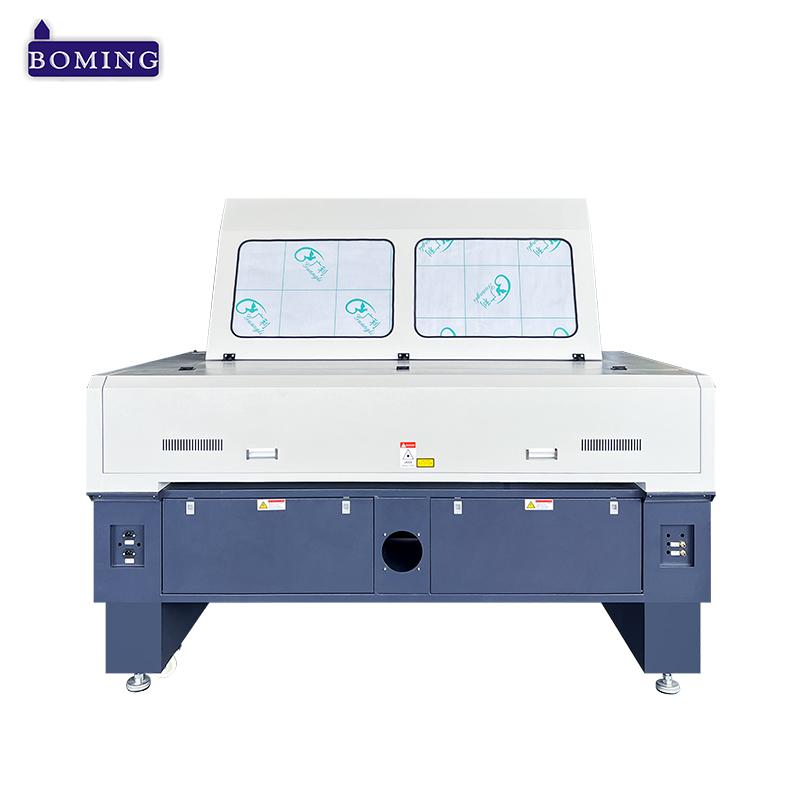

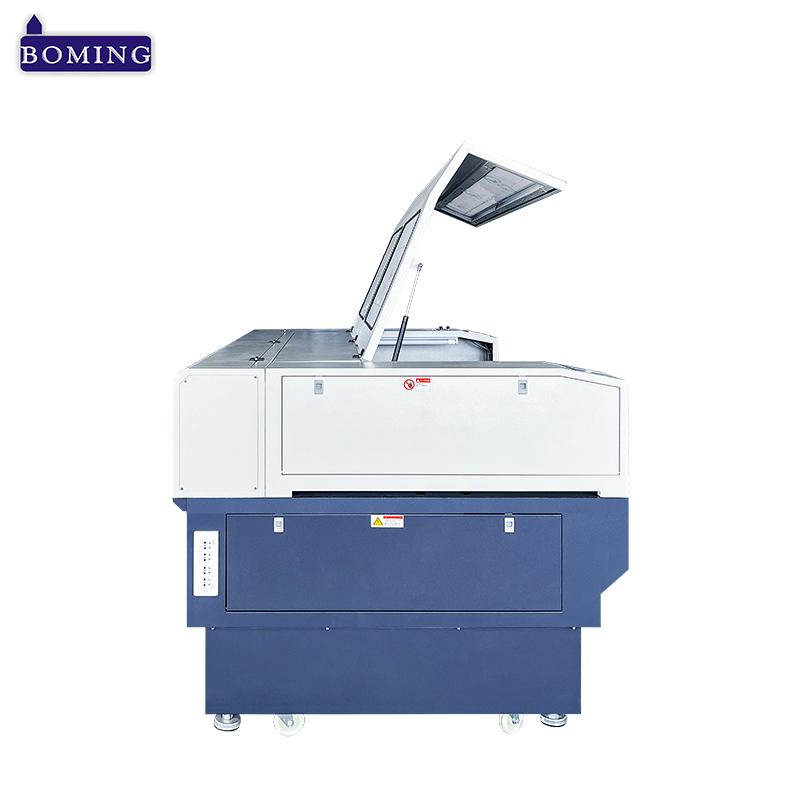

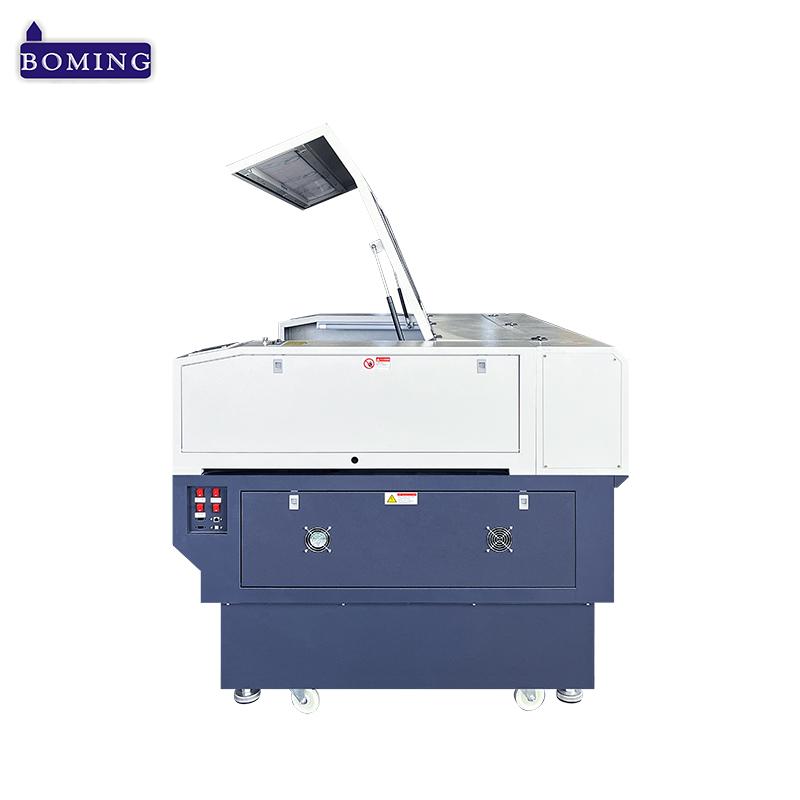

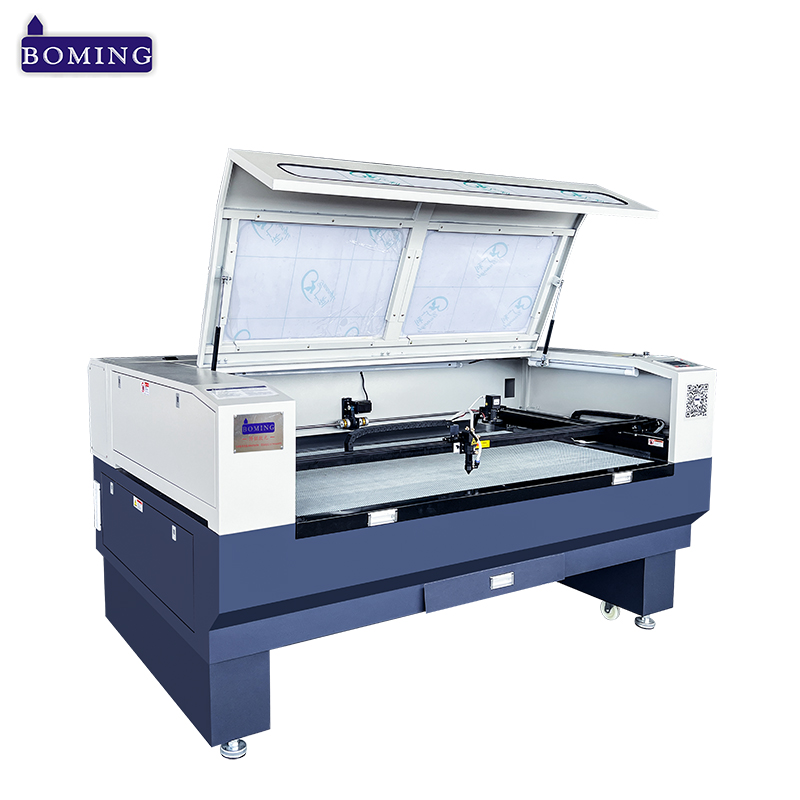

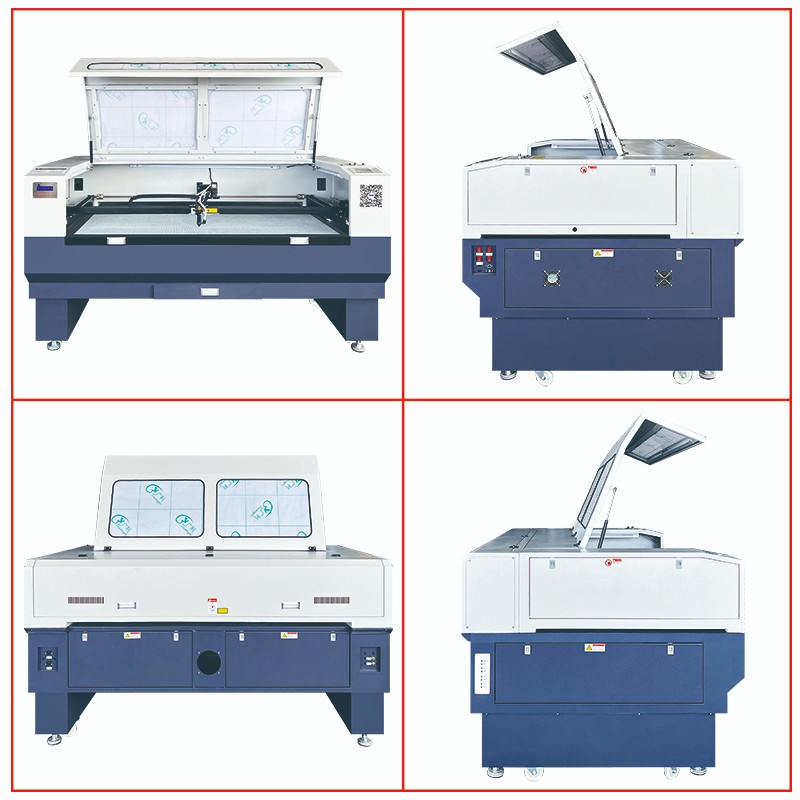

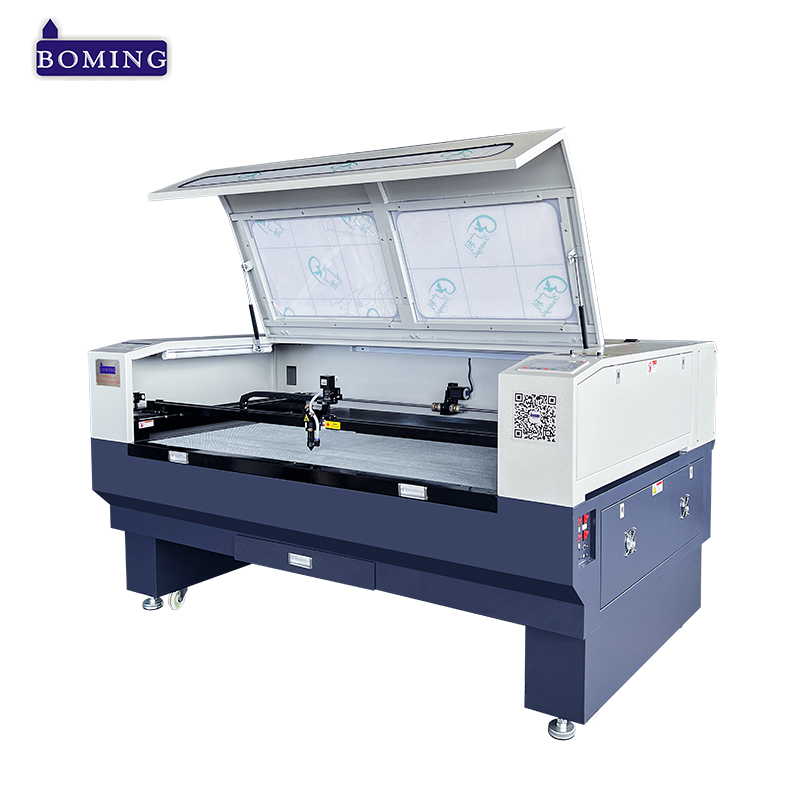

Machine Picture: of label laser cutting machine price
Features: of border laser cutting machine
1、Solve the problem of waste time and waste energy caused by traditional hand positioning and the problem of wasted products caused by human factor.
2、The machine can recognize and cut large area pattern. A worker can operate several machines at the same time, saving manpower, electricity and place, having high price/performance ratio.
3、It has the characteristics of auto recognizing edge, cutting by template, puzzle cutting, strong recognizing capacity, fast positioning and high positional accuracy.
4、It supports many positioning method: feature matching, two points positioning, multi templates positioning and contour extraction.
5、Graphic editing, composing, control, output can be finished at one time.
6、Supports many kinds of image format: PLT、AI、DXF、BMP、DS, etc.
7、It can process irregular label, precisely control output capacity, cut vertical embroidered label by slice.
8、High precision cutting, high speed cutting, without missing label and cutting disorderly, high cutting efficiency and large production.
Machine advantages:of wood pattern laser cutting machine
1) High precision, High stability, Fast speed
2) Low consumption
3) Strong and durable frame, Long life
4) Imported guide rail and transmission belt
5) Imported reflector and focus lens
6) Stepping motor and driving system
7) Advanced copyrighted software
8) Excellent cooling system
9) LED realtime display
10) DSP intelligent main board
Applicable Industries: of machine laser for cutting labels
Suitable for cutting of embroidered appliqe、fabric pattern、Rapier woven labels、trademark、embroidered leather label、vertical label、print label、high frequency pressure label、irregular trademark and accurate positioning cutting & punching for the non-metallic materials, such as all kinds of embroidery、print fabric、film printing, etc.
Applicable Materials: of woven laser cutting machine
Leather,cloth,wool fabric,plexiglass,plastic,film,rubber and other nonmetallic materials.
Technical Parameters: of visual ccd laser
Laser Capacity | 80W 100W 130W 150W 180W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000mm |
Positional Accuracy | ±0.05mm |
Camera pixel | 2 mega pixel |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show: of CCD camera laser cutting machine
How to choose our machine:
The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:
1) What materials and size will you cut?
2) What laser capacity and working area size you need?
3) What industries are you in, shoe, clothes, handicraft or advertisement?
4) Your destination port, it is for checking shipping price.
5) Other relative information, please let me know.
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
