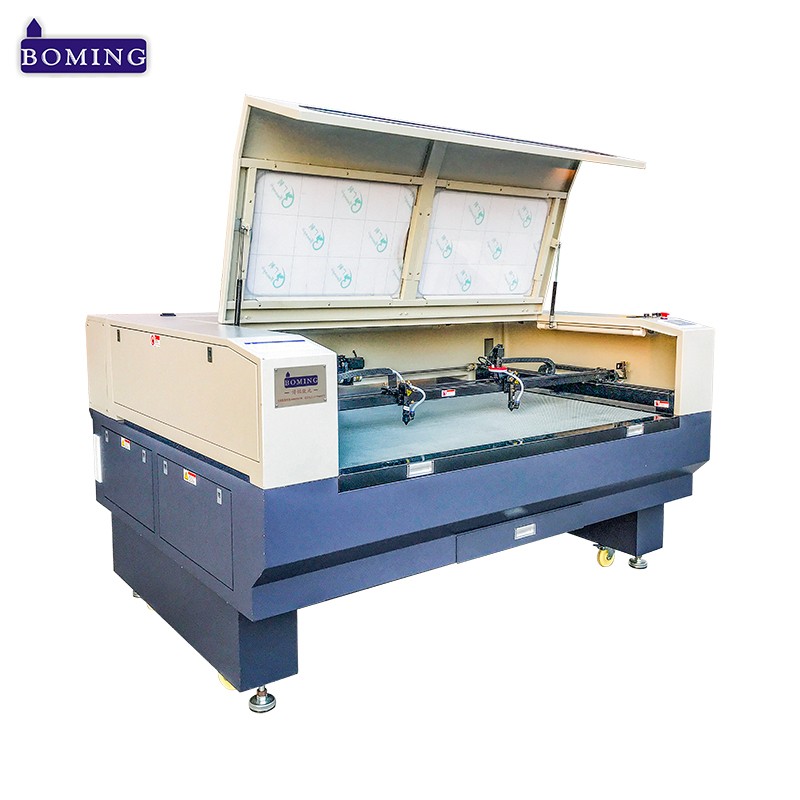

Trademark pattern laser cutting machine with CCD camera

Trademark pattern laser cutting machine with CCD camera is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth. Before cutting, need to make a drawing model to match the printed pattern.

  • Item NO.:

    FLG-9060 1390 1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Trademark pattern laser cutting machine with CCD camera is with small ccd camera on laser head, it is for positioning the pritned pattern contour. Need to make a pattern drawing first, then make a pattern model, use the drawing to match the pattern in laser software. After totally match the pattern, the laser head can cut accoring to the pattern model.

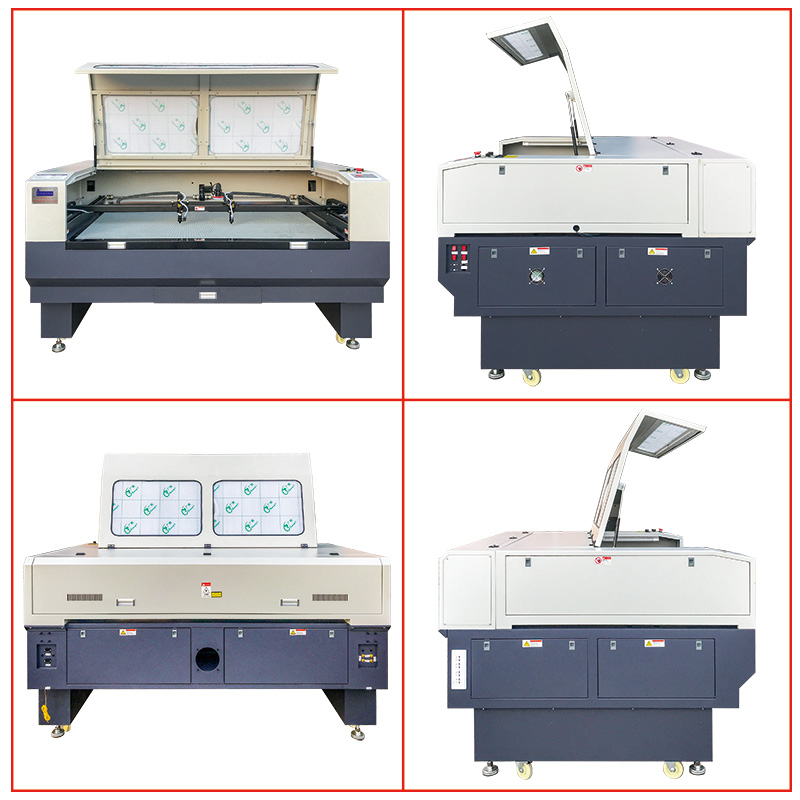

Machine Pictures:

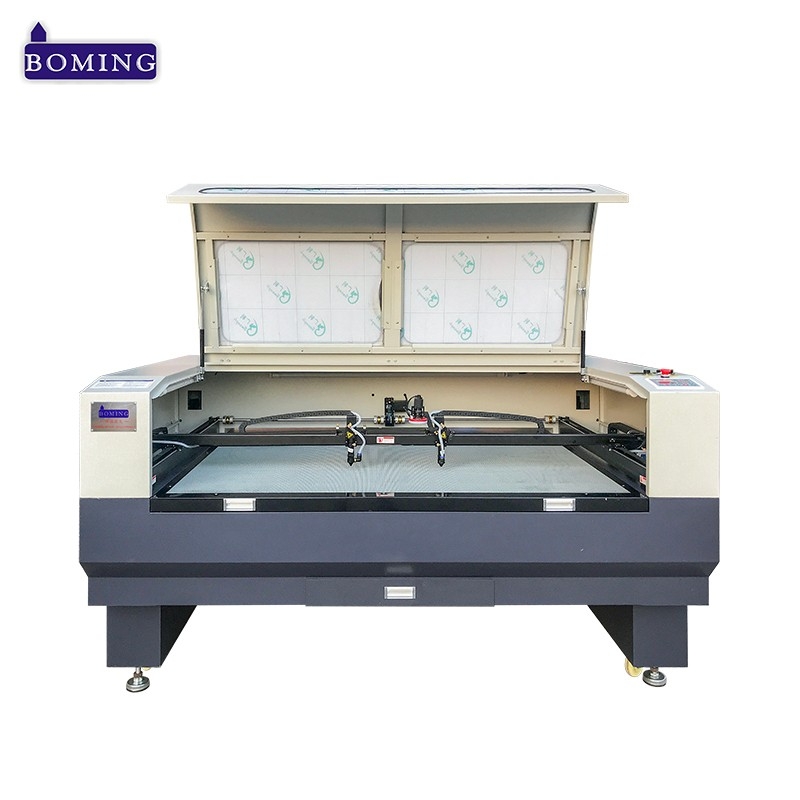

laser cutting machine with ccd

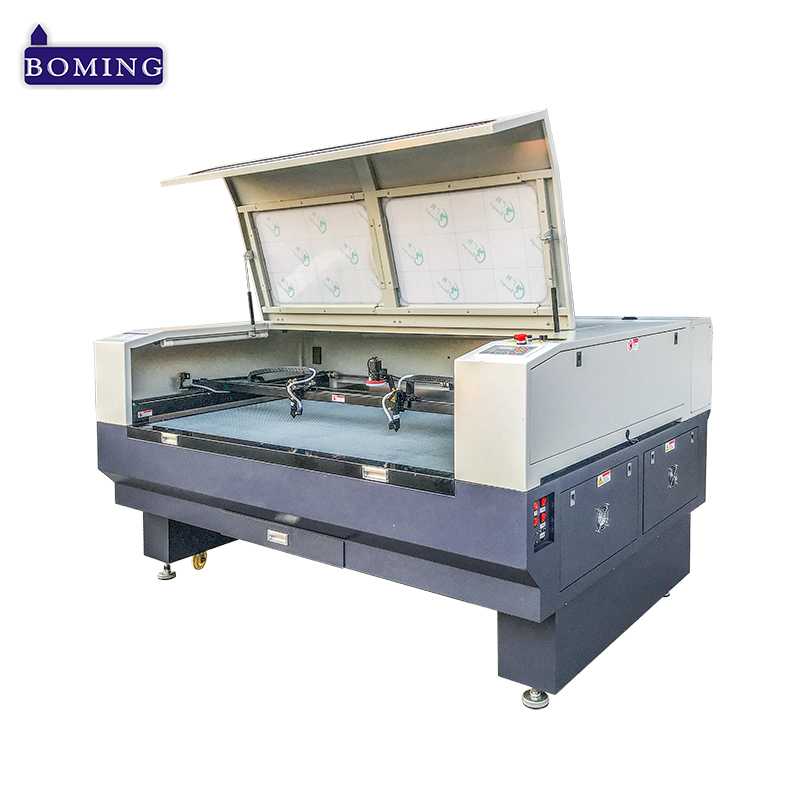

laser cutter for label

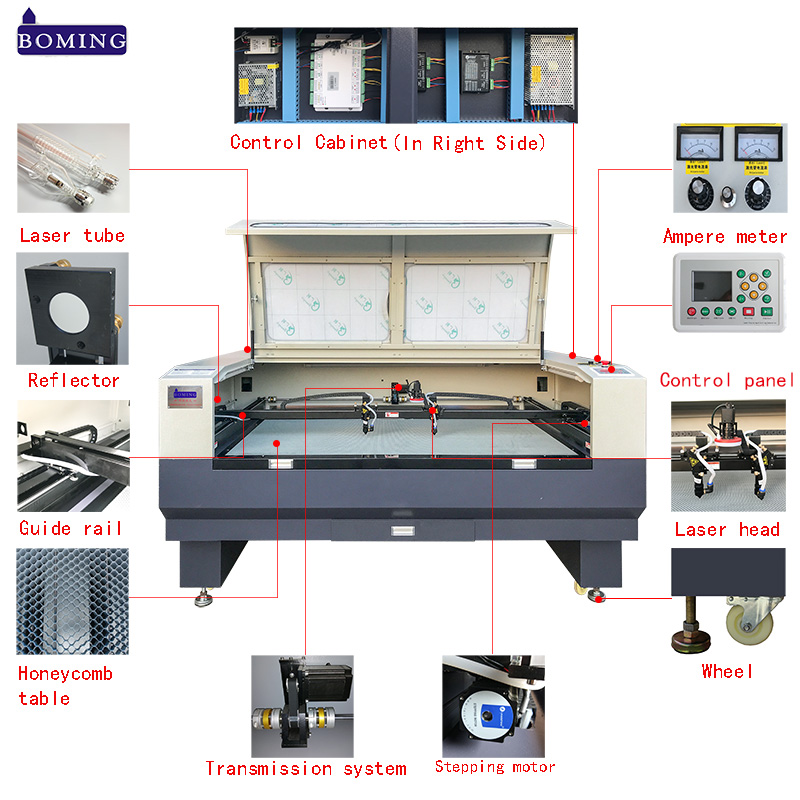

ccd laser cutter

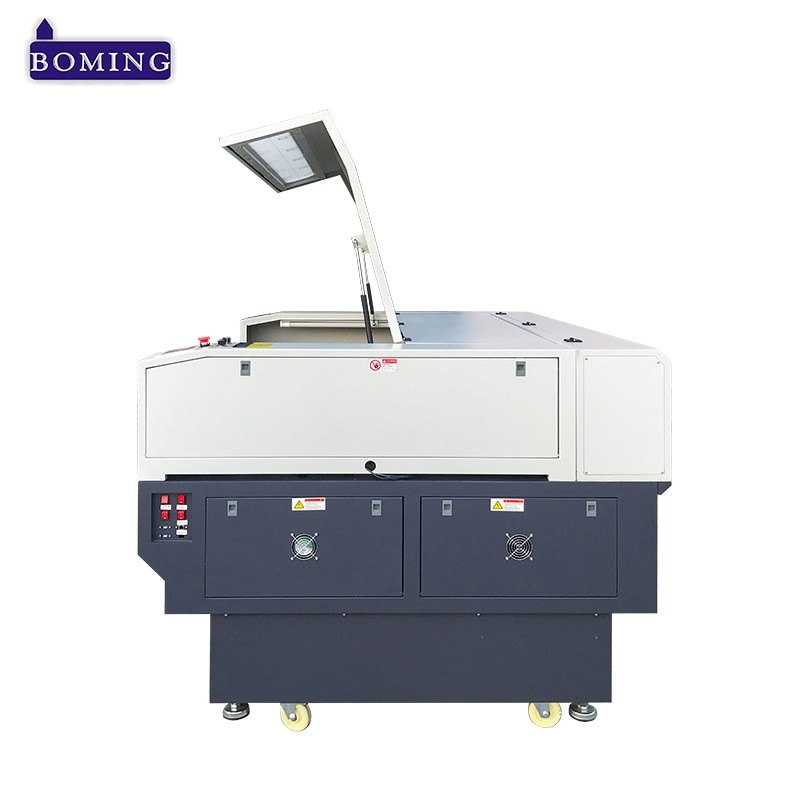

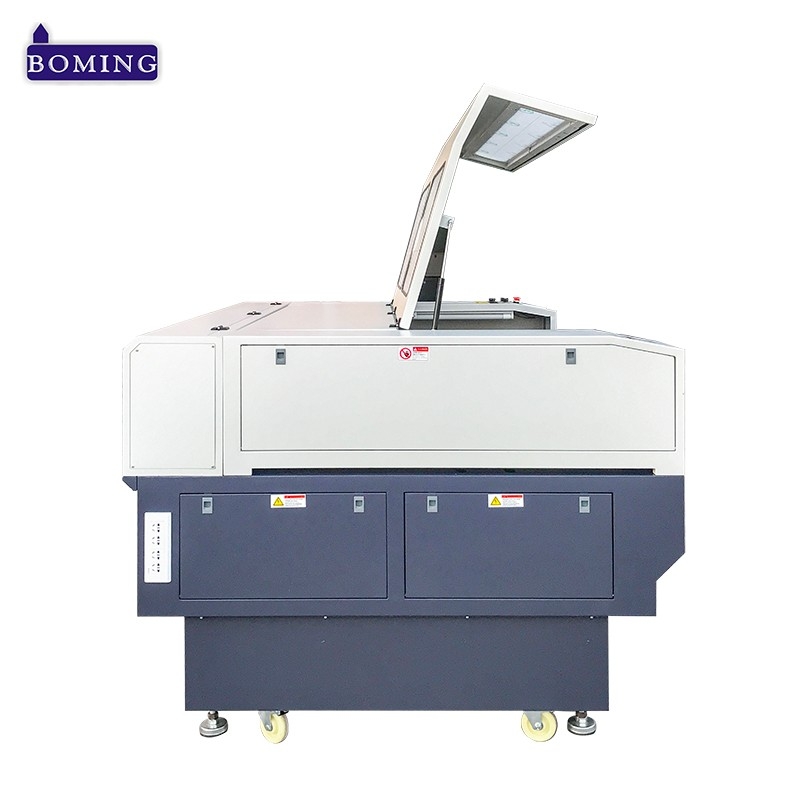

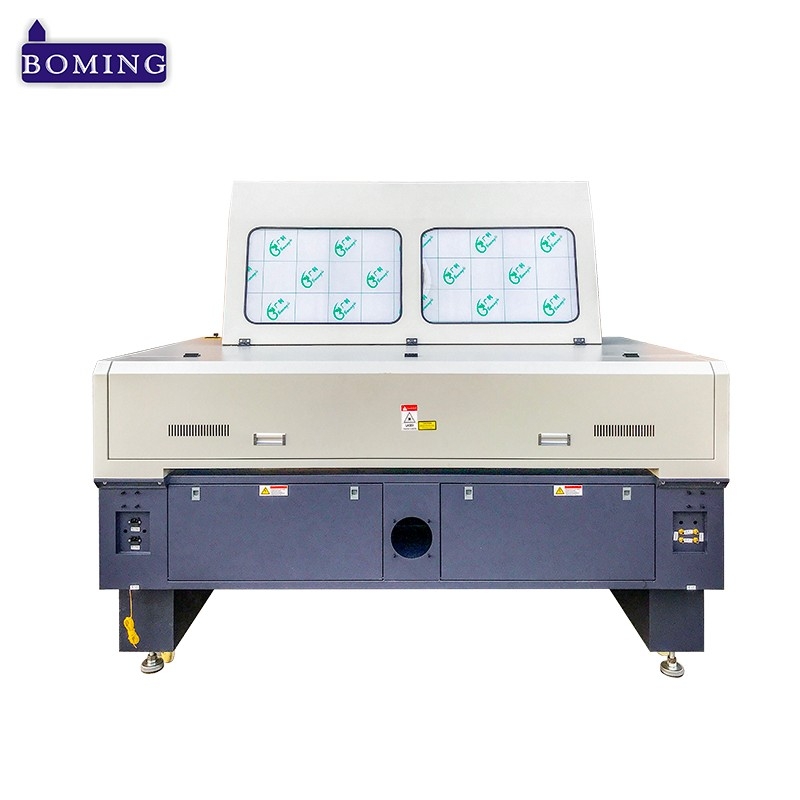

ccd camera laesr cut machine




Features: of Trademark pattern laser cutting machine with CCD camera

1、Solve the problem of waste time and waste energy caused by traditional hand positioning and the problem of wasted products caused by human factor.

2、The machine can recognize and cut large area pattern. A worker can operate several machines at the same time, saving manpower, electricity and place, having high price/performance ratio.

3、It has the characteristics of auto recognizing edge, cutting by template, puzzle cutting, strong recognizing capacity, fast positioning and high positional accuracy.

4、It supports many positioning method: feature matching, two points positioning, multi templates positioning and contour extraction.

5、Graphic editing, composing, control, output can be finished at one time.

6、Supports many kinds of image format: PLT、AI、DXF、BMP、DS, etc.

7、It can process irregular label, precisely control output capacity, cut vertical embroidered label by slice.

8、High precision cutting, high speed cutting, without missing label and cutting disorderly, high cutting efficiency and large production.





Advantage: of ccd laser cutter

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: of woven label  laser cutting machine

Suitable for cutting of Rapier woven labels、trademark、embroidered leather label、vertical label、print label、high frequency pressure label、irregular trademark and accurate positioning cutting & punching for the non-metallic materials, such as all kinds of embroidery、print fabric、film printing, etc.




Applicable Materials: of laser cutting machine with ccd camera

Leather,cloth,wool fabric,plexiglass,plastic,film,rubber and other nonmetallic materials.




Technical Parameters: of label camera laser cutter

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800   1600*1000 1800*1000mm

Positional Accuracy

±0.05mm

Camera pixel

2 mega pixel

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror



Sample show: of CCD camera laser cutting machine

laser cut label


Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.



Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

labels laser cutters
