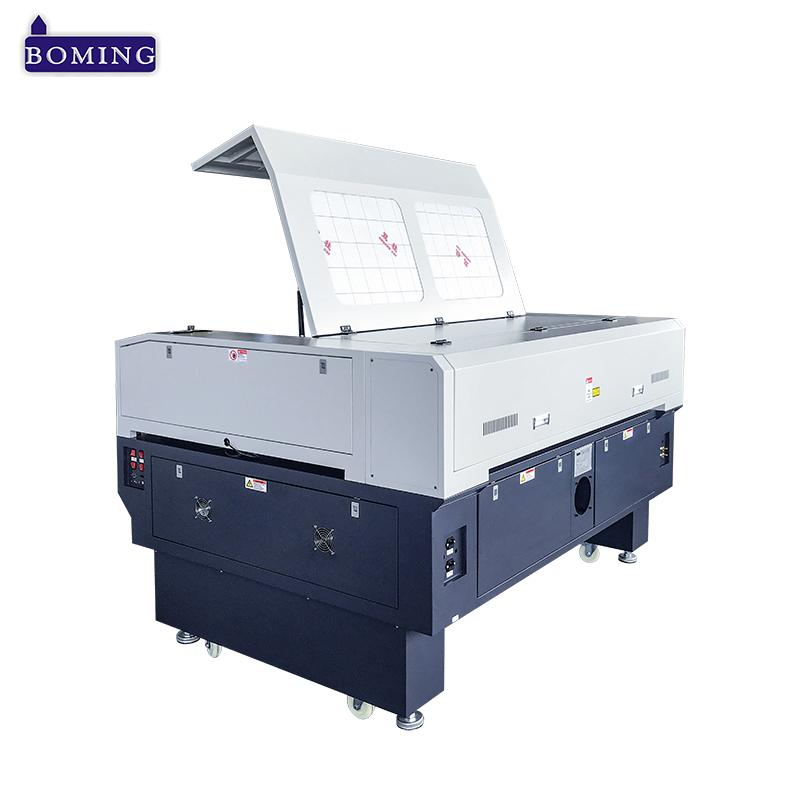

1490 300W Applique camera laser cutter machine

1490 300W applique camera laser cutter machine is with small camera on laser head, suitable for cutting small printed fabric pattern, embroidered textile, cloth, woven label, embroidered applique etc,. Before cutting, need to make a drawing model to match the printed pattern. 300W is big laser capacity, it has faster cutting speed and can cut thicker materials.

  • Item NO.:

    FLG-1810 1812 1630
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1490 300W applique camera laser cutter machine is with small ccd camera on laser head, it is for positioning the pritned pattern contour, embroidered applique, woven label. Need to make a pattern drawing first, then make a pattern model, use the drawing to match the pattern in laser software. After totally match the pattern, the laser head can cut accoring to the pattern model. Many working area, multi laser head and, different laser capacity are optional. Choose big laser capactity can have faster cutting speed to achieve higher working efficiency.

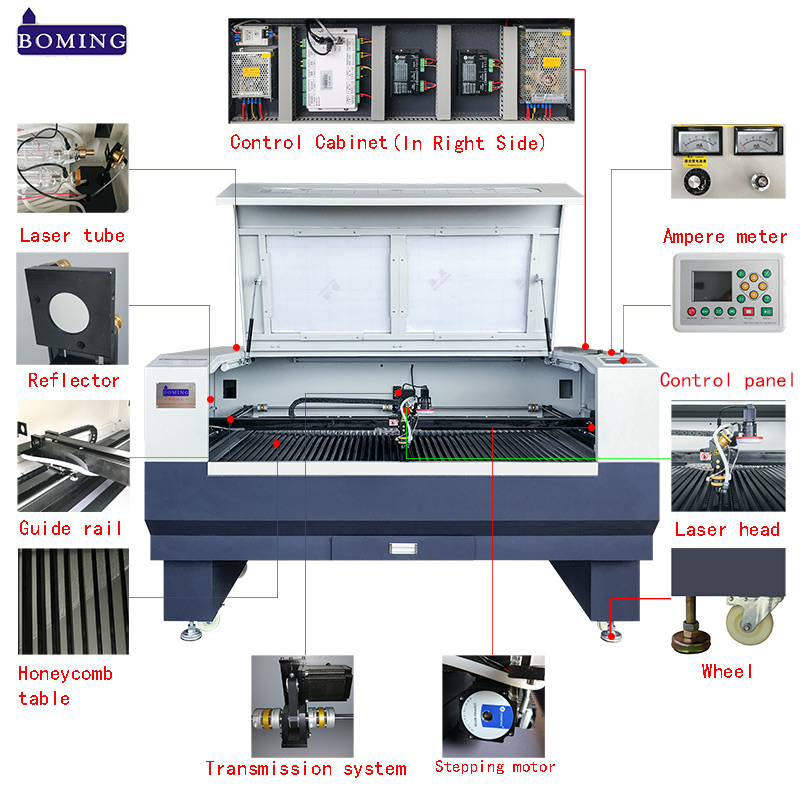

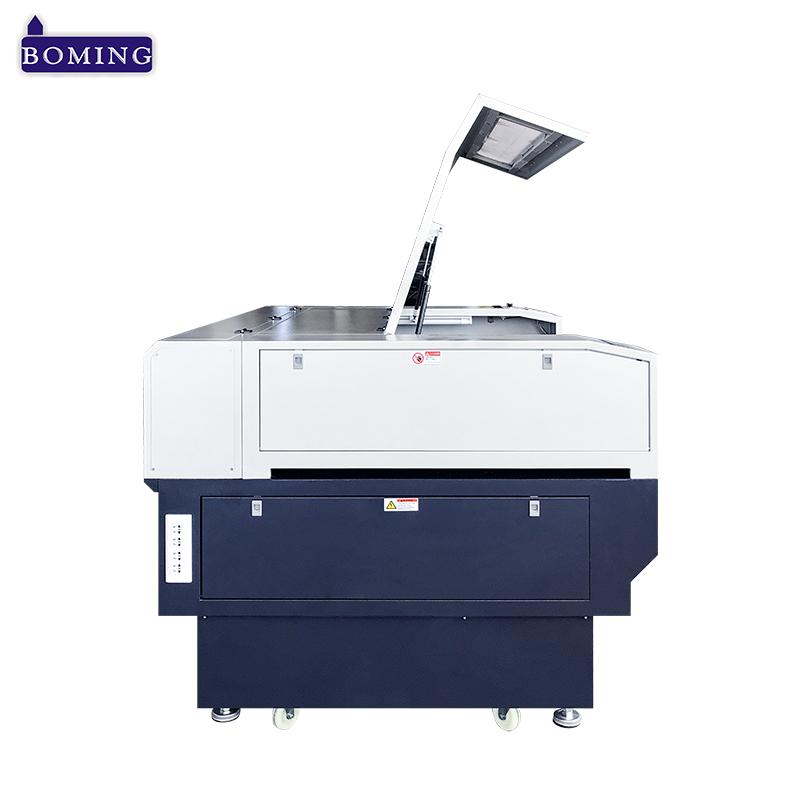

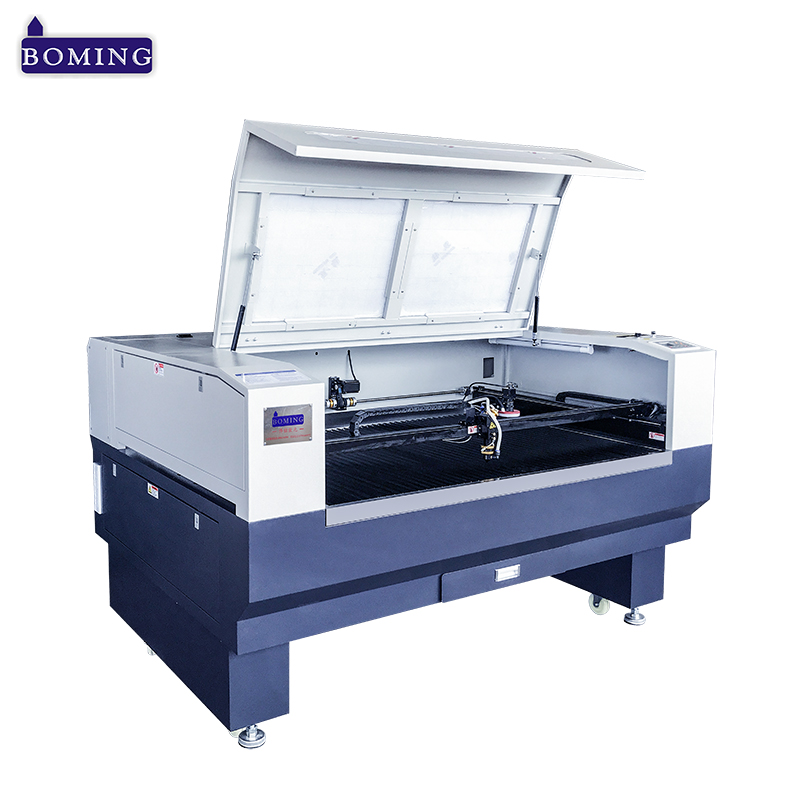

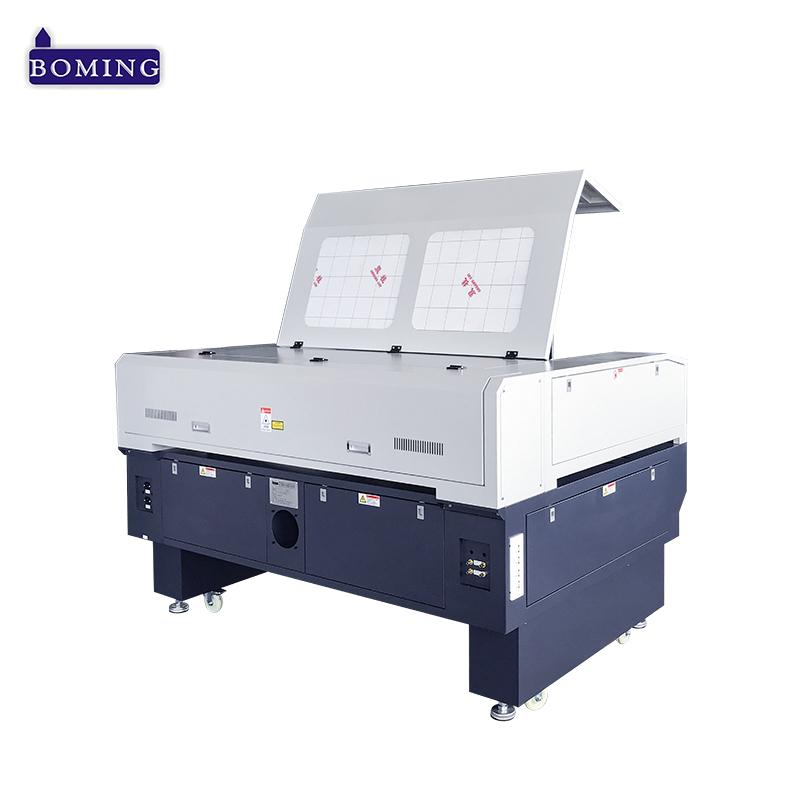

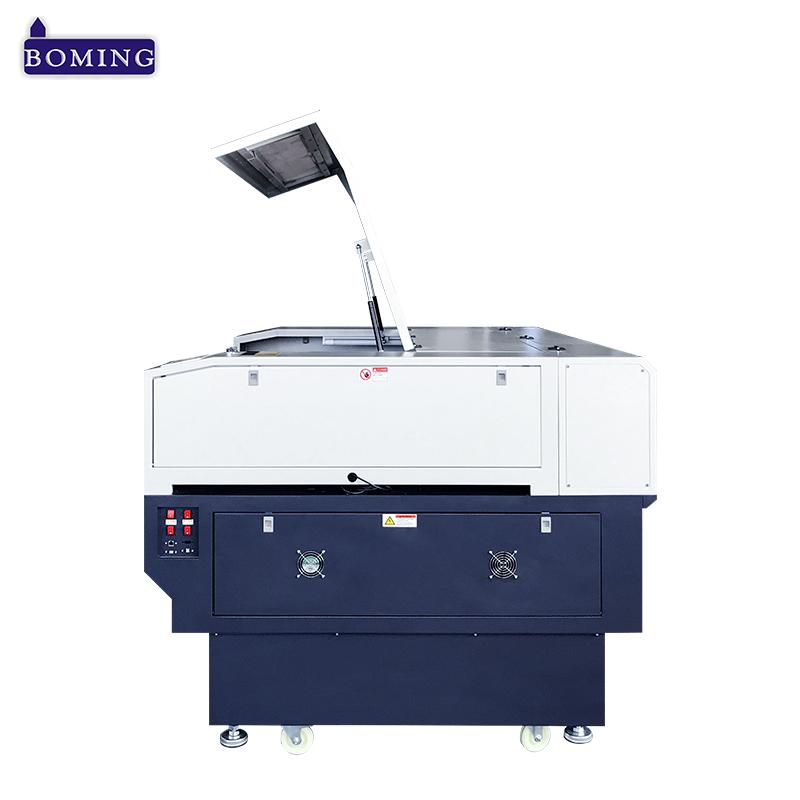

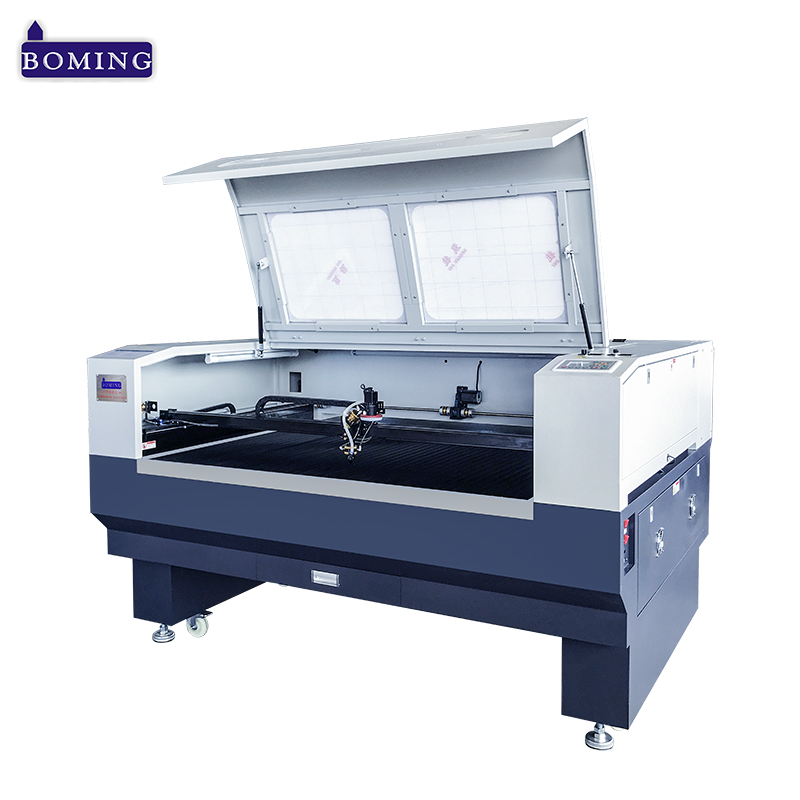

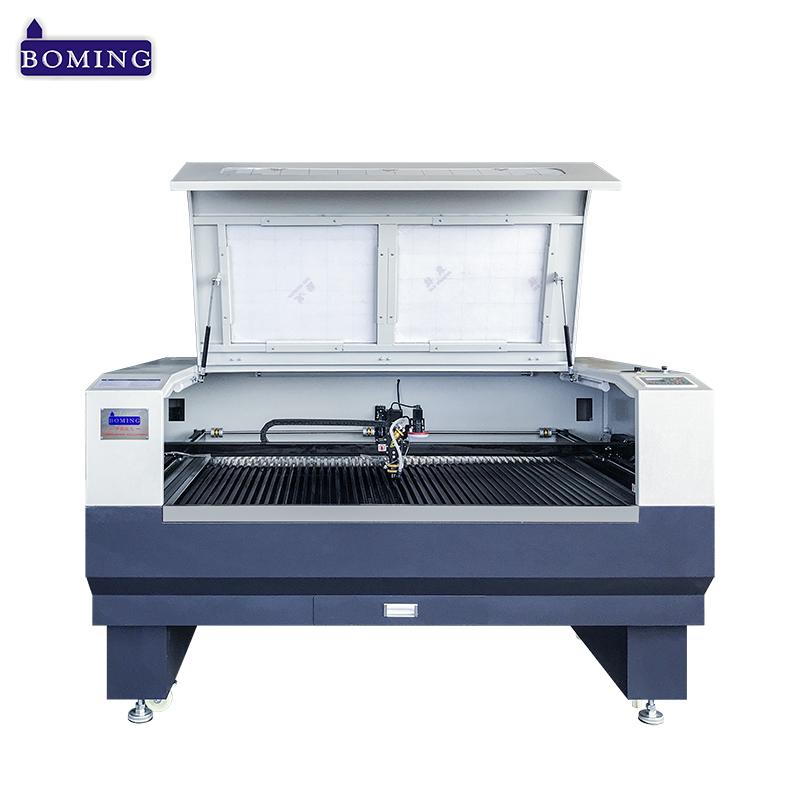

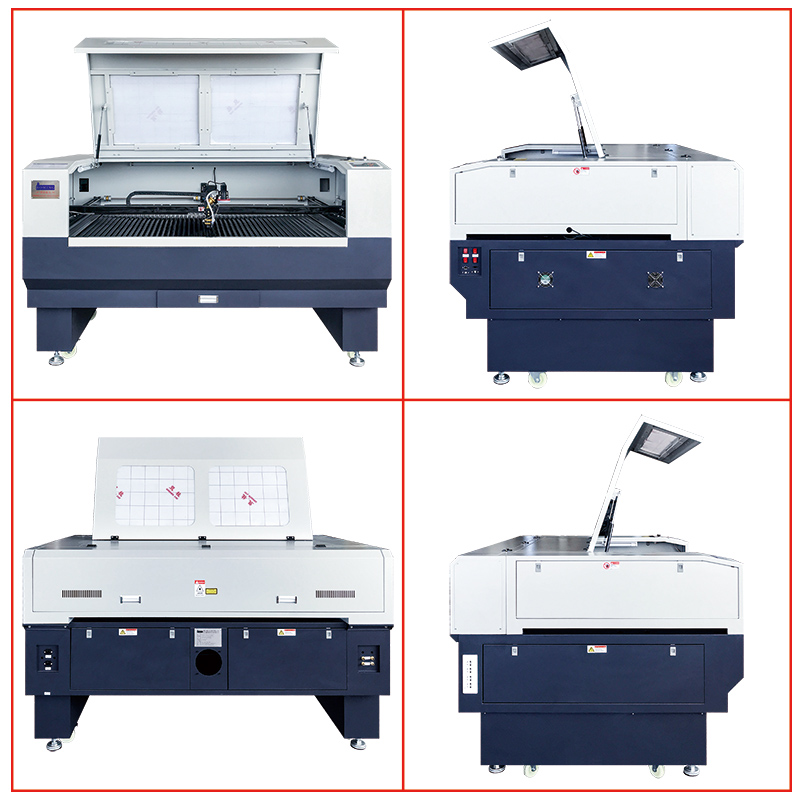

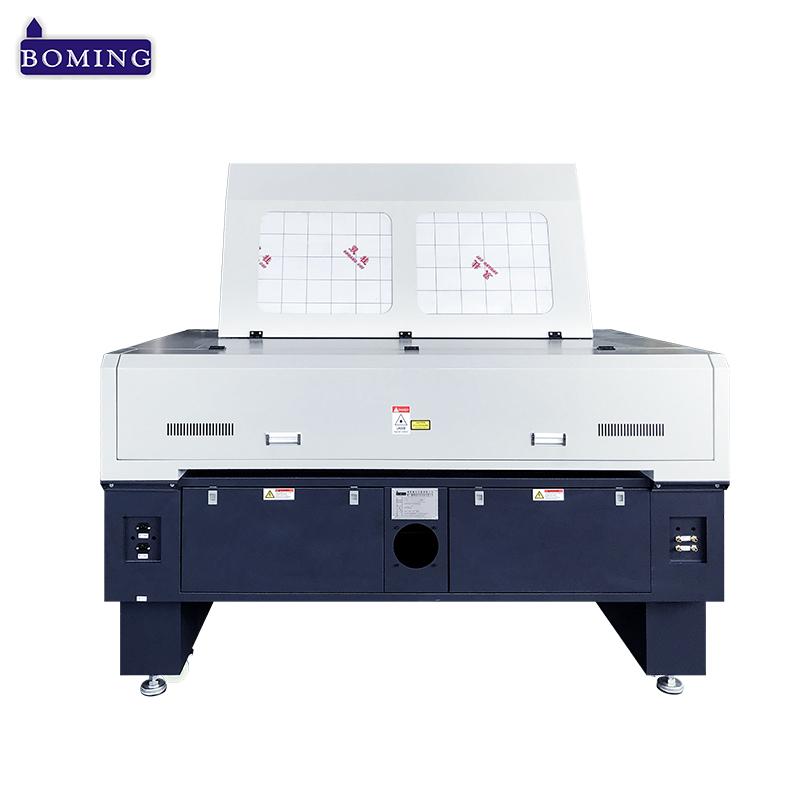

Machine Picture: of label laser cutter


clothes laser cutter ccd camera

ccd camera laser cutting

ccd camera laser machinery

auto scanner ccd laser cutting machine





Features: of ccd laser cut machine

1、Solve the problem of waste time and waste energy caused by traditional hand positioning and the problem of wasted products caused by human factor.

2、The machine can recognize and cut large area pattern. A worker can operate several machines at the same time, saving manpower, electricity and place, having high price/performance ratio.

3、It has the characteristics of auto recognizing edge, cutting by template, puzzle cutting, strong recognizing capacity, fast positioning and high positional accuracy.

4、It supports many positioning method: feature matching, two points positioning, multi templates positioning and contour extraction.

5、Graphic editing, composing, control, output can be finished at one time.

6、Supports many kinds of image format: PLT、AI、DXF、BMP、DS, etc.

7、It can process irregular label, precisely control output capacity, cut vertical embroidered label by slice.

8、High precision cutting, high speed cutting, without missing label and cutting disorderly, high cutting efficiency and large production.





Software advantages:of laser applique cutting machine

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.





Applicable Industries: ofabric laser cutting machine camera

Suitable for cutting of embroidered appliqe、fabric pattern、Rapier woven labels、trademark、embroidered leather label、vertical label、print label、high frequency pressure label、irregular trademark and accurate positioning cutting & punching for the non-metallic materials, such as all kinds of embroidery、print fabric、film printing, etc.




Applicable Materials: of co2 laser cutting with camera

Leather,cloth,wool fabric,plexiglass,plastic,film,rubber and other nonmetallic materials.




Technical Parameters: of contour laser cutter for sale

Laser Capacity

80W 100W 130W 150W 180W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800   1600*1000 1800*1000mm

Positional Accuracy

±0.05mm

Camera pixel

2 mega pixel

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror

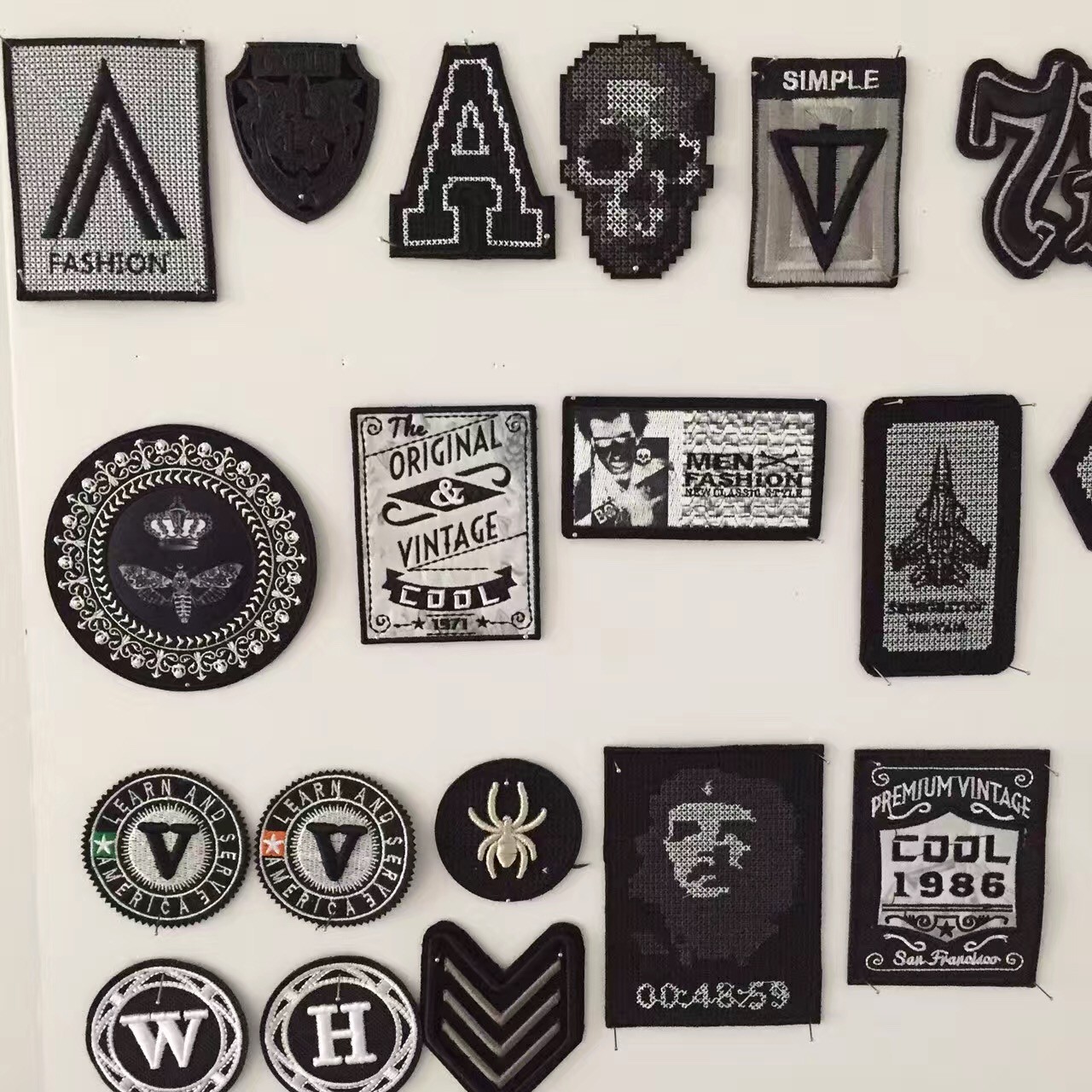

Sample show: of CCD camera laser cutting machine



Our Service:


1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.


2) Lifetime maintenance is free of charge.


3) We will provide the consumable parts at an agency price when you need replacement.


4) We offer English manual and CD for installing, operation and maintaining.


5) Our technician can be sent to your company to install the machine and train your workers if necessary.




Using Attention:


1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.
