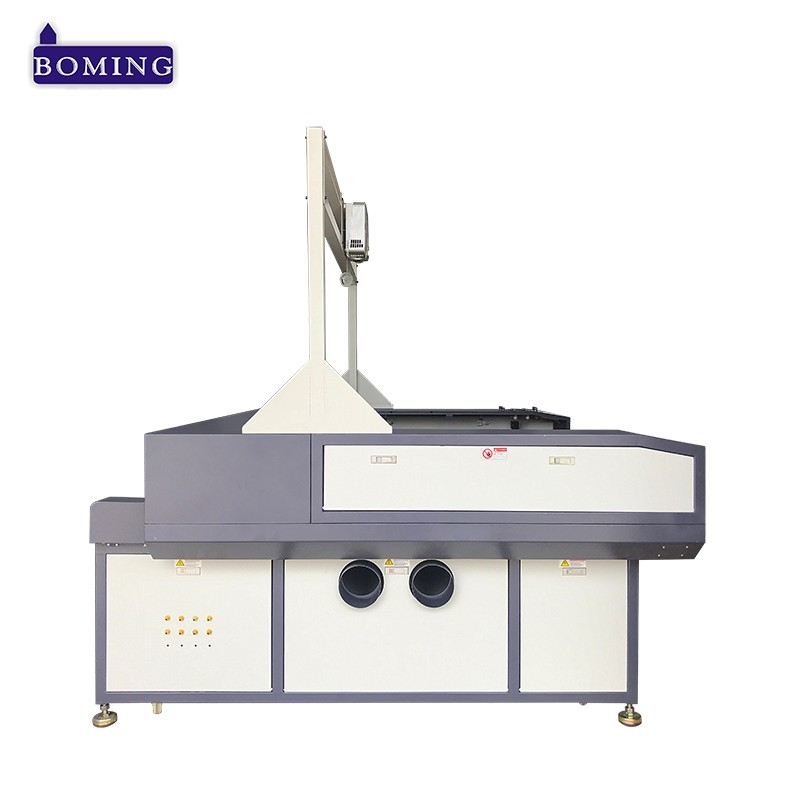

4 head auto feeding projector laser cut machine

Projector laser cut machine is Suitable for cutting shoe vamp, flynit upper,leather, fabric, cloth, carpet; with projector, easy for workers to put materials; easy operation;with computer.

  • Item NO.:

    FLG-1680 1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC, DA, DP
  • Product Origin:

    Quanzhou, China
  • Color:

    White and black
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    7-10 days

0086-18815980123  0086-13599259031  Boming laser


Projector position laser cutter is suitable for cutting flyknit upper, sports upper. The projector can project the upper drawing in the working table. So the workers can put the shoe upper on the worktble easily according to the projection lines. It can make the work easier and improve the working efficiency.

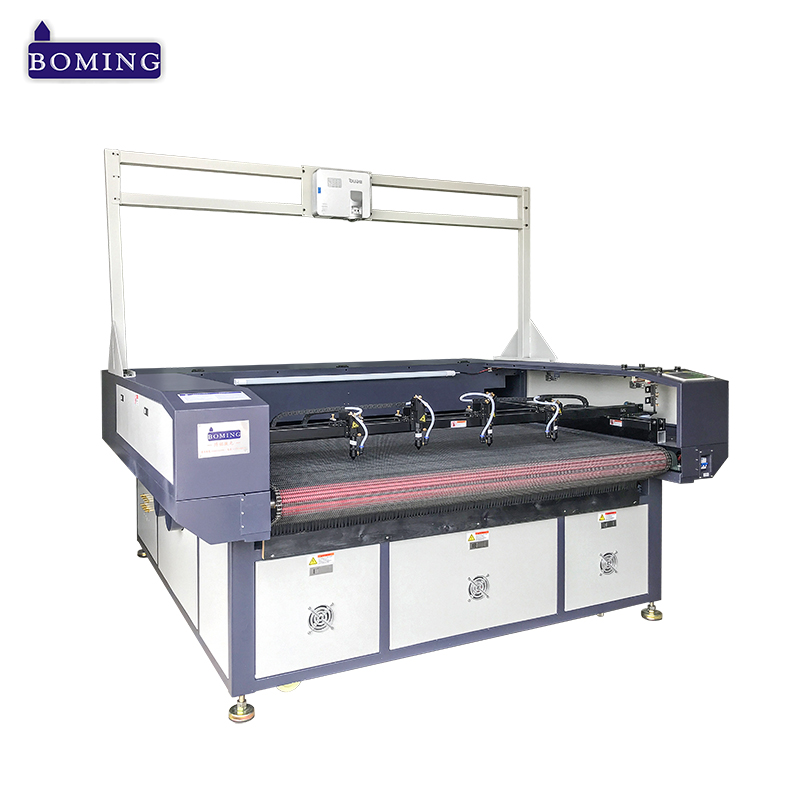

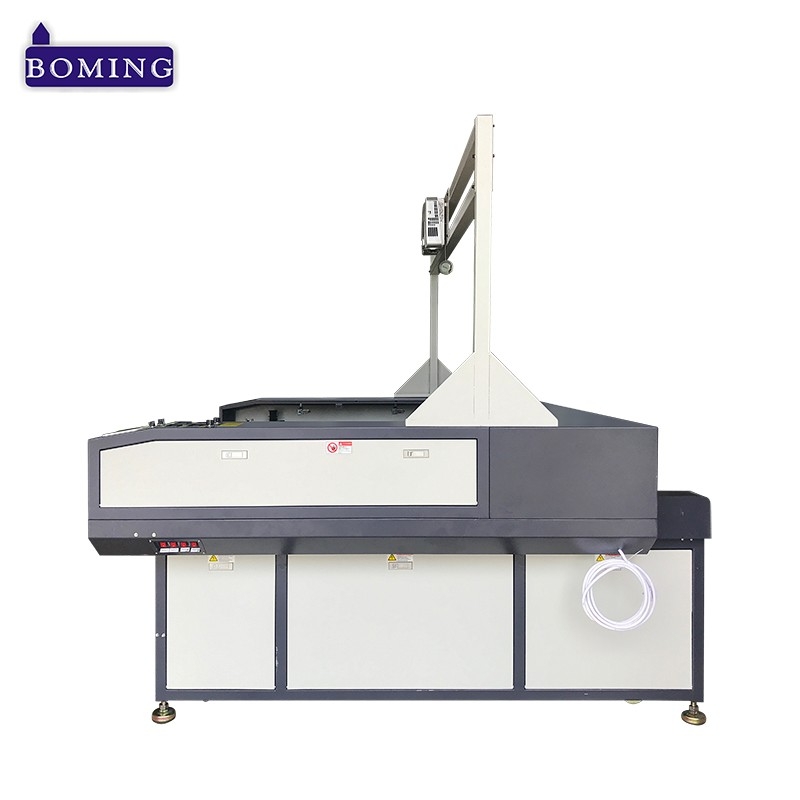

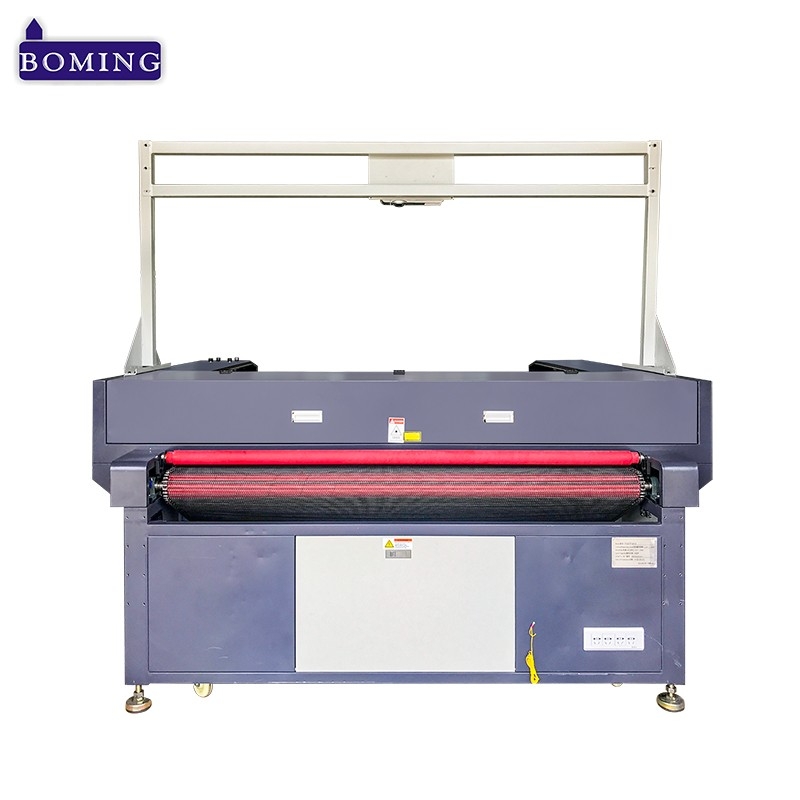

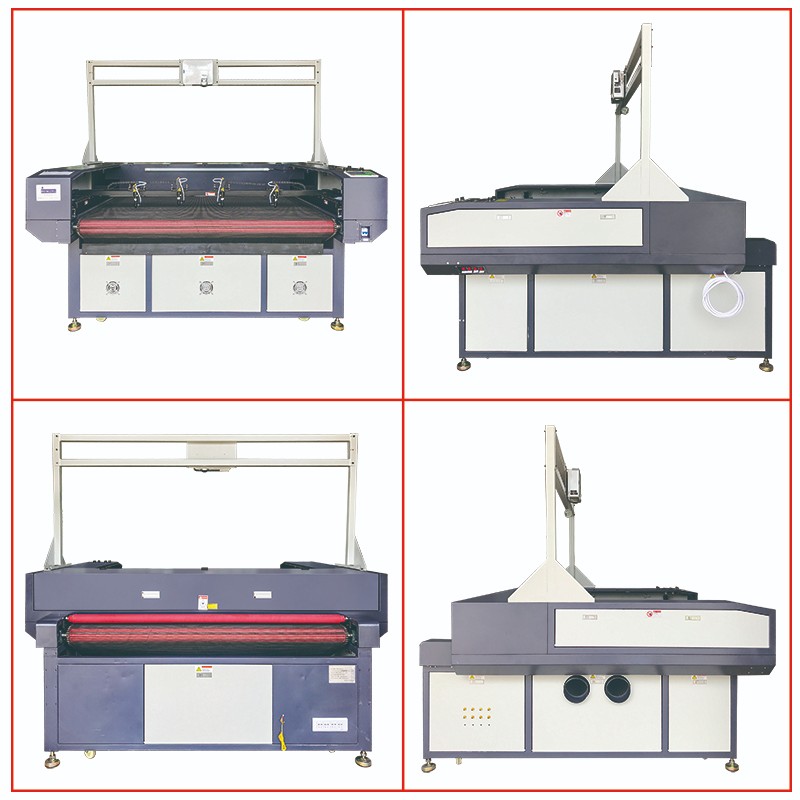

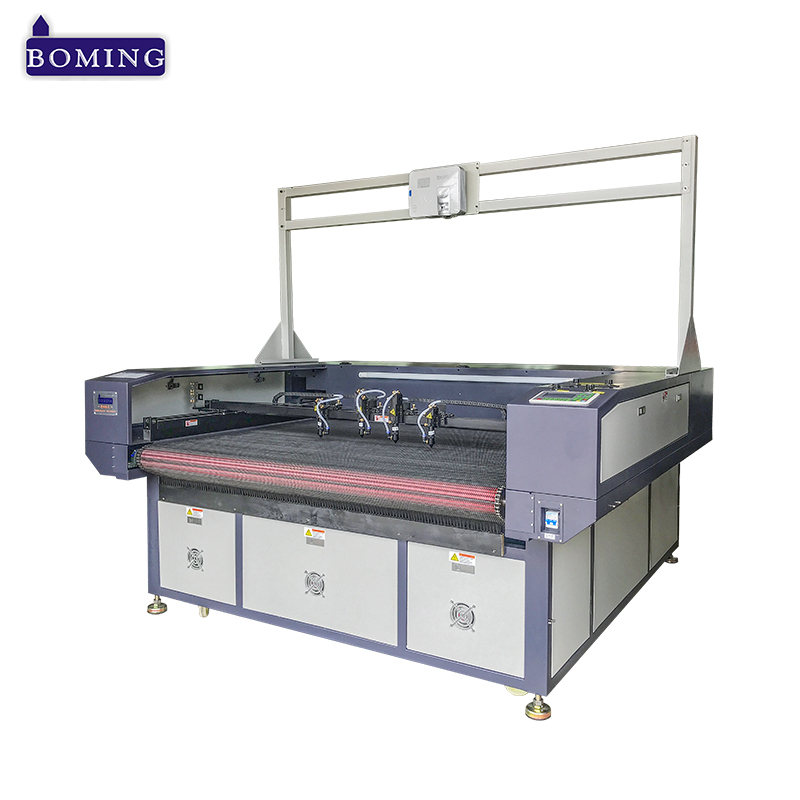

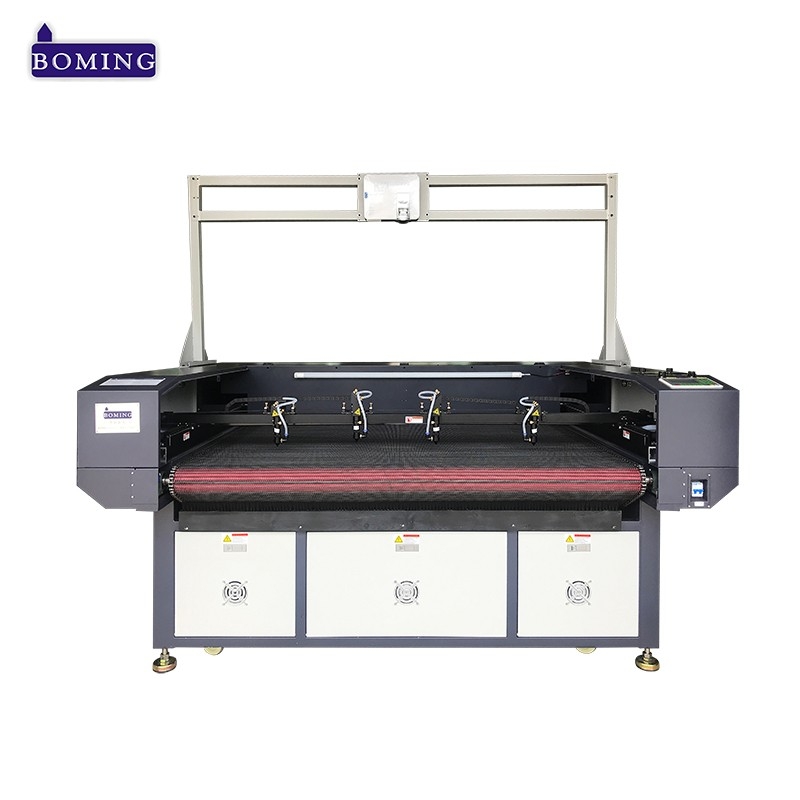

Machine pictures:

cutting machine leather with projector

flyknit upper shoe laser cutting machine

autofeed projector laser cutter

projection laser cutter machine




Features: of 4 head auto feeding projector laser cut machine

1、We adopt internationally advanced DSP control technology, initiate the industry-leading function of continuous rapid curve cutting and minimum machining path optimization,improving the work efficiency greatly.


2、Automatically compensate light attenuation during the working process, ensuring that the  cutting effects are consistentin different areas; It can also improve the work efficiency through the control software design for fast cutting and the buffer function of high-speed motion.


3、We adopt the separated lower and upper suction systems. The lower unit is located under the platform work board to make it form negative pressure ensuring that the process materials are fixed in the work board; the upper unit can move together with the cutting head ensuring that the dust and smoke produced by cutting can be sucked, finally making sure the materials surface is clean and the precision is high.


4、Professionally solve the problem of high scrap rate if the soft materials deform then they can’t fit the position.


5、 It can position the pattern the most precisely and intuitively through projection and the projection line’s color can be changed according to the product color, so that the worker can work easily and improve work efficiency. For example, the worker can finish cutting about 600 pairs manually working 10 hours per day, but the projection positioning laser cutting machine can cut about 1000-1200pairs. It also can save all kinds of cost such as electricity、salary、machine , etc. If cuttingby projection position, the worker only needs to operate in computer when changing different size of materials, it doesn’t need to change pattern film and paper, saving consumable items cost. The laser machine can be separated, so there is no demand for the land; single head and double head are available, so that the customers can choose different type of machineaccording to his requirements.



Advantage: of flyknit laser cutting machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board



Applicable Industries: of flyknit upper laser cutter

3D flyknit upper, 4D upper, printing upper, 3D art ware, shoe,  etc.



Applicable Materials: of co2 laser cutting machine

Application Materials: All non-metallic material, such as leather、cloth、woolen、double color board、paper、acrylic、resin、thin ABS board、organic glass、bamboo ware, etc..



Technical Parameters: of laser machine projection system

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

900*600 1200*800 1300*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Projector resolution

1280*800mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror



Sample show:

laser upper cutting


Our Payment:

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.



FAQ:

Q: Are you a factory or a trading company?

A: We are a factory manufacturing laser machine and we provide perfect after-sale service.

Q: How can I know your machine work well?

A: Before delivery, we do test the machine working condition for you.

Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?

A: Usually we accept T/T,Irrevocable L/C at sight or Alibaba Trade Assurance Order.

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.



Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

projection laser cutting machine
