1080 strap belt Autofeed laser cutter machine is with auto feeding webbing cutting platform, suitable for cutting long roll webbing, such as printed webbing、strap、 seat belt、nylon webbing、woven label、polyester webbing、leather belt、Velcro, tapes、pvc webbing,etc.
Item NO.:
FLG-9060 1080 1680Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1080 strap belt Autofeed laser cutter machine is for cutting whole roll webbing trademark woven label. It is feeding chain, suitable for thick and long webbings.

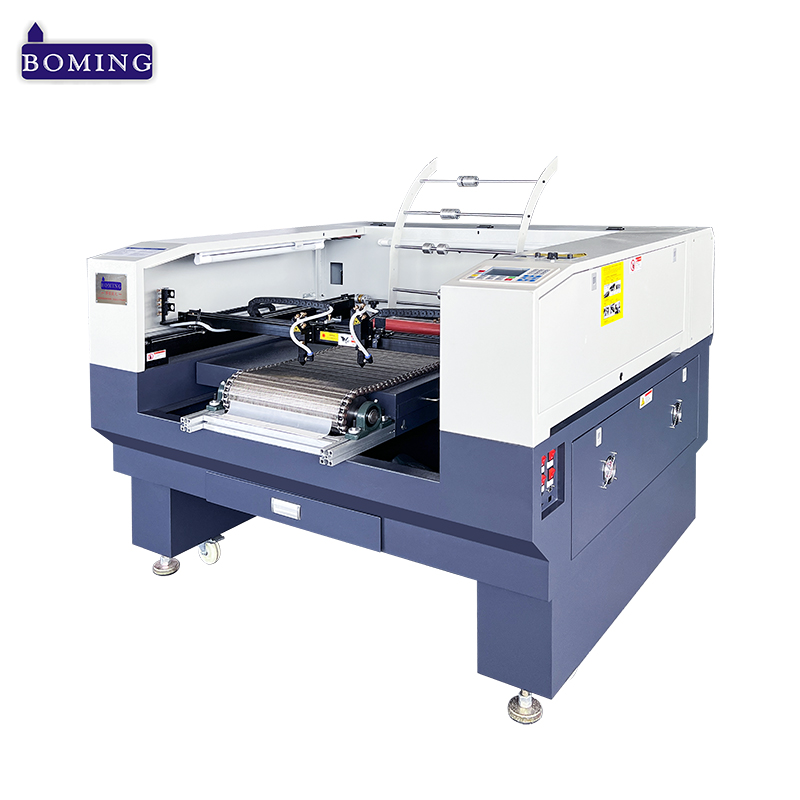

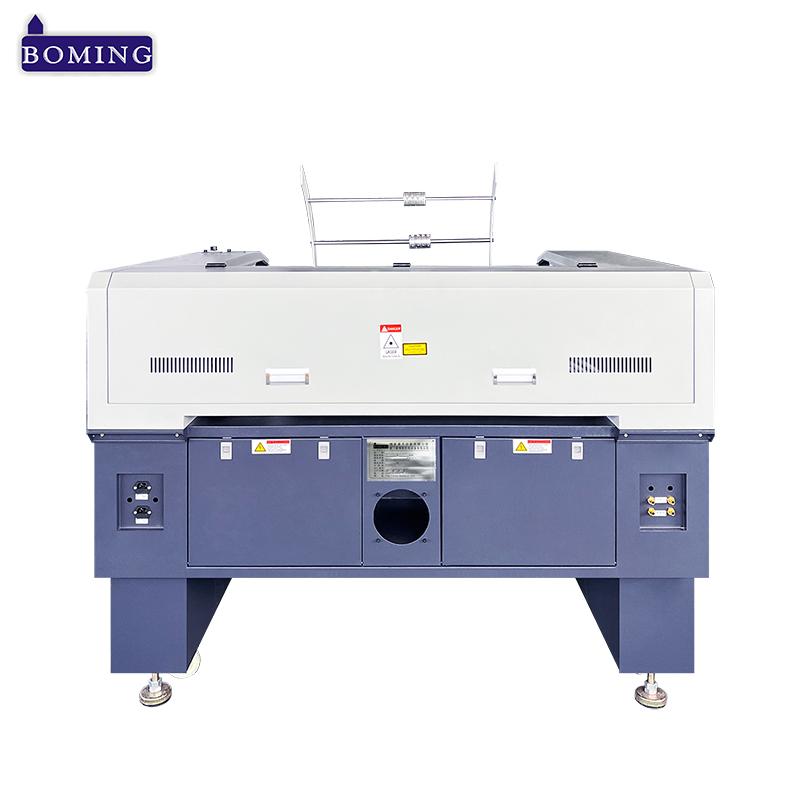

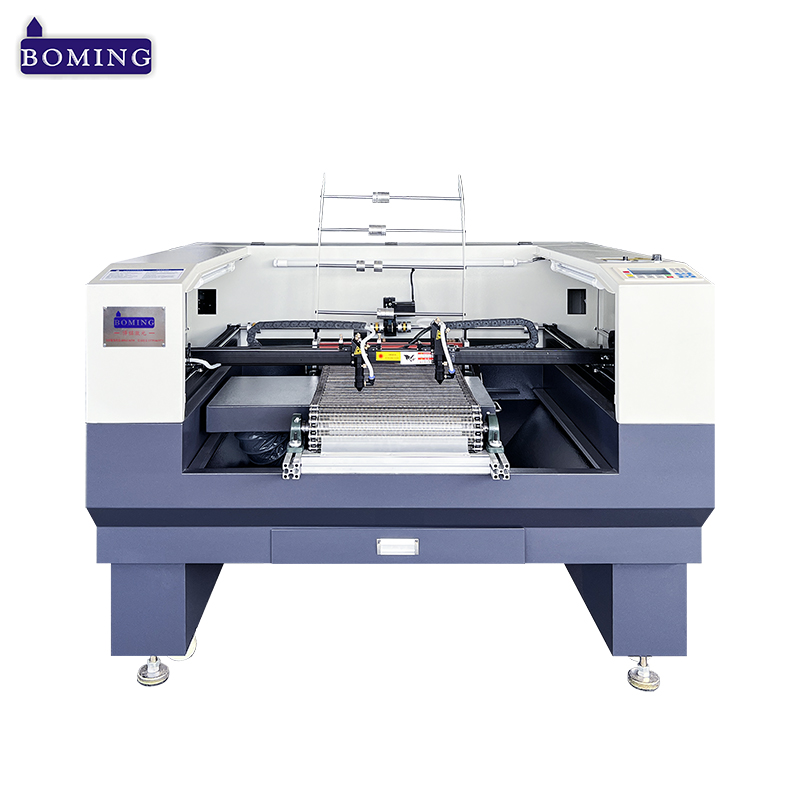

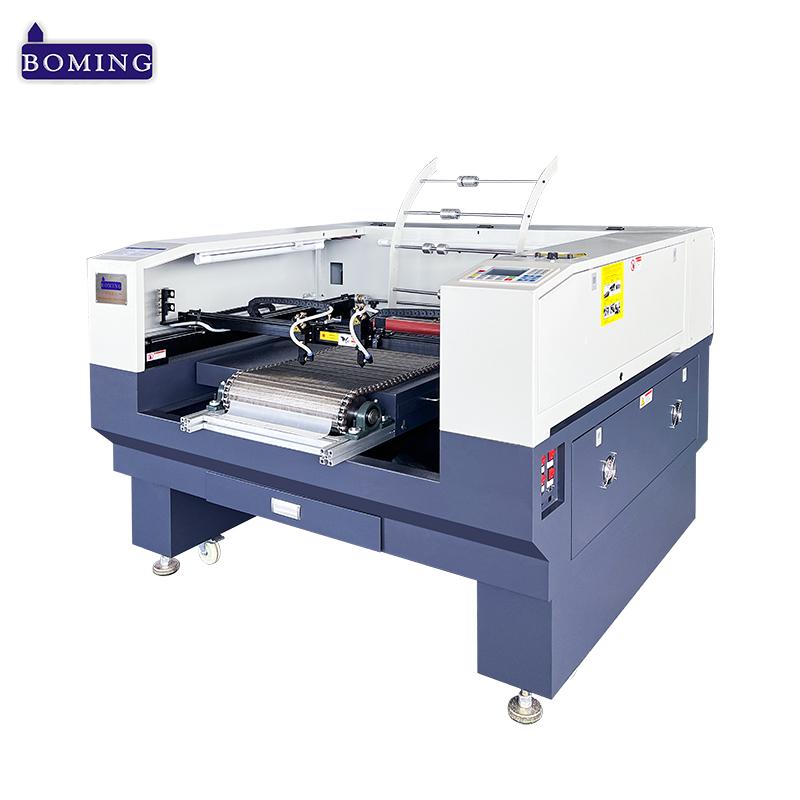

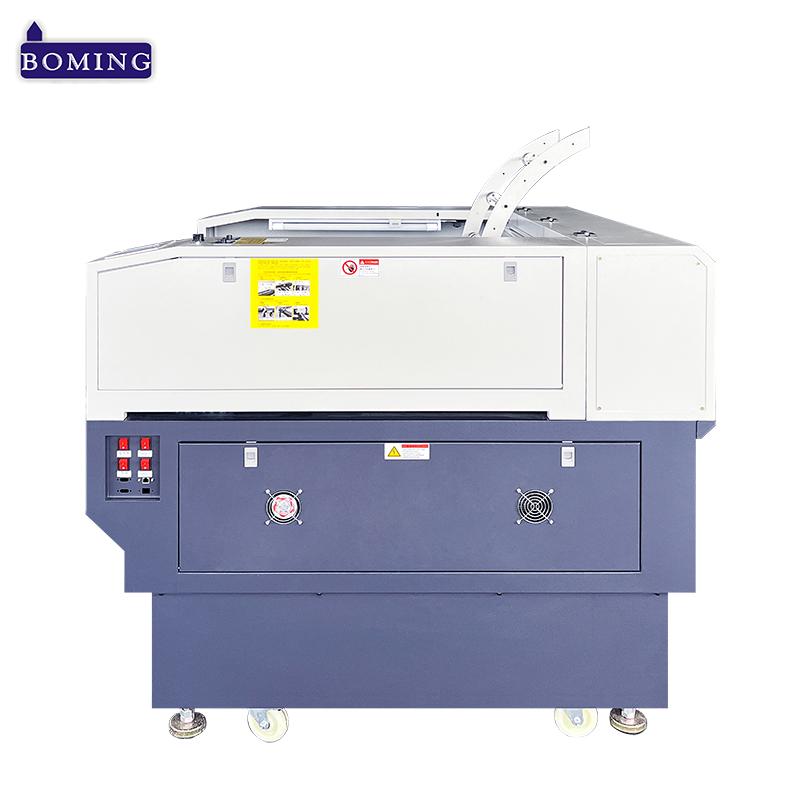

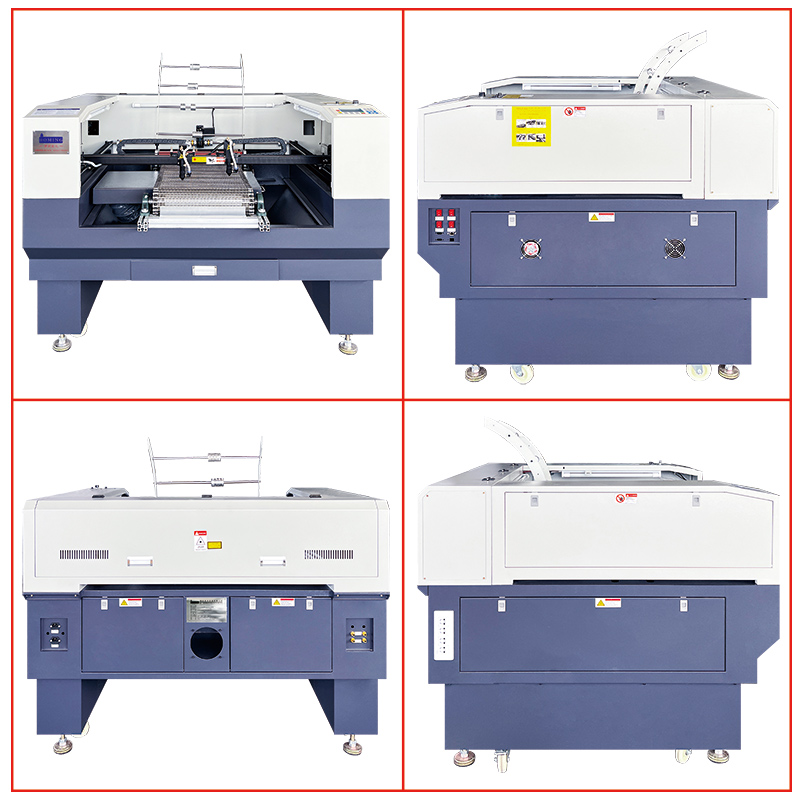

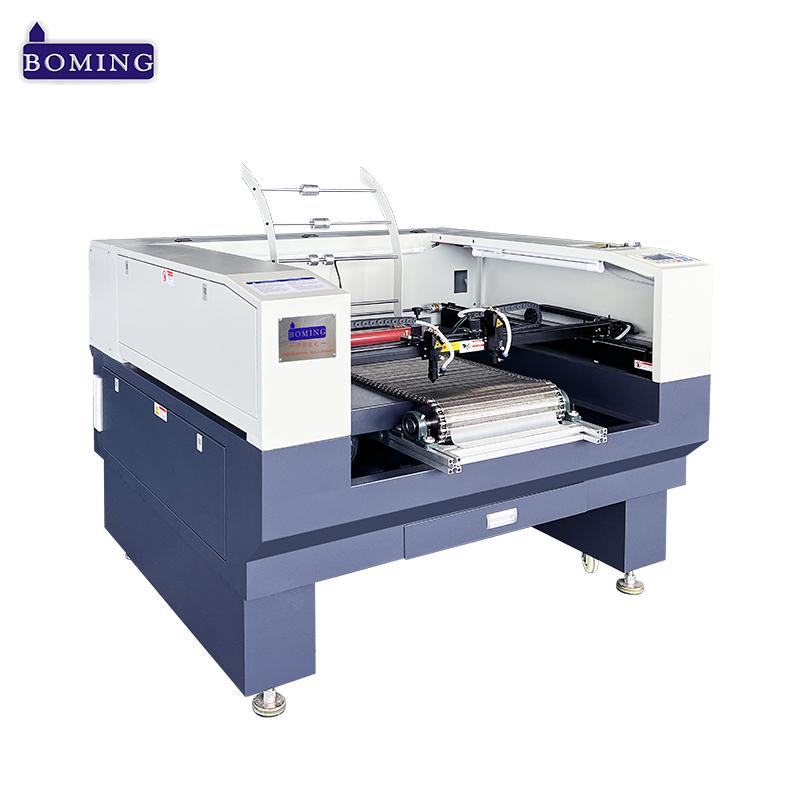

Machine pictures: of laser cutting woven label machine
Features:of laser woven label cutting machine
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Software advantages: of leather strap cutter machine
1) Software comes with memory option. Machine can work offline without computer.
2) Designs can be sent to machine with one step function.
3) Most kind of design format can be accepted.
4) Machine can be accessed and operated directly from CorelDRAW software.
5) Software has powerful auto backup function.

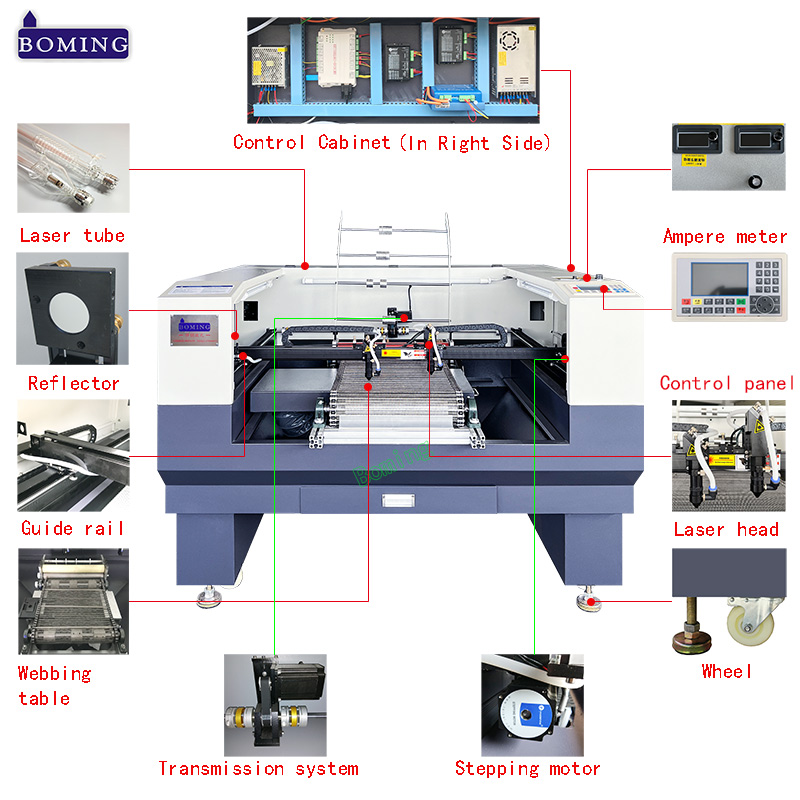

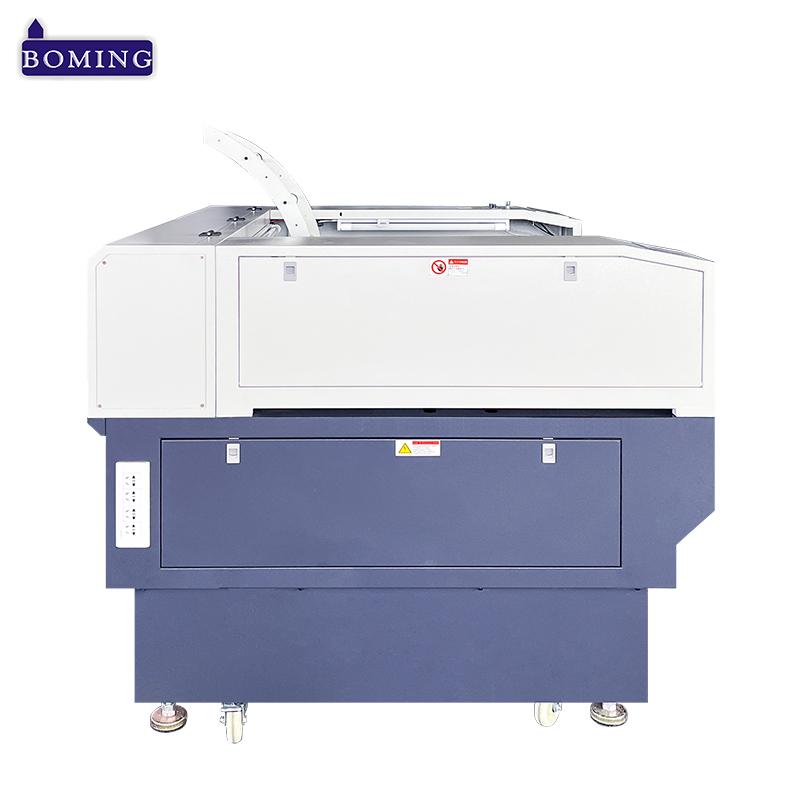

Machine Details: of laser engraving machine webbing
Applicable Industries:of laser webbing cutter
Outdoor products, pet products, military security, luggage, clothing, shoes and hats, gifts and other industries.
Applicable Materials: of roll to roll laser label cutting machine
Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap, ribbon, tape and other knitting materials.
Technical Parameters:of laser webbing textile cutter
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 900*600 1000*800 1200*800 1300*900 1400*800 1600*800 mm |
Positional Accuracy | ±0.05mm |
Working table | Special webbing cutting platform |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |

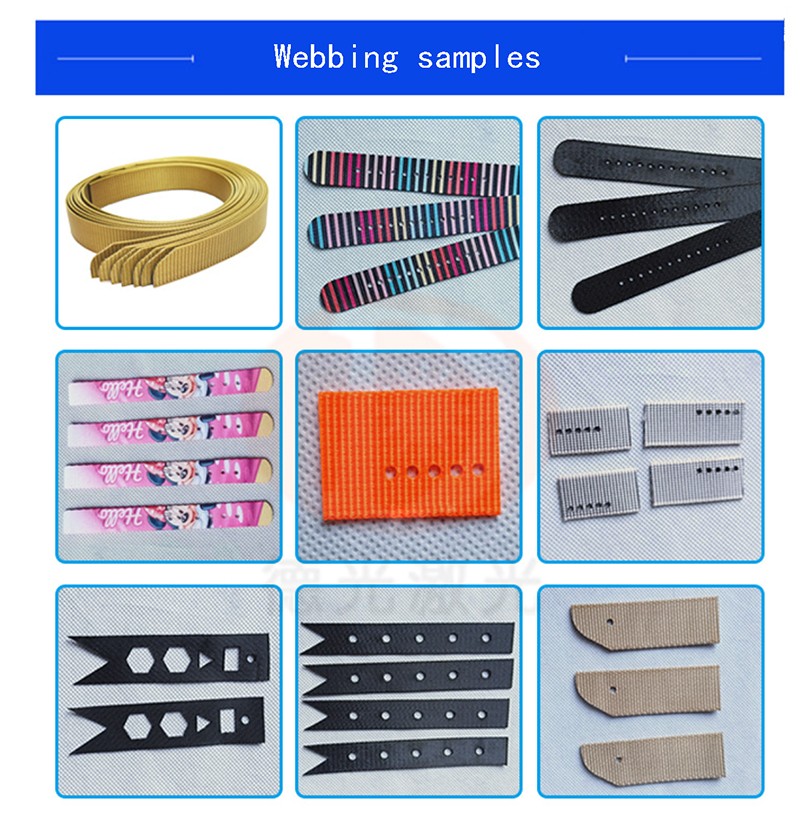

Sample show:
Our advantages:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Why choose us:
Our fair:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
