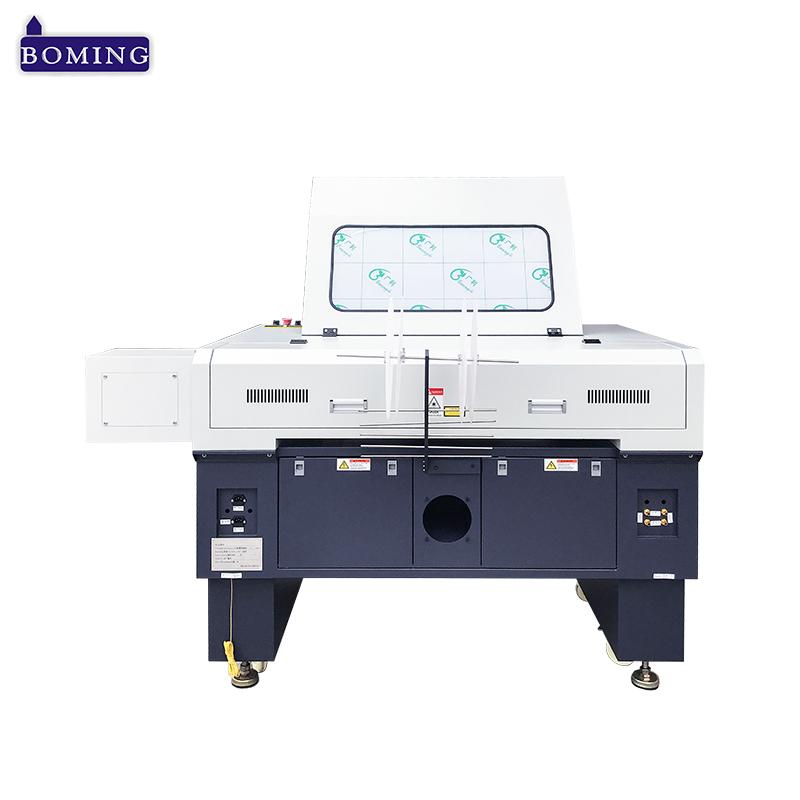

webbing dual heads Laser Cutting Machine

webbing dual heads Laser Cutting Machine is with speical webbing cutting platform, suitable for cutting non metal materials, such as webbing、strap、 seat belt、nylon webbing、woven label、polyester webbing、leather belt、Velcro, tapes、pvc webbing,etc.


  • Item NO.:

    FLG-960 1280 1610
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C,DP,DA
  • Product Origin:

    Quanzhou,China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10 days

webbing dual heads Laser Cutting Machine is for cutting whole roll webbing trademark woven label. The camera is optional. If  the webbing has printed pattern, can choose the camera model. There are two kinds of feeding table, one is simple with roller to feed the webbing, another is feeding chain, suitable for thick webbings.

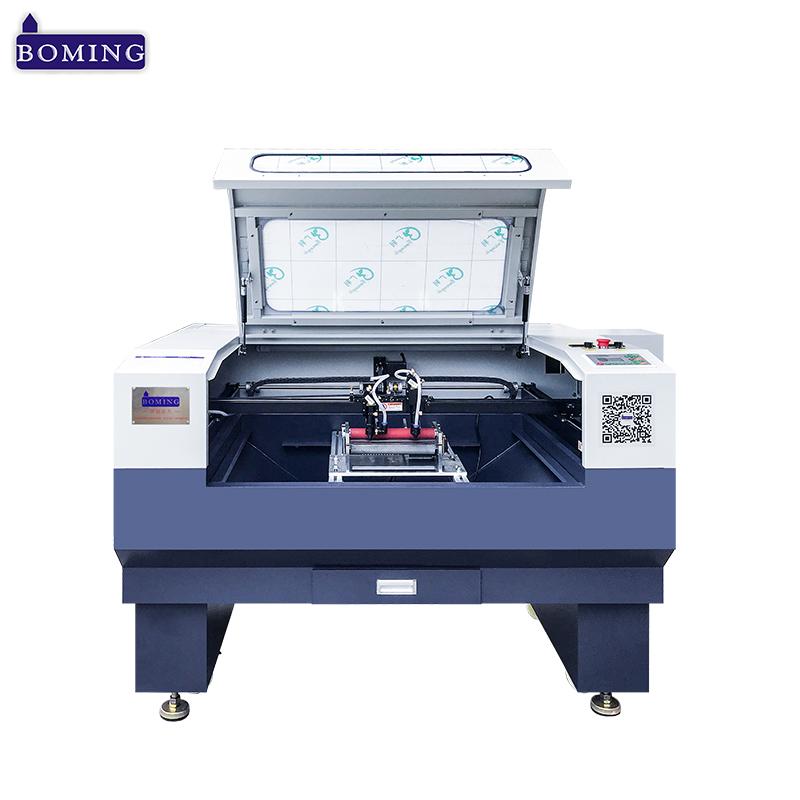

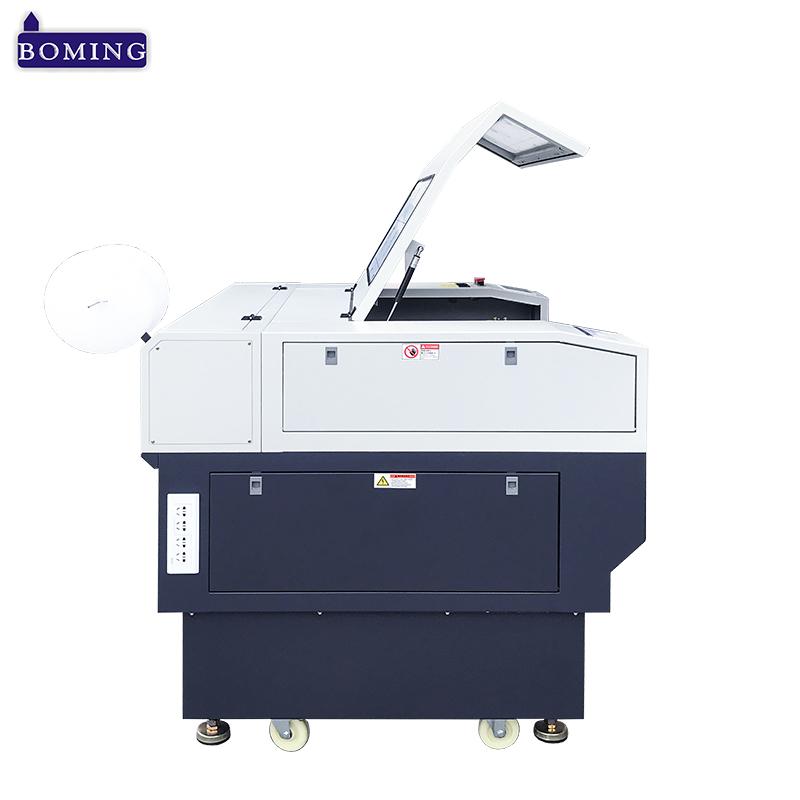

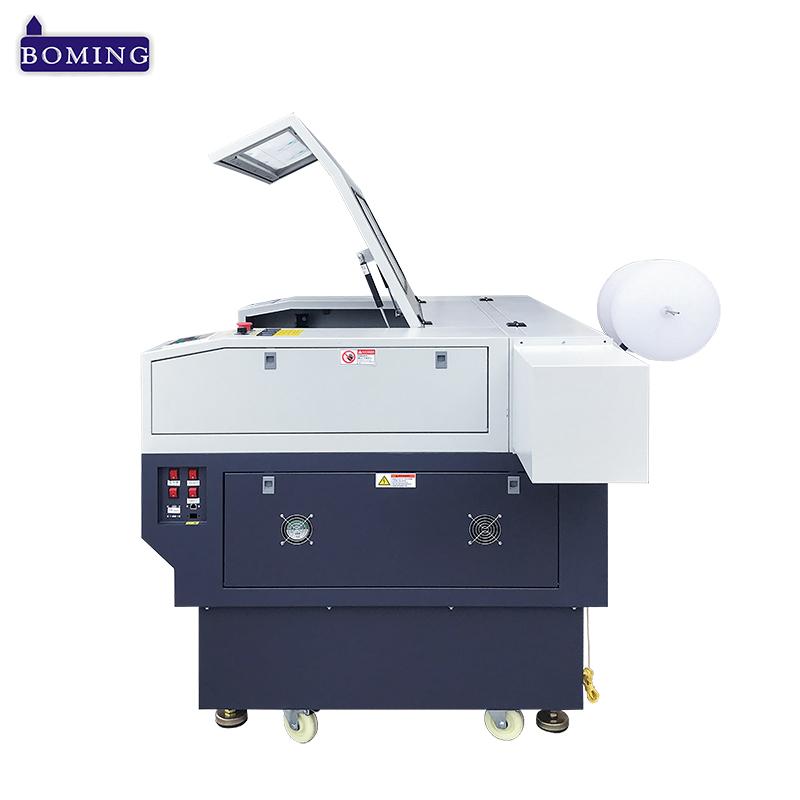

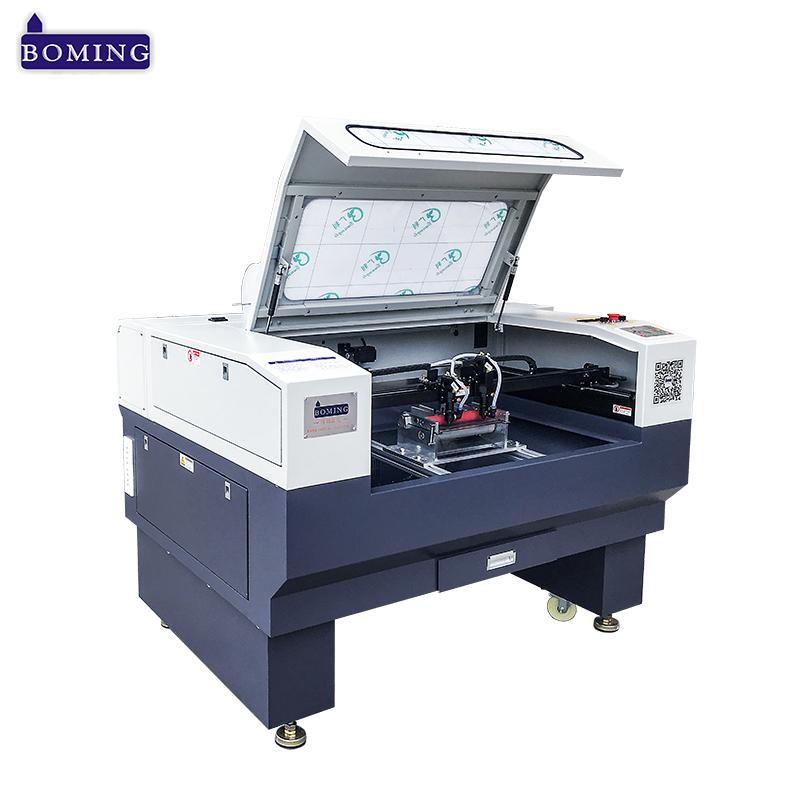

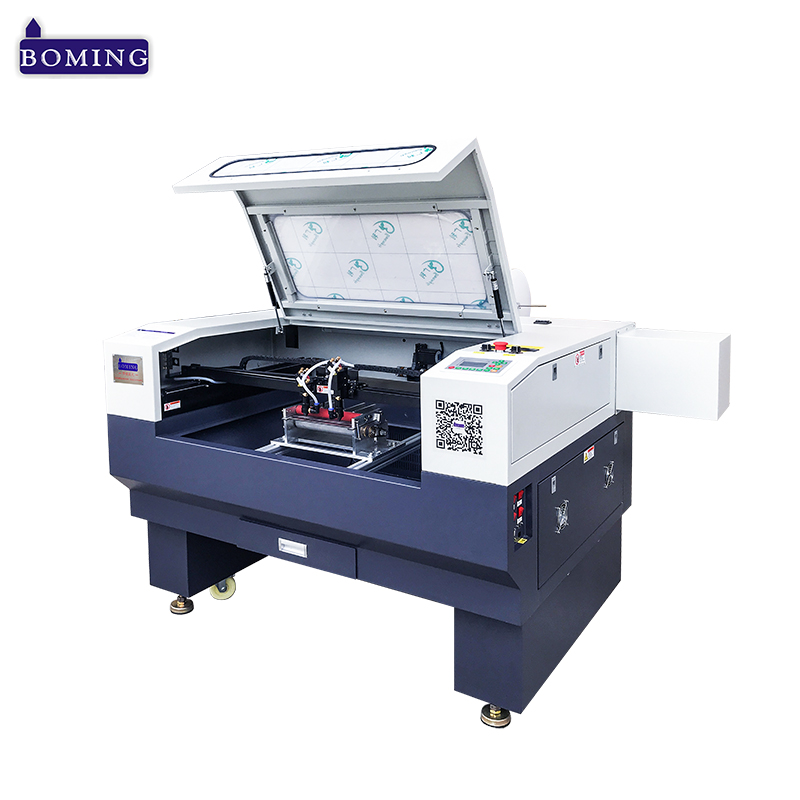

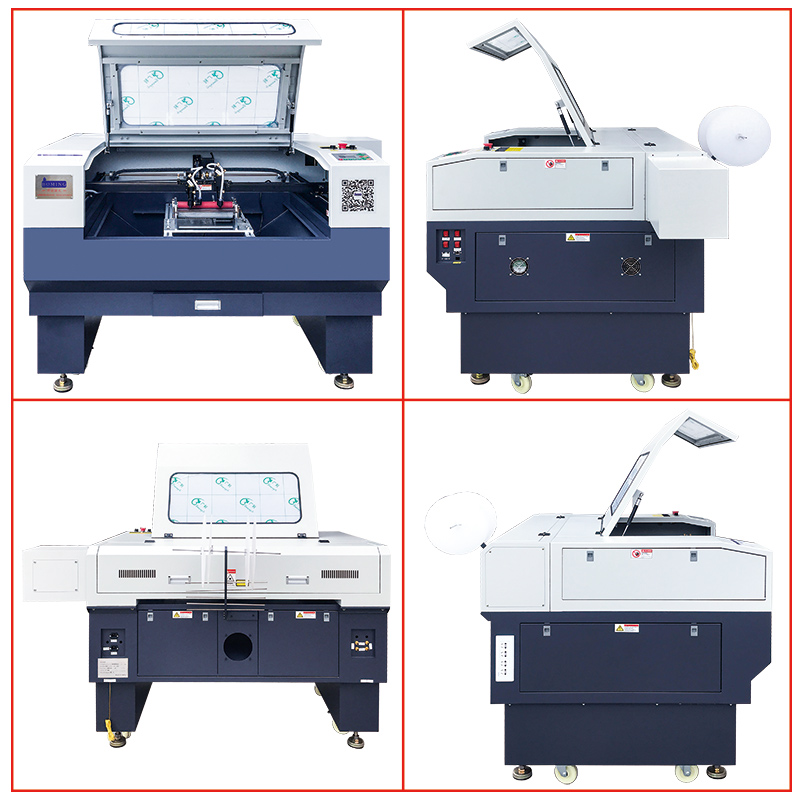

Machine Pictures: of webbing Laser cutter


woven label laser cutting system

woven laser cutter

woven label laser cutting equipment

woven label laser cutting




Configuration: of strap laser cutting machine

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W laser tube.

4)Honeycomb plate/ Square bottom plate/blade strip plate

5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Optional: Automatic circulation cooling water tank.

11)Give freely compressed magnetic pump.

12)Give freely Boming copyrighted software 1set, free upgrade



Advantage: of woven label laser cutting machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board

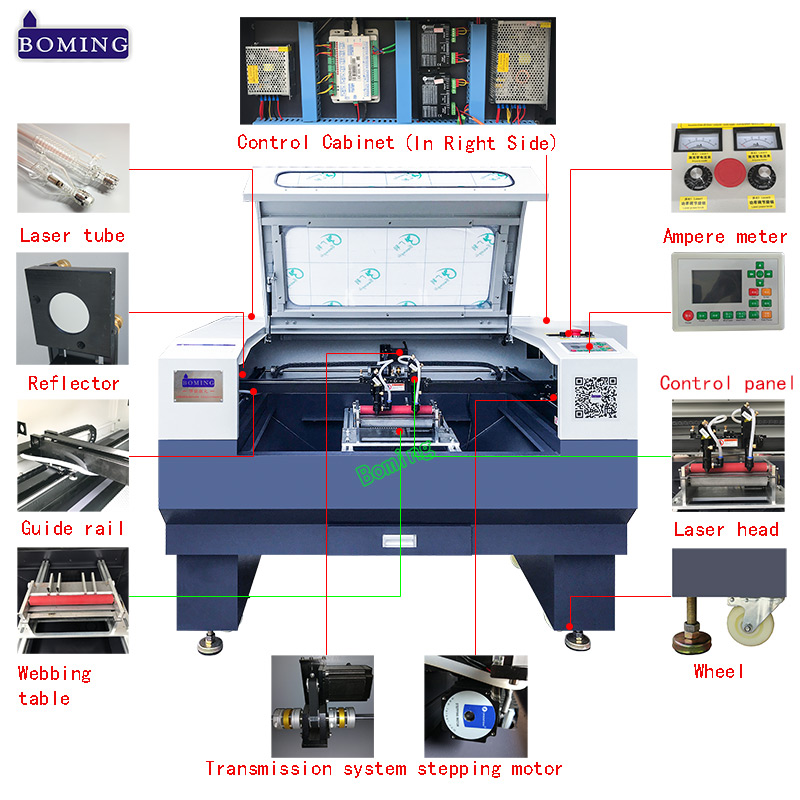

Machine Details:






Applicable Industries: of wovel label laser cutting machine

This machine is suitable for the industries, such as garment,shoe,bag and suitcase,computerized embroidery and clipping,webbing, woven label, seat belt, strap, string, etc.



Applicable Materials:

Non-metallic material, such as leather,cloth,organic glass,acrylic,rubber,plastic, wood ware,bamboo ware,ceramic , etc.



Technical Parameters : of woven label laser cutter machine

Processing Area(mm)

600*400 900*600 1000*800 1300*900 1400*800

1500*600 1600*800MM

Engraving Speed

0-64000 mm/min

Cutting Speed

0-36000 mm/min

Laser Capacity

80w 100w 130w 150w 180w 300W 450W

600WCO2 glass tube

Resolution Rate

0.0064mm

Min Shaping Character

Chinese character:2*2mm, Letter:1*1mm

Power supply

AC220±10%,50HZ

Positional Accuracy

<0.01mm

Repeated Positional Accuracy

0.01mm

Total Power

 ≤5000w

Working temperature

0-45

Working Humidity

5%-95%(No Condensation)

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y-direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

PLT,AI,DXF,DST,BMP,GIF,JPEG,PCX,TGATIFF,CDR,DMW, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror

Dimension(mm)

9060

1480*1080*1100

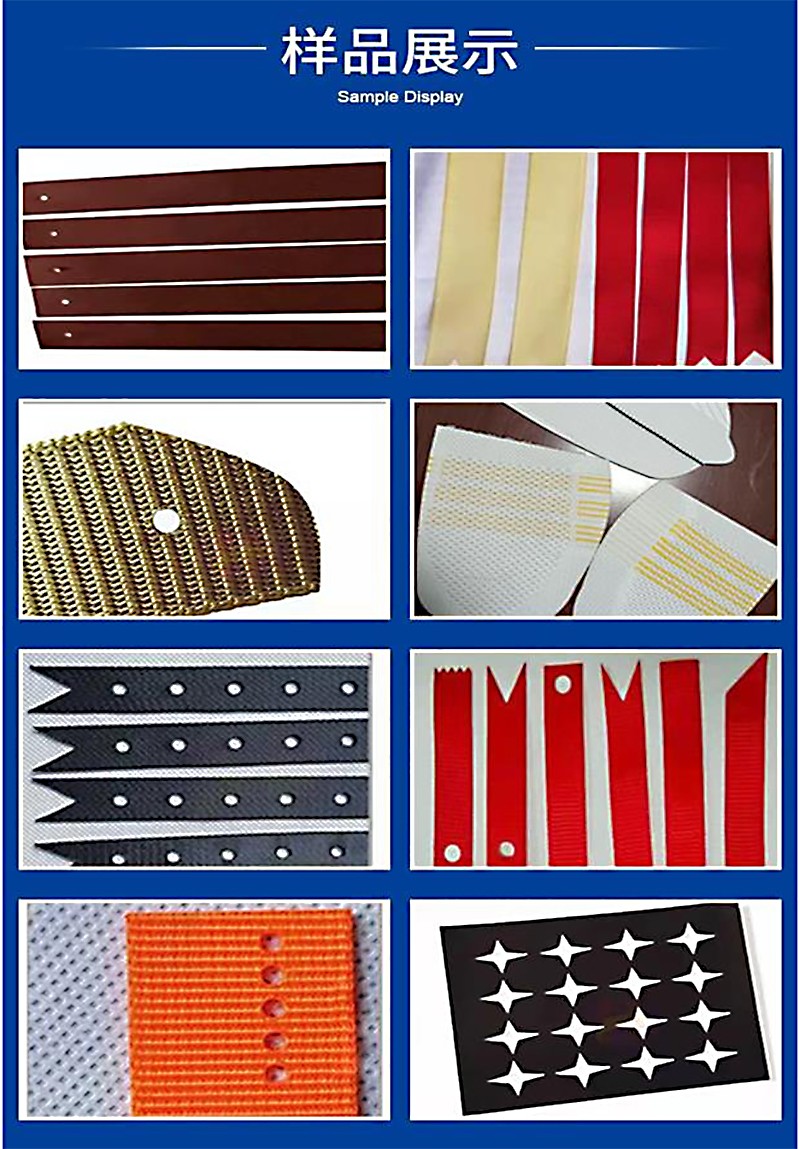

Sample show:




Our Advantages:



Our Payment:of belt laser cutter

1)   Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.



Our Service:of webbing laser cutter

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.

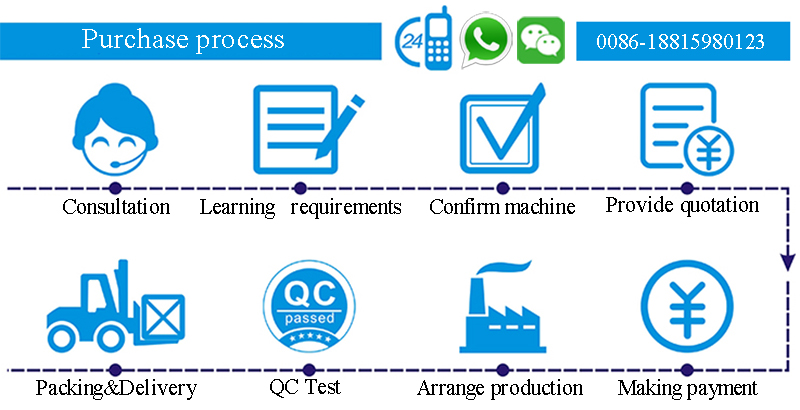

Purchase process:




Packaging & Shipping of seat belt laser cutting machine

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.
