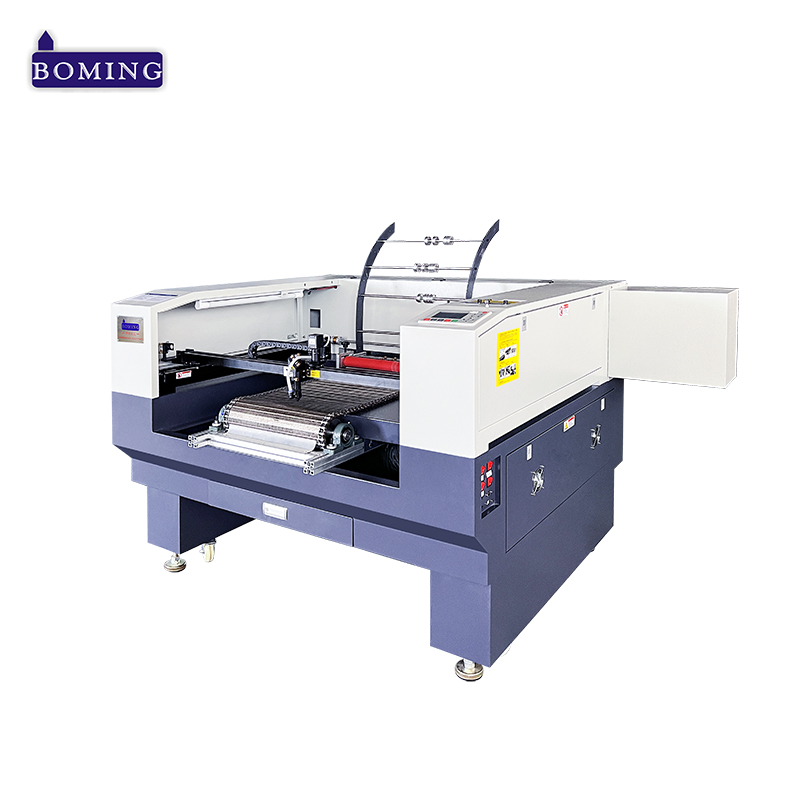

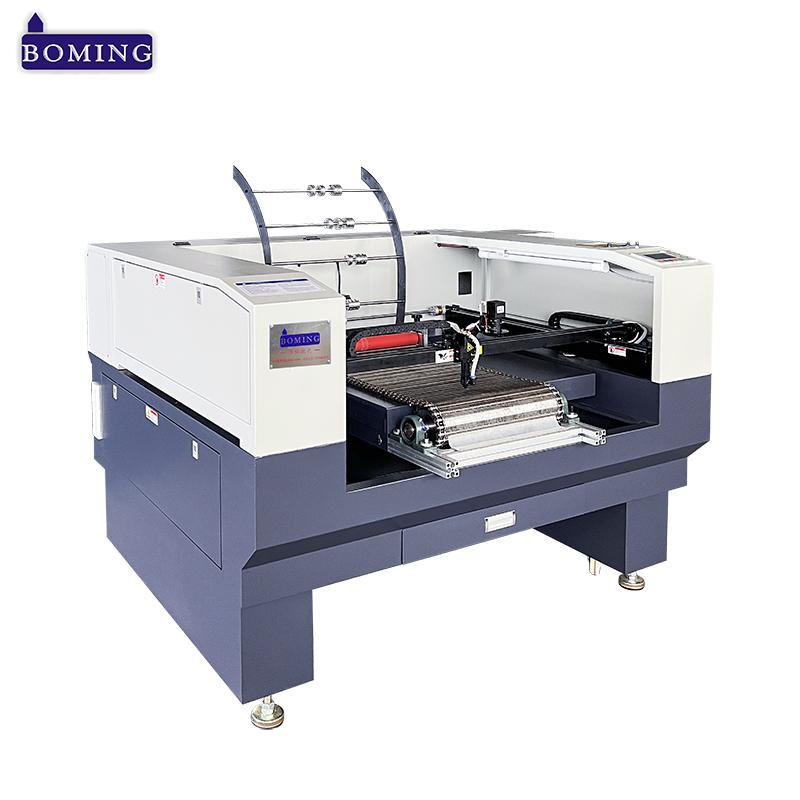

CCD camera Autofeed ribbon laser cut machine is with auto feeding webbing cutting platform, suitable for cutting long roll webbing, such as printed webbing、strap、 seat belt、nylon webbing、woven label、polyester webbing、leather belt、Velcro, tapes、pvc webbing,etc. The ccd camera can cut the printed pattern on the webbing.
Item NO.:
FLG-9060 1080 1680Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
CCD camera Autofeed ribbon laser cut machine is for cutting whole roll webbing trademark woven label. The camera is optional. If the webbing has printed pattern, can choose the camera model. There are two kinds of feeding table, one is simple with roller to feed the webbing, another is feeding chain, suitable for thick webbings.

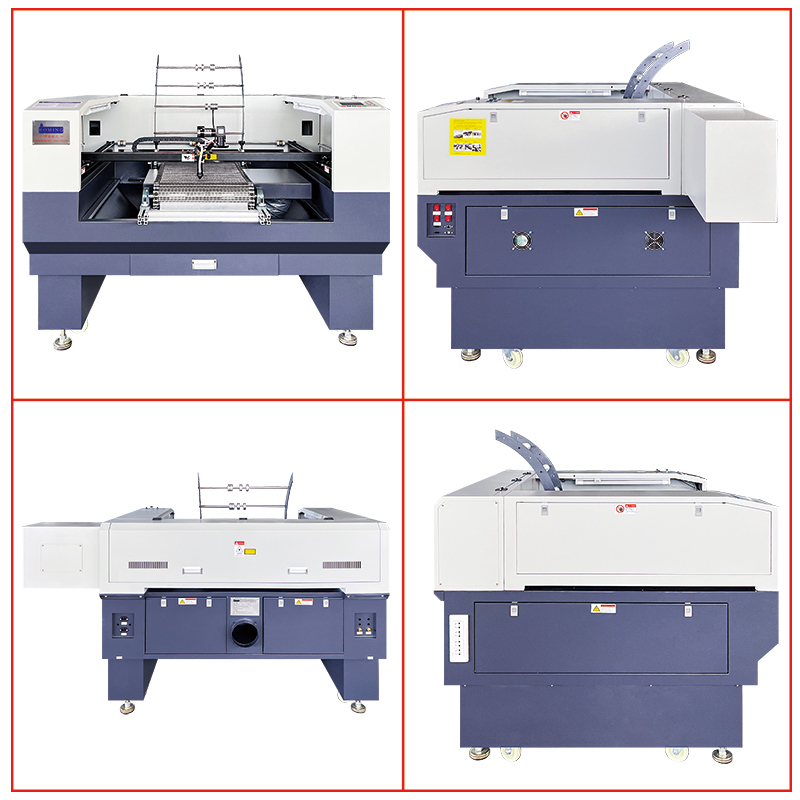

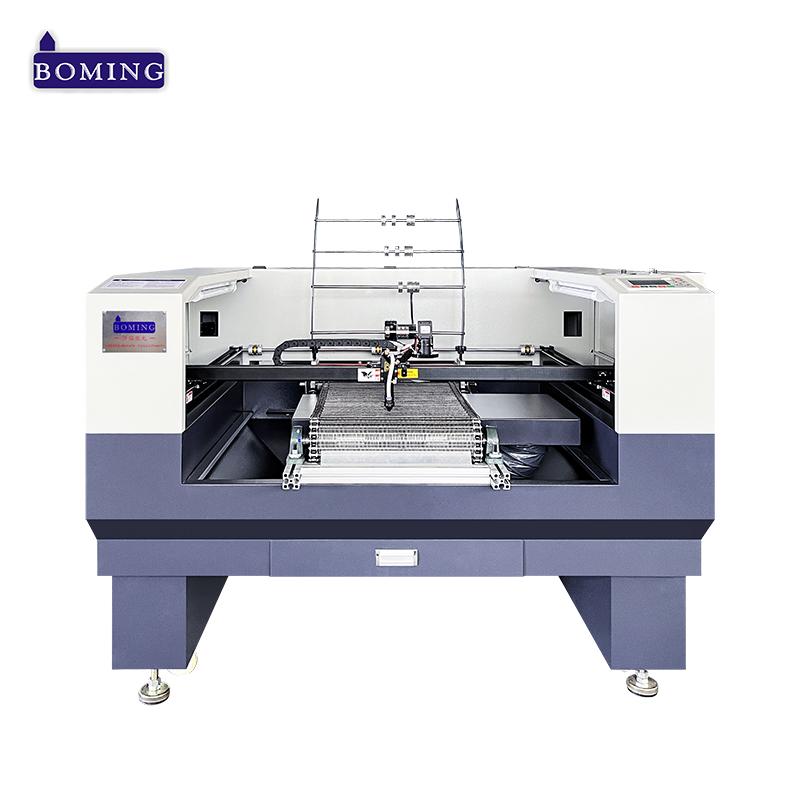

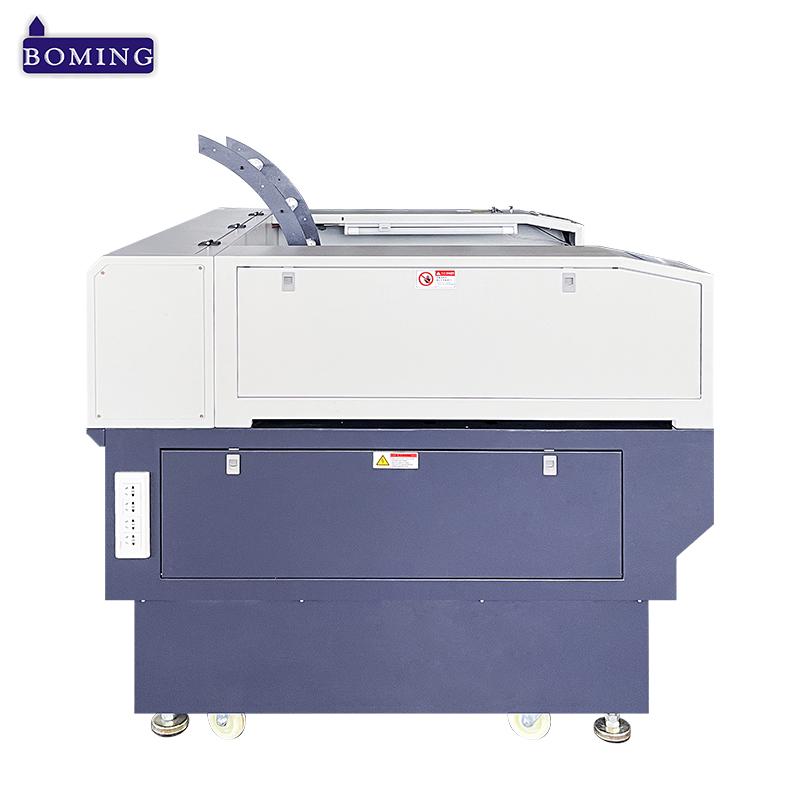

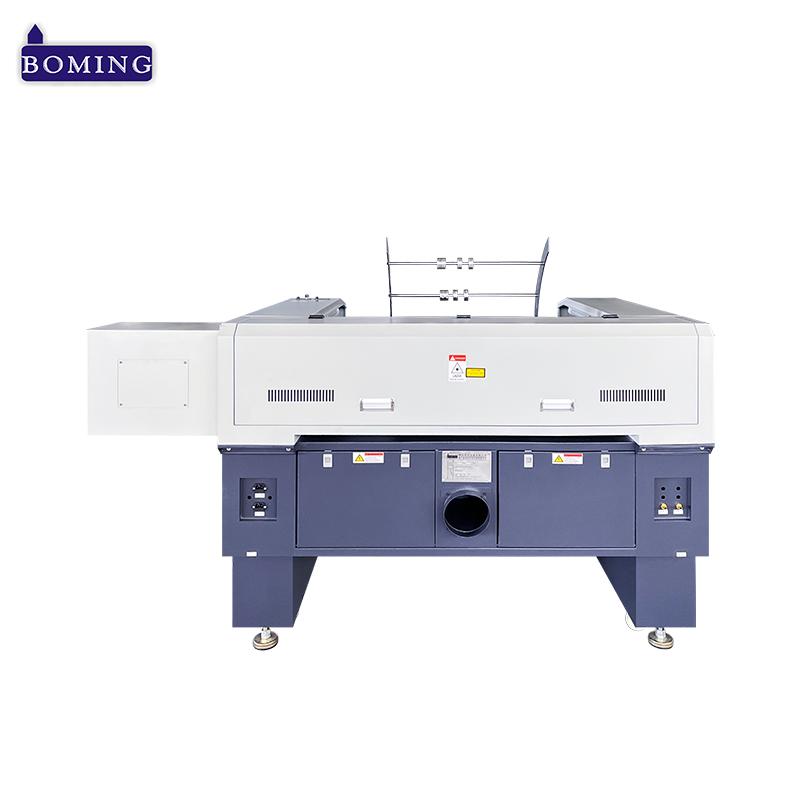

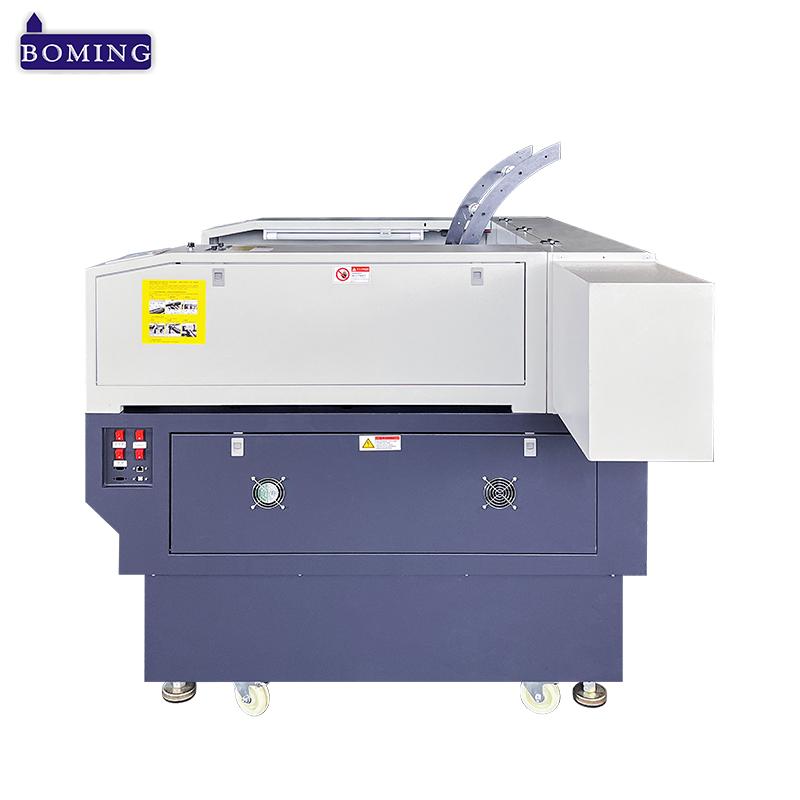

Machine pictures: of laser cut woven label machine
Features:of auto feeding webbing laser cut machine wiht camera
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Configuration: of laser cutter for woven label
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 100-130-150W-300W laser tube.
4）Special webbing cutting table.
5）Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Automatic circulation cooling water chiller.
11）Give freely compressed air pump.
12）Give freely Laser software 1set, free upgrade

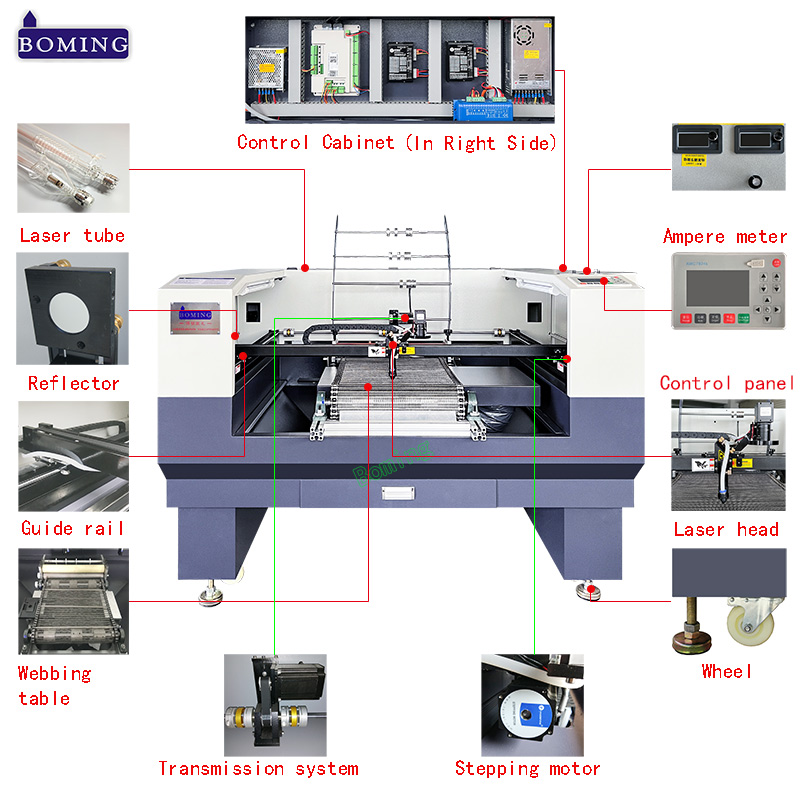

Machine Details: of ribbon laser cutting machine
Applicable Industries:of roll to roll laser label cutting machine
Outdoor products, pet products, military security, luggage, clothing, shoes and hats, gifts and other industries.
Applicable Materials: of roll to roll laser label cutting machine
Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap and other knitting materials.
Technical Parameters:of strap laser cutter
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 900*600 1000*800 1200*800 1300*900 1400*800 1600*800 mm |
Positional Accuracy | ±0.05mm |
Working table | Special webbing cutting platform |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |

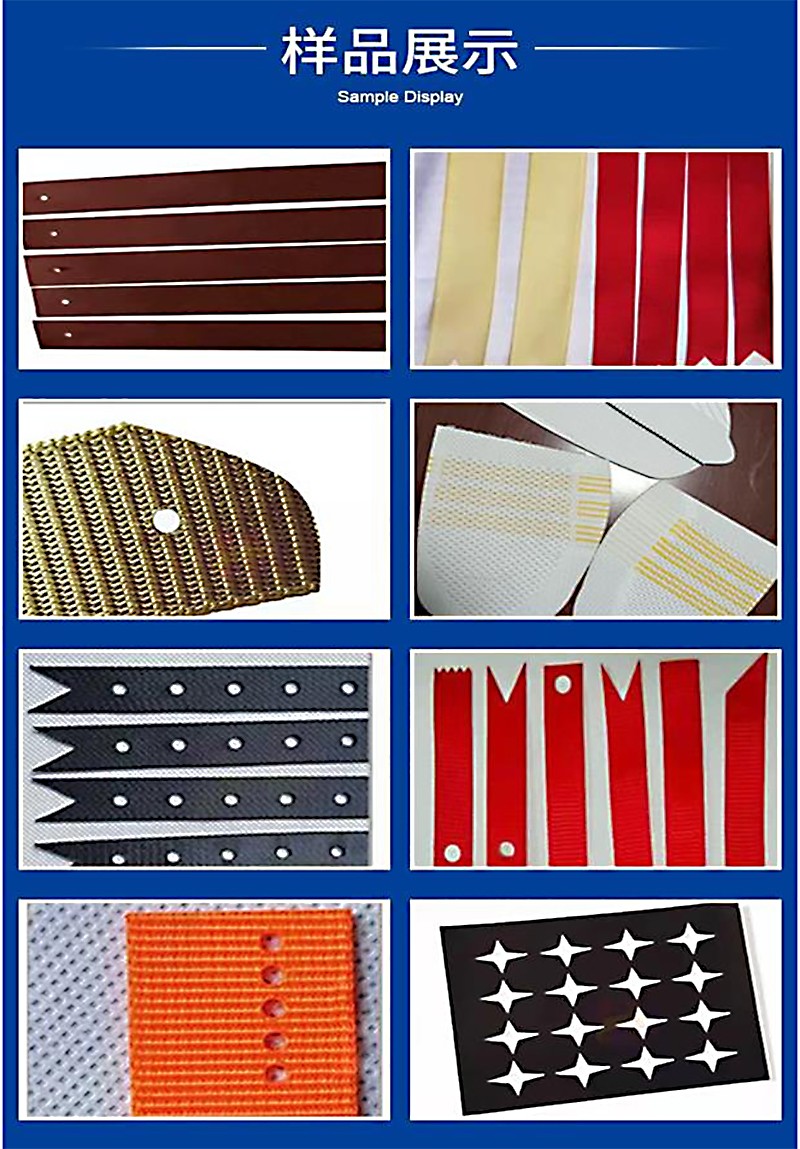

Sample show:
Our advantages:
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
FAQ:
Purchase process:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
