Plywood 300w Double head 1610 laser cutter machine is with blade/honeycomb table, suitable for cutting thick non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth，etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc. The wood plywood thickiness can be 15-20mm. One head、two head are optional.
Item NO.:
FLG-9060 1280 1480Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
Plywood 300w Double head 1610 laser cutter machine is universal laesr cutter. It has various of configuration which can be chosen. The laser head can be 1 head, 2 head. The two head model working area is 1610, 1612 1810, 1812, 2010, 2012, etc. It can cut thick materials, such as 10mm acrylic, 15mm wood, 20mm plywood, etc. It is with water cooling the focus lens and mirror.

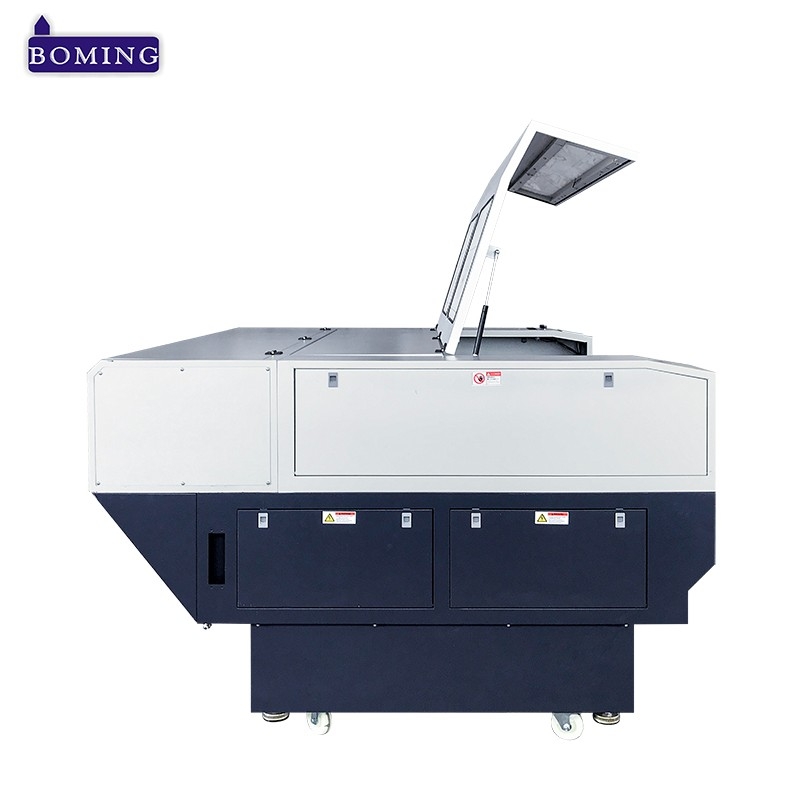

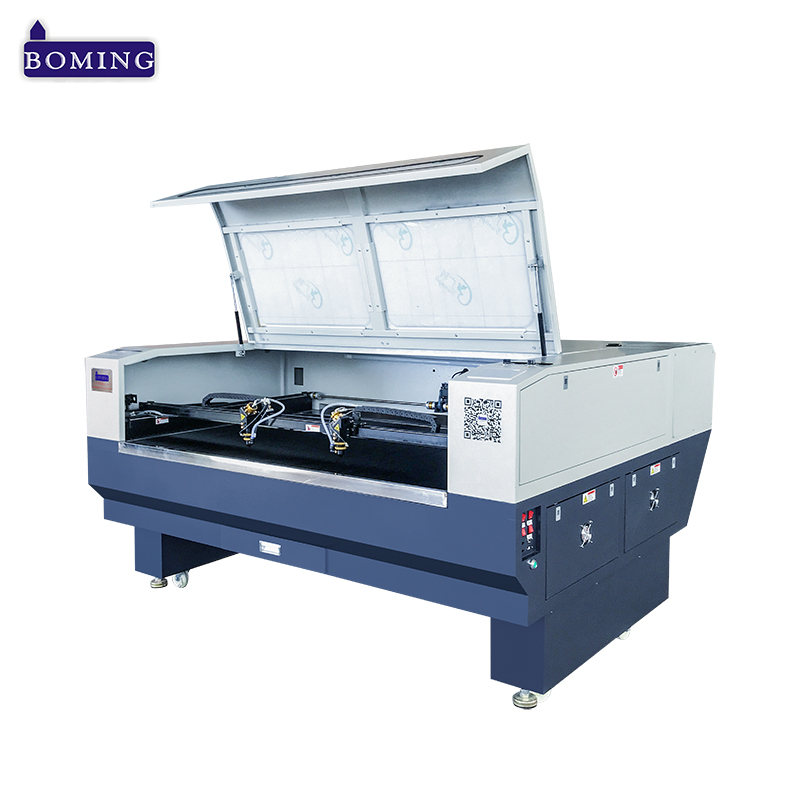

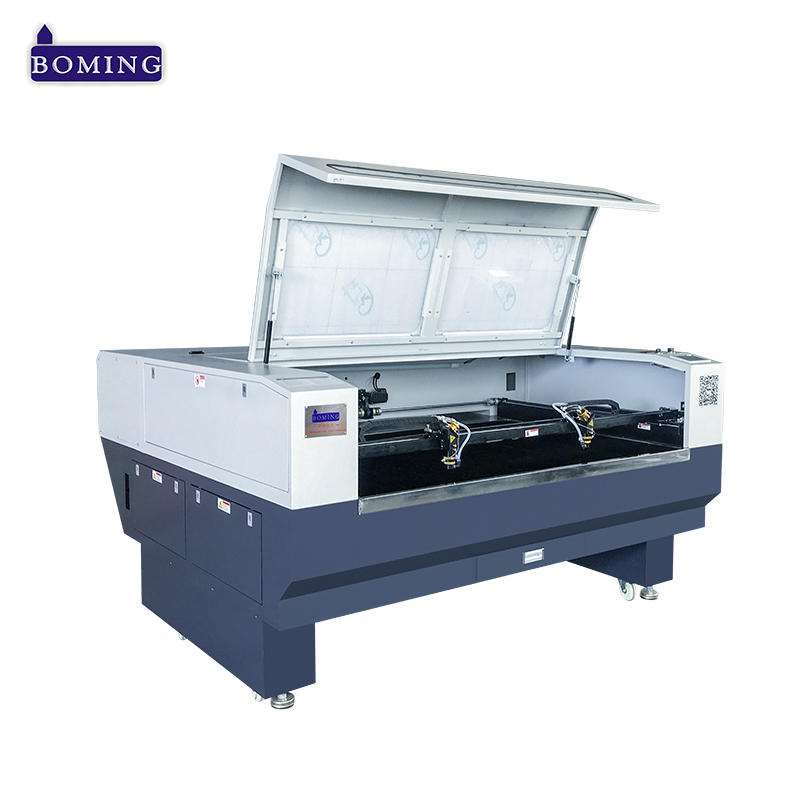

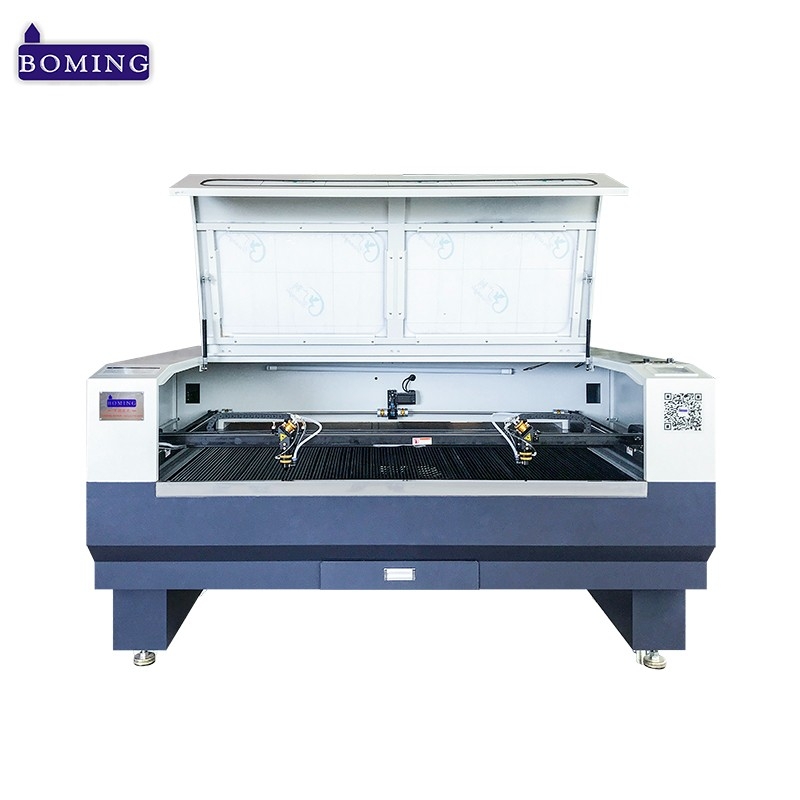

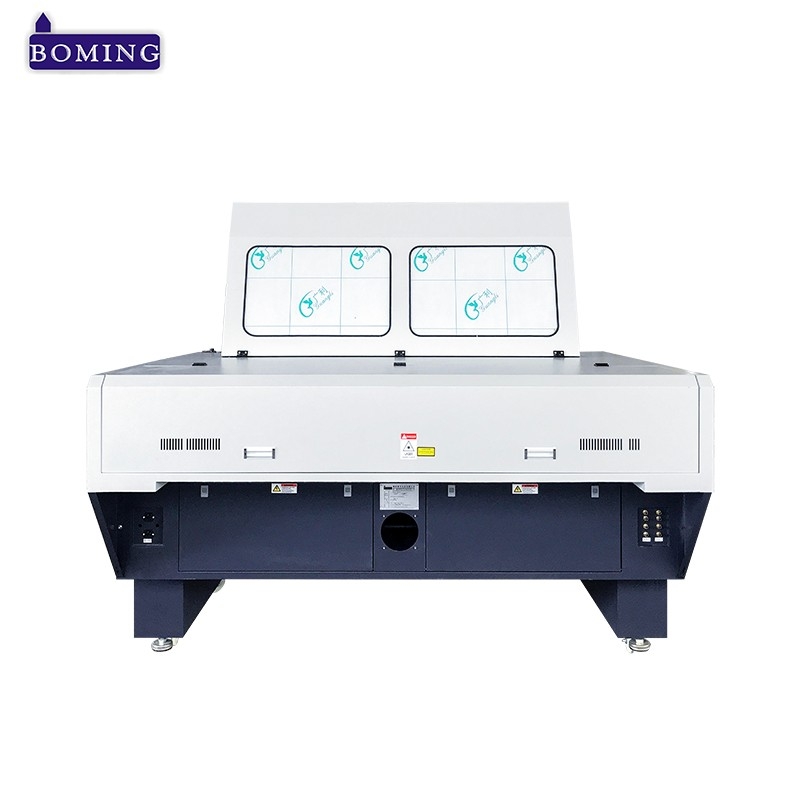

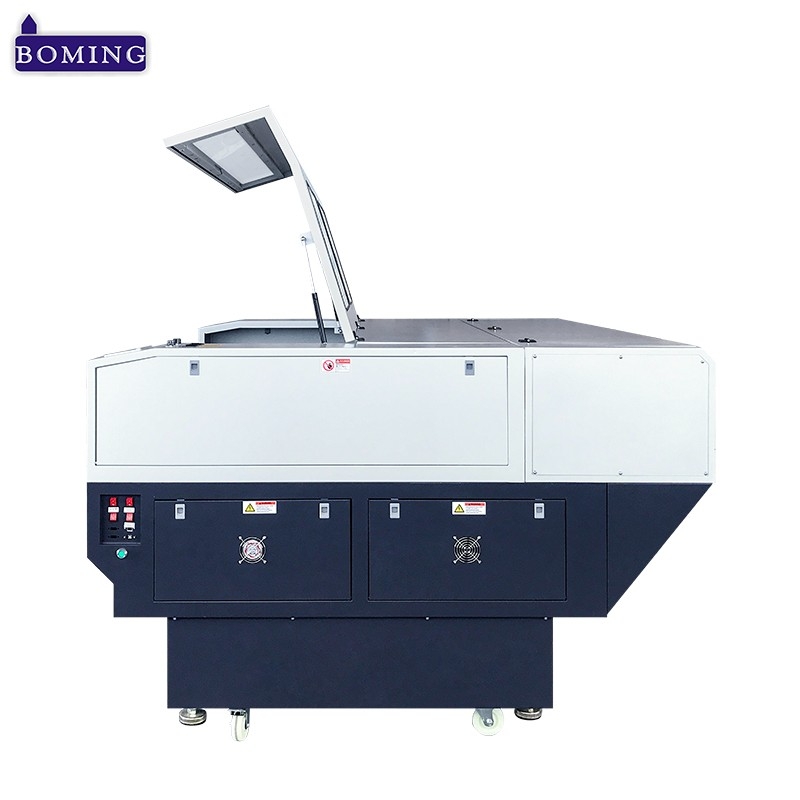

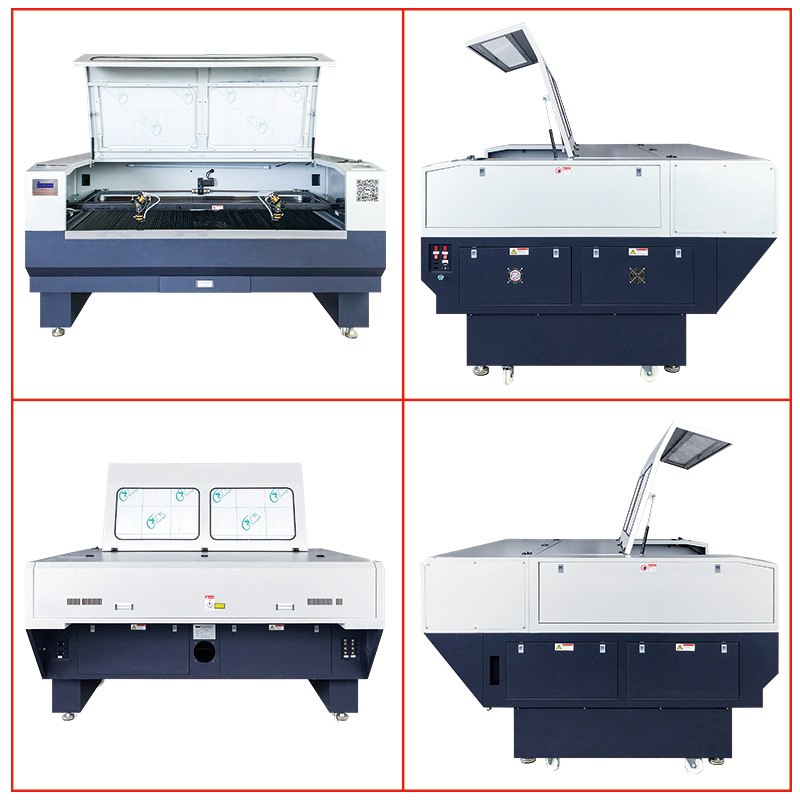

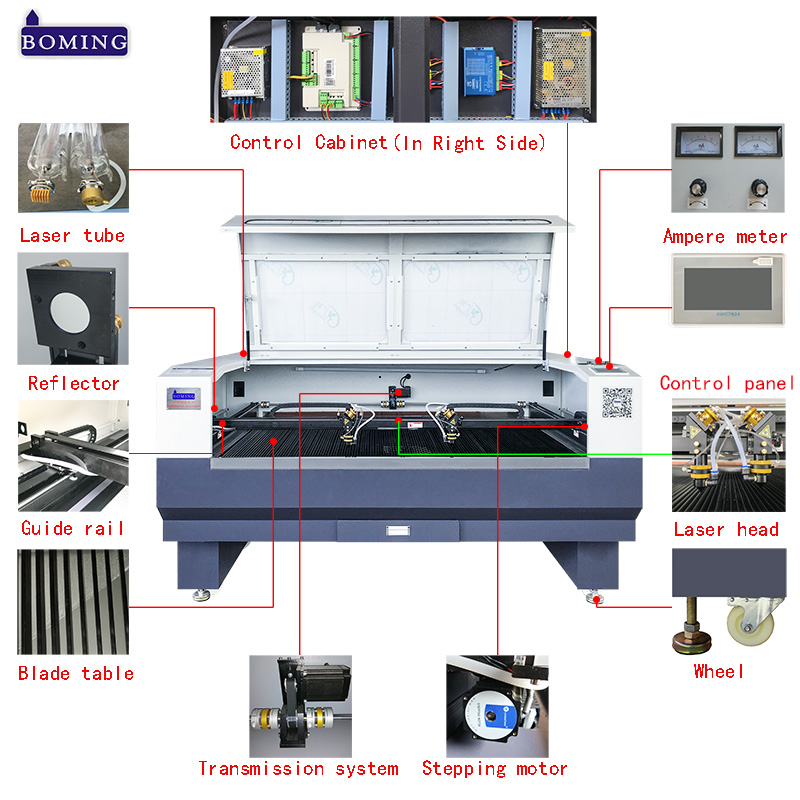

Machine pictues: of laser cutting machine 450w
Features:of cnc laser engraver
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Software advantages: of machine laser cutting
1) Software comes with memory option. Machine can work offline without computer.
2) Designs can be sent to machine with one step function.
3) Most kind of design format can be accepted.
4) Machine can be accessed and operated directly from CorelDRAW software.
5) Software has powerful auto backup function.
Applicable Industries:of Cut Laser Machine
Garment, shoes, bags, compute rized embroidery and clipping.model cutting, electronics ,toys, furniture, advertisement decorations, handicraft,packing, printing and other industries.
Applicable Materials: of laser cutting machine india price
Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.
Technical Parameters:of laser cutter engraving machine
Laser Capacity | 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 1600*800 1600*1000 1600*1200 1800*1000 1800*1200 2000*1000 2000*1200mm |
Positional Accuracy | ±0.05mm |
Working table | Blade/honeycomb/Square |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
