1810 fabric leather 5 head laser cutting machine is with blade/honeycomb table, suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth，etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional.
Item NO.:
FLG-1610 1810 2010Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1810 fabric leather 5 head laser cutting machine is universal laesr cutter. It has various of configuration which can be chosen. The laser capacity has 60w, 80w, 100w, 150w, 180, 300, 450w, 600w, etc. The laser head can be 1 head, 2 head, 3 head, 4 head, 5 head and 6 head. The working area is from 6040, 9060, 1280, 1390, 1480, 1590, 1680, 1610, 1810, etc.

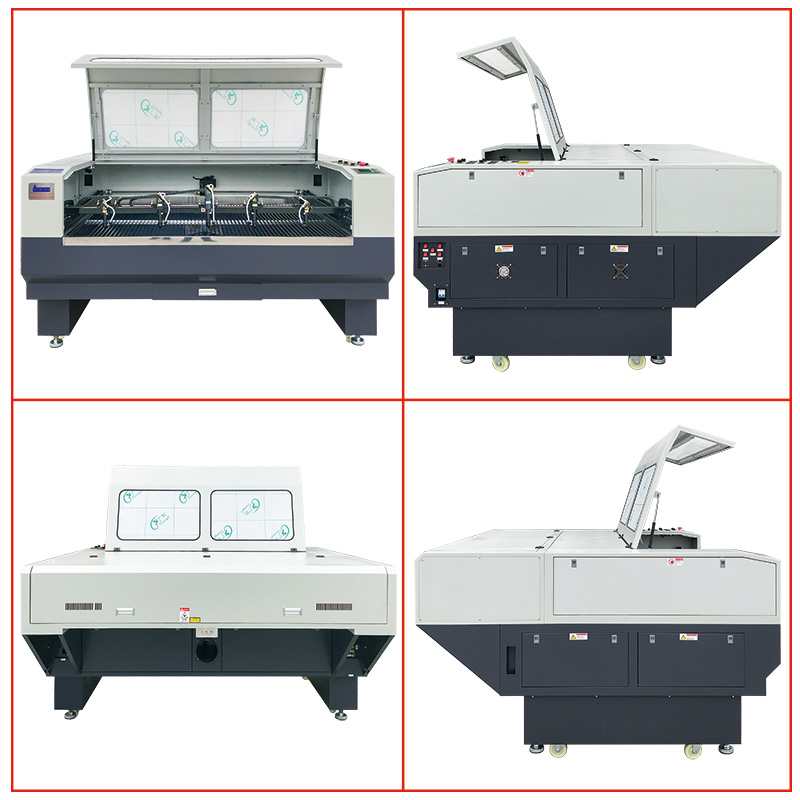

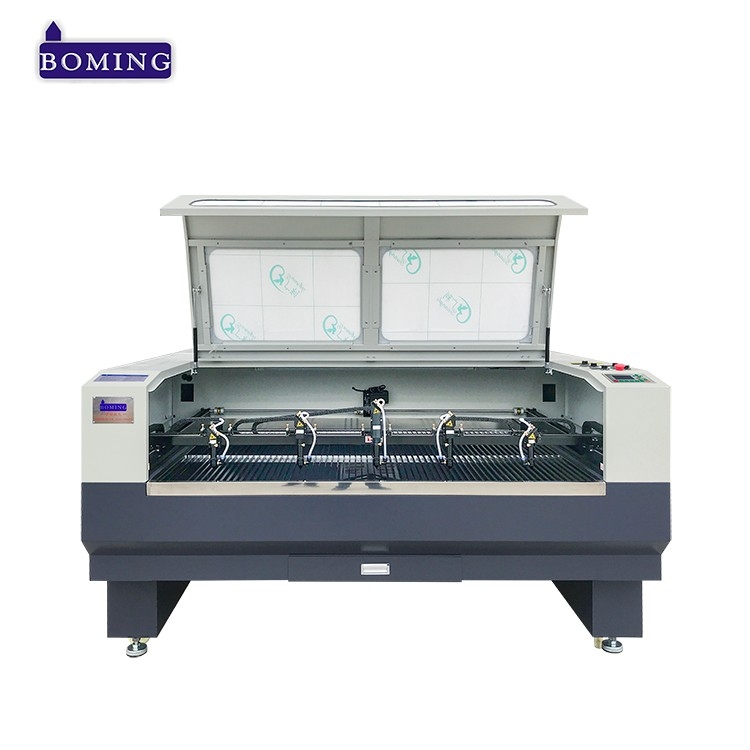

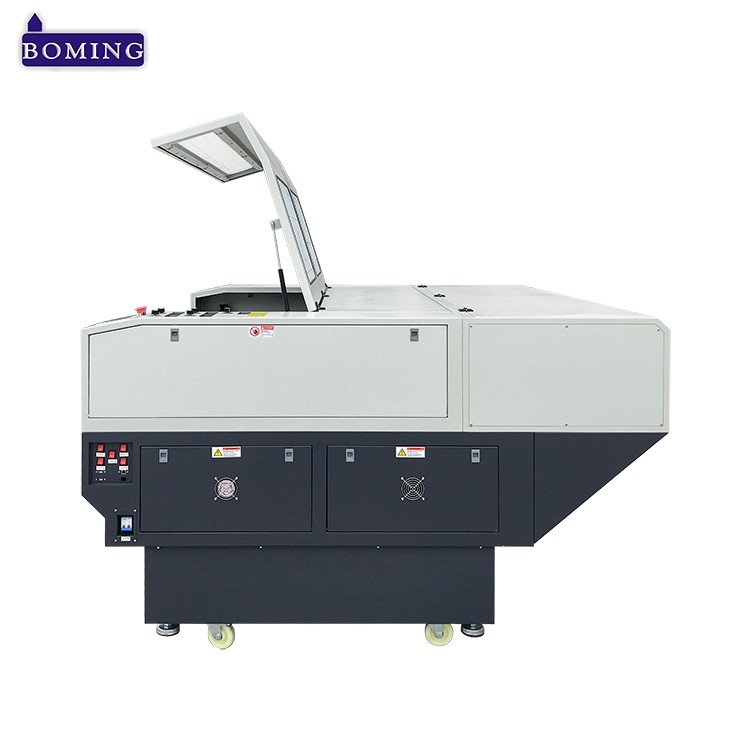

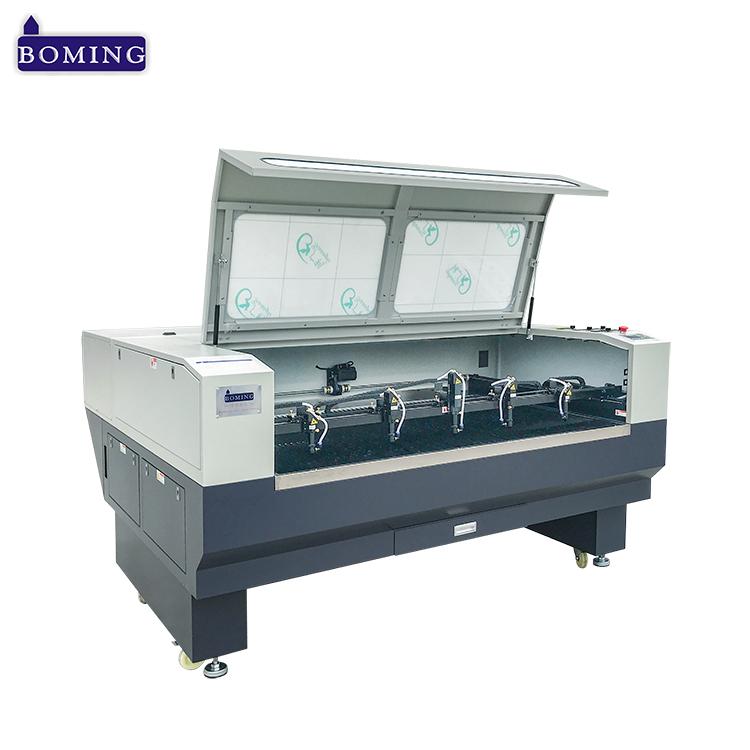

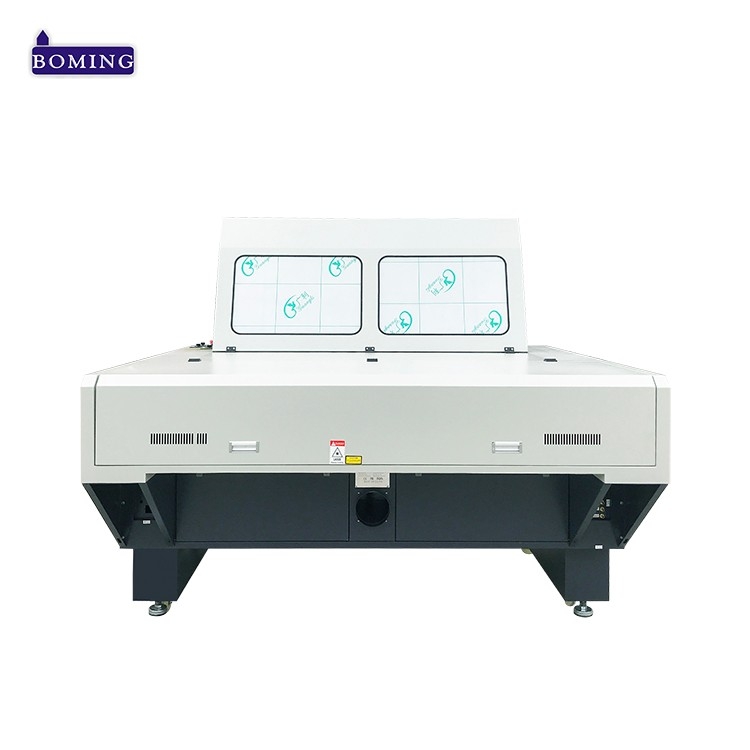

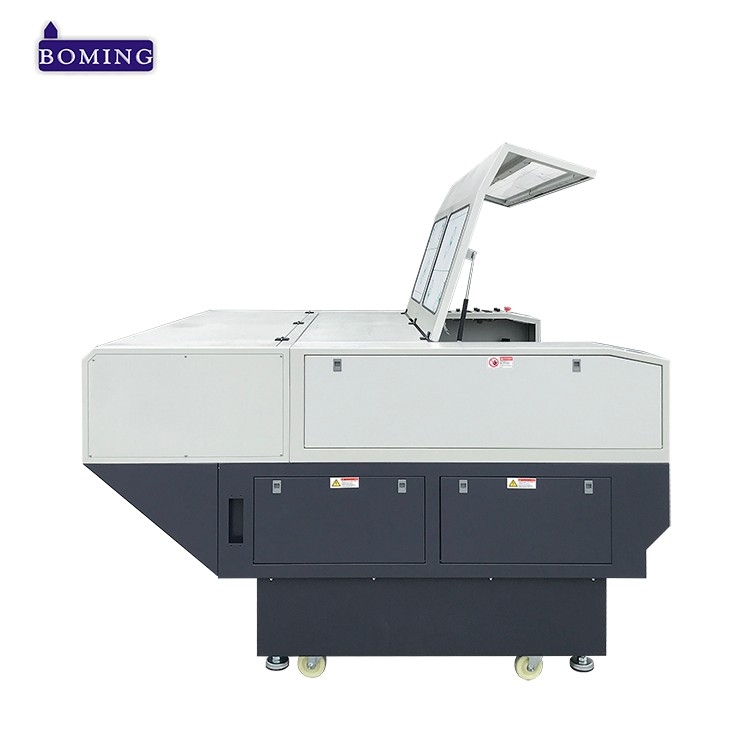

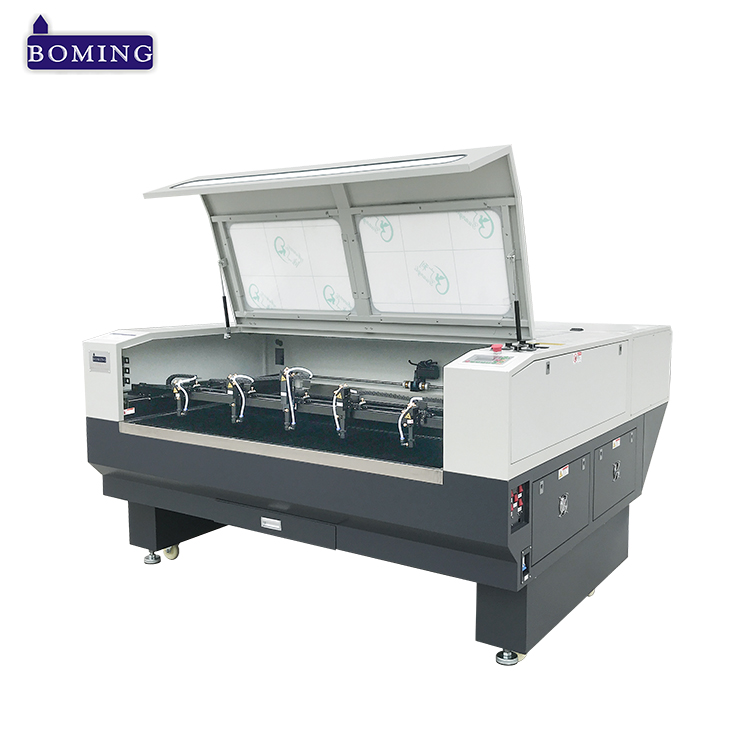

Machine pictures:

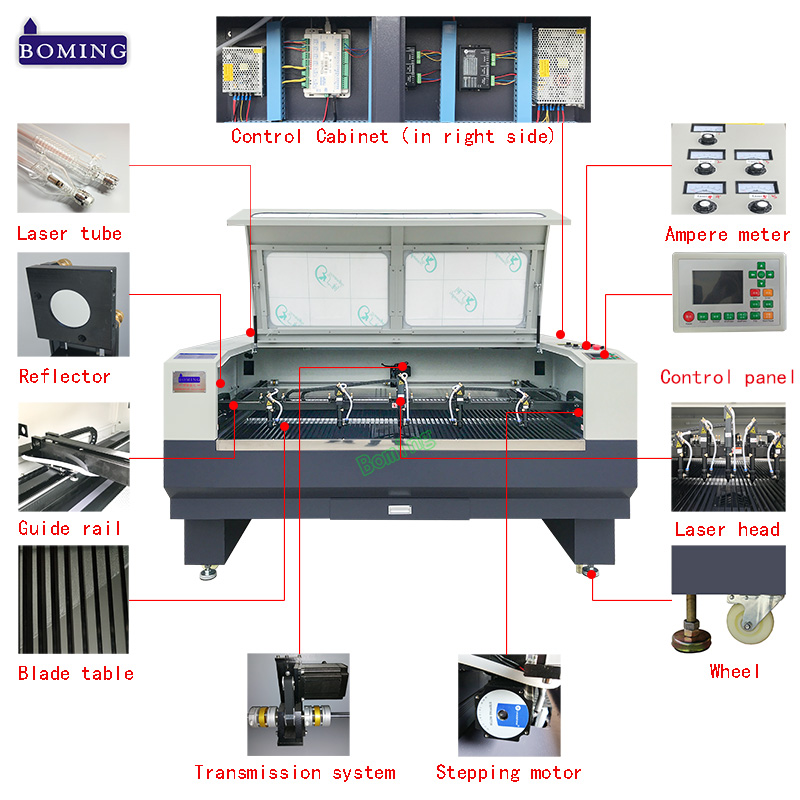

Features:of 1810 fabric leather 5 head laser cutting machine
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Advantage: of 5 head laser cutting machine
1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board
Applicable Industries:of fabric laser cutting machine
Garment, shoes, bags, compute rized embroidery and clipping.model cutting, electronics ,toys, furniture, advertisement decorations, handicraft,packing, printing and other industries.
Applicable Materials: of Laser Cloth Cutting Machine
Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.
Technical Parameters:of leather laser cutting machine
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm |
Positional Accuracy | ±0.05mm |
Working table | Blade/honeycomb/Square |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Payment: of ccd camera laser cutting machine
1) Usually we accept T/T, Irrevocable L/C at sight.
2) 30% deposit, the 70% balance should be paid clear before delivery.
3) The delivery day is 7-10 working days.
4) The MOQ is 1set.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: Usually we accept T/T，Irrevocable L/C at sight or Alibaba Trade Assurance Order.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
