1610 150w 4 Head laser cutting machine

1610 150w 4 Head laser cutting machine is with blade/honeycomb table, suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth,etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional.

  • Item NO.:

    FLG-9060 1390 1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1610 150w 4 Head laser cutting machine

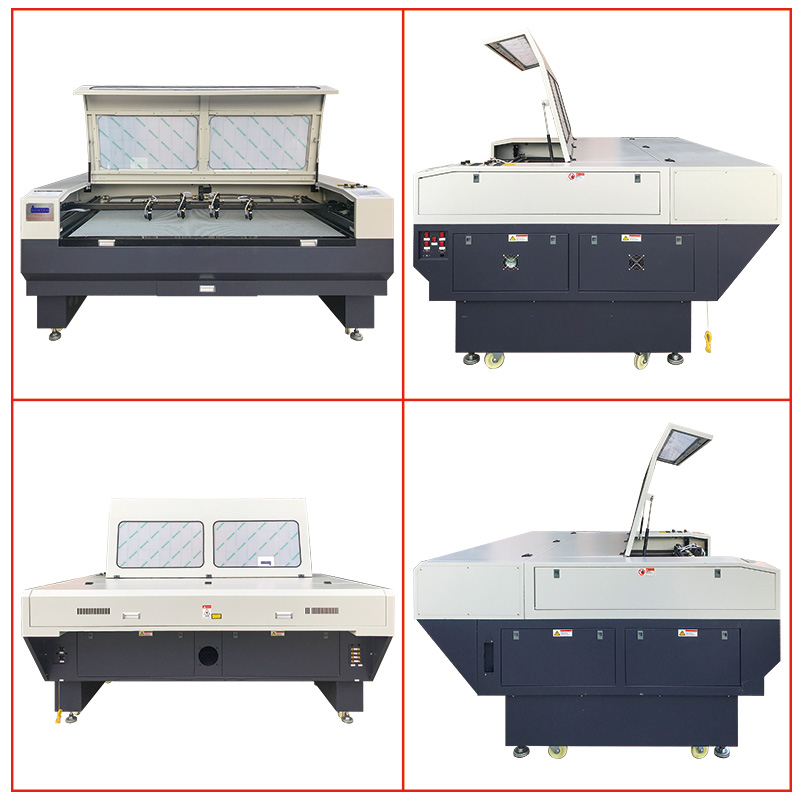

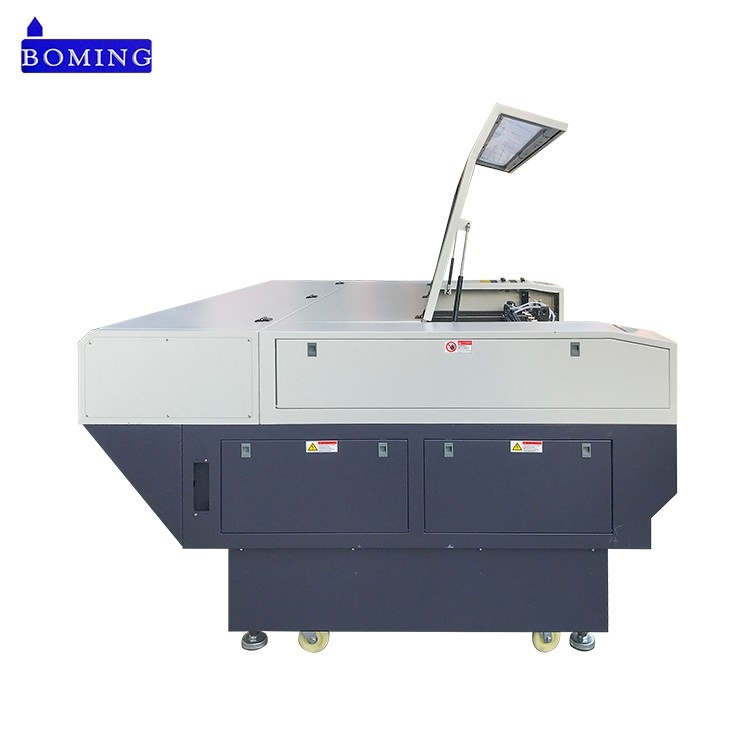

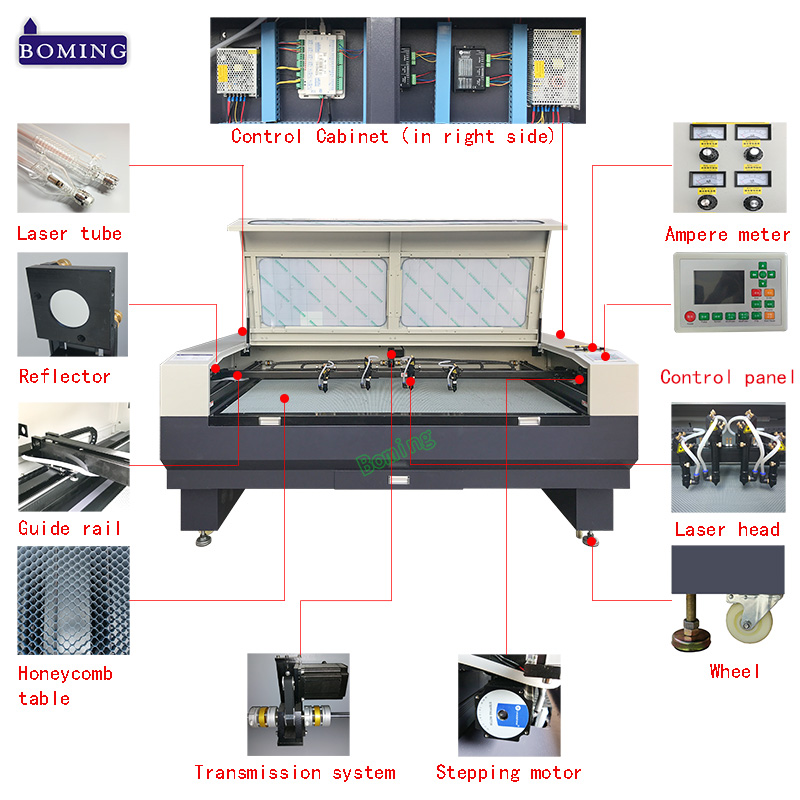

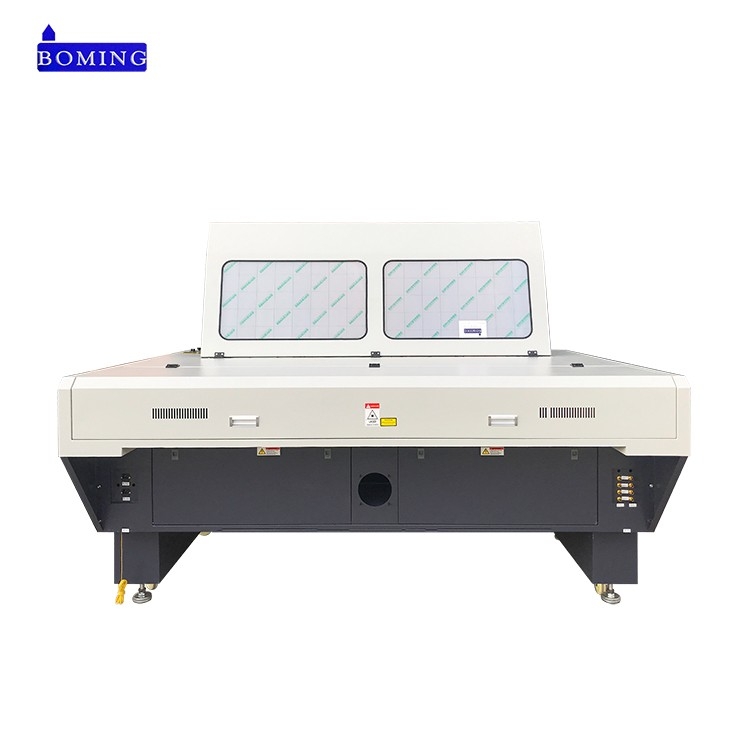

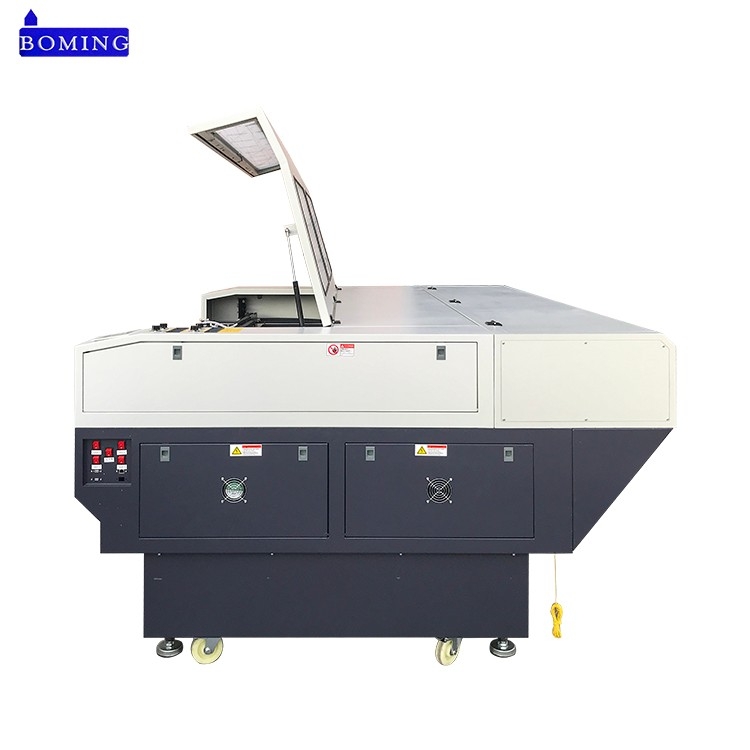

Machine Pictues:

laser cutting machines

co2 laser cutting machine

4 head laser cutting machine

4 head laser cutter




Features:of 1610 150w 4 head laser cutting machine

1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.

2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward  sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.

3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.

4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.

5、The customized maehines with different size are available.



Software advantages: of acrylic Laser Cutting Machine

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.





Applicable Industries:ofEmbroidery Laser Cutting Machine

Garment, shoes, bags, compute rized embroidery and clipping.model  cutting, electronics ,toys, furniture,  advertisement  decorations,  handicraft,packing, printing and other industries.




Applicable Materials: of Laser Cloth Cutting Machine

Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.




Technical Parameters:of foam laser cutting machine

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm

Positional Accuracy

±0.05mm

Working table

Blade/honeycomb/Square

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

laser cutting machine co2

cutting machine laser




Why choose us:

1. 13 years experience on laser cutting and engraving machine.

2. Use good brand parts, excellent machine quality.

3. Free consulting, lifetime technical support.

4. Various optional types, customized acceptable.

5. Machines sold to Southeast Asia, South Asia, South America......




Optional accessories:

1) Motorized up and down worktable.

2) Rotary device (for engraving round items).

3) New red dot design (make the laser beam visible).

4) High pressure air blower (used to cut thick materials).

5) Chiller (CW-3000 or CW-5000 CW-5200 )

6) CCD camera for logo/label





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.


Our contact:
