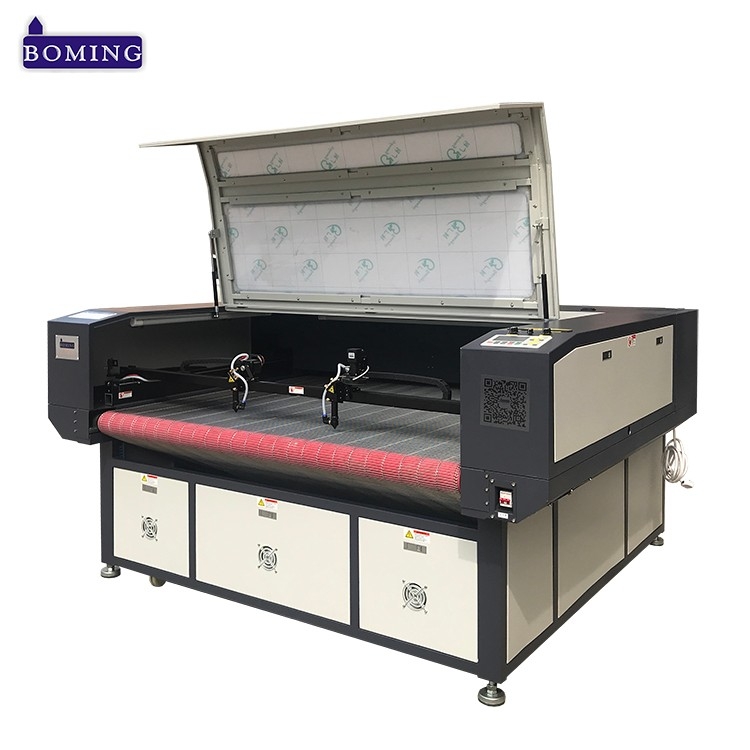

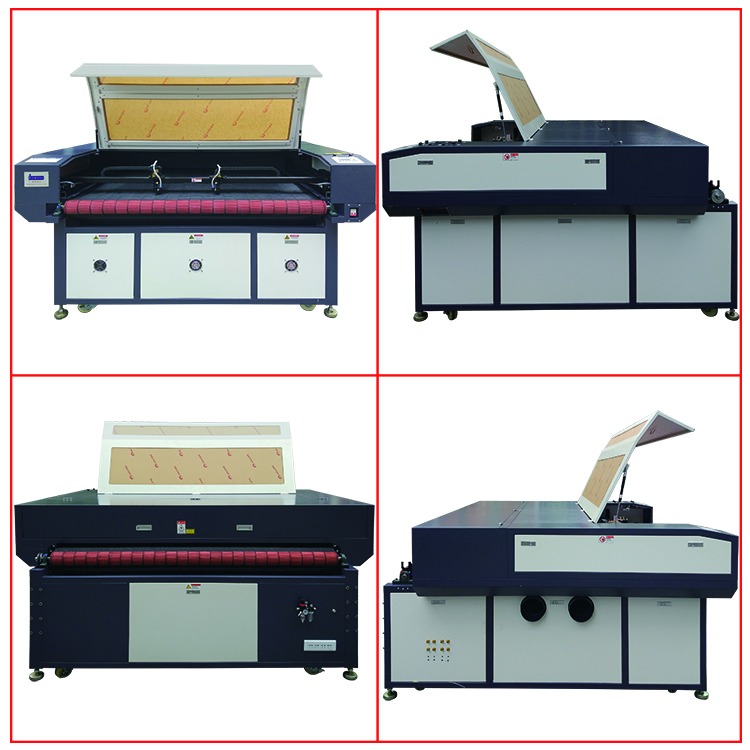

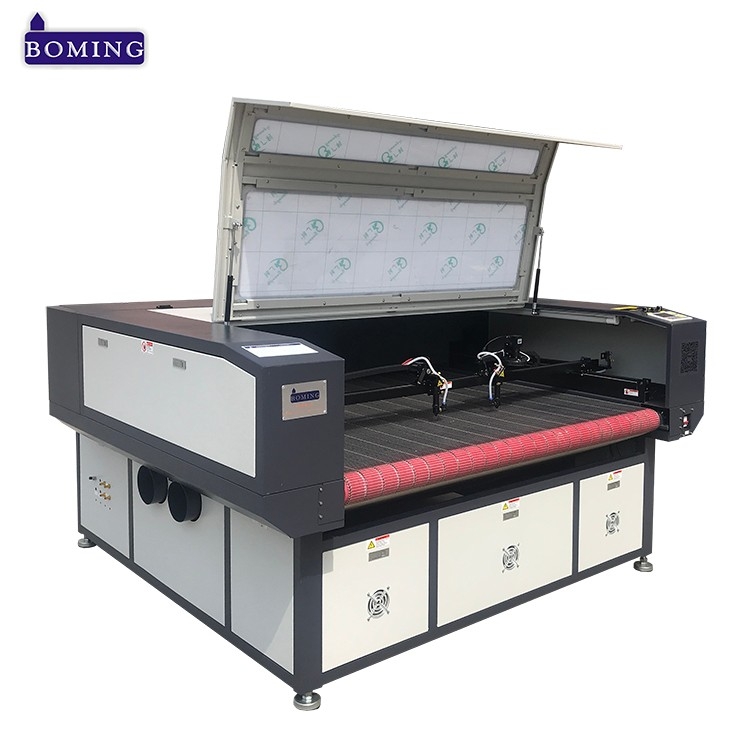

dual head autofeed laser cutting machine

It is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional.

  • Item NO.:

    FLG-1610 1680
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C,DP,DA
  • Product Origin:

    Quanzhou,China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    10 days

Dual head autofeed laser cutting machine is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional.

leather laser cutter machine

textile laser cutting machine

fabric laser cutting machine


textile laser cutting machine

Features: of 4 head self feeding laser cutter for whole roll cloth

1、It feeds the materials fully automatically, the worker can operate several machines at the same time.

2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve

more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine

3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.



Advantage: of laser auto cloth cutting machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: of roll fabric laser cutting machine

The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.




Applicable Materials: of roll to roll laser cutter

Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,

microfiber  PU,etc.




Technical Parameters:of self feeding laser cutter

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

cloth autofeed laser cutting machine



Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.

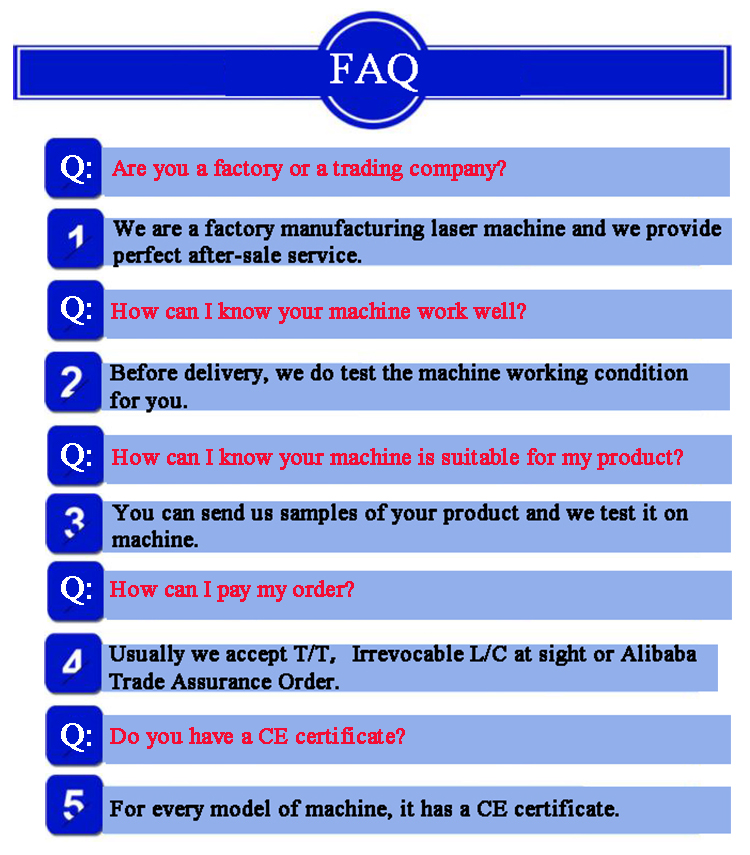

FAQ:



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
