2010 Garment cloth automatic laser cutter machine

2010 Garment cloth automatic laser cutter machine is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional. One head, two head, four head and six head are optional.

  • Item NO.:

    FLG-1610 1810 1814
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


2010 Garment cloth automatic laser cutter machine is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional.

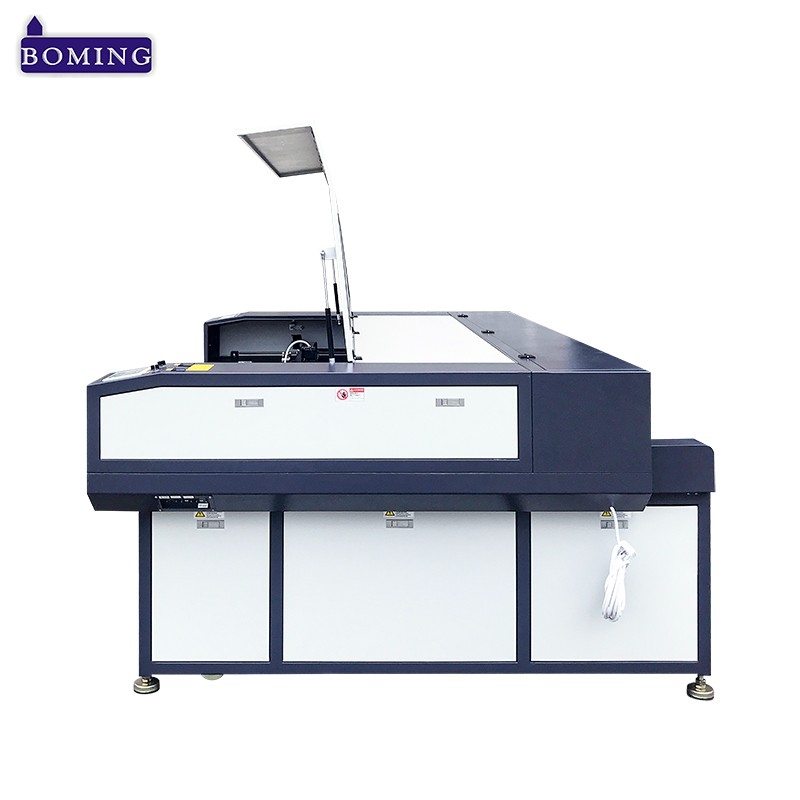

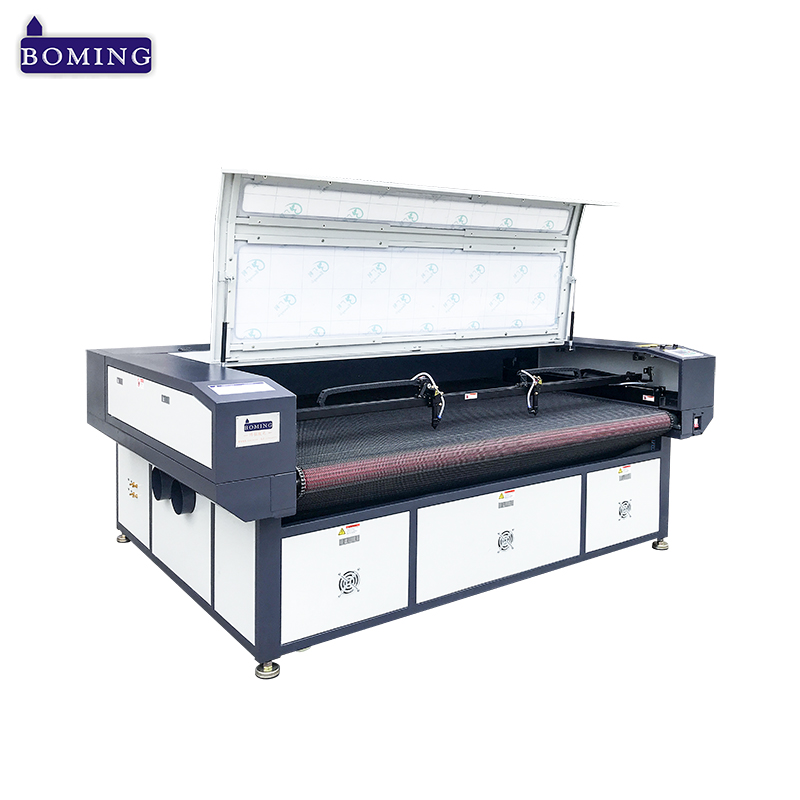

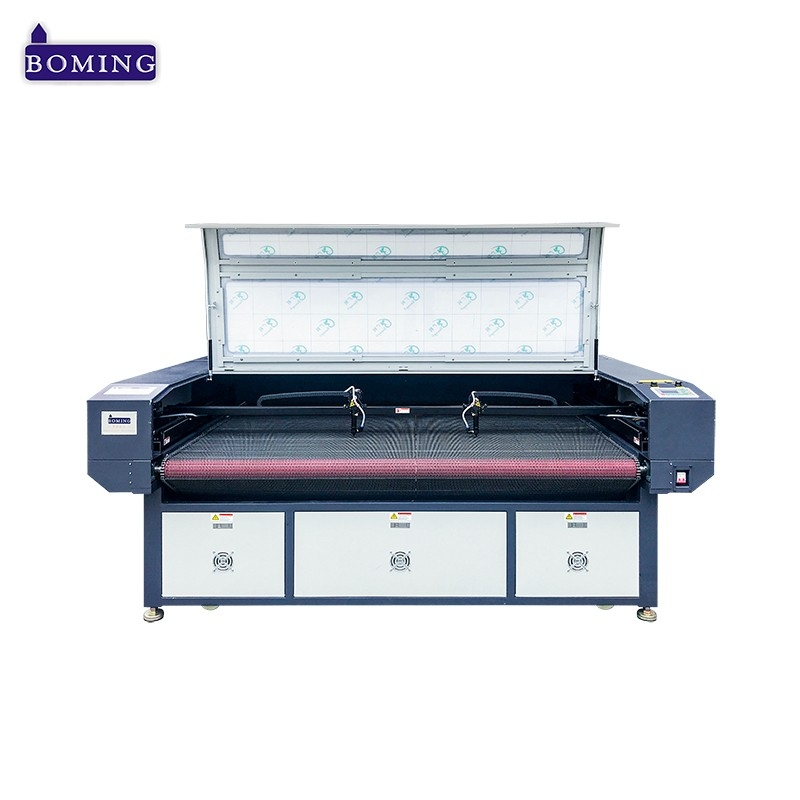

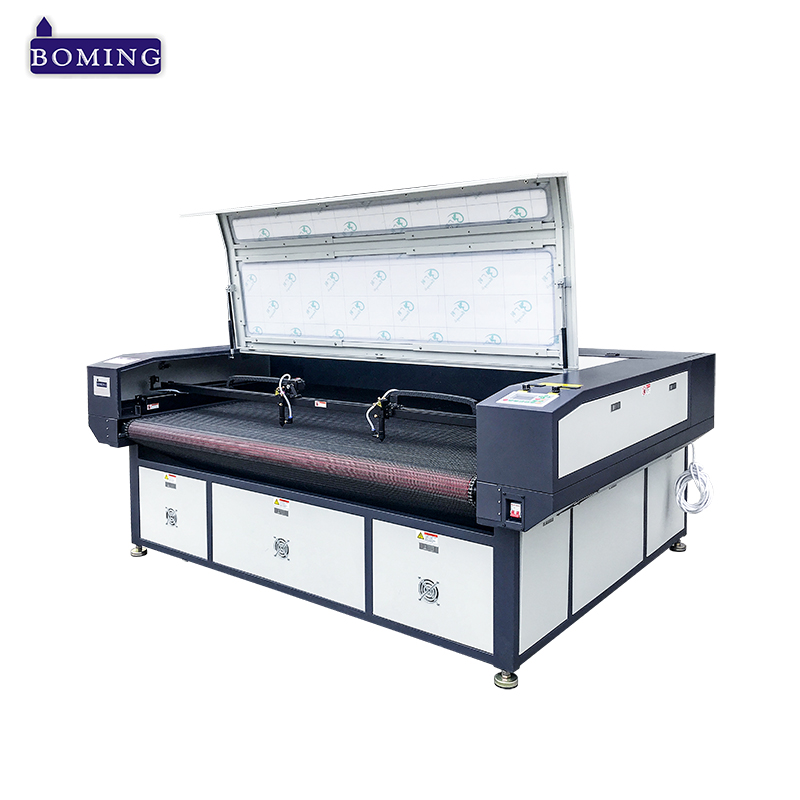

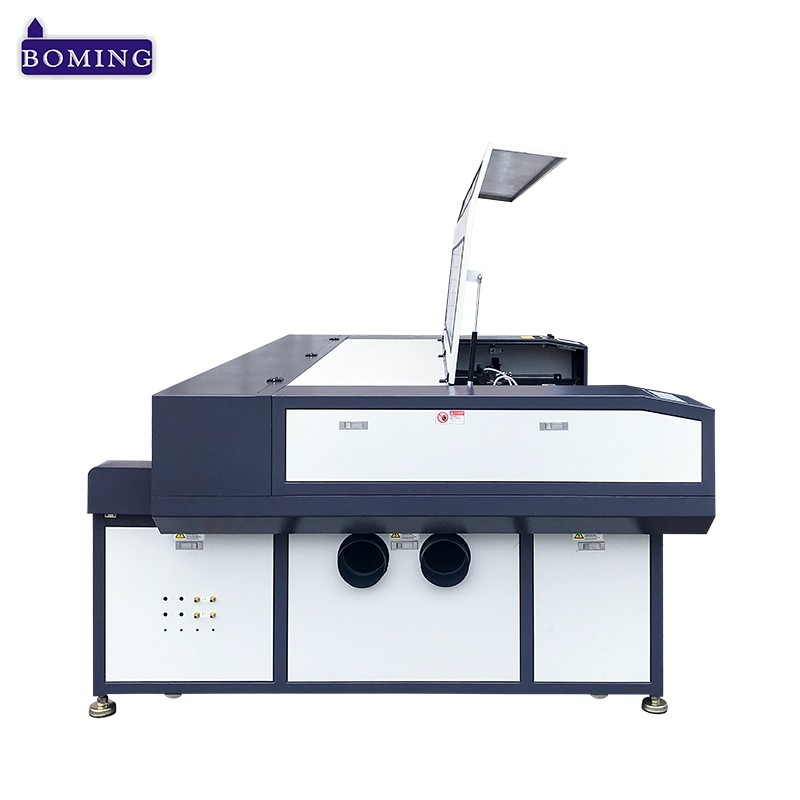

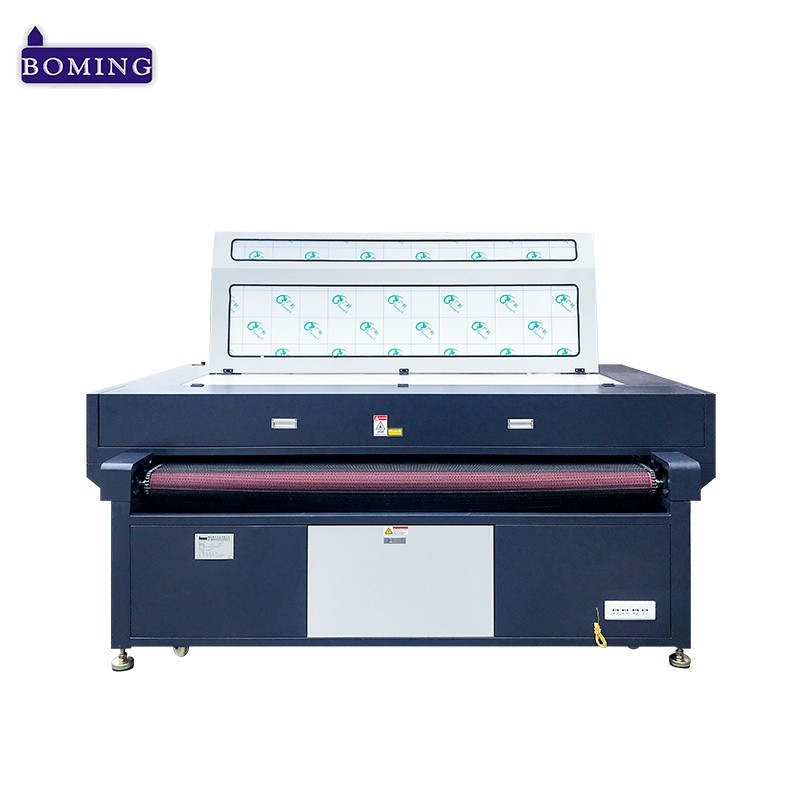

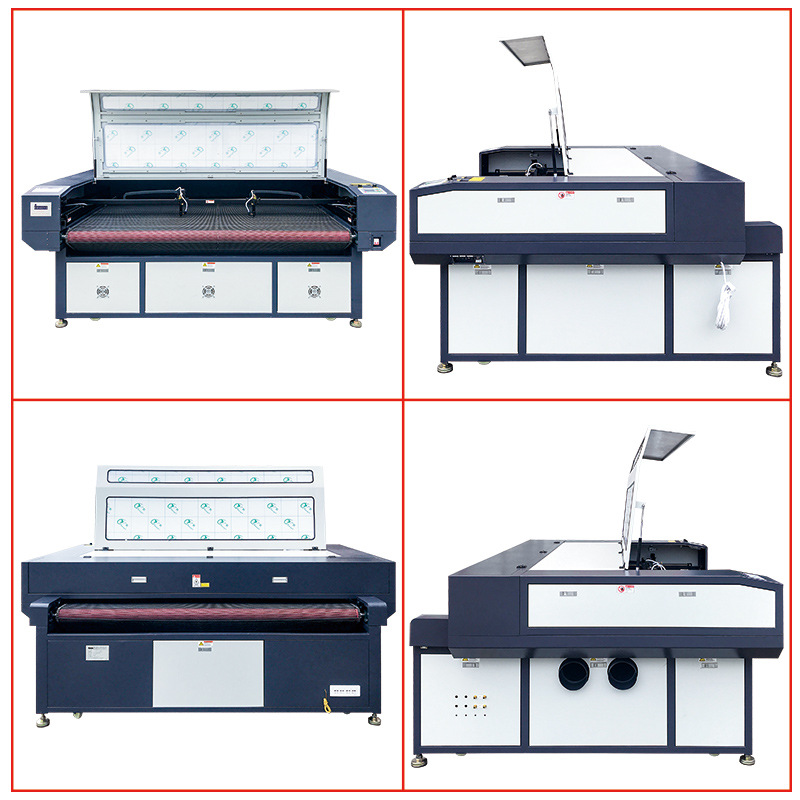

Machine pictures: of high speed automatic cloth laser cutting machine

carpet laser cutting machine

large size laser engraver

laser cutter cutting machine

laser cutting embroidery machine




Features: of co2 laser automatic feeding machine

1、It feeds the materials fully automatically, the worker can operate several machines at the same time.

2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve

more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine

3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.

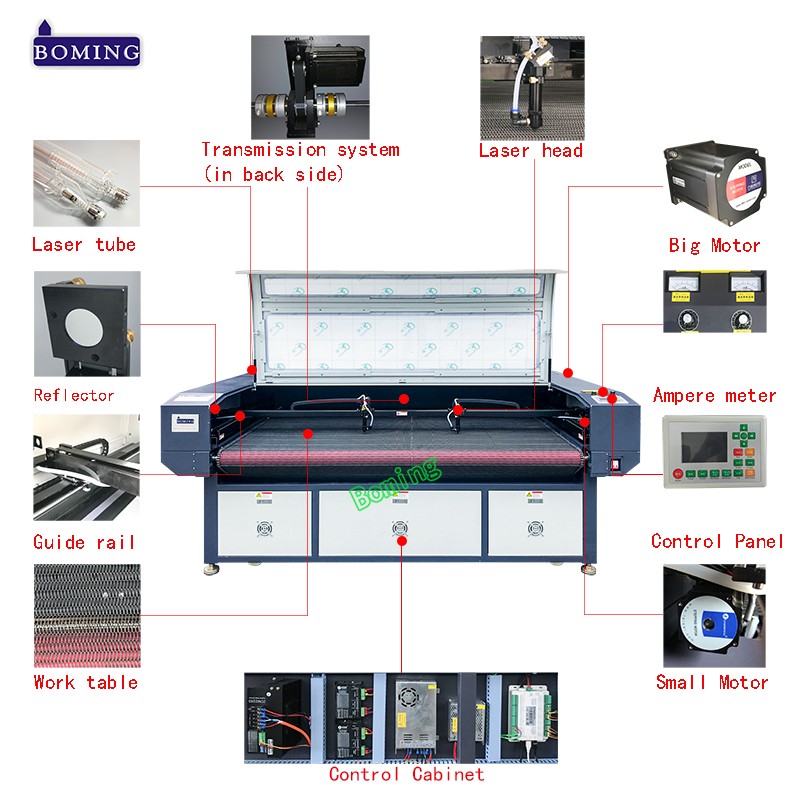

Configuration: of laser cutting machine auto feeding 1800 x 1000

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W laser tube.

4)Honeycomb plate/ Square bottom plate/blade strip plate

5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Optional: Automatic circulation cooling water tank.

11)Give freely compressed magnetic pump.

12)Give freely Boming copyrighted software 1set, free upgrade





Applicable Industries: of double head cutting machine laser

The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.




Applicable Materials: of clothes cutting machine laser

Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,

microfiber  PU,etc.




Technical Parameters:of apparel textile machinery laser cutting

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1300 1800*1400 2000*1000 2000*1200mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

automatic laser engraver



Our Payment:

1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.


2) 30% deposit, the70% balance should be paid clear before delivery.


3) The delivery day is 10-15 working days.


4) The MOQ is 1set.


Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

automatic feeding laser cutting system
