Double auto head autofeed laser cutter for textile

Double auto head autofeed laser cutter for textile is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional. One head, two head, four head and six head are optional.

  • Item NO.:

    FLG-1610 1810 1814
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Double auto head autofeed laser cutter for textile is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional.

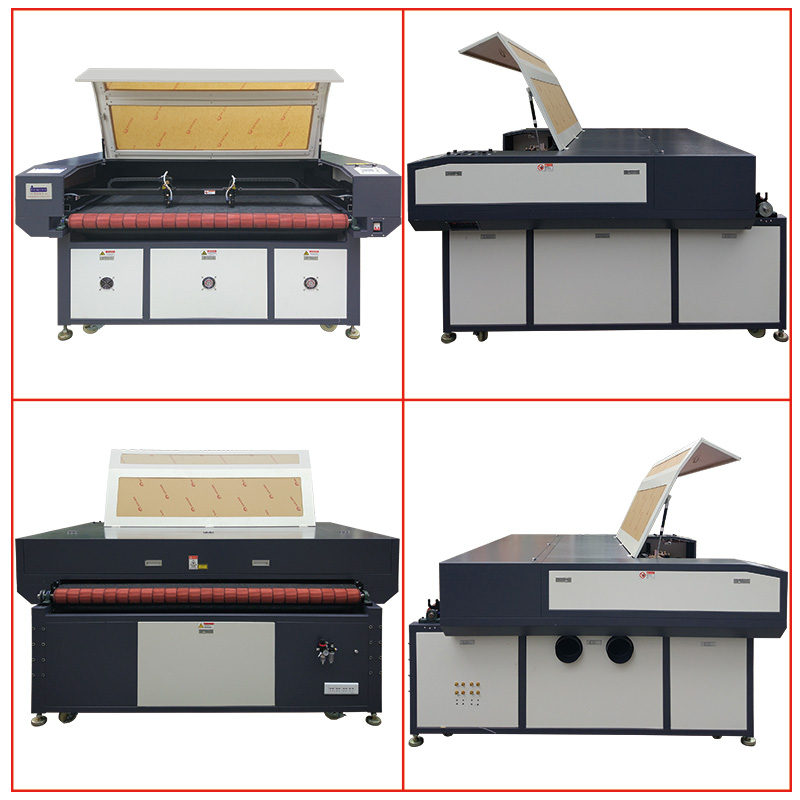

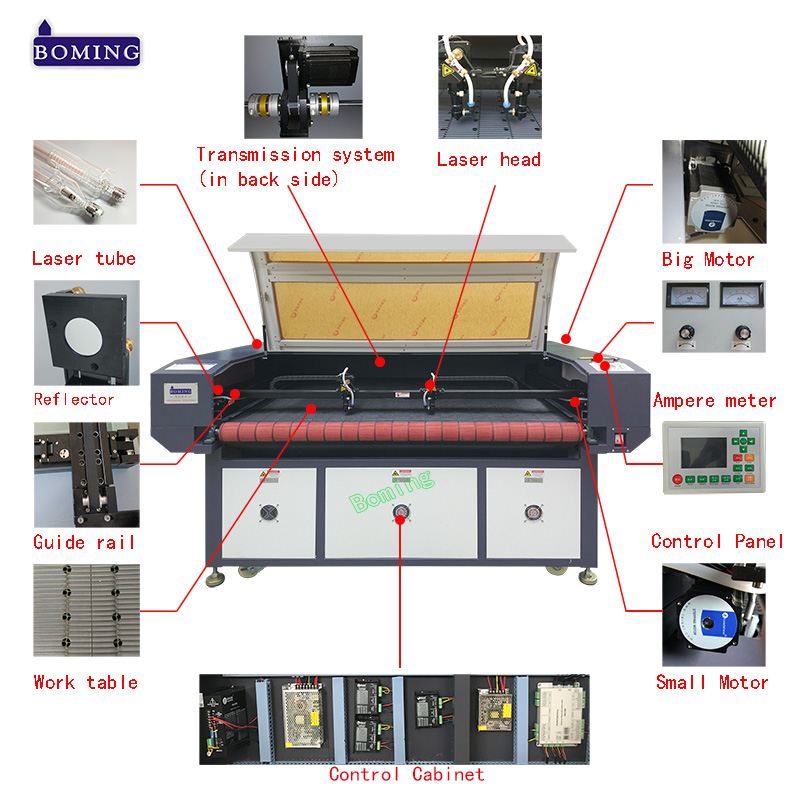

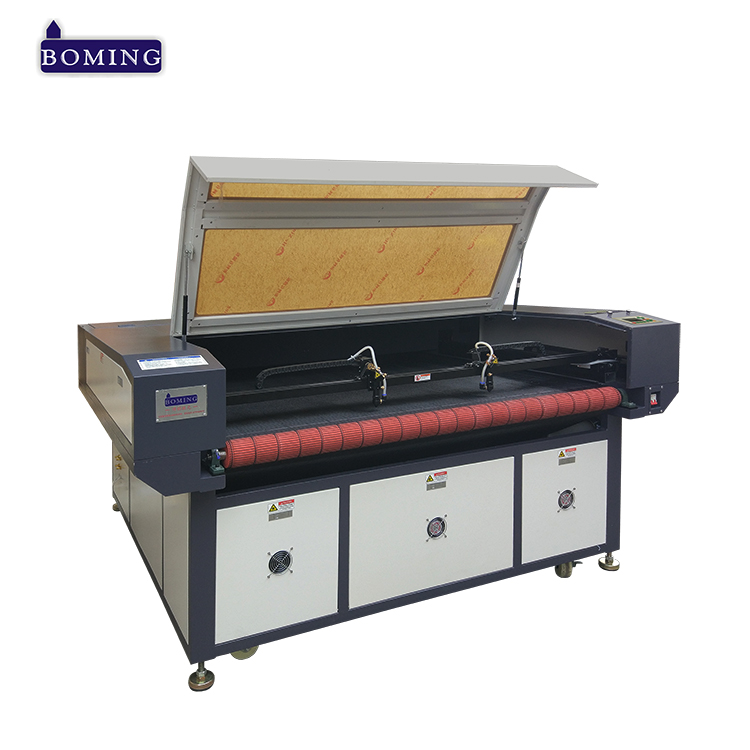

Machine pictures:

double head auto feed laser cutting machine

co2 laser cutting machine with auto feeding

double head auto laser cutter

dual head auto feed laser cutter




Features: of 4Double auto head autofeed laser cutter for textile

1、It feeds the materials fully automatically, the worker can operate several machines at the same time.

2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve

more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine

3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.



Advantage: of co2 fabric laser cutter machine

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries: of roll fabric laser cutting machine

The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.




Applicable Materials: of laser cutting machine for roll fabric

Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,

microfiber  PU,etc.




Technical Parameters:of textile laser cutting machine

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

automatic laser engraver



How to choose our machine:


The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:


1) What materials and size will you cut?


2) What laser capacity and working area size you need?


3) What industries are you in, shoe, clothes, handicraft or advertisement?


4) Your destination port, it is for checking shipping price.


5) Other relative information, please let me know.



Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

automatic feeding laser cutting system
