Auto focus Rotary Lifting platform laser engraving machine

Auto focus Rotary Lifting platform laser engraving machine is with up and down table, suitable for cutting and engraving non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、rubber、stone、granite、gemstone、handcraft、etc. One head、two head、four head and six head are optional.Rotary device is optional.

  • Item NO.:

    FLG-9060 1390 1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


Auto focus Rotary Lifting platform laser engraving machine is with up and down working table, suitable for cutting and engraving thick materials. Different size of working table is optional. Differenct number of laser head can be chosen.

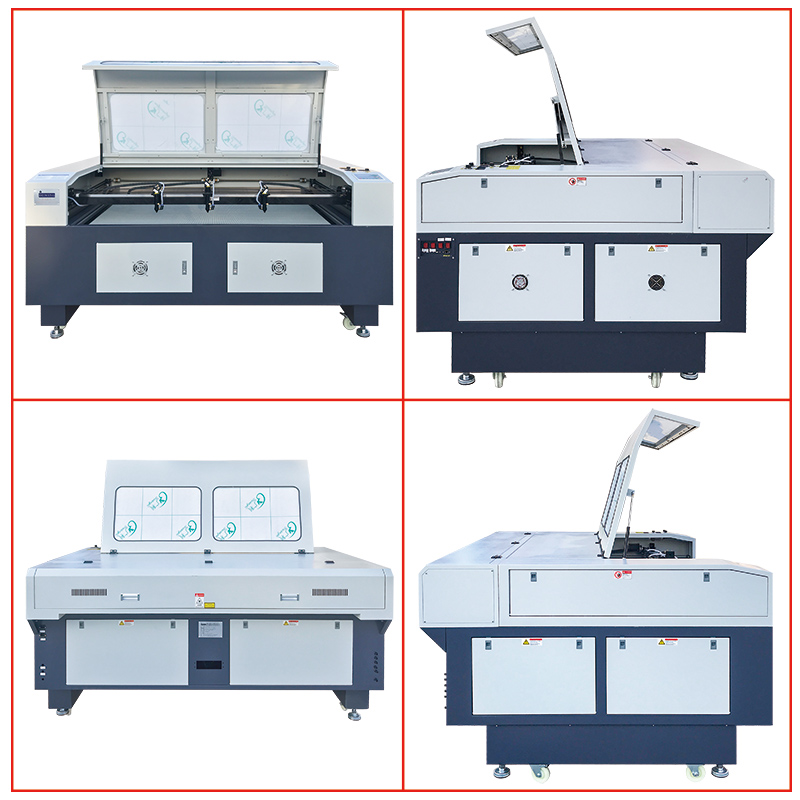

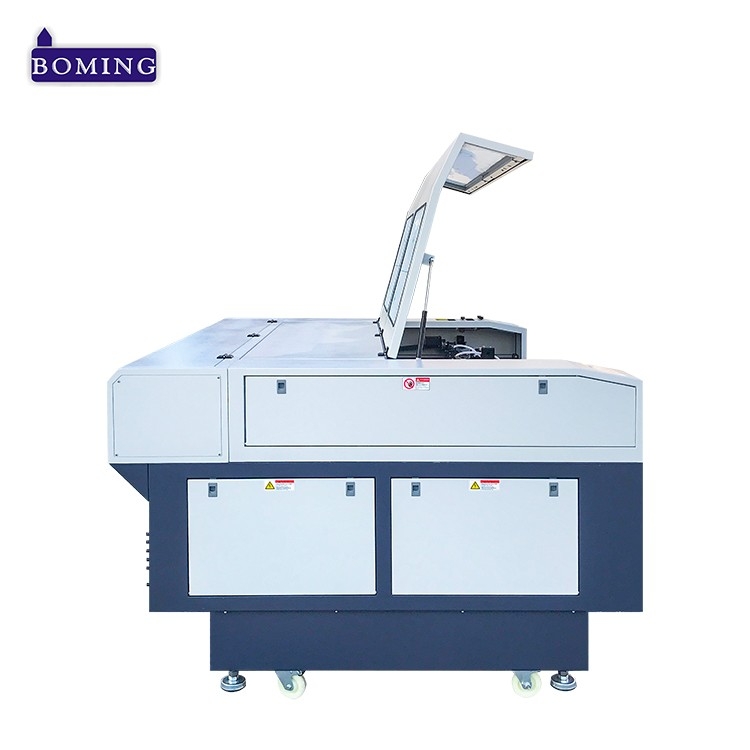

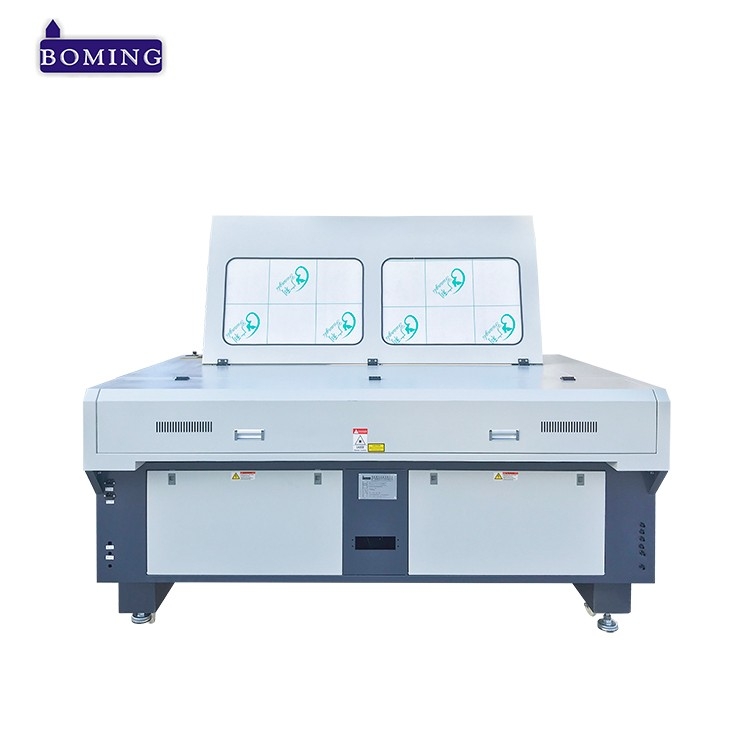

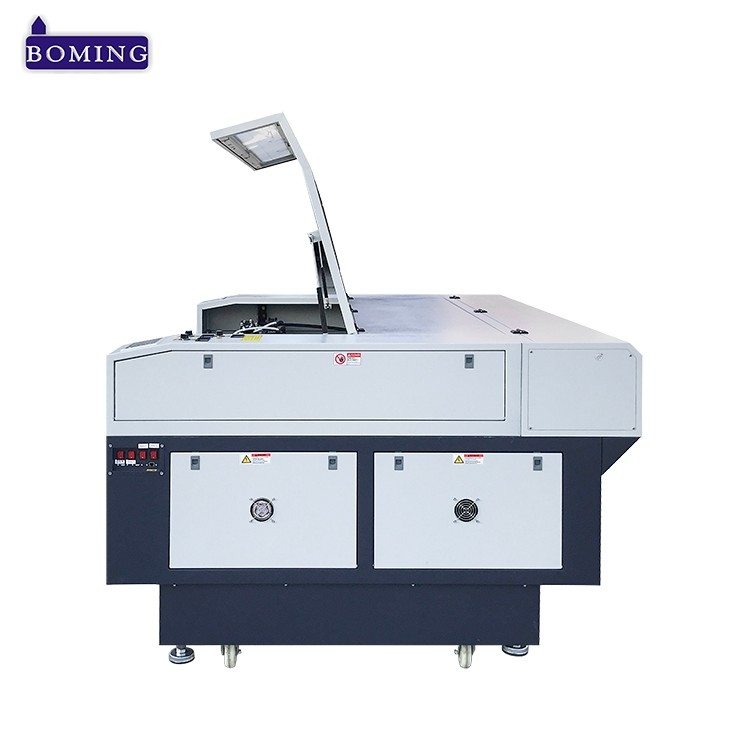

Machine Pictures:

laser engraving ruida with rotary device

laser co2 engraver rotary

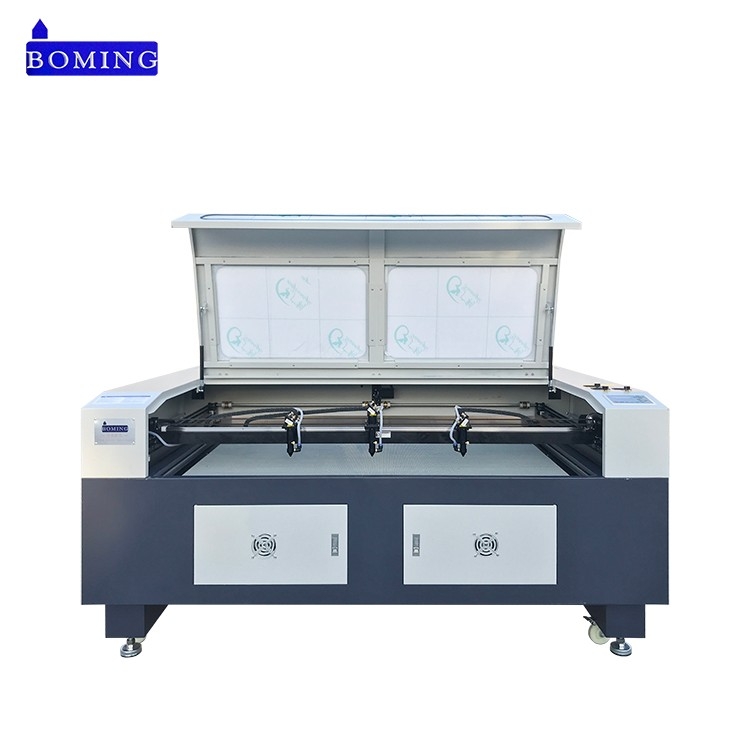

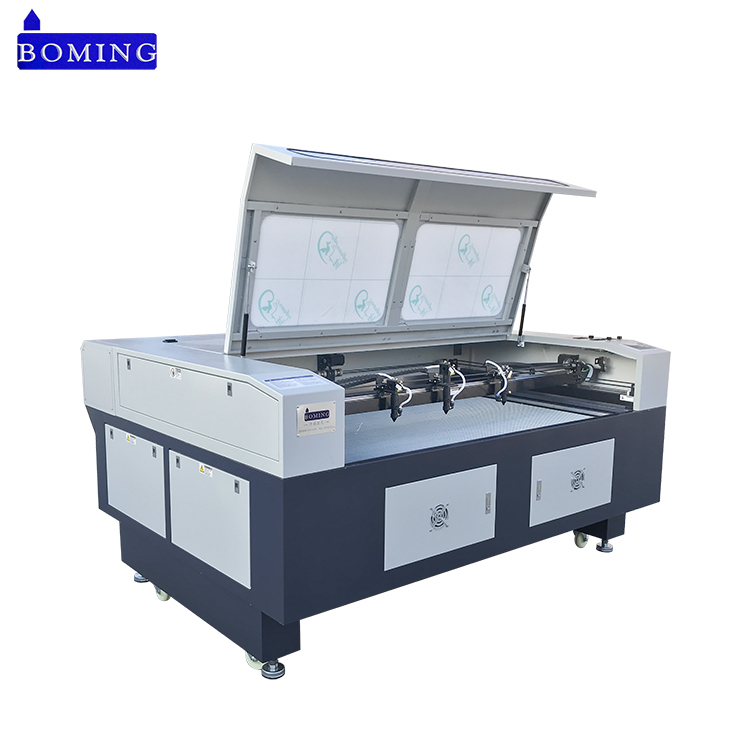

3 head laser engraving machine

3 head laser engraver




Features:of Auto focus Rotary Lifting platform laser engraving machine

1、The design of lifting platform meets the requirement of processing thick materials.

2、The straight-through type design of front side and back side is suitable for processing  long materials.

3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.

4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.

5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.




Software advantages: of Auto focus Laser engraving Machine

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.





Applicable Industries:of Lift Platform Laser engraving Machine

Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.




Applicable Materials: of co2 laser engraving machine

Acrylic, wooden planks, bamboo products, color plates, fabrics,paper leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber,stone, ceramics,gemstone,granite, and other nonmetal materials.




Technical Parameters:of Laser Engraving Machines

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Lift range

<200mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

arts and crafts gifts laser engraving

wood laser engraving machine



Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.





Using Attention:

1) Open the industrial chiller and add pure water before the machine starts running.


2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.


3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.


4) The machine must be kept flat to avoid tilting.


5) When the machine working, it must be with personnel, avoid fire.





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

co2 laser engraver
