9060 Laser engraving machine with up and down table

9060 Laser engraving machine with up and down table is with up and down table, suitable for cutting and engraving non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、rubber、stone、granite、gemstone、handcraft、etc. One head、two head、four head and six head are optional. Rotary device is optional.

  • Item NO.:

    FLG-6040 9060 1390
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


9060 Laser engraving machine with up and down table is with up and down working table, suitable for cutting and engraving thick materials. Different size of working table is optional. Differenct number of laser head can be chosen.

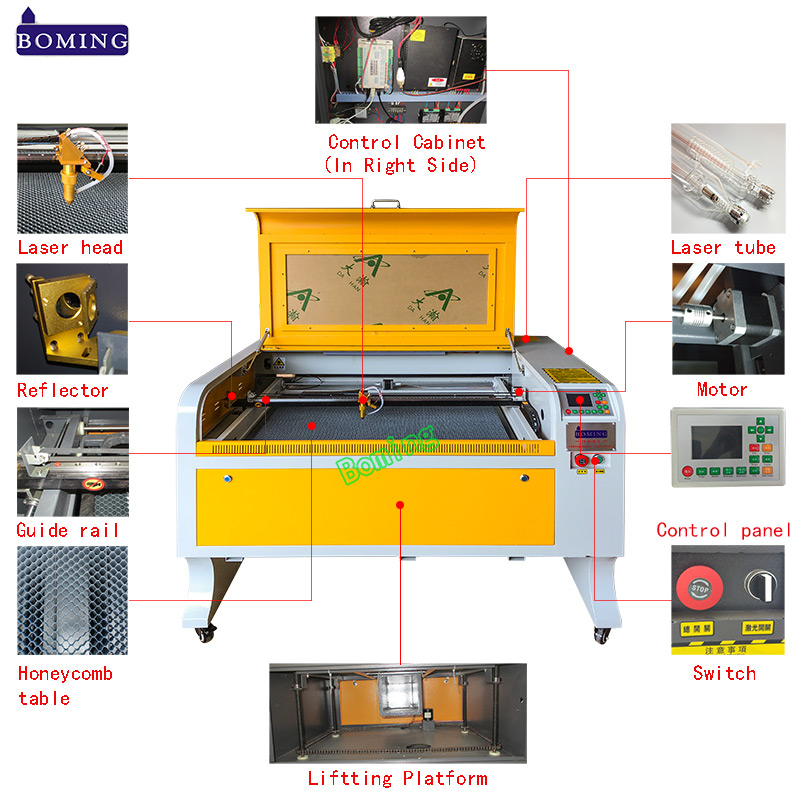

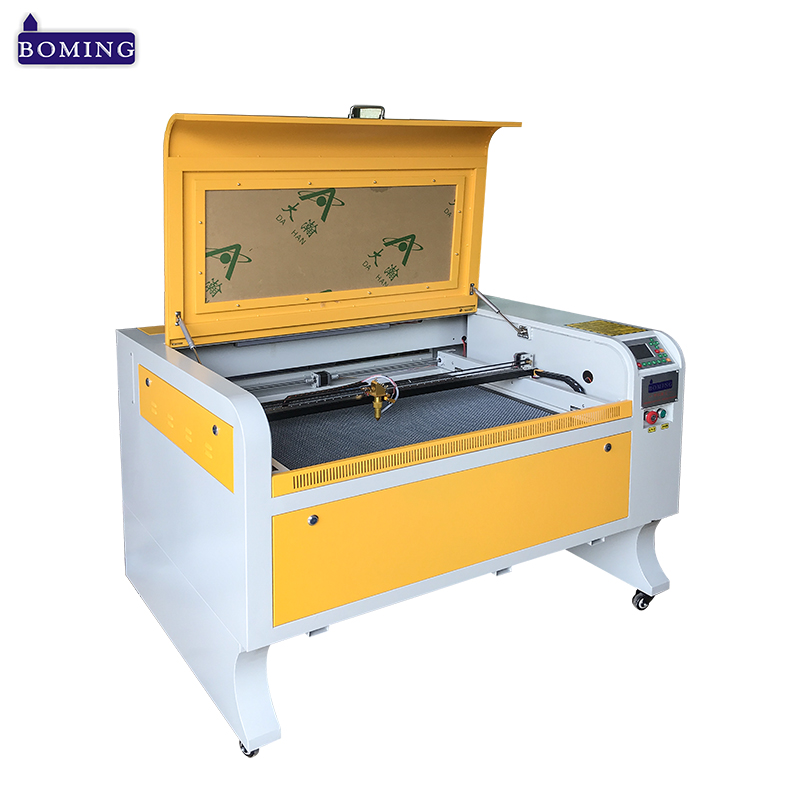

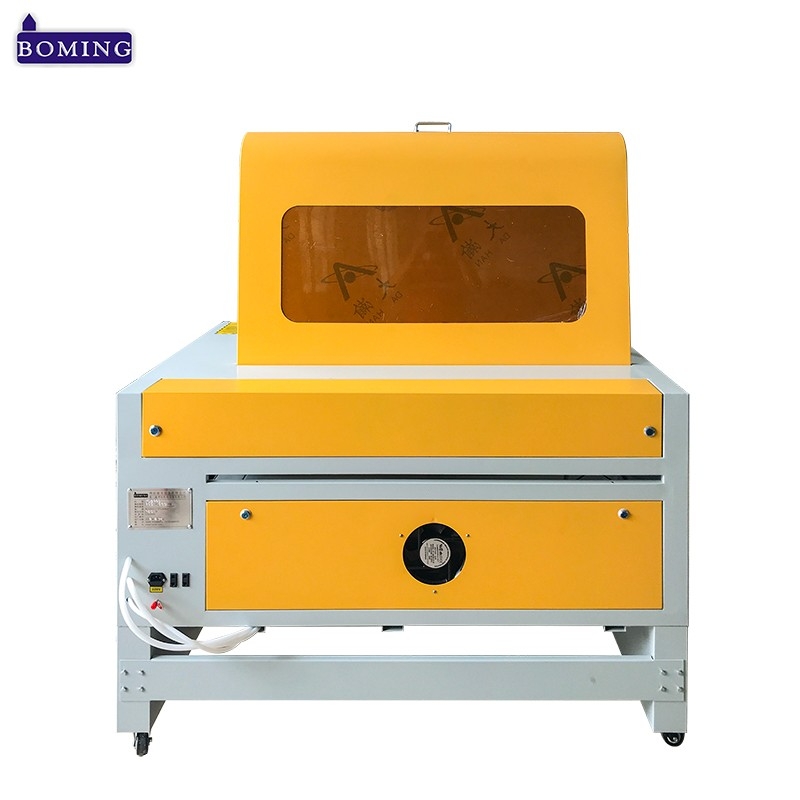

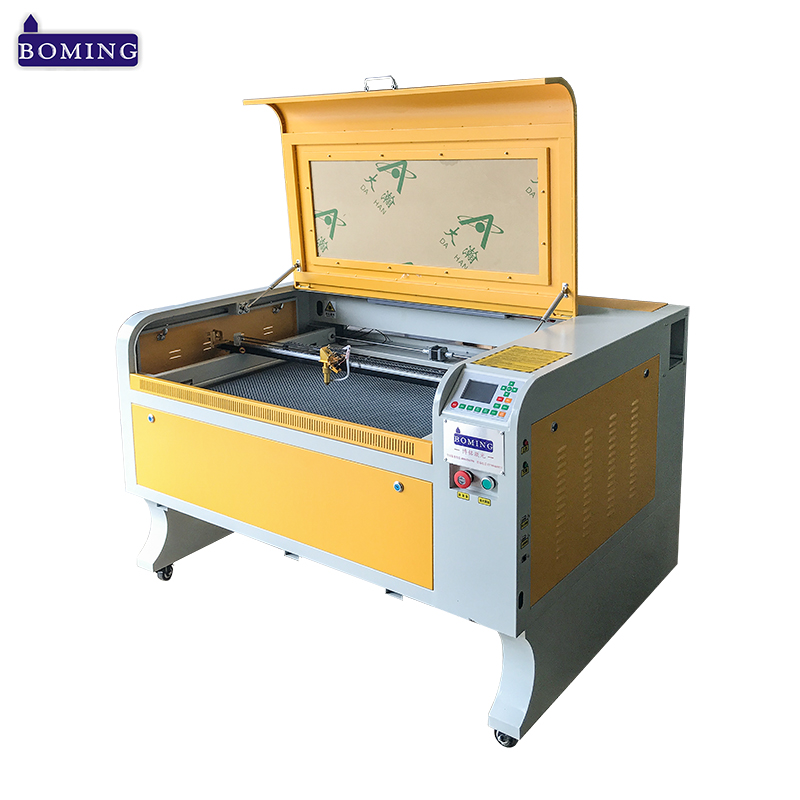

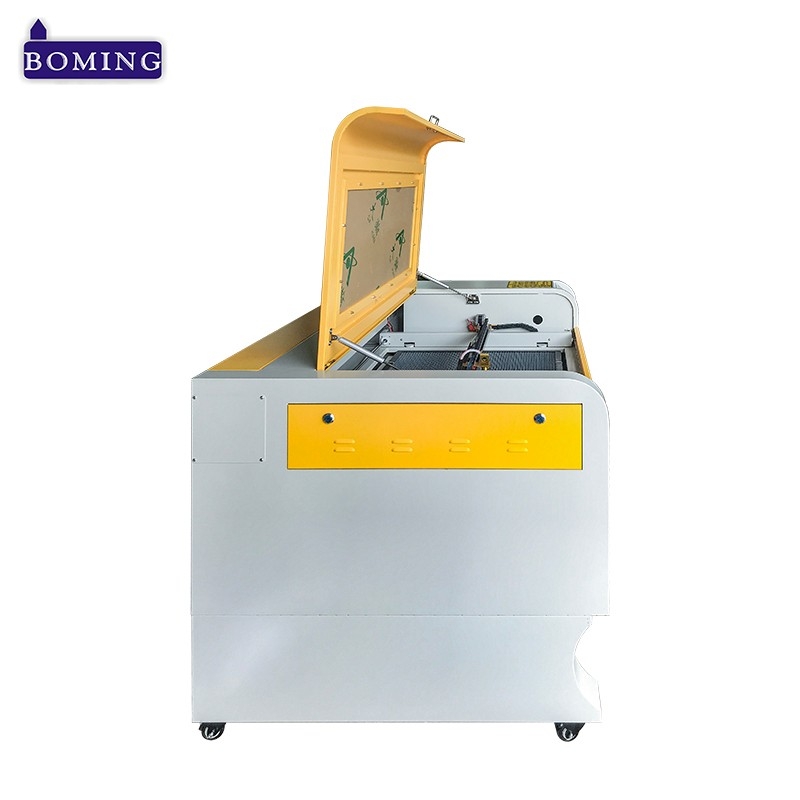

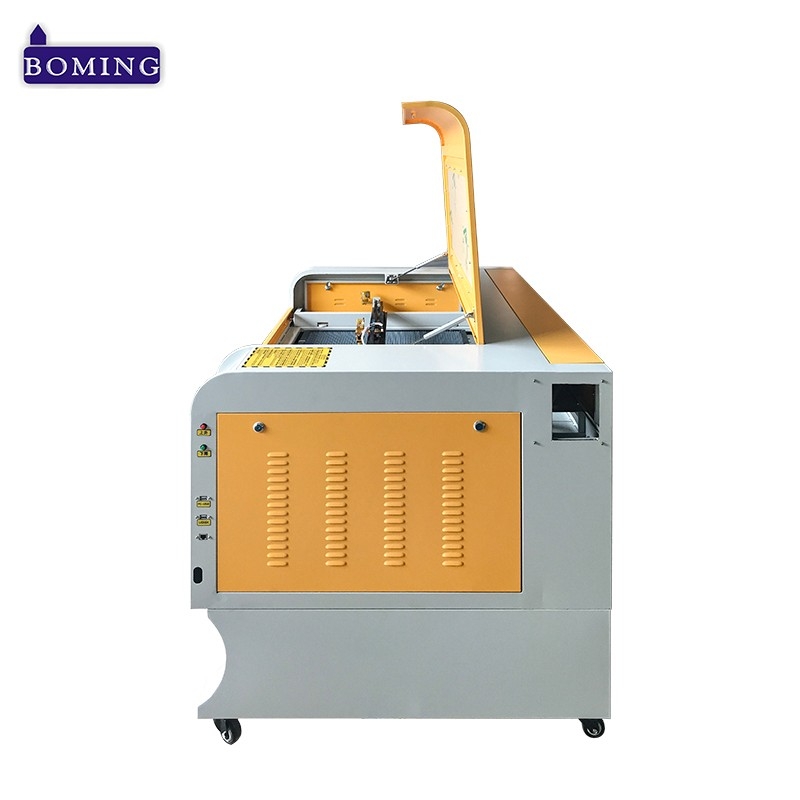

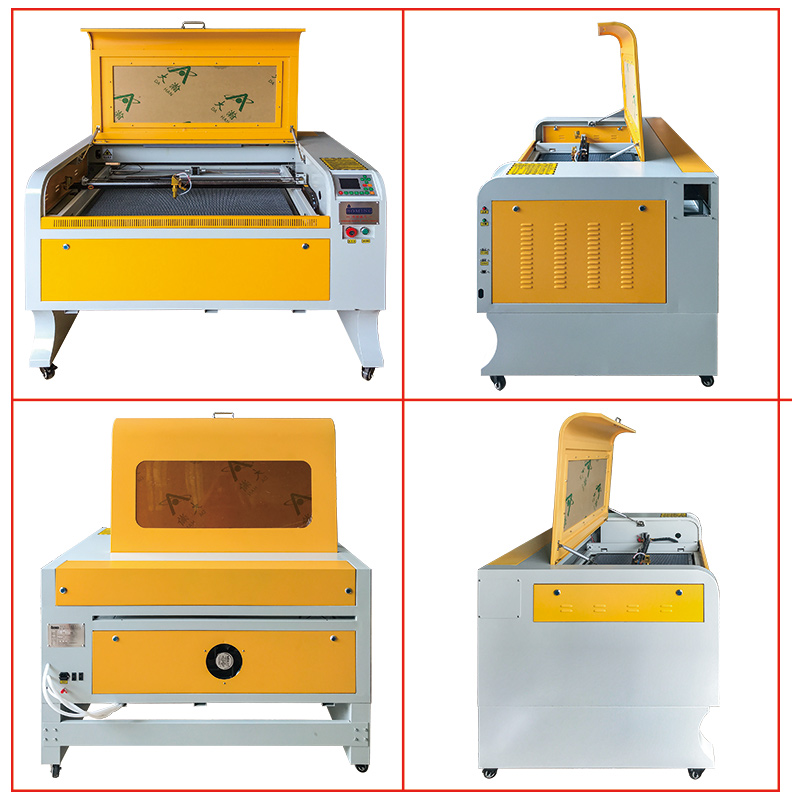

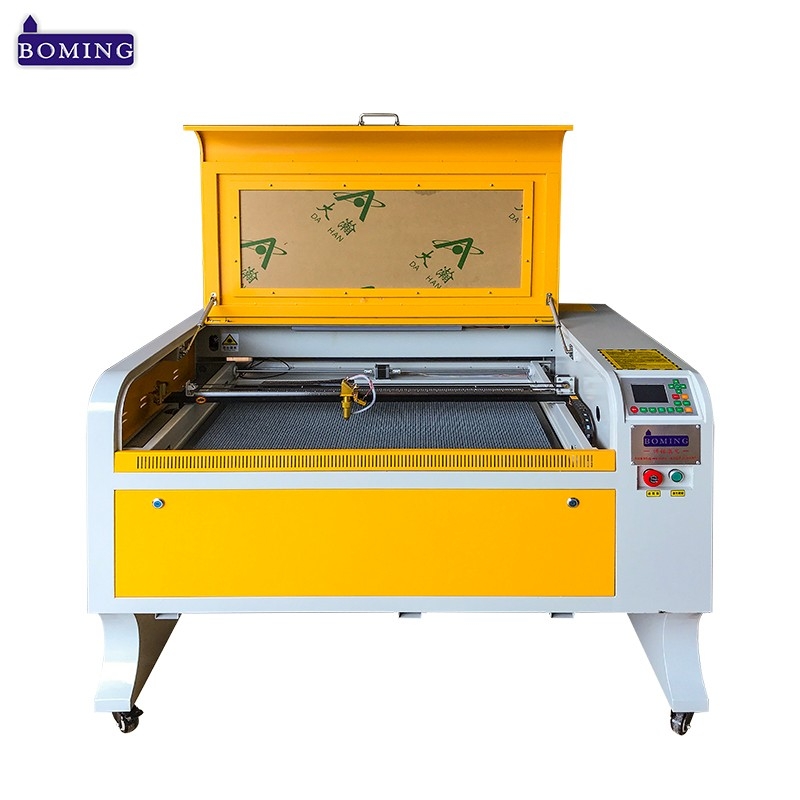

Machine pictures:

laser engraver

3d engraving laser machine

up and down laser engraver

9060 laser engraver




Features:of 9060 laser engraving machine with up and down table

1、The design of lifting platform meets the requirement of processing thick materials.

2、The straight-through type design of front side and back side is suitable for processing  long materials.

3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.

4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.

5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.




Advantage: of Laser Engraving Machine with up and down table

1. High precision, High stability, Fast speed
2. Low consumption
3.Strong and durable frame, Long life
4.Imported guide rail and transmission belt
5.Imported reflector and focus lens
6.Stepping motor and driving system
7.Advanced copyrighted software
8.Excellent cooling system
9. LED realtime display
10.DSP intelligent main board




Applicable Industries:of Rotary laser engraving machine

Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.




Applicable Materials: of laser engraving machine with lifting platform

Acrylic, wooden planks, bamboo products, color plates, fabrics,paper leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber,stone, ceramics,gemstone,granite, and other nonmetal materials.




Technical Parameters:of Laser Engraving Machines

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Lift range

<200mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

3d laser engraving machine

mini laser engraving machine



Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.


5. Machines sold to Southeast Asia, South Asia, South America......





Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.




Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

cnc laser engraving machine
