1280 ccd camera co2 laser engraver machine is with up and down table, suitable for cutting and engraving non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、rubber、stone、granite、gemstone、handcraft、etc. One head、two head、four head and six head are optional.Rotary device is optional. Auto focus is optional. It it with ccd camera, is suitable for engraving and cutting pattern.
Item NO.:
FLG-1280 1390 1680Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time:
10-15 days
1280 ccd camera co2 laser engraver machine is with up and down working table, suitable for cutting and engraving different materials, also can use in cutting printed pattern. Different size of working table is optional. Differenct number of laser head can be chosen. The up and down table can be lifted sapce about 200mm from up to down.

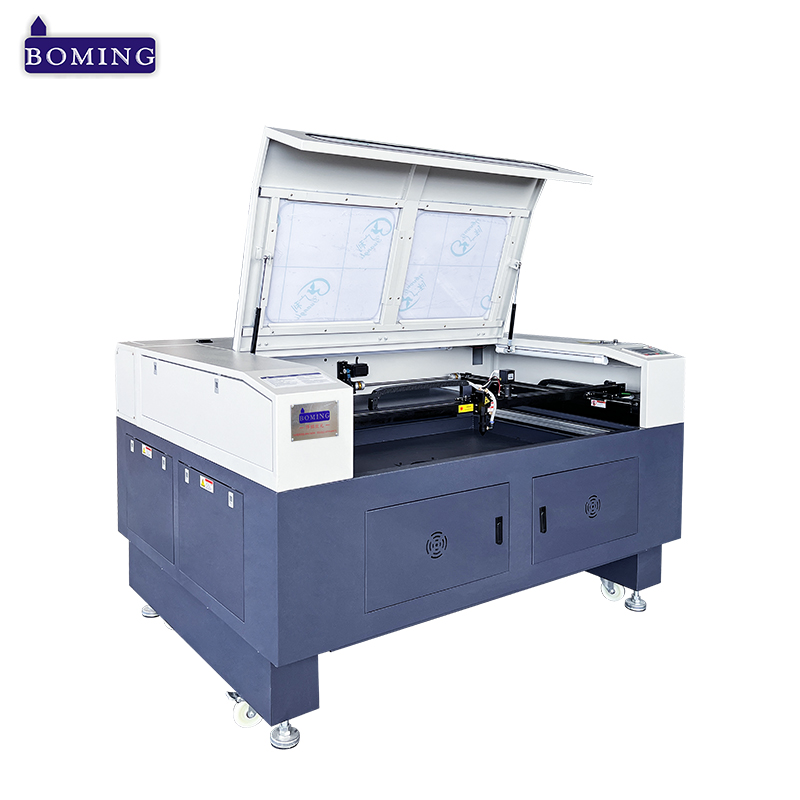

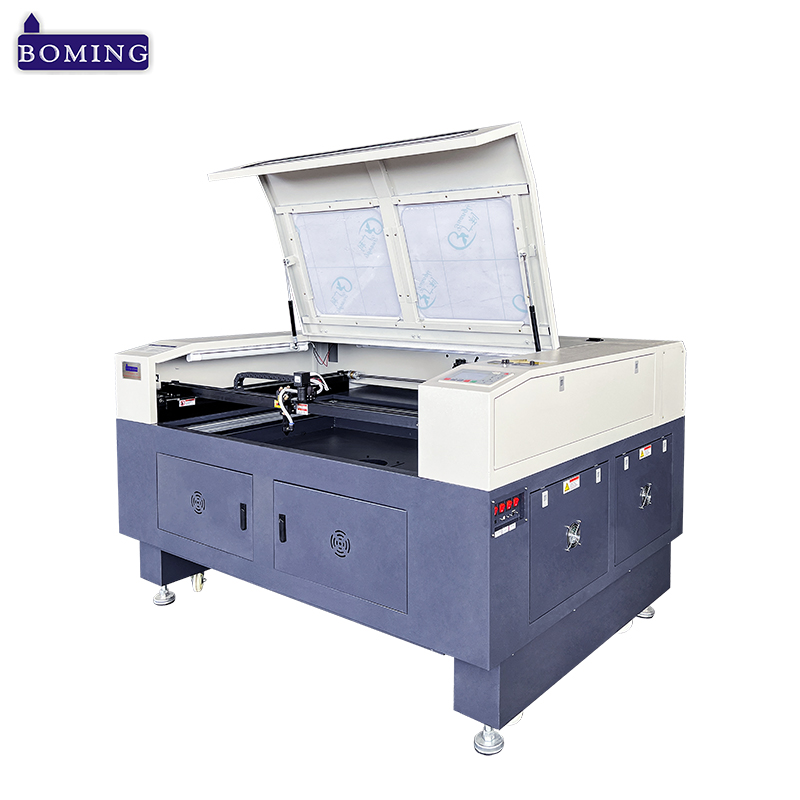

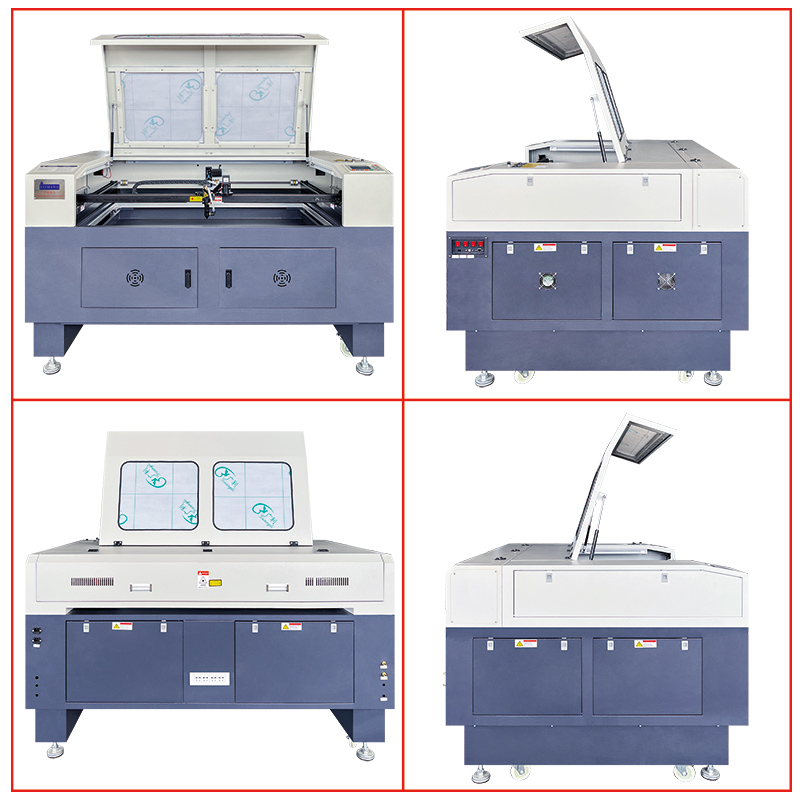

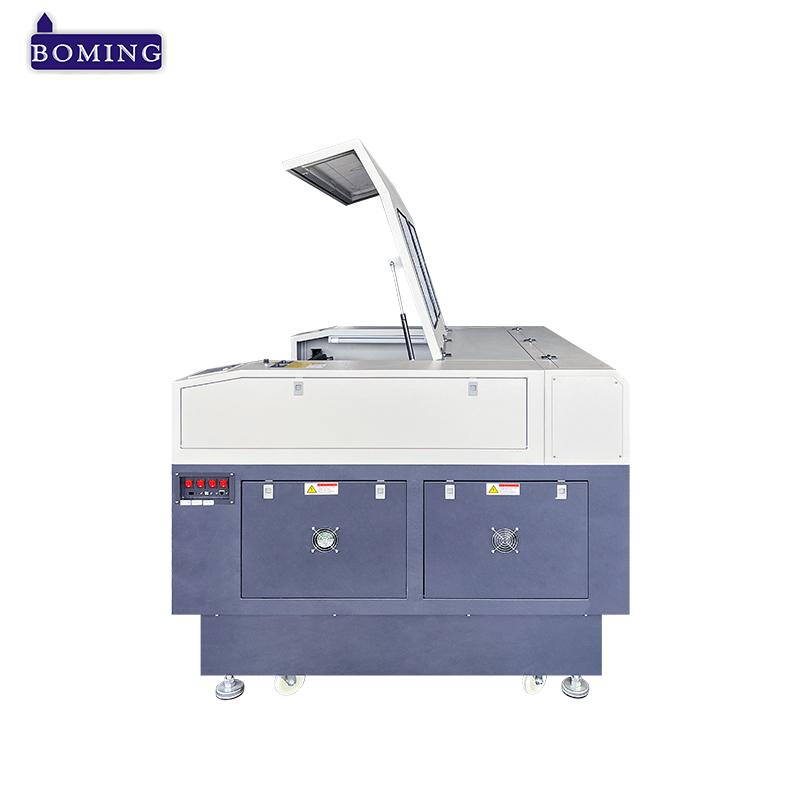

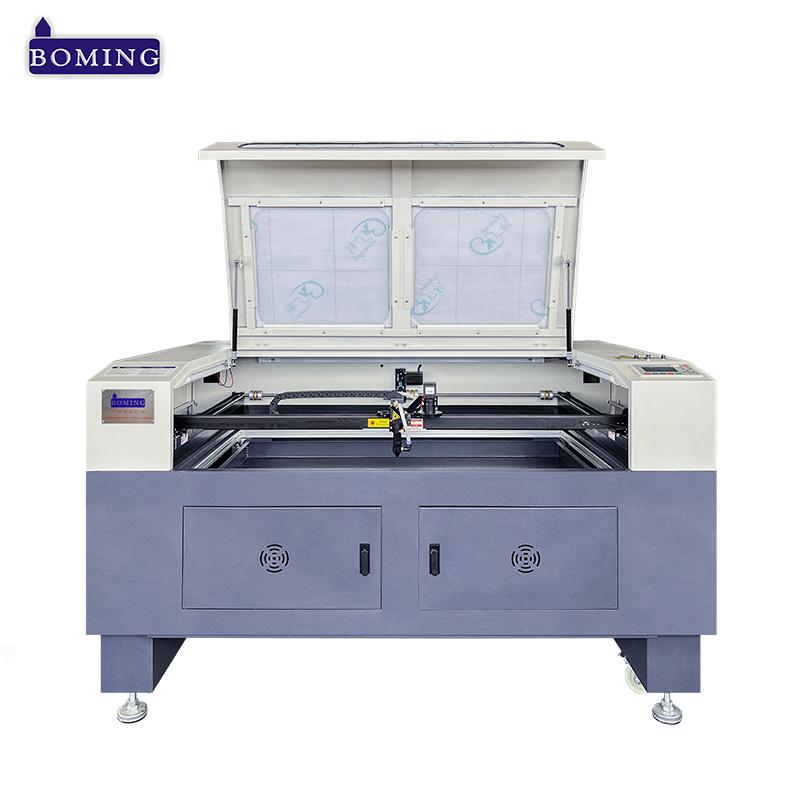

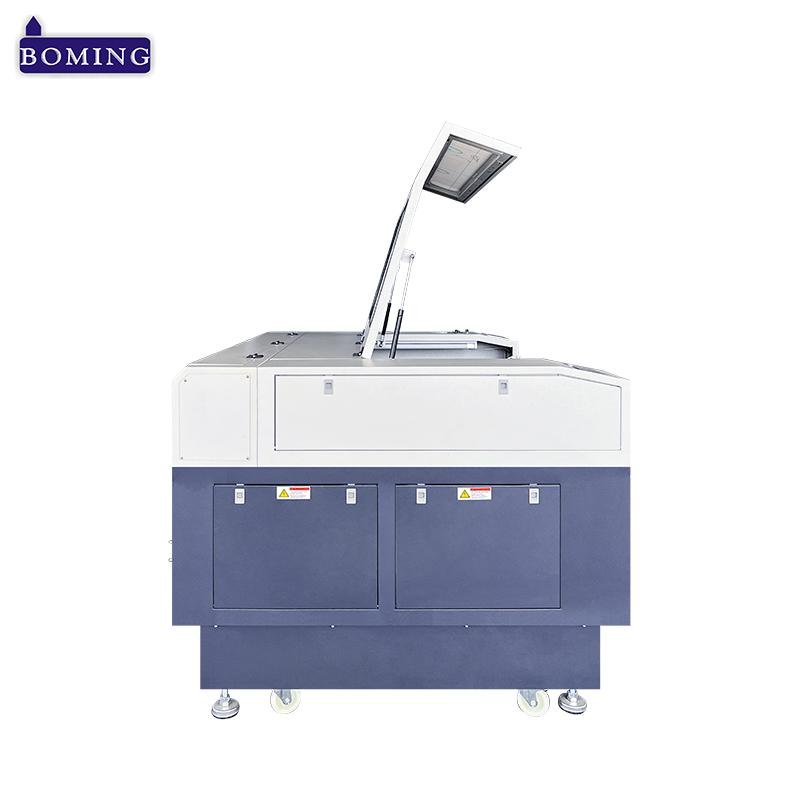

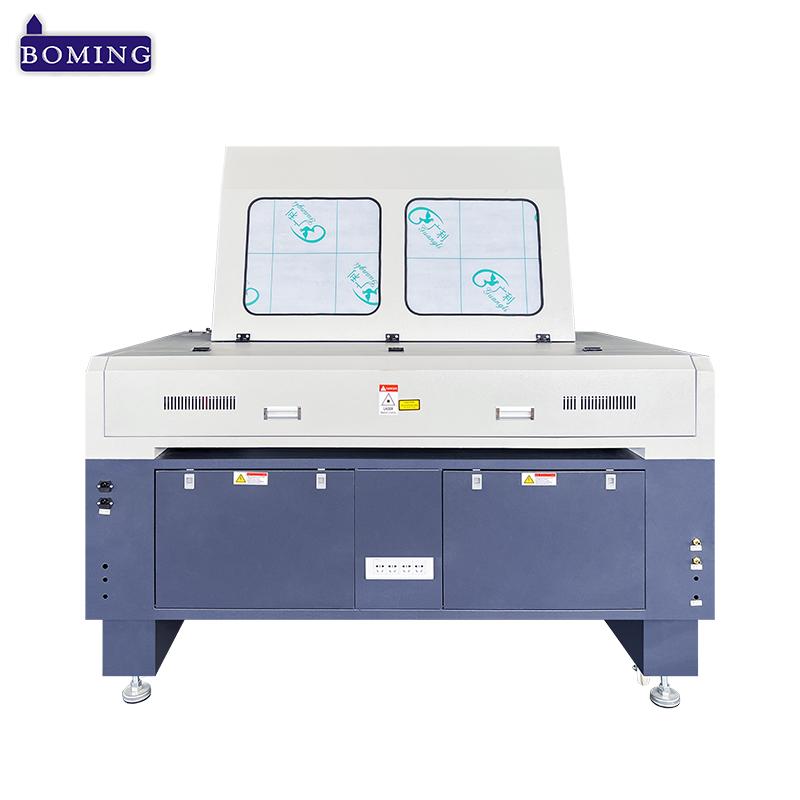

Machine Pictures: of laser engraving machine with rotary tablemoss
Features:of laser engraver with rotary
1、The design of lifting platform meets the requirement of processing thick materials.
2、The straight-through type design of front side and back side is suitable for processing long materials.
3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.
4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.
5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.

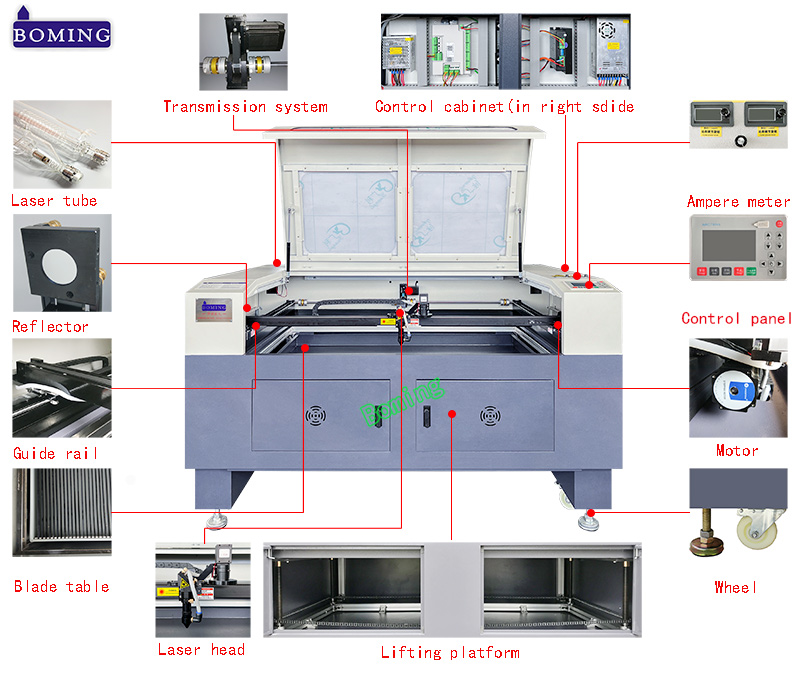

Configuration: of rotary co2 laser 4060 engraving machine
1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3)Optional: 60-80-100-130-150W-180W laser tube.
4)Honeycomb plate/ Square bottom plate/blade strip plate
5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure
6)Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7)Imported type original transmission belt(Tank chain).
8)Centrifugal fan.
9)Three protection function: safety protection, filter protection, water protection.
10)Optional: Automatic circulation cooling water tank.
11)Give freely compressed magnetic pump.
12)Give freely Boming copyrighted software 1set, free upgrade
Applicable Industries:of wood laser engraving machine 1290
Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.
Applicable Materials: of tombstone laser engraving machine
Acrylic, wooden planks, bamboo products, color plates, fabrics,paper leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber,stone, ceramics, gemstone, granite, and other nonmetal materials.
Technical Parameters:of stone laser engraving machine for sale
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm |
Positional Accuracy | ±0.05mm |
Lift range | <200mm |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a certificate?
A: For every model of machine, it has a CE, FCC, FDA, ROHS certificate.
Q:This is the first time I use this kind of machine, is it easy to operate?
A: We will equip English manual or video that show you how to operate machine. The engineer is available for overseas service.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
