9060 rexine EVA foam laser cutter machine is with blade/honeycomb table, suitable for cutting non metal materials, such as EVA、PU、PVC、garment、foam、acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth，etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood、acrylic, etc.. One head、two head、four head、five head and six head are optional. Different woking area is optional.
Item NO.:
FLG-9060 1290 1480Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
9060 rexine EVA foam laser cutter machine is universal laesr cutter. It has various of configuration which can be chosen. The laser capacity has 60w, 80w, 100w, 150w, 180, 300, 450w, 600w, etc. The laser head can be 1 head, 2 head, 3 head, 4 head, 5 head and 6 head. The working area is from 6040, 9060, 1280, 1390, 1480, 1590, 1680, 1610, 1810, etc. It is suitable for cutting and engraving different materials, such as wood, paper, leather, cloth, stone, rubber,plywood, marble, acylic, fabric, garment, etc.

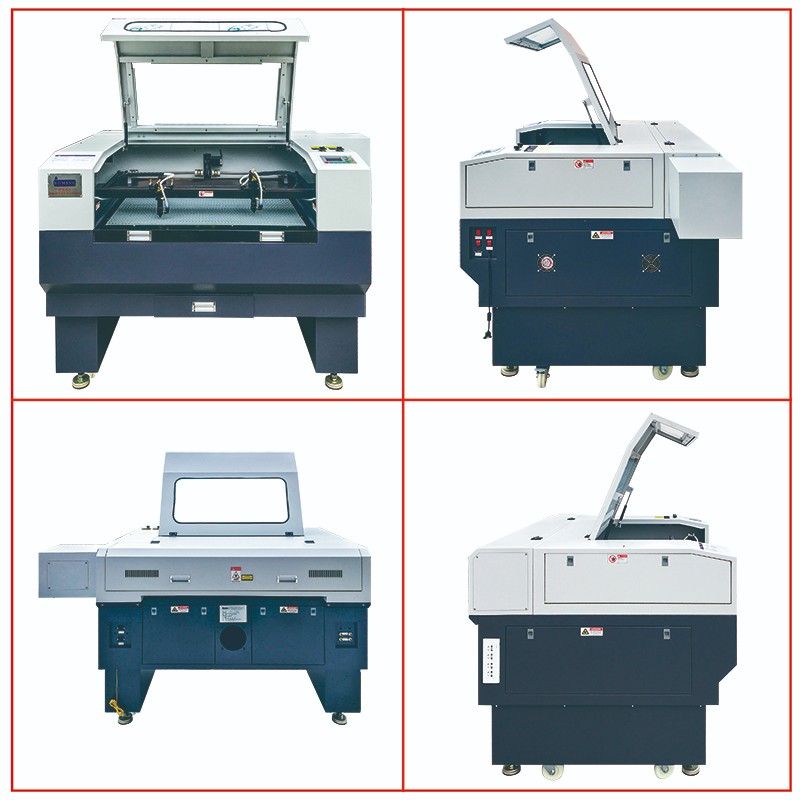

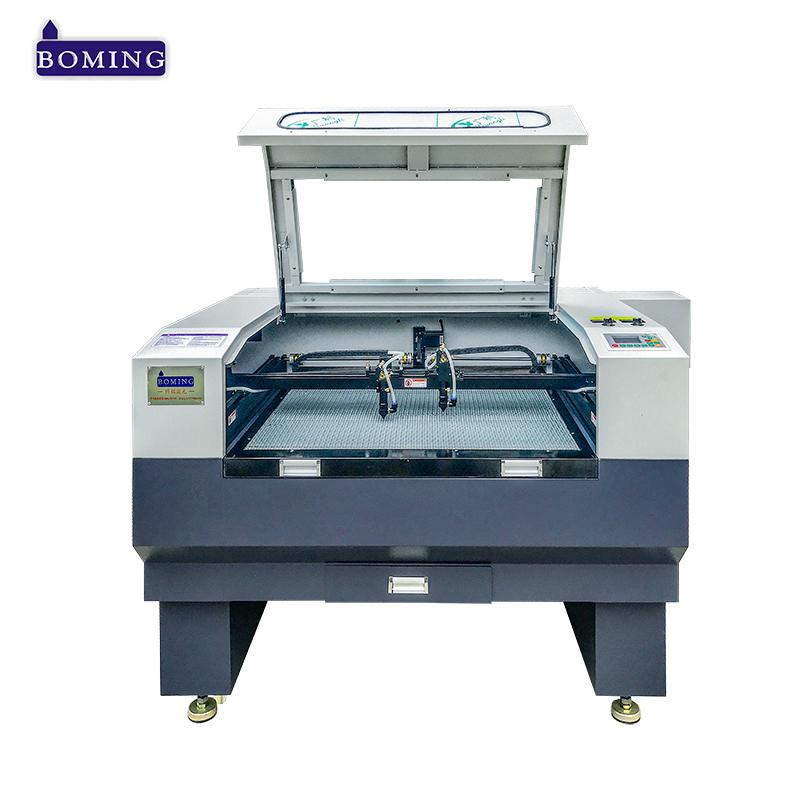

Machine picture: of 75w laser cutting machine
Features:of 6040 laser engraving and cutting machine
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.

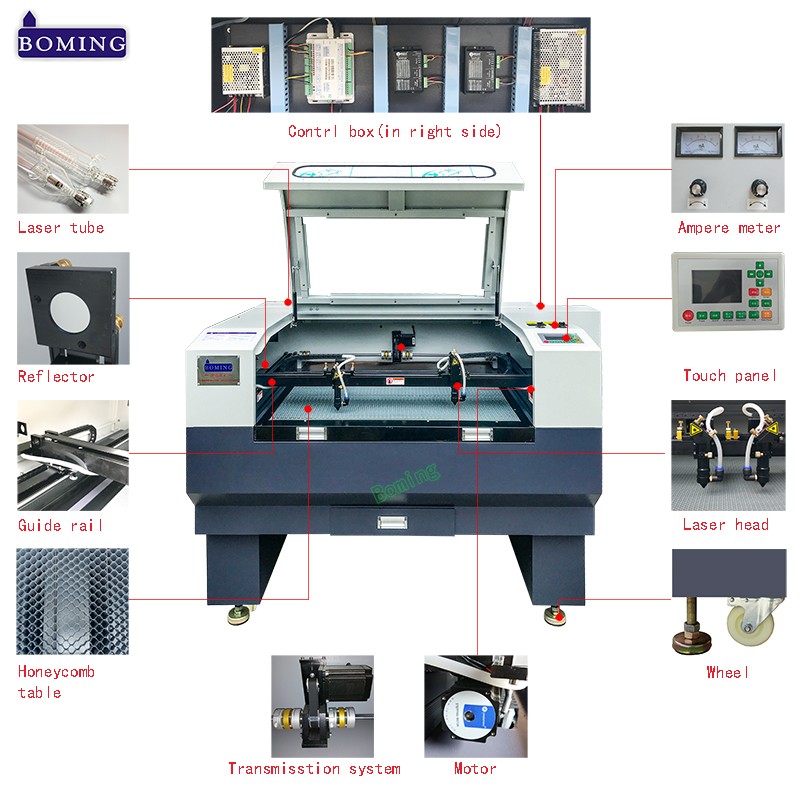

Configuration:
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W laser tube.
4）Honeycomb plate/ Square bottom plate/blade strip plate
5）Outward sliding guide rail, inward sliding guide rail, integrated frame structure
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Optional: Automatic circulation cooling water tank.
11）Give freely compressed magnetic pump.
12）Give freely Boming copyrighted software 1set, free upgrade
Applicable Industries:of small laser leather engraver
Garment, shoes, bags, compute rized embroidery and clipping.model cutting, electronics ,toys, furniture, advertisement decorations, handicraft,packing, printing and other industries.
Applicable Materials: of plywood laser cutting machine
Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.
Technical Parameters:of co2 laser cutting machine
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm |
Positional Accuracy | ±0.05mm |
Working table | Blade/honeycomb/Square |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Using Attention:
1) Open the industrial chiller and add pure water before the machine starts running.
2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.
3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.
4) The machine must be kept flat to avoid tilting.
5) When the machine working, it must be with personnel, avoid fire.
Why choose us:
13 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Packing:
