9060 Lead screw laser cut machine for Electronics

9060 Lead screw laser cut machine for Electronics is with blade/honeycomb table, suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth,etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional. It is with Lead screw, it can do precision cutting. Suit able for high requirement of high precision.

  • Item NO.:

    FLG-1610 1810 2010
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


9060 Lead screw laser cut machine for Electronics is universal laesr cutter. It has various of configuration which can be chosen. The laser capacity has 60w, 80w, 100w, 150w, 180, 300, 450w, 600w, etc. The laser head can be 1 head, 2 head, 3 head, 4 head, 5 head and 6 head. The working area is from 6040, 9060, 1280, 1390, 1480, 1590, 1680, 1610, 1810, etc. The Lead screw guide rail can guarantee the precision of cutting, suitable for the precision cutting requirement.

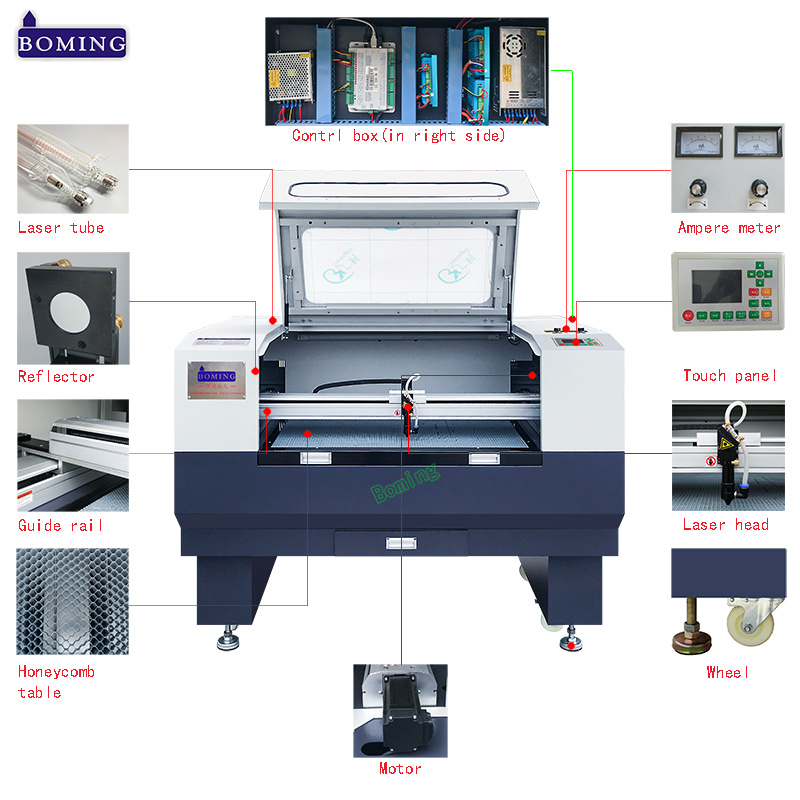

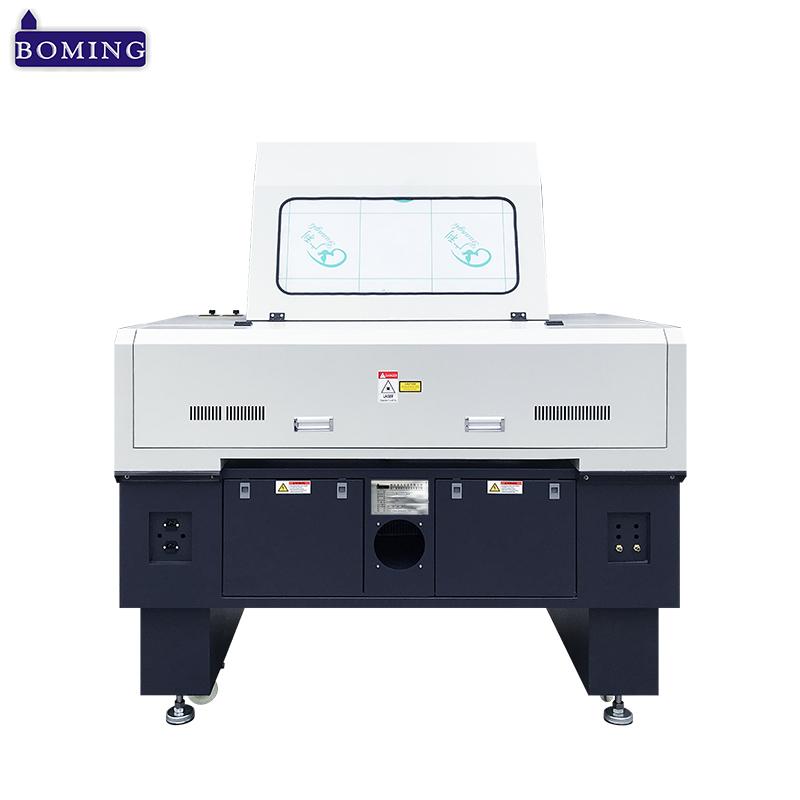

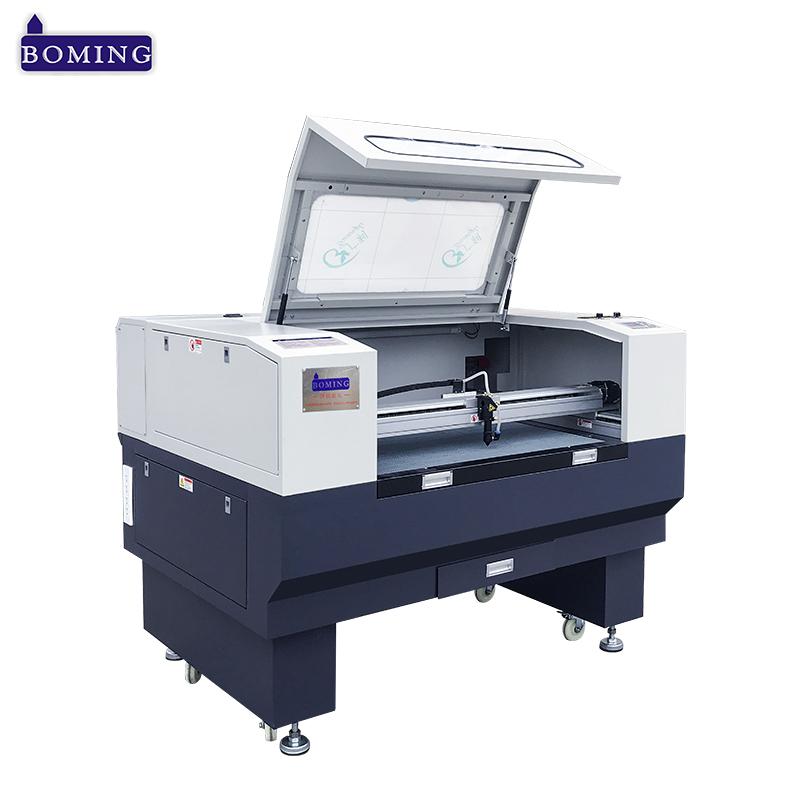

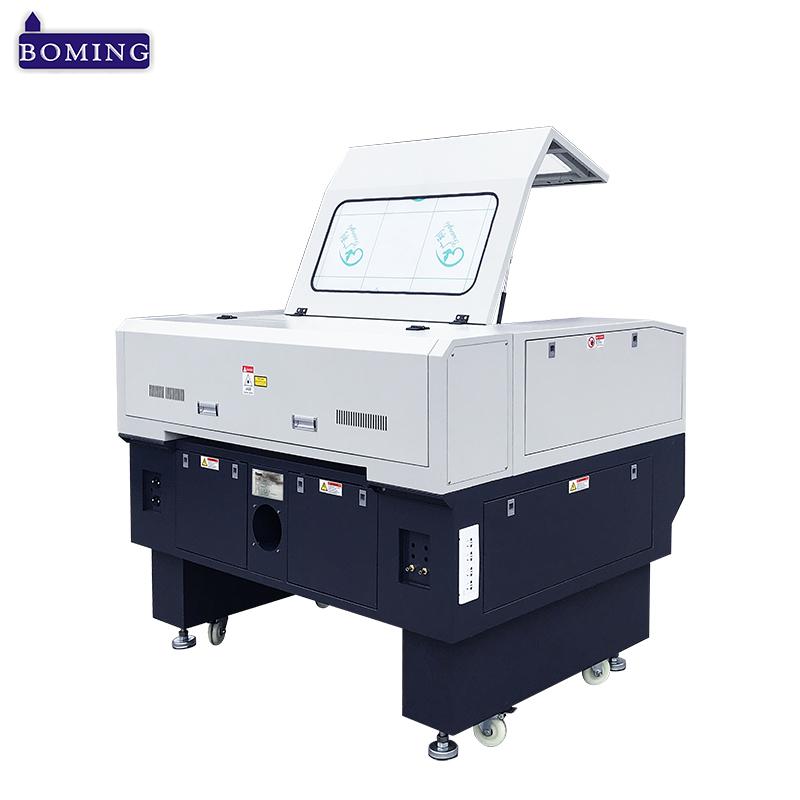

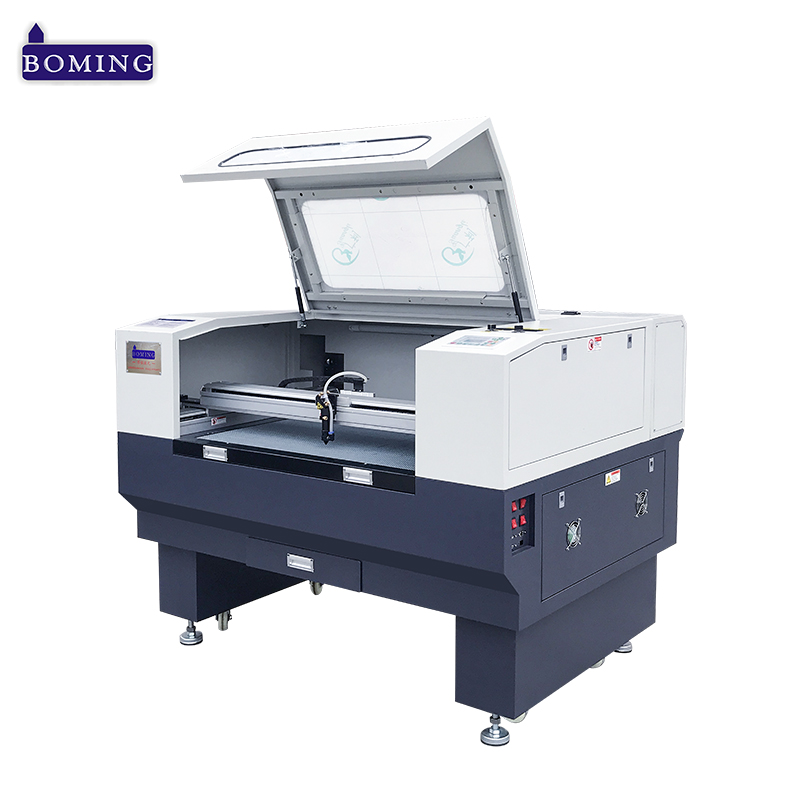

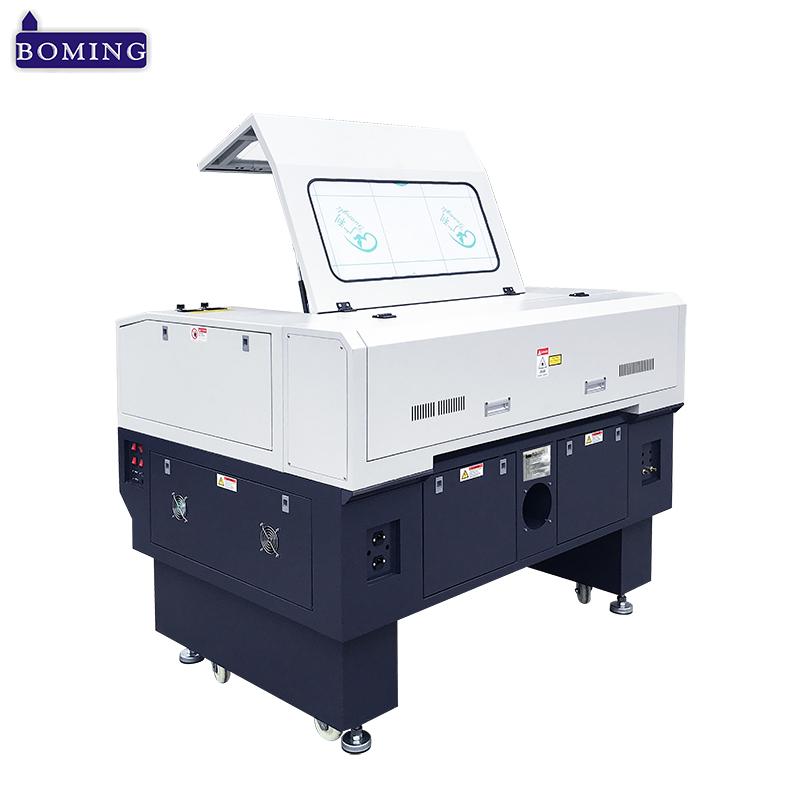

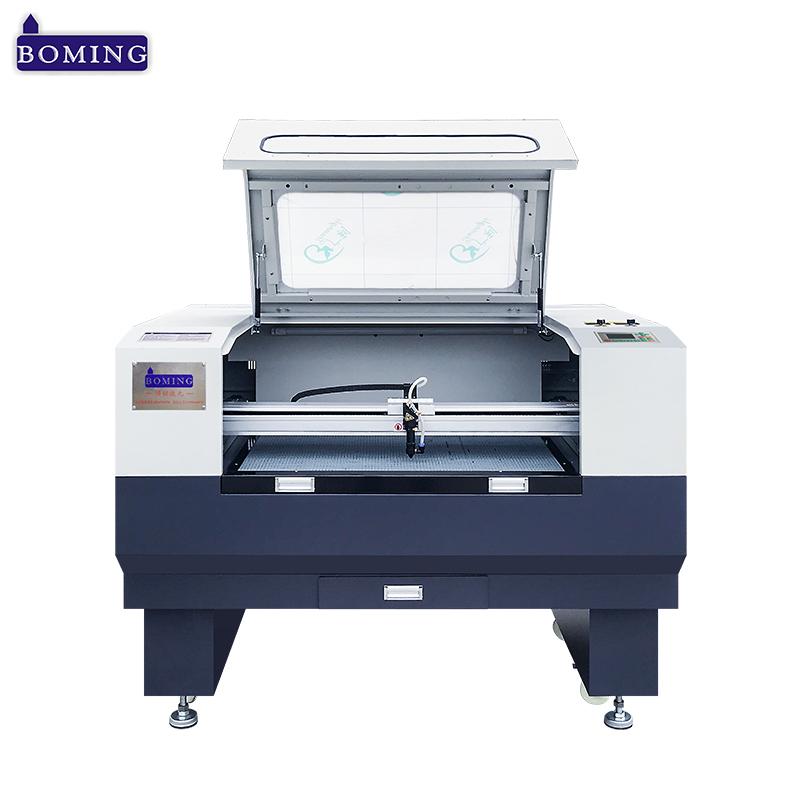

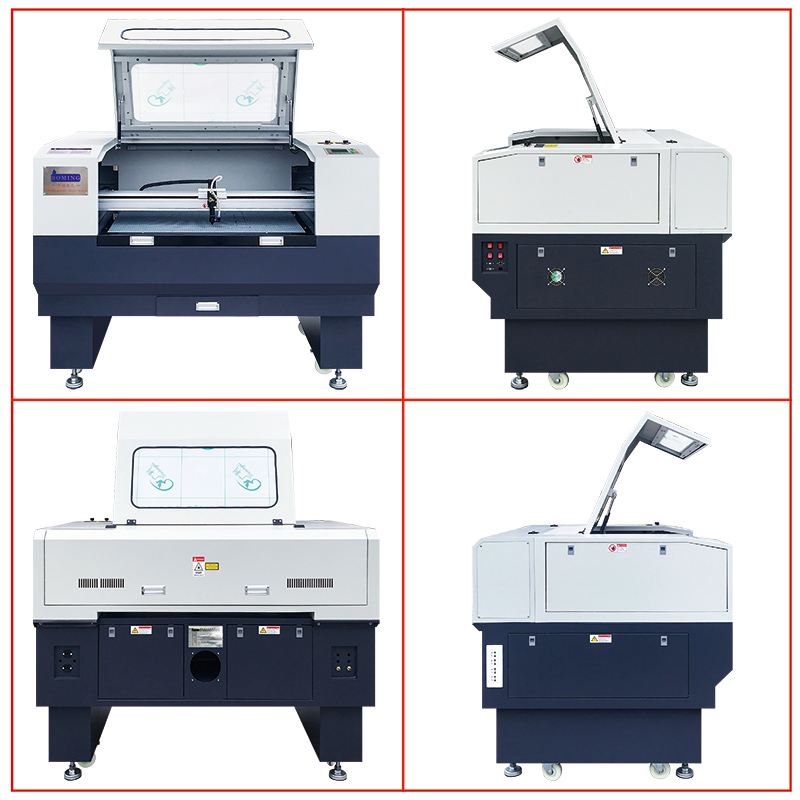

Machine pictures: of ball screw laser cutter

130 watt laser cutter

1310 co2 laser cutting machine

6090 laser engraver

acrylic laser cutting machine 9060




Features:of bottles laser engraving machine

1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.

2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward  sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.

3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.

4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.

5、The customized maehines with different size are available.



Configuration: of c02 laser machine

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.

4)Honeycomb / Square /blade /Auto feeding table.

5)Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Automatic circulation cooling water chiller.

11)Give freely compressed air pump.

12)Give freely Laser software 1set, free upgrade




Applicable Industries:of 100 watt co2 laser cutter

Garment, shoes, bags, compute rized embroidery and clipping.model  cutting, electronics ,toys, furniture,  advertisement  decorations,  handicraft,packing, printing and other industries.




Applicable Materials: of 100w laser engraver machine

Nonmetal materials like leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic,paper,cloth,fabric,textile,foam,felt, etc.




Technical Parameters:of 1300x1000 laser cutting machine

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm

Positional Accuracy

±0.05mm

Working table

Blade/honeycomb/Square

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror

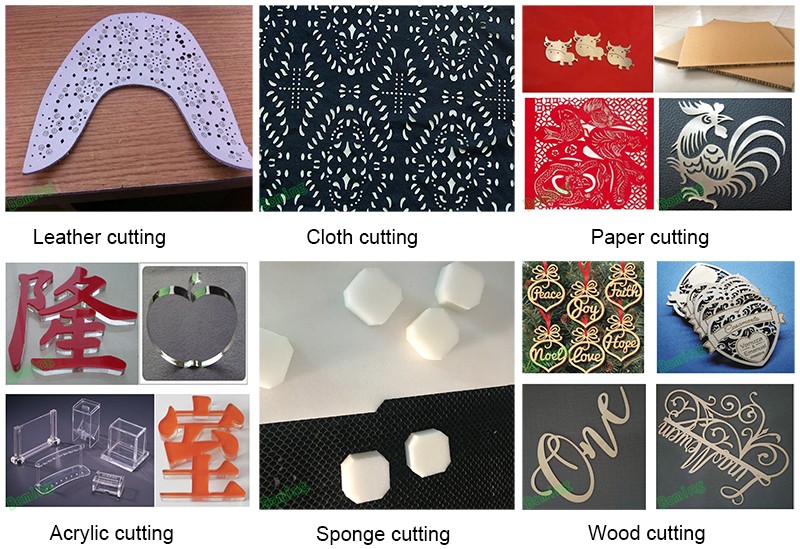

Sample show:

machine price laser cuttingcutter laser machine




Our Service:


1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.

2) Lifetime maintenance is free of charge.


3) We will provide the consumable parts at an agency price when you need replacement.


4) We offer English manual and CD for installing, operation and maintaining.


5) Our technician can be sent to your company to install the machine and train your workers if necessary.

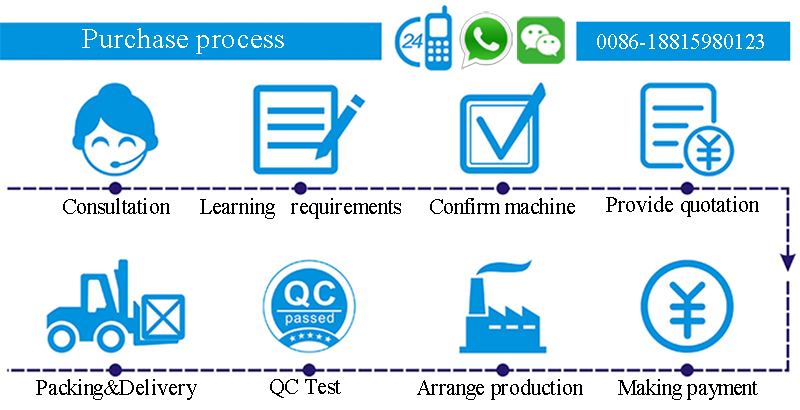

Purchase process:




FAQ:



Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.



Our contact:

5 head laser cutting machine
