1590 dual head Textile laser cut machine is with double head and Honeycomb/blade table. Suitable for cutting non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth、WPC、 EVA、PU、PVC、foam、sponge、textile, film, garment, plastic, etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc. One head、two heads、three heads、four heads、five heads and six heads are optional. Different working areas are avaliable, such as, 600*400, 900*600, 1200*800, 1300*900, 1400*800, 1500*900, 1600*800,1600*1000, 1800*1000mm, etc.
Item NO.:
FLG-1280 1590 1610Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1590 dual head Textile laser cut machine is universal laesr cutter. It has various of configuration which can be chosen. The laser capacity has 60w, 80w, 100w, 150w, 170W, 180W, 300W, 450w, 600w, etc. The laser head can be 1 head, 2 head, 3 head, 4 head, 5 head and 6 head. The working area is from 6040, 9060, 1280, 1390, 1480, 1590, 1680, 1610, 1810, etc. It is suitable for different materials, can be usded in cutting and engraving.

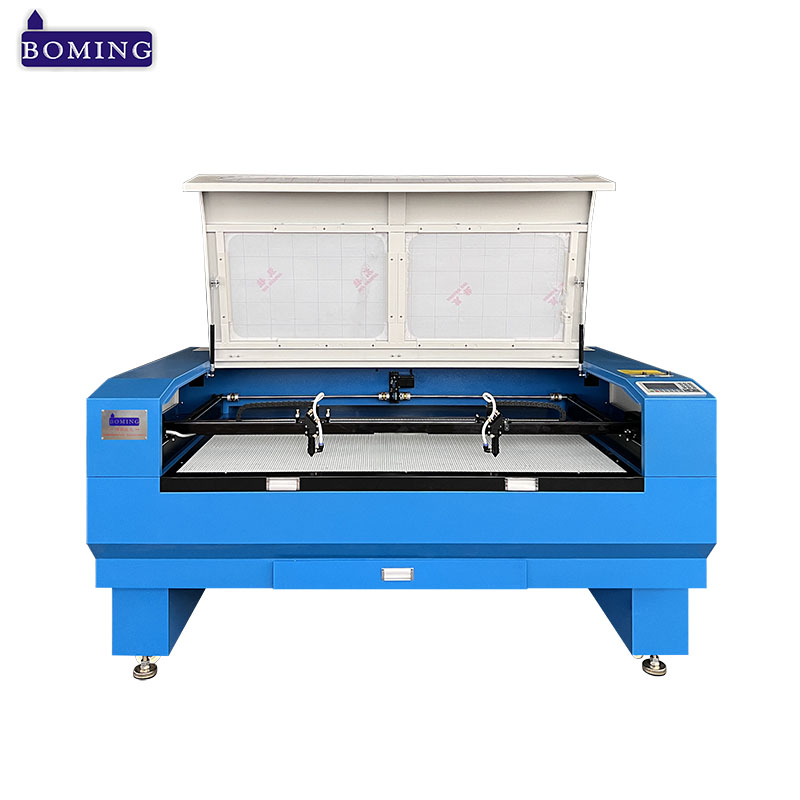

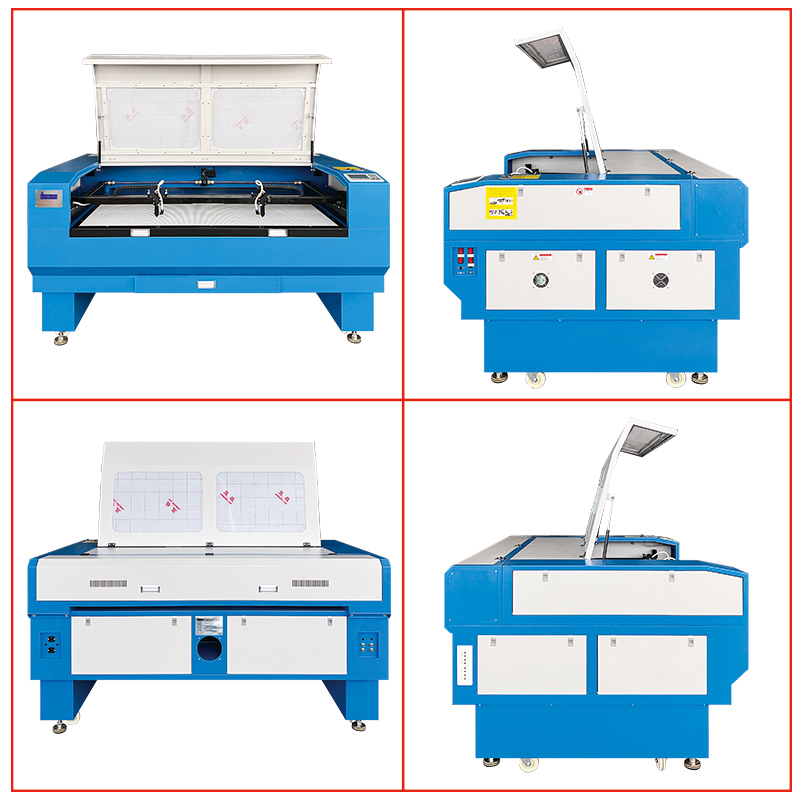

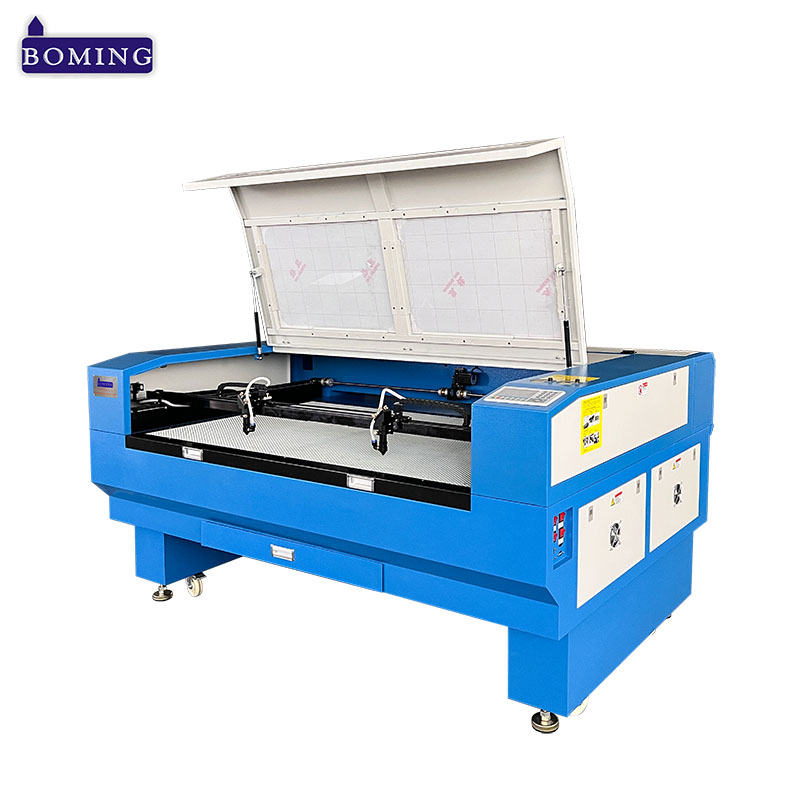

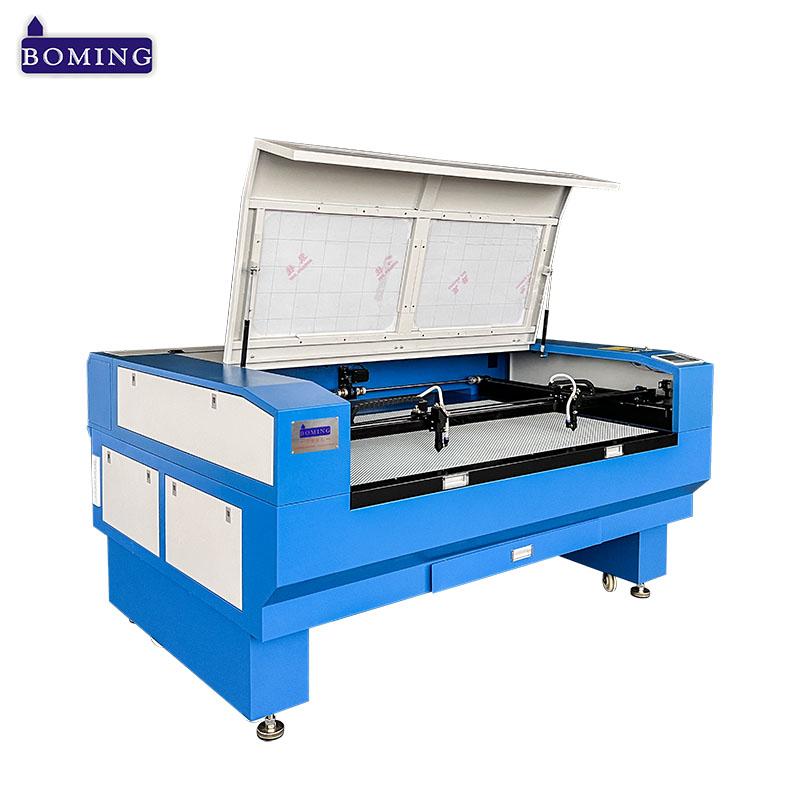

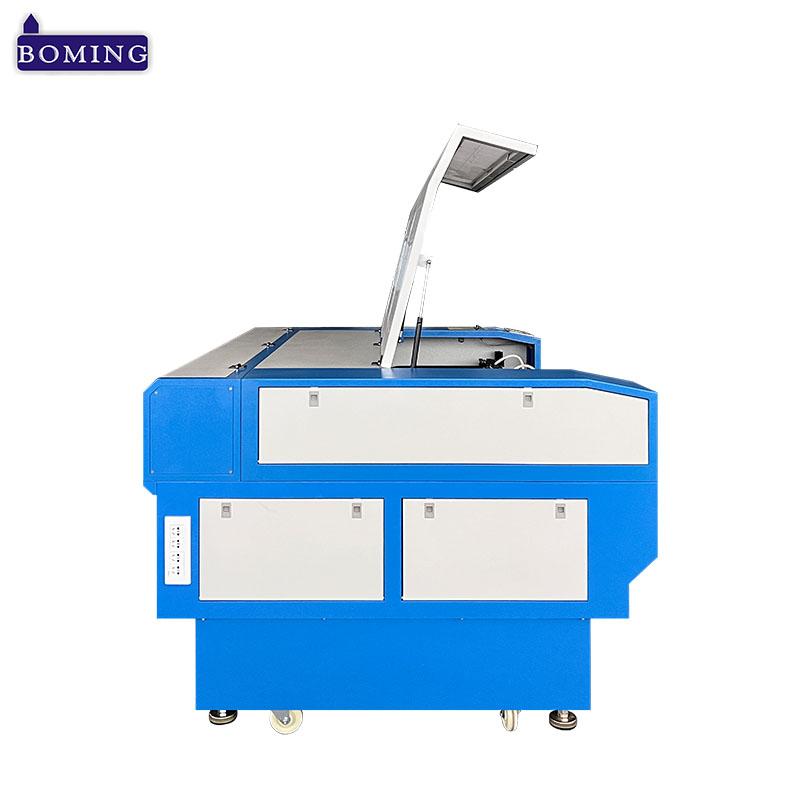

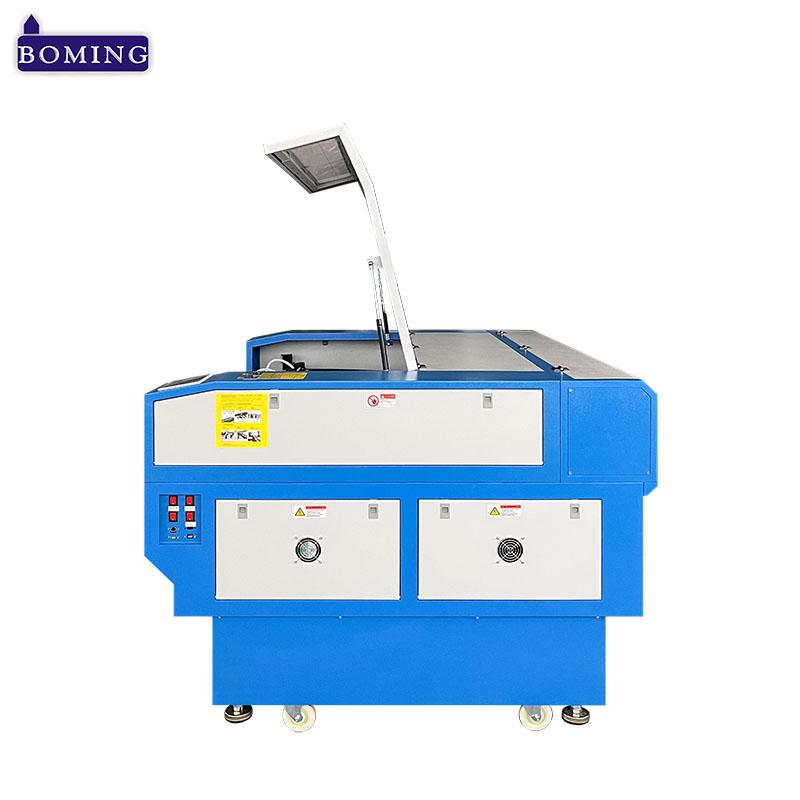

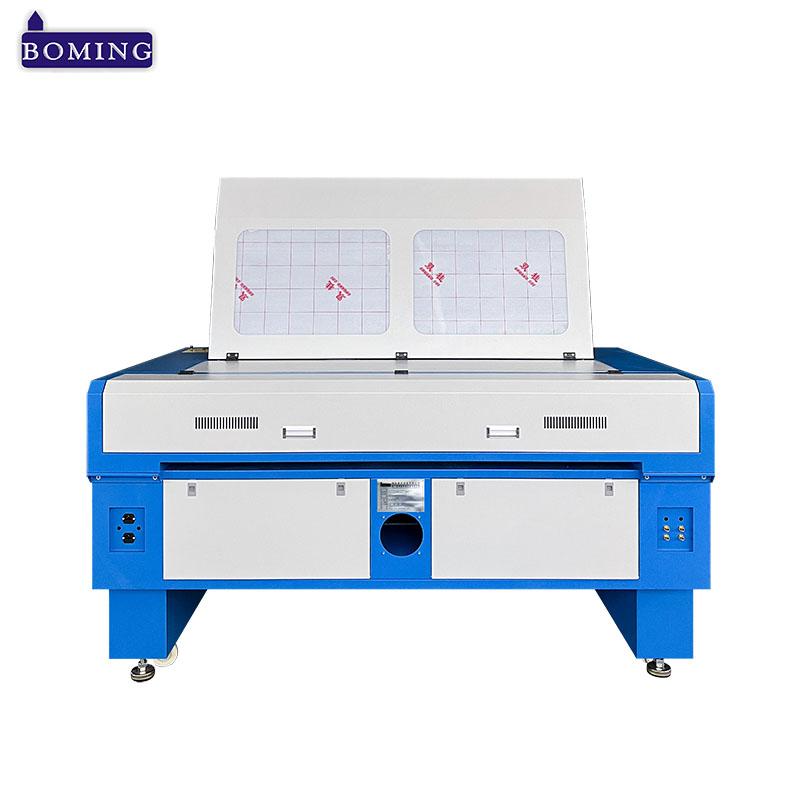

Machine pictues: of garment cutting laser machine
Features:of foam laser cutting service
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.

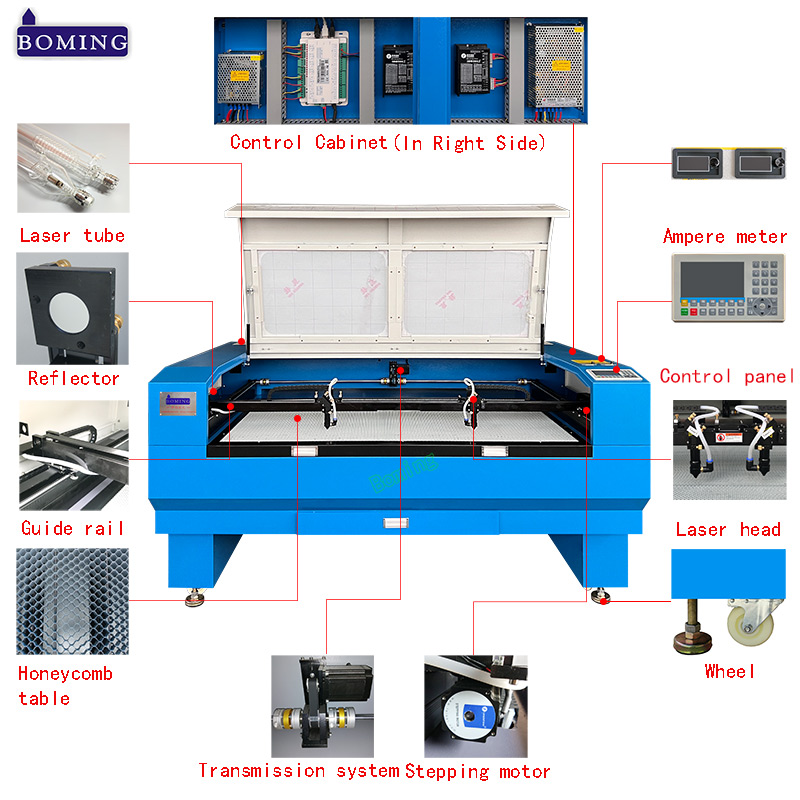

Configuration: of footwear laser cutting machine
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.
4）Honeycomb / Square /blade /Auto feeding table.
5）Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Automatic circulation cooling water chiller.
11）Give freely compressed air pump.
12）Give freely Laser software 1set, free upgrade
Applicable Industries:of flat bed laser cutter 1600
Garment, shoes, bags, compute rized embroidery and clipping.model cutting, electronics ,toys, furniture, advertisement decorations, handicraft,packing, printing,buliding model and other industries.
Applicable Materials: of fabric laser diode machine
Nonmetal materials like leather, cloth, garment, film, upper, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic, paper, MDF, fabric, textile, foam, felt, plywood, sponge, EVA, PVC, PU etc.
Technical Parameters:of fabric laser cutting machine price in india
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1200*900 1200*1000 1300*900 1300*1000 1400*800 1400*900 1400*1000 1500*600 1500*900 1600*800 1600*1000 1800*1000 1800*1200 1900*800 2000*1000mm |
Positional Accuracy | ±0.05mm |
Working table | Blade/honeycomb/Square |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Purchase process:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
FAQ:

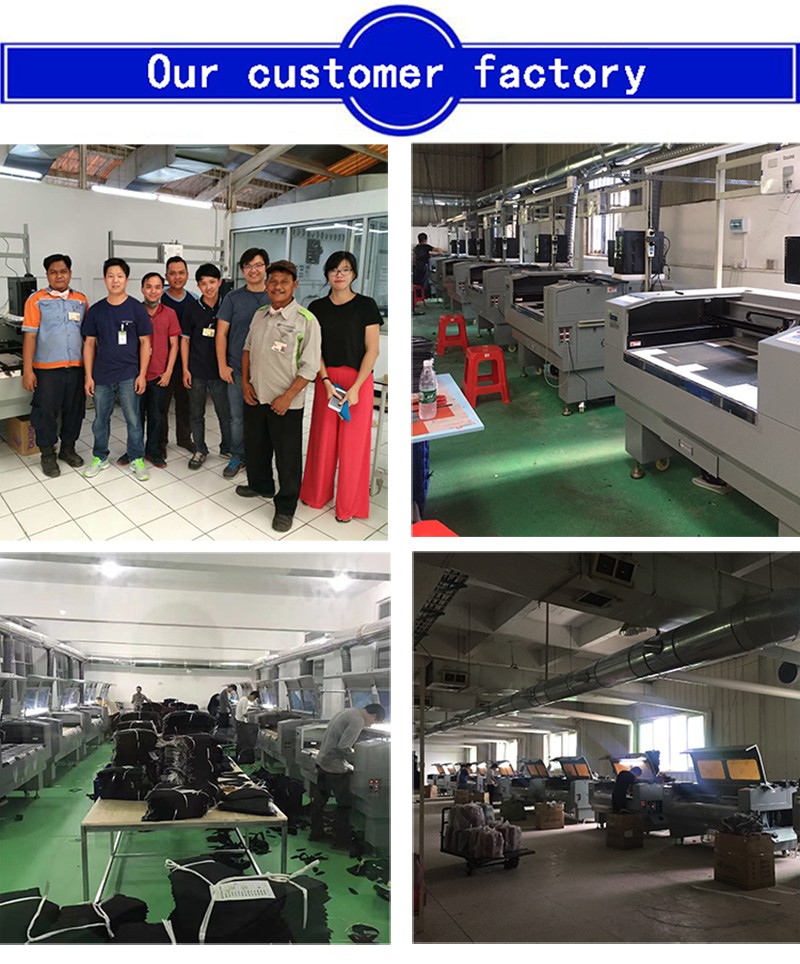

Customer factory:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
