1390 Metal nonmetal mixed laser cutting machine

1390 Metal nonmetal mixed laser cutting machine is with mixed laser cutting head, suitable for cutting non metal materials and thin metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth and stainless steel、carton steel、matel, etc.

  • Item NO.:

    FLG-1390 1325
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1390 Metal nonmetal mixed laser cutting machine is mainly used in thin metal materials and non metal materials cutting. It can cut both kind of materials, saving the cost for customer. The customer doesn't need to buy two type of laser machine. But for metal materials, it is mainly for cutting thin one, usually less than 1.5mm. Not suitable for thick metal or steel. If cut metal, it needs to work with Oxygen.

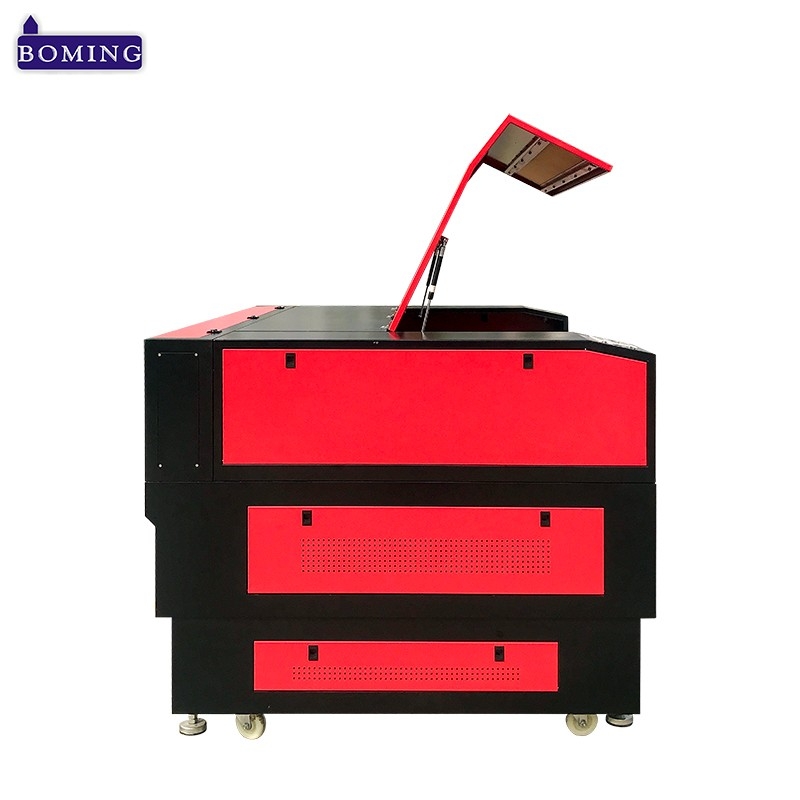

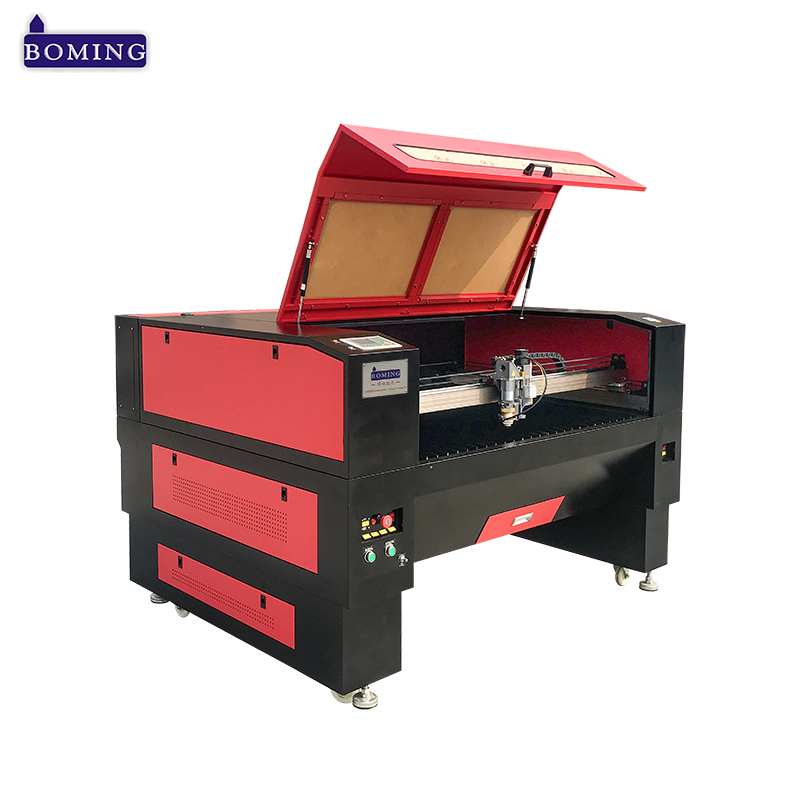

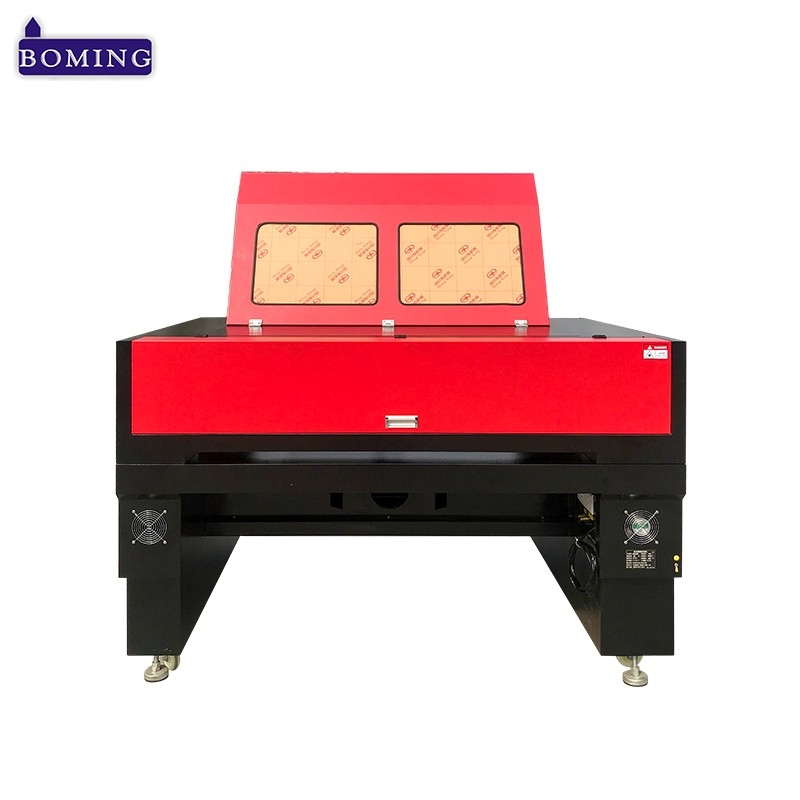

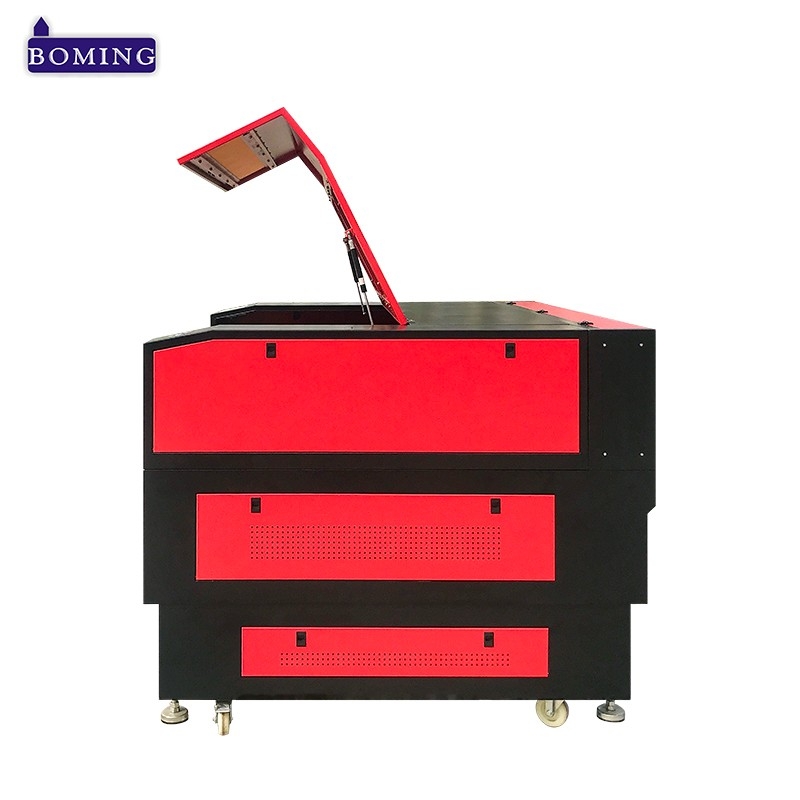

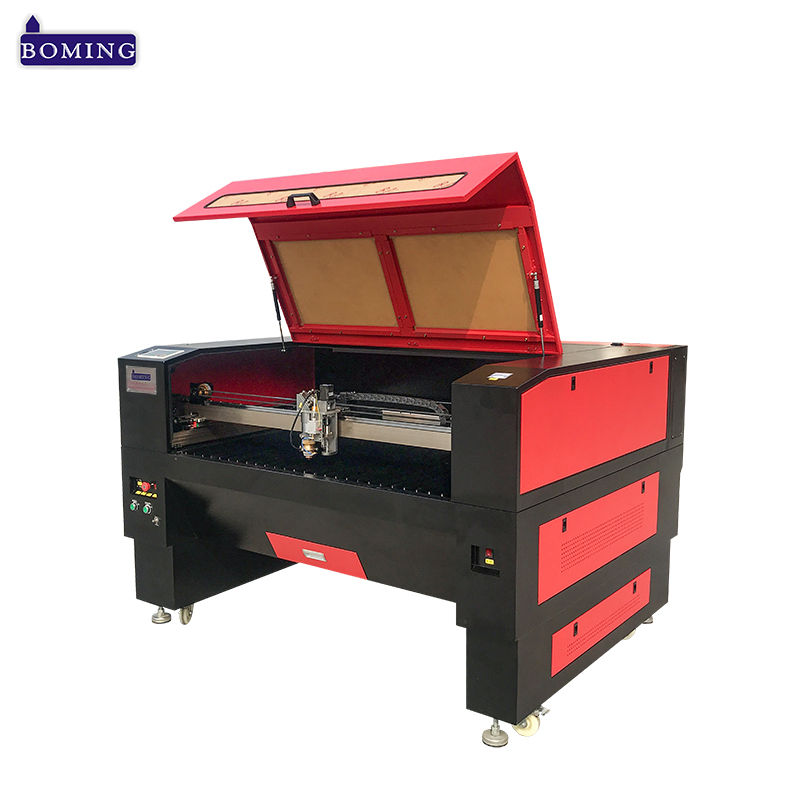

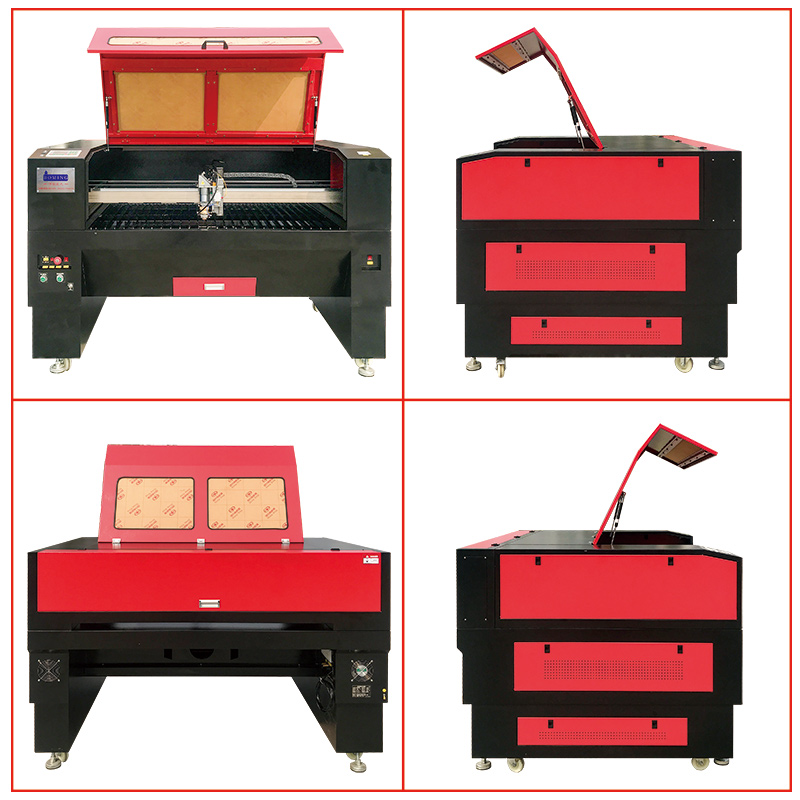

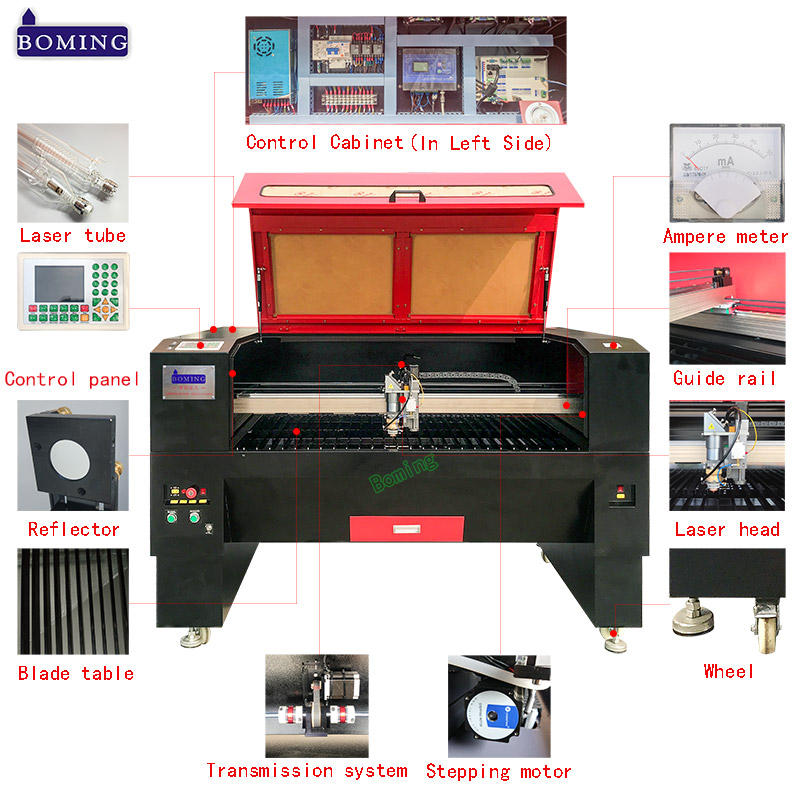

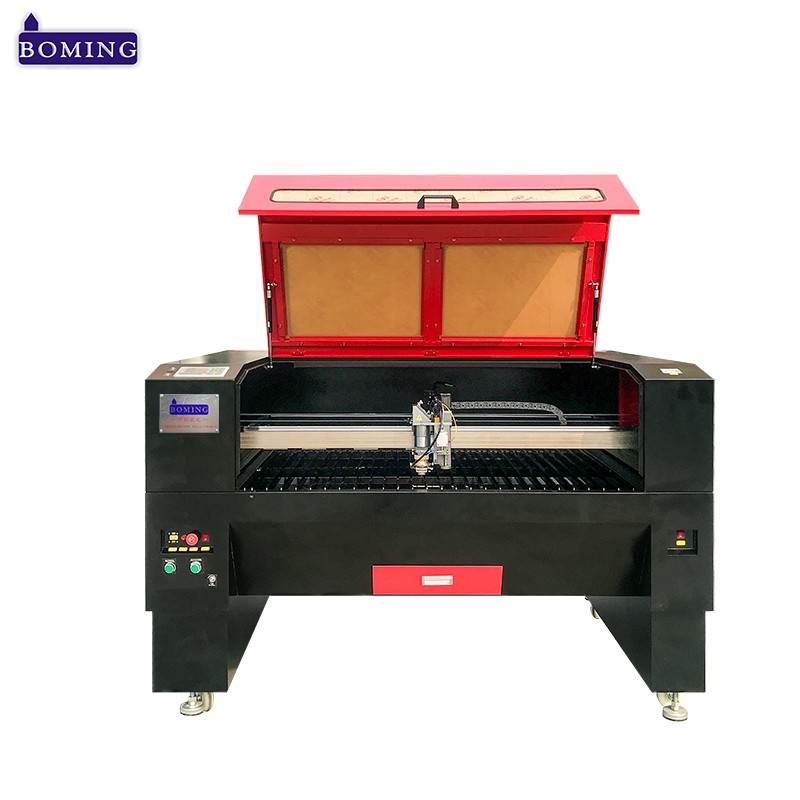

Machine pictures:

mixing co2 laser cutting machine

mixing co2 laser cutting machine

mixed cutting laser machine

mixing laser cutter




Features:of 1390 metal nonmetal mixed laser cutting machine

1、High precision: high precision servo motor and constant light path system are used to achieve the ideal cutting effect;

2、High stability: It is controlled by a numerical control system, which can meet the requirements of precision parts processing, with high stability and continuous work for a long time;

3、Wide range of applications: can cut metal and non-metal materials, suitable for use in multiple industries;

4、The cutting section effect is good: the mechanical cutting head follow-up system is adopted, so that the cutting head can follow the height of the metal plate, and the position of the cutting point is always kept unchanged, so that the cutting seam is smooth and clear, and the effect of clear section is good;

5、Easy to operate: simple to operate, support CDR, CAD direct original image input and output.




Applicable Materials: of mixed laser cutting machine

Nonmetal and non metal materials like leather, acrylic, plastic, paper,cloth,fabric,textile, stainless steel, carbon steel etc.




Technical Parameters: of mix laser cutter

Model

FLG-1390 1325

Working size

1300 X 900mm 1300*2500mm

Laser capacity

150W/260W/320W

Laser type

Sealed co2 laser tube

Power

AC220V±10%.50Hz/60Hz

Working speed

≤400mm/s

Positioning speed

±0.05mm

Minimum formed text

Chinese:2mm,English:1mm

Working tempreture

0-45°

Resolution

0.025mm

Cooling way

水冷

Laser tube life

10000小时(Theoretical value)

Worktable

Blade

Support format

BMP, GIF, JPG,PCX,TGA,TIFF,PLT,CDR,DWG.DXF

Cutting thickness

Acrylic:1-30mm
Stainless Steel:1.5—2.5mm
(Others depend on the material)

Dimension

1900*1530*1100mm

Weight

600KG

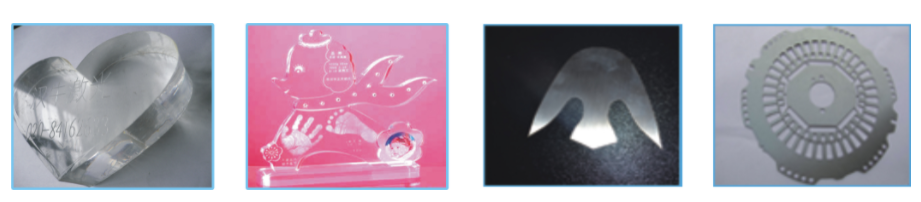

Sample show:

mixed co2 laser cutting machine




FAQ:

Q: Are you a factory or a trading company?

A: We are a factory manufacturing laser machine and we provide perfect after-sale service.


Q: How can I know your machine work well?

A: Before delivery, we do test the machine working condition for you.


Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.


Q: How can I pay my order?

A: Usually we accept T/T,Irrevocable L/C at sight or Alibaba Trade Assurance Order.


Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.





Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.



5. Machines sold to Southeast Asia, South Asia, South America......





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

mix laser cutting machine
