Flyknit upper Auto feeding Projector laser cutting machine

Auto feeding Projector laser cutting machine is Suitable for cutting shoe vamp, fliknit upper; with projector, easy for workers to put materials; easy operation;with computer.

  • Item NO.:

    FLG-1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC, DA, DP
  • Product Origin:

    Quanzhou, China
  • Color:

    White and black
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    7-10 days

0086-18815980123  0086-13599259031  Boming laser


Projector position laser cutter is suitable for cutting flyknit upper, sports upper. The projector can project the upper drawing in the working table. So the workers can put the shoe upper on the worktble easily according to the projection lines. It can make the work easier and improve the working efficiency.

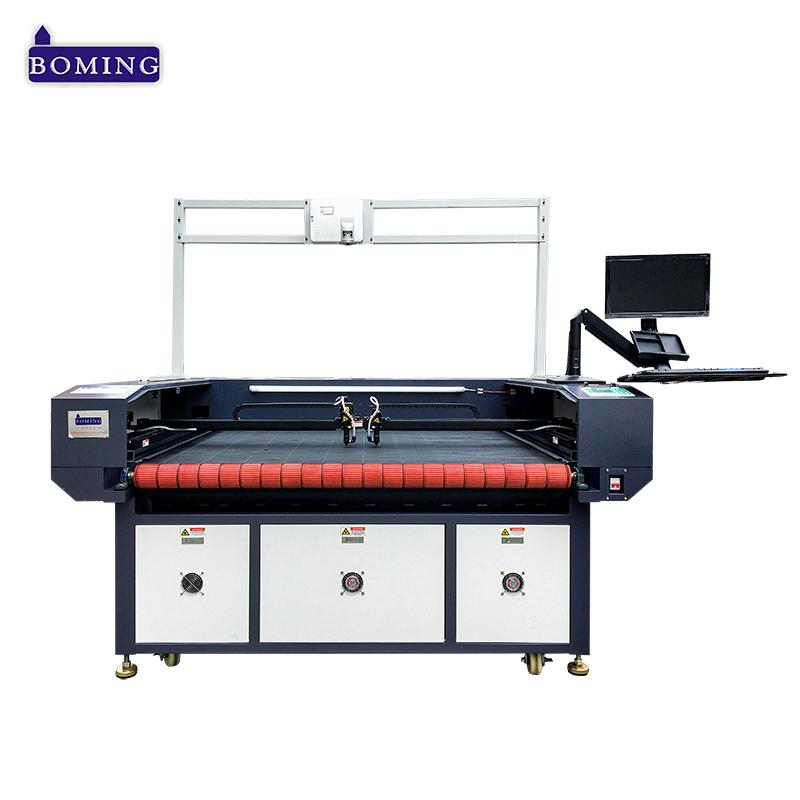

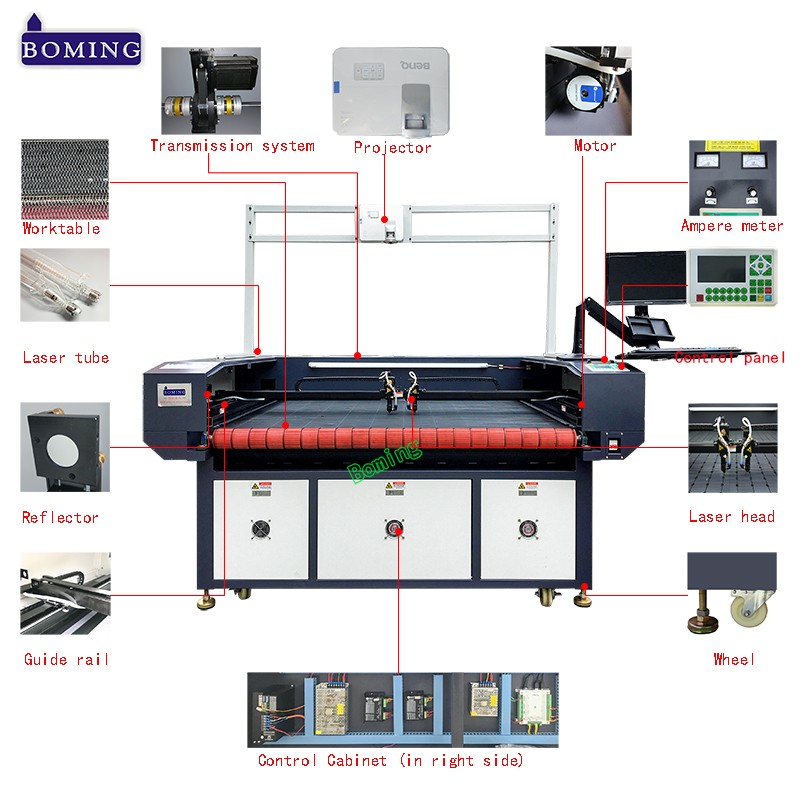

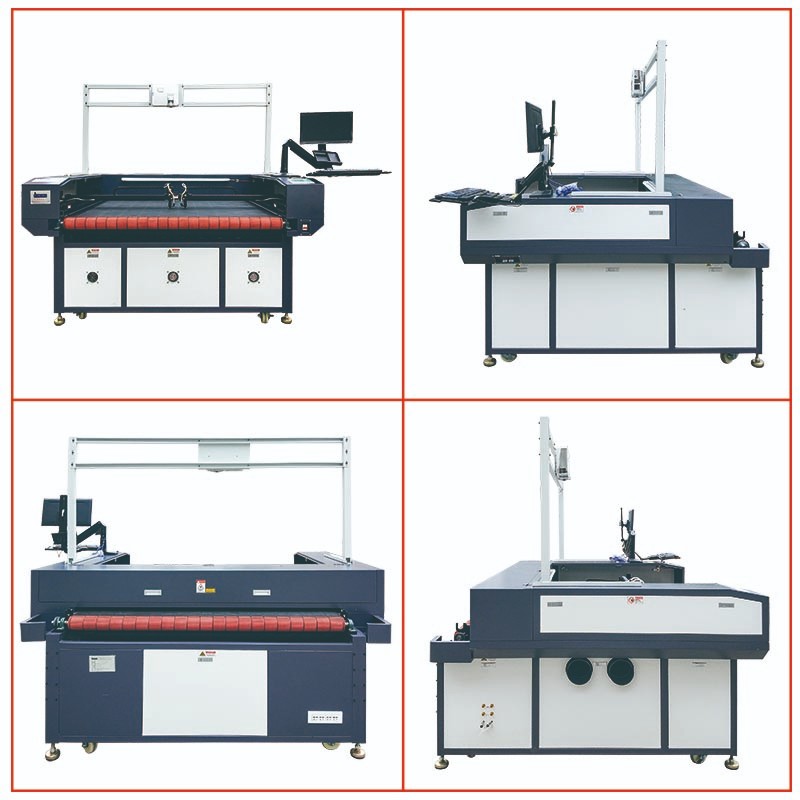

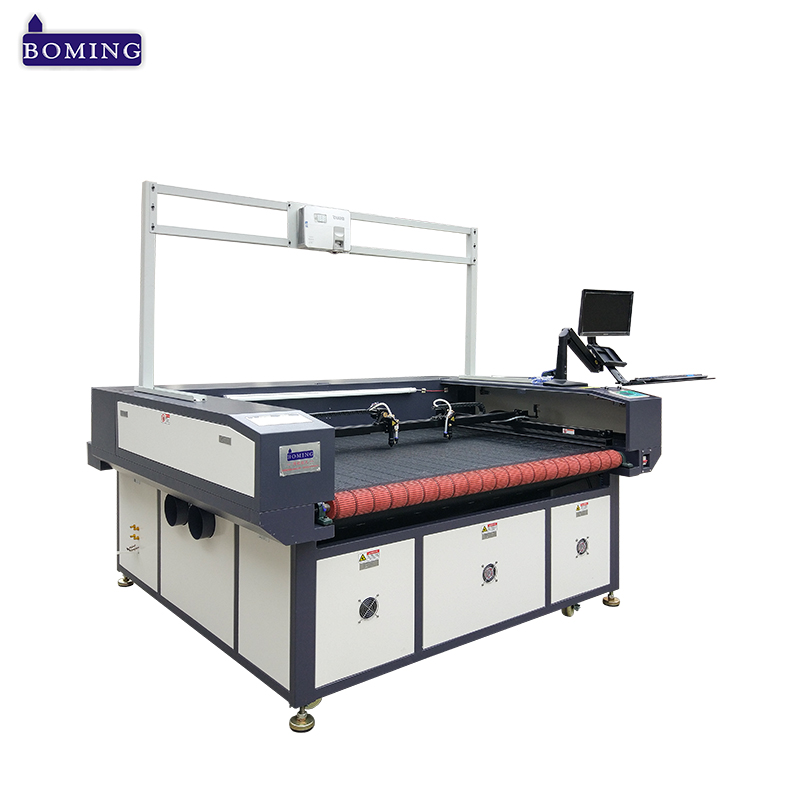

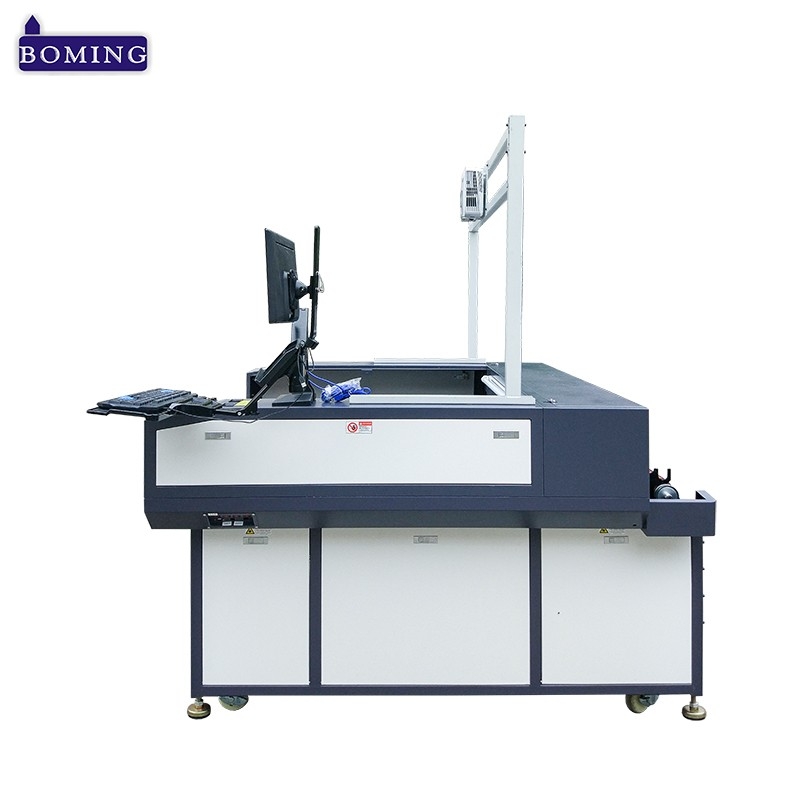

Machine Pictures:

projector leather laser cutting

projector location flyknit upper shoe laser cutting

automatic feed laser cutter

2 head auto feed laser cutter







Features: of Flyknit upper Auto feeding Projector laser cutting machine

1、We adopt internationally advanced DSP control technology, initiate the industry-leading function of continuous rapid curve cutting and minimum machining path optimization,improving the work efficiency greatly.


2、Automatically compensate light attenuation during the working process, ensuring that the  cutting effects are consistentin different areas; It can also improve the work efficiency through the control software design for fast cutting and the buffer function of high-speed motion.


3、We adopt the separated lower and upper suction systems. The lower unit is located under the platform work board to make it form negative pressure ensuring that the process materials are fixed in the work board; the upper unit can move together with the cutting head ensuring that the dust and smoke produced by cutting can be sucked, finally making sure the materials surface is clean and the precision is high.


4、Professionally solve the problem of high scrap rate if the soft materials deform then they can’t fit the position.


5、 It can position the pattern the most precisely and intuitively through projection and the projection line’s color can be changed according to the product color, so that the worker can work easily and improve work efficiency. For example, the worker can finish cutting about 600 pairs manually working 10 hours per day, but the projection positioning laser cutting machine can cut about 1000-1200pairs. It also can save all kinds of cost such as electricity、salary、machine , etc. If cuttingby projection position, the worker only needs to operate in computer when changing different size of materials, it doesn’t need to change pattern film and paper, saving consumable items cost. The laser machine can be separated, so there is no demand for the land; single head and double head are available, so that the customers can choose different type of machineaccording to his requirements.




Software Advantage: of upper laser cutting machine

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.



Applicable Industries: of projector laser cutting machine

Application Materials: All non-metallic material, such as leather、cloth、woolen、double color board、paper、acrylic、resin、thin ABS board、organic glass、bamboo ware, etc.



Applicable Materials: of co2 laser cutter machine

3D flyknit upper, 4D upper, printing upper, 3D art ware, shoe,  etc.



Technical Parameters: of co2 laser with projector

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000mm

Positional Accuracy

±0.05mm

Projector resolution

1280*800mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror



Sample show:

shoe upper leather cutting machine


Why choose us:

1. 13 years experience on laser cutting and engraving machine.

2. Use good brand parts, excellent machine quality.

3. Free consulting, lifetime technical support.

4. Various optional types, customized acceptable.

5. Machines sold to Southeast Asia, South Asia, South America......



Our Service:

1) Guarantee for whole machine for 1 year.

2) Lifetime maintenance is free of charge.

3) We will provide the consumable parts at an agency price when you need replacement.

4) We offer English manual and CD for installing, operation and maintaining.

5) Our technician can be sent to your company to install the machine and train your workers if necessary.



Packaging & Shipping: of co2 upper laser cutting machine

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

projector position laser cutting machine
