electric lift 40W 70W 100W dynamic Laser marker is with metal tube and dynamic foucs, With electric lift, can be lower down and up easity.suitable for marking and engraving non metal materials such as wood、acylic、paper、denim jeans、sole 、leather、EVA、slipper、PU 、PVC、invitatin card, fabric, etc.
Item NO.:
FLG-C150W 250W 350WOrder(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
electric lift 40W 70W 100W dynamic Laser marker is with different laser capacity, such as 40w 55w 70w 100w 150w , etc. China metal tube and original imported laser tube can be chosen, such as Davi, CRD, Coherent, Syrad, Rofin, etc. It is with dynamic focus, can have better marking effect and more beautiful marking effect.

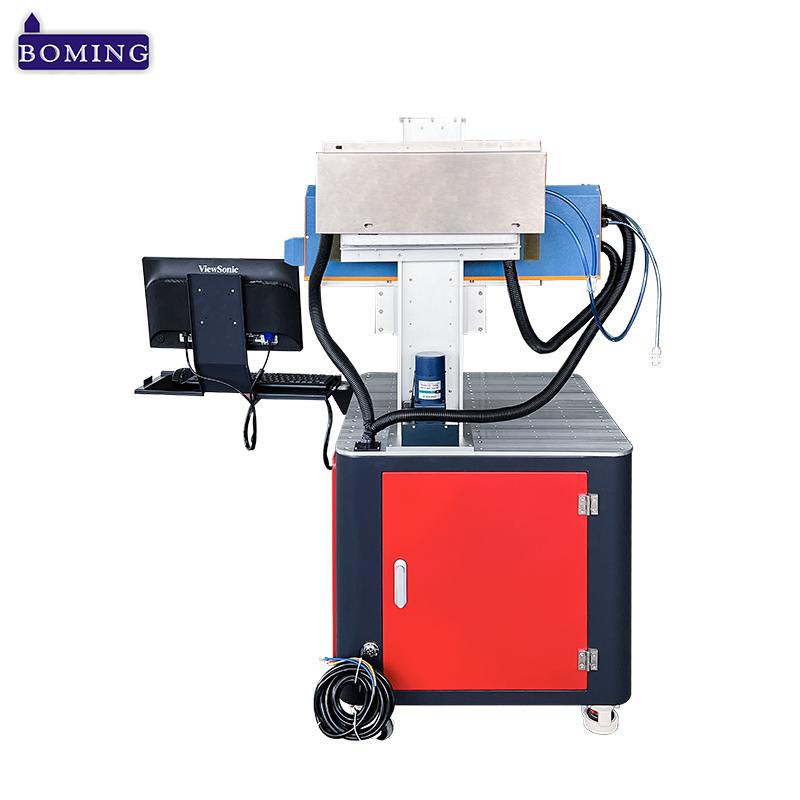

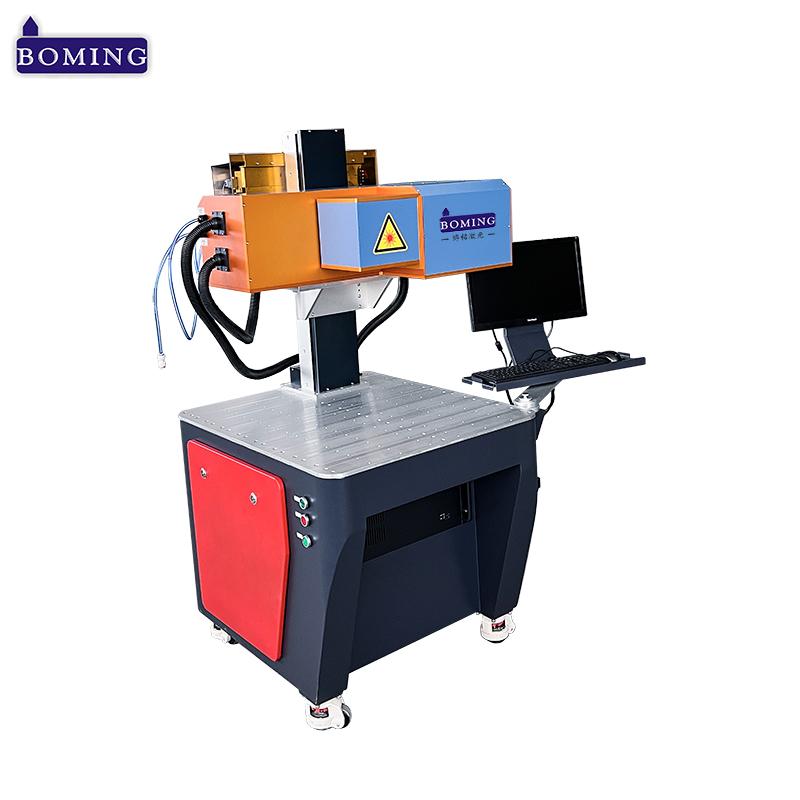

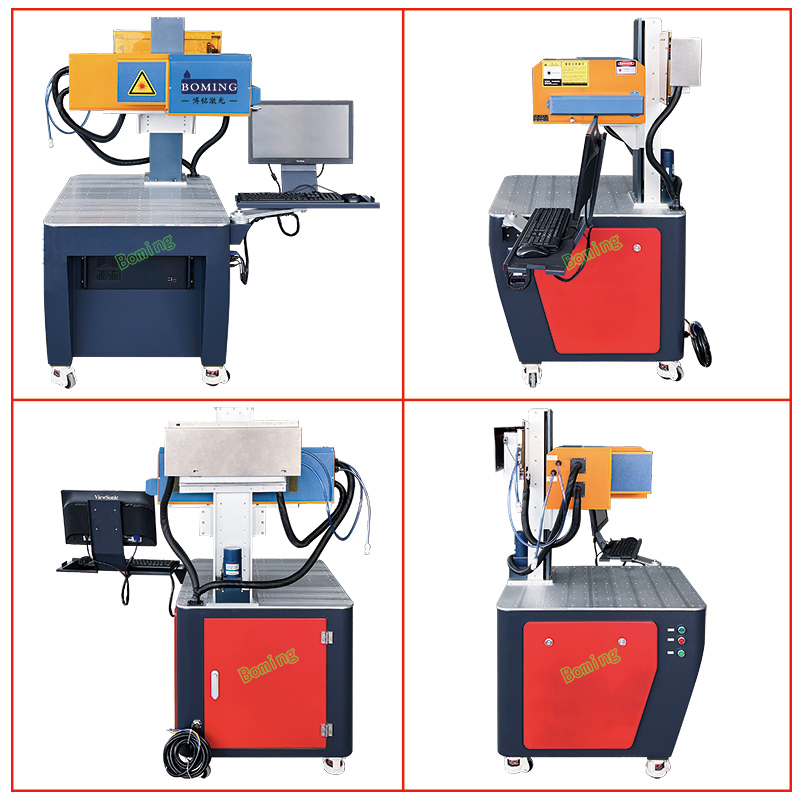

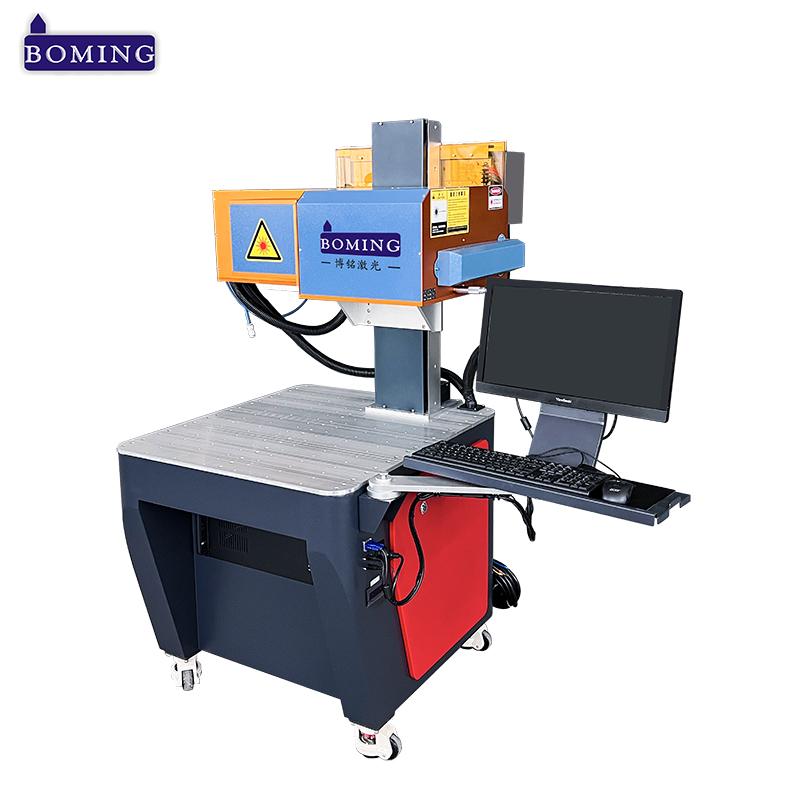

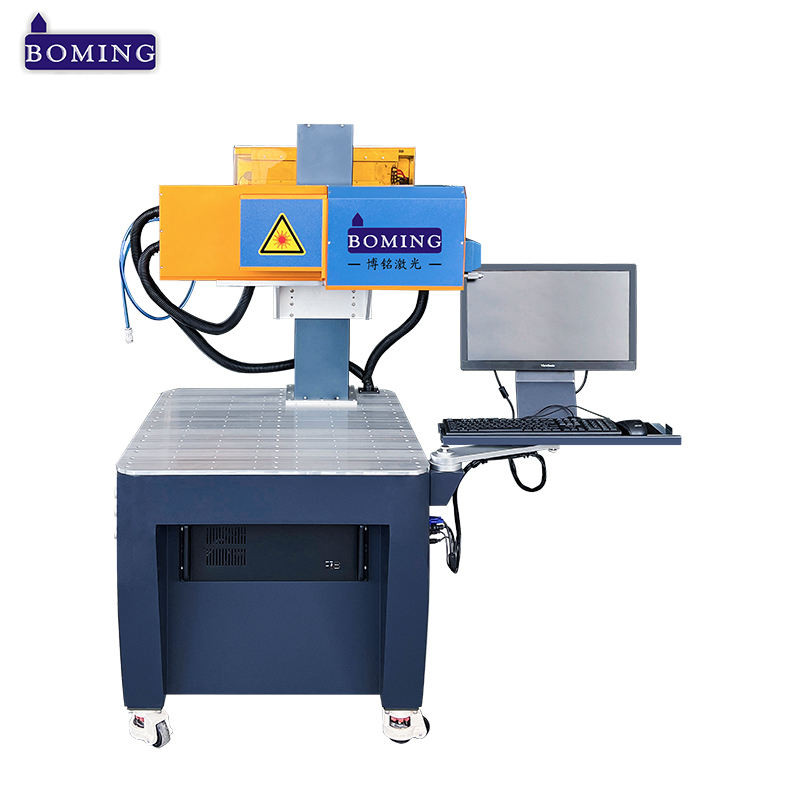

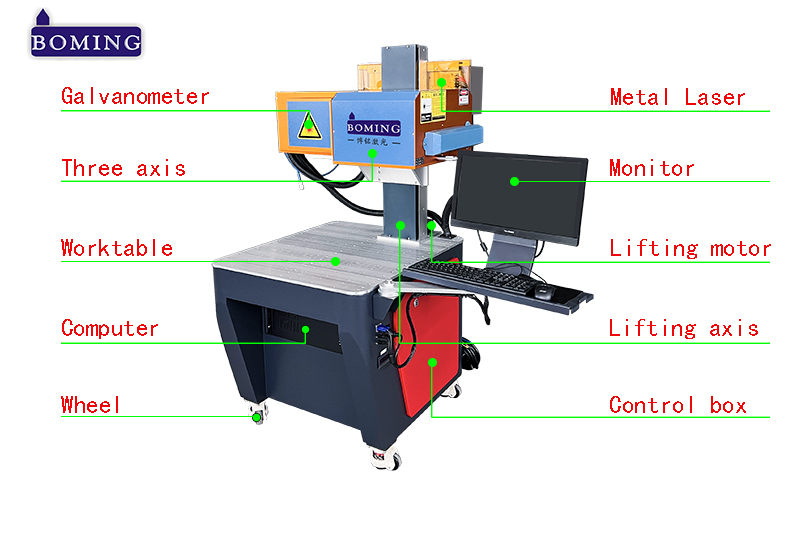

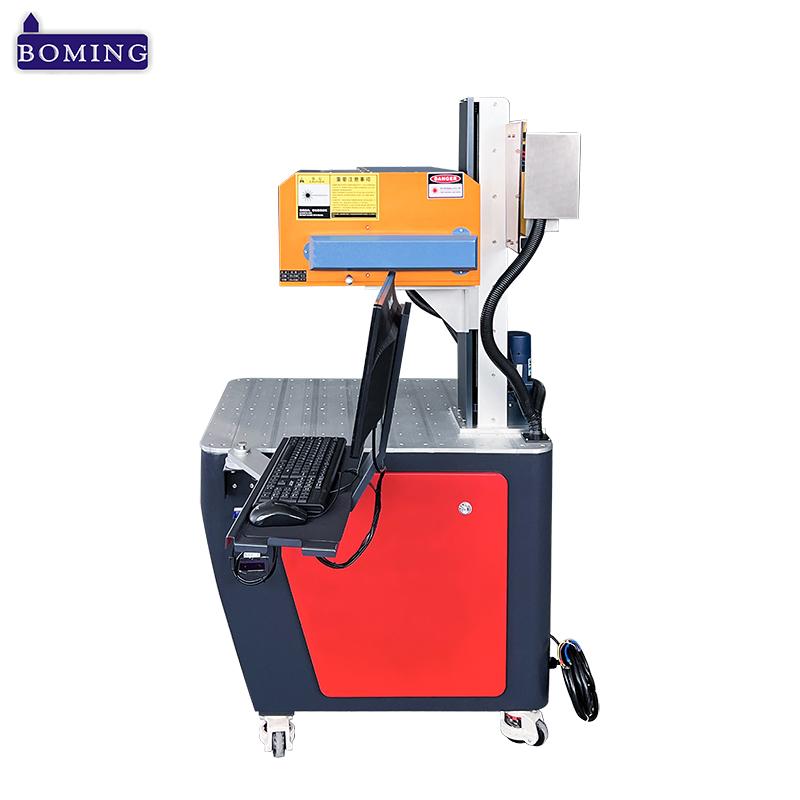

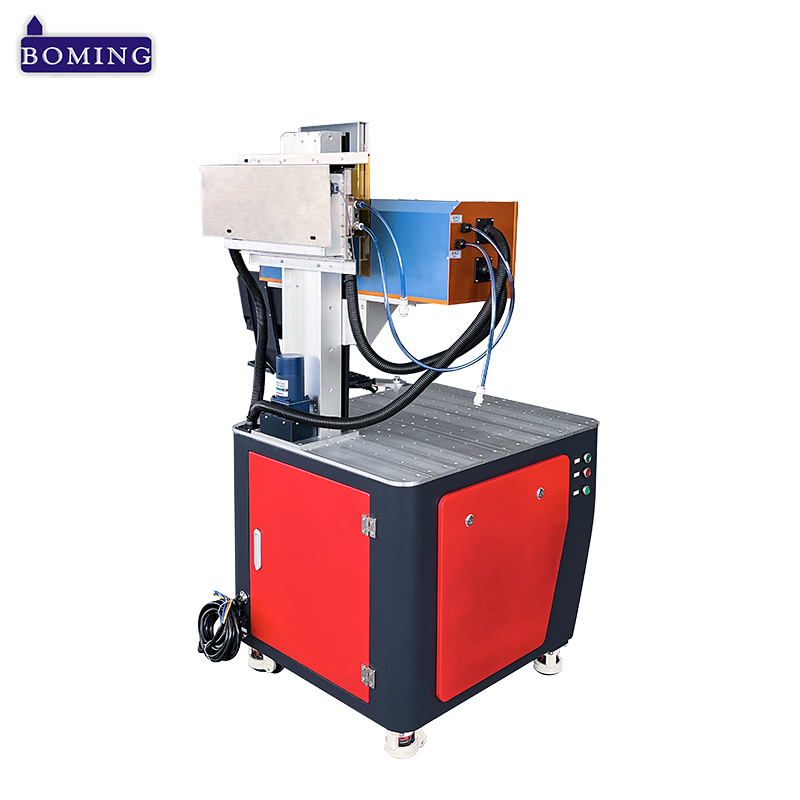

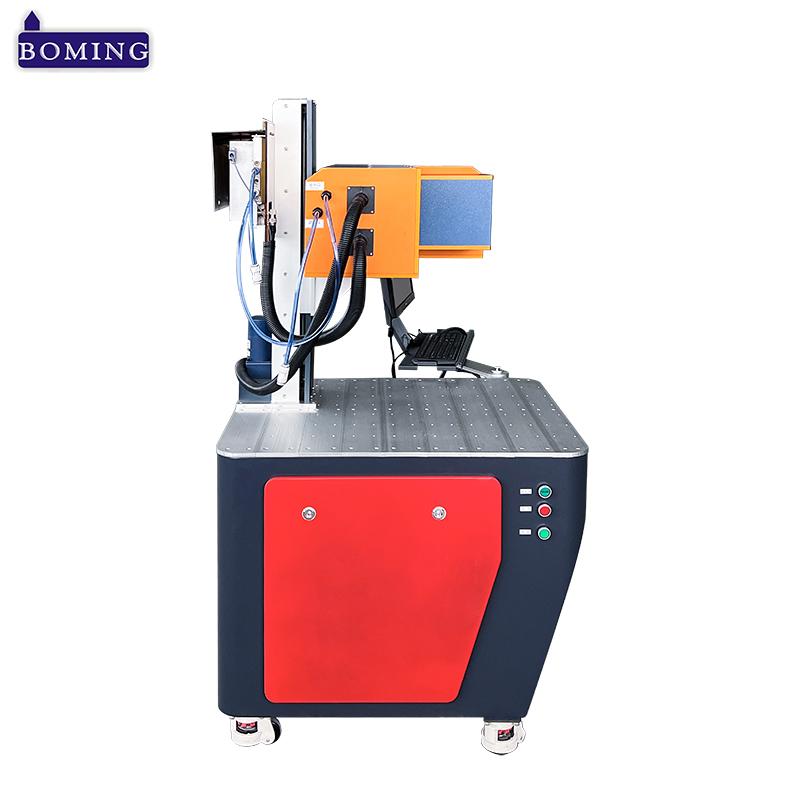

Machine pictures: of 100w rf laser cutter
Features:of 3d dynamic laser marking machine
1、Laser marking machine has high accuracy、 fast speed、 long continuous working time and free maintenance, the engraving depth can be controlled.
2、Can choose the imported or China CO2 RF laser which has good light beam and uniform density of optical power.
3、It adopts red light positioning system to make the position more accurate, avoiding the waste.
4、The industrial high precision temperature control chiller effectively ensures the stable output of laser and long life time.
5、The light seat can be manually adjusted up and down meeting the requirement of processing 300mm-800mm working area.
6、It uses Rofin 180W metal tube with higher marking effect and faster marking speed.
7、It uses supper galvo marking head with much thinner marking lines and better marking effect and bigger marking area.
Advantage: of 70w laser marking machine
1、The laser marking is non-toxic, non-deformation, non-polluting, wear-resistant；
2、Stable performance, moderate price, the marking depth can be controlled at will, and it can work for a long time.
3、It adopts an integrated design structure and a new light path sealing method, which is generally stable and reliable, and has a beautiful and high-grade appearance.
4、Inherit the maturity and practicability of previous generations of solid-state laser marking machines, and further improve the stability of the whole machine by upgrading the software and control system.
5、 It can mark any information such as graphic logos and texts, and has the characteristics of fine and beautiful marking patterns and wear-resistant.
Applicable Industries: of cloth laser marking machines
Craft gift, furniture, leather and garment, Advertising signs, model making, food packaging,
electronic components, medical packaging, plate making and printing, nameplates, etc.
Applicable Materials: of co2 laser marker
Non-metallic materials, such as leather、wood、bamboo ware、organic glass、ceramics、acrylic、stone、denim jeans、sole、EVA、PU、PVC、plastic、marble、jade、crystal、paper、slipper、invitation card, etc.
Technical Parameters:of co2 laser marking machine for shoes
Technical Parameters | |
Laser | From China brand Davi、CRD、Rofin、Coherent、Syrad, etc. |
Laser Capacity | 40w 55w 70w 100w 150W etc. |
Laser wave length | 10.6um |
Optical quality | M2<1.5 |
Laser repetition frequency | ≤100KHZ |
Standard marking area(mm) | 400*400mm |
Optional marking area(mm) | 100*100-400*400mm |
Marking depth | ≤1.2mm |
Engraving speed | ≤7000mm/s |
Marking Speed | 600-1000 character/min |
Min line width | 0.01mm |
Min character | 0.05mm |
Repeated accuracy | ±0.001 |
Operating environment | Clean, without dust or less dust |
Total power | ≤16KW |
Power supply | AC220±10%,50HZ,60A |
Cooling way | Water cooling |
Working temperature | 0~45℃ |
Working humidity | 5~95% |
Sample show:
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Why choose us:

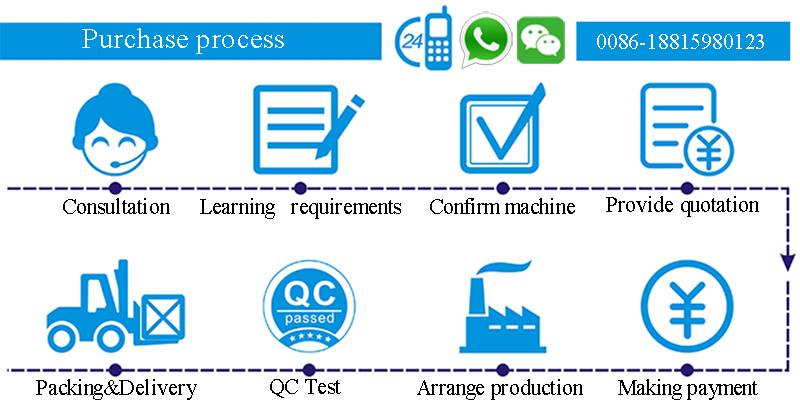

Purchase process:

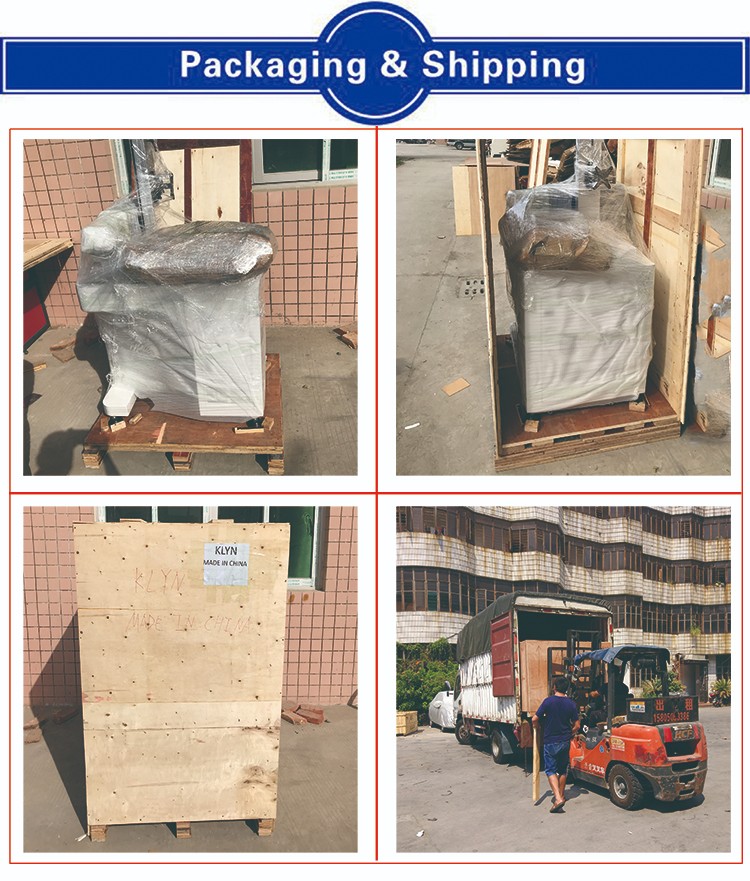

Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
