150W dynamic CCD co2 laser mark machine is with metal tube and dynamic foucs, With big marking area from 400*400mm-800*800mm. Also with CCD Camera, can scan and mark the printed patterns. Suitable for marking and engraving non metal materials such as wood、acylic、paper、denim jeans、sole 、leather、EVA、slipper、PU 、PVC、invitatin card, Printed pattern, paper board, etc.
Item NO.:
FLG-C150W 250W 350WOrder(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
150W dynamic CCD co2 laser mark machine is with different laser capacity, such as 100w 150w 180w 250w 350w,etc. China metal tube and imported laser tube can be chosen, such as Davi, CRD, Coherent, Syrad, Rofin, etc. The marking area is from 400*400mm to 800*800mm. The supper galvo head can be chosen for bigger marking area and more beautiful marking effect.

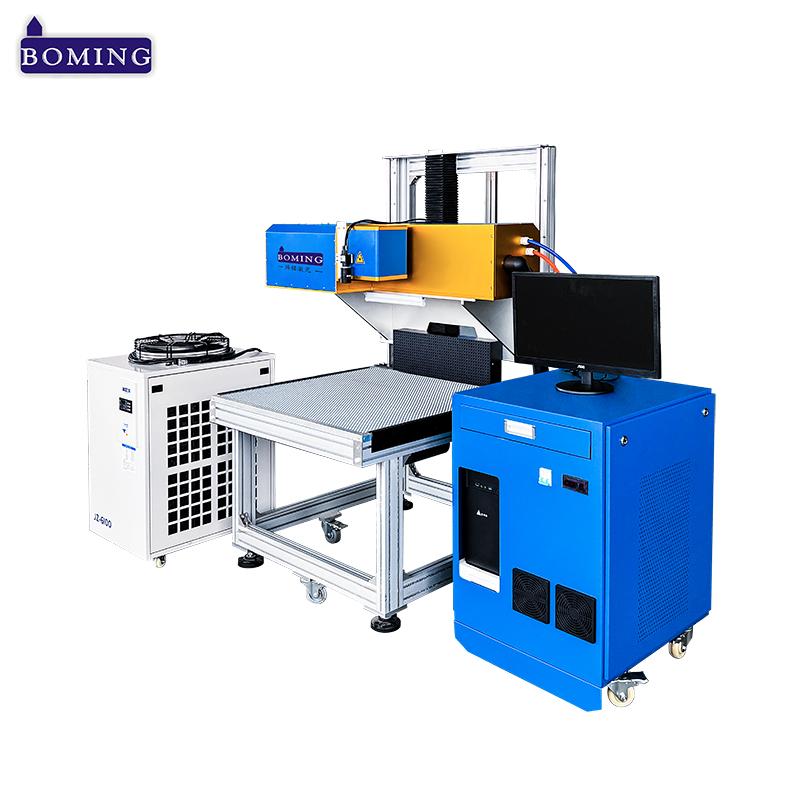

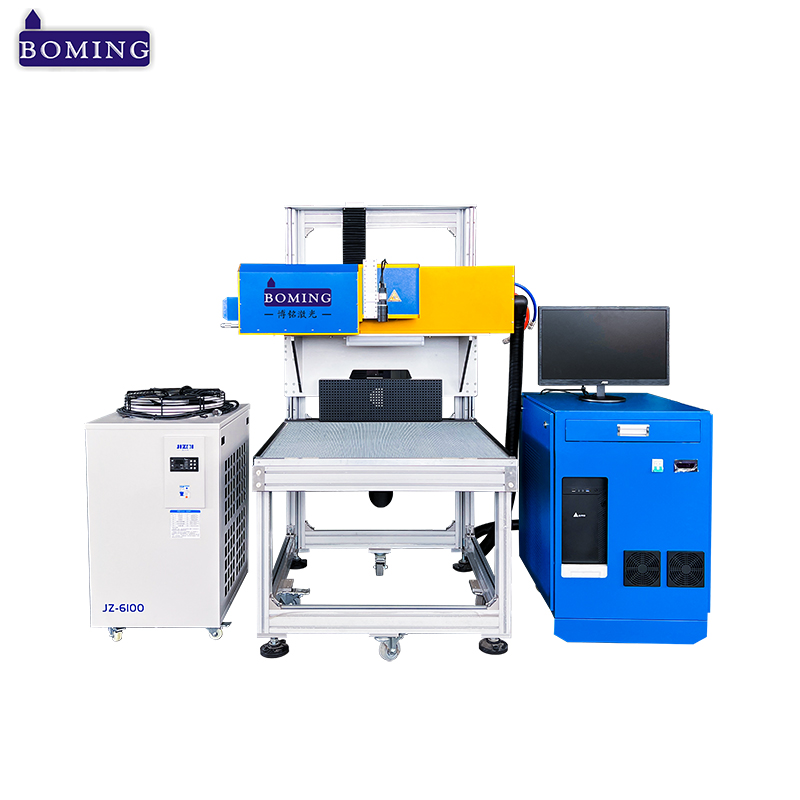

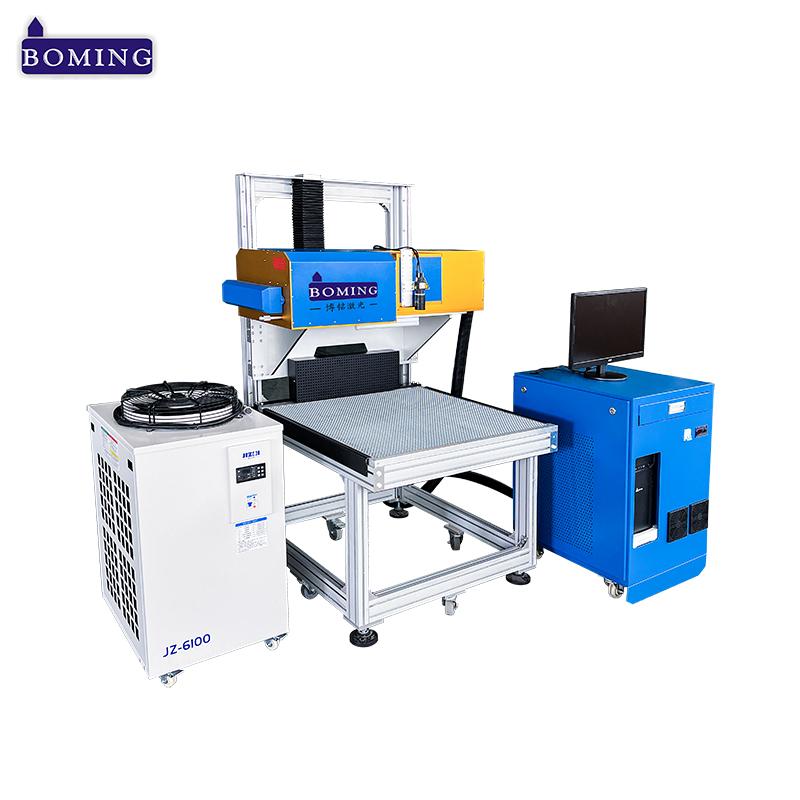

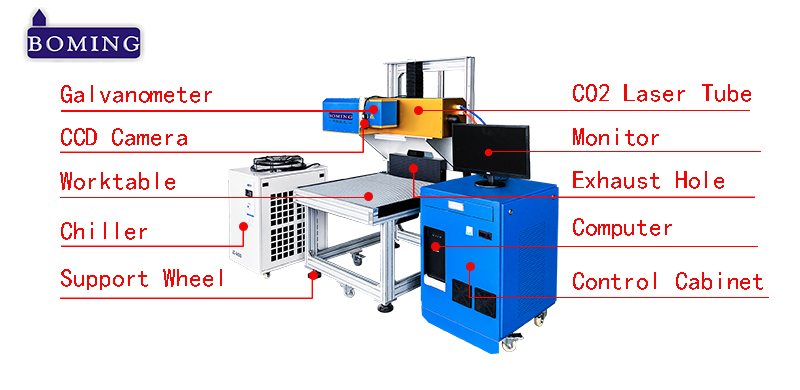

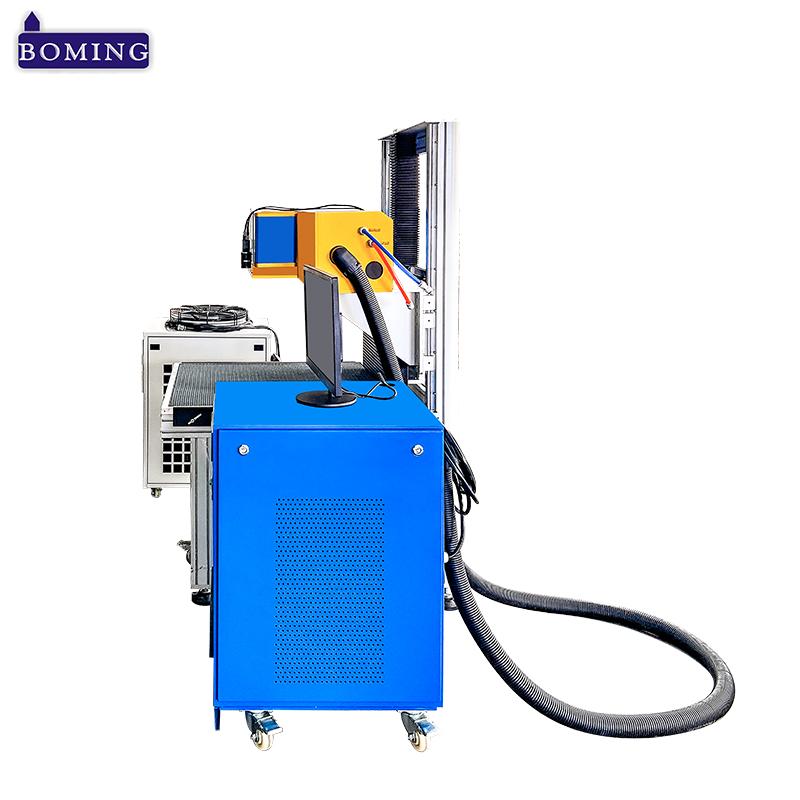

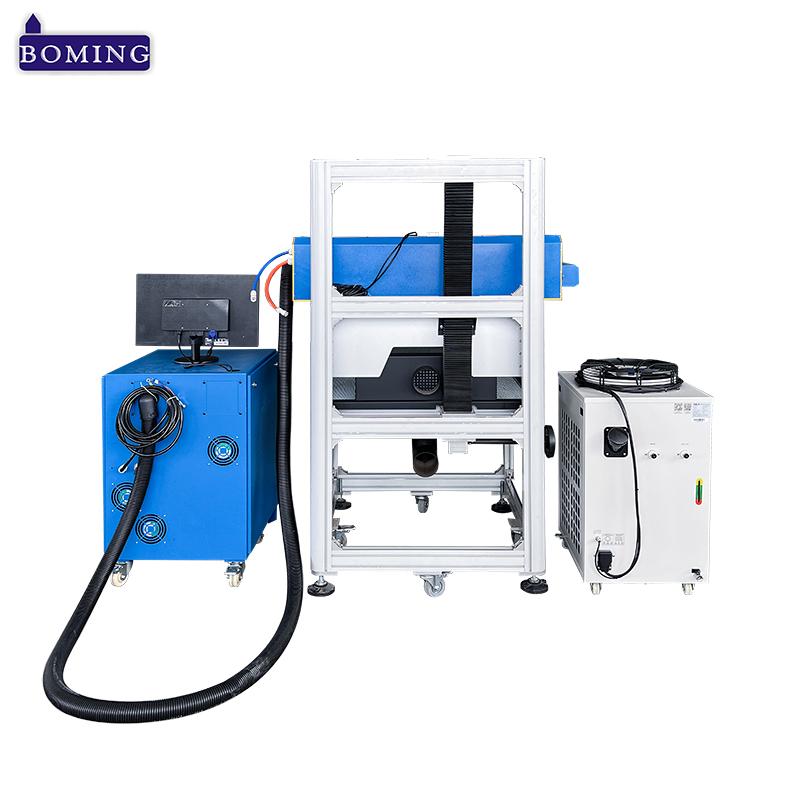

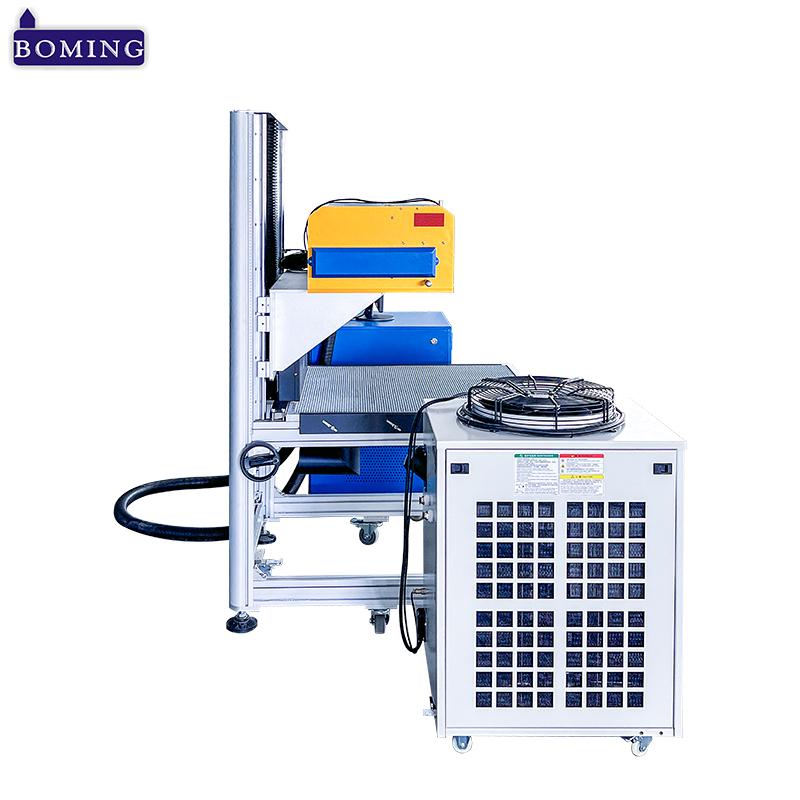

Machine pictures: of ccd laser marking machine
Features:of co2 laser marking machine with camera
1、Laser marking machine has high accuracy、 fast speed、 long continuous working time and free maintenance, the engraving depth can be controlled.
2、Can choose the imported or China CO2 RF laser which has good light beam and uniform density of optical power.
3、It adopts red light positioning system to make the position more accurate, avoiding the waste.
4、The industrial high precision temperature control chiller effectively ensures the stable output of laser and long life time.
5、The light seat can be manually adjusted up and down meeting the requirement of processing 300mm-600mm working area.
Advantage: of camera laser marking machine
1、The laser marking is non-toxic, non-deformation, non-polluting, wear-resistant；
2、Stable performance, moderate price, the marking depth can be controlled at will, and it can work for a long time.
3、It adopts an integrated design structure and a new light path sealing method, which is generally stable and reliable, and has a beautiful and high-grade appearance.
4、Inherit the maturity and practicability of previous generations of solid-state laser marking machines, and further improve the stability of the whole machine by upgrading the software and control system.
5、 It can mark any information such as graphic logos and texts, and has the characteristics of fine and beautiful marking patterns and wear-resistant.
Applicable Industries:of 250w co2 galvo laser cutter
Craft gift, furniture, leather and garment, Advertising signs, model making, food packaging,
electronic components, medical packaging, plate making and printing, nameplates, etc.
Applicable Materials: of acrylic invitation card laser making machine
Non-metallic materials, such as leather、wood、bamboo ware、organic glass、ceramics、acrylic、stone、denim jeans、sole、EVA、PU、PVC、plastic、marble、jade、crystal、paper、slipper、invitation card, etc.
Technical Parameters:of co2 180w laser marking machine
Technical Parameters | |
Laser | From China |
Laser Capacity | 100w 150W 180W 250W 350W |
Laser wave length | 10.6um |
Optical quality | M2<1.5 |
Laser repetition frequency | ≤100KHZ |
Standard marking area(mm) | 600*600 |
Optional marking area(mm) | 400*400-800*800mm |
Marking depth | ≤1.2mm |
Engraving speed | ≤12000mm/s |
Marking Speed | 600-1000 character/min |
Min line width | 0.01mm |
Min character | 0.05mm |
Repeated accuracy | ±0.001 |
Operating environment | Clean, without dust or less dust |
Total power | ≤16KW |
Power supply | AC220±10%,50HZ,60A |
Cooling way | Water cooling |
Working temperature | 0~45℃ |
Working humidity | 5~95% |
Sample show:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Why choose us:
1. 18 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Six advantanges:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
